蓝牙 BLE GATT 剖析(一)

原创 2016年05月31日 05:46:51

一.概述

The Generic Attribute Profile (GATT) defines a service framework using the
Attribute Protocol. This framework defines proceduresand formats of services
and their characteristics. The proceduresdefined include discovering, reading,
writing, notifying and indicating characteristics, as well asconfiguring the
broadcast of characteristics.

二.架构


三.ATT属性table

四.GATT profile层次


1.SERVICE DEFINITION


2.INCLUDE DEFINITION


3.CHARACTERISTIC DEFINITION

1)Characteristic Declaration


Characteristic Declaration

2)Characteristic Value Declaration


3)Characteristic Descriptor Declarations

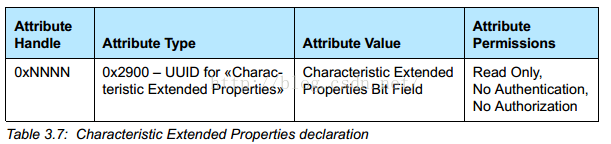

①Characteristic Extended Properties

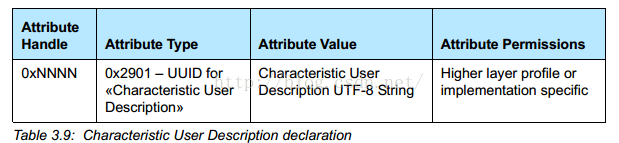

②Characteristic User Description

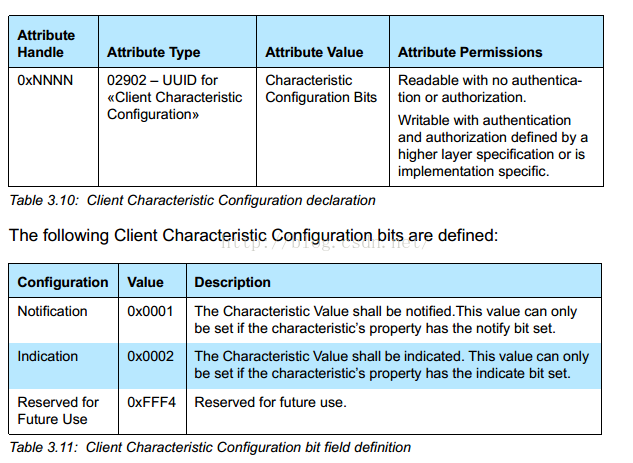

③Client Characteristic Configuration

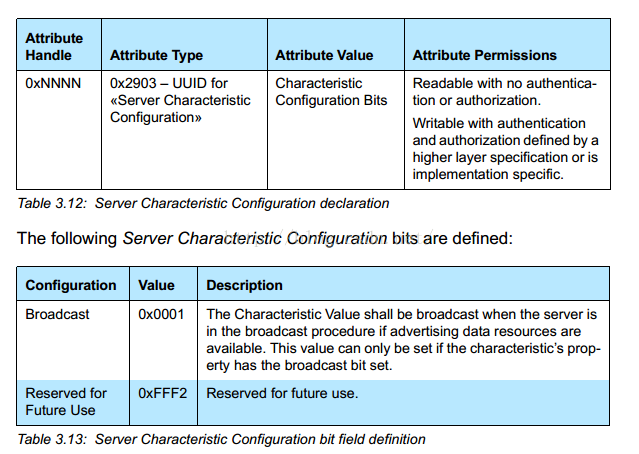

④Server Characteristic Configuration

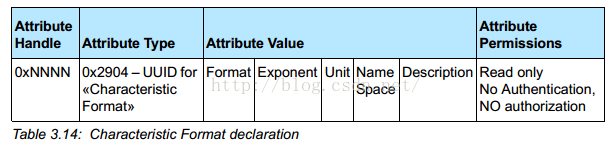

⑤Characteristic Presentation Format

⑥Characteristic Aggregate Format


4.SUMMARY OF GATTPROFILE ATTRIBUTE TYPES


五.GATT FEATURE REQUIREMENTS

There are 11 features defined in the GATT Profile:
1. Server Configuration
2. Primary Service Discovery
3. Relationship Discovery
4. Characteristic Discovery
5. Characteristic Descriptor Discovery
6. Reading a Characteristic Value
7. Writing a Characteristic Value
8. Notification of a Characteristic Value
9. Indication of a Characteristic Value
10.Reading a Characteristic Descriptor
11.Writing a Characteristic Descriptor
具体GATT feature交互参照core4.2

GATT PROCEDURE MAPPING TO ATT PROTOCOL OPCODES
