带点击事件的升级版请点击我的另一篇博客:点击打开博客链接

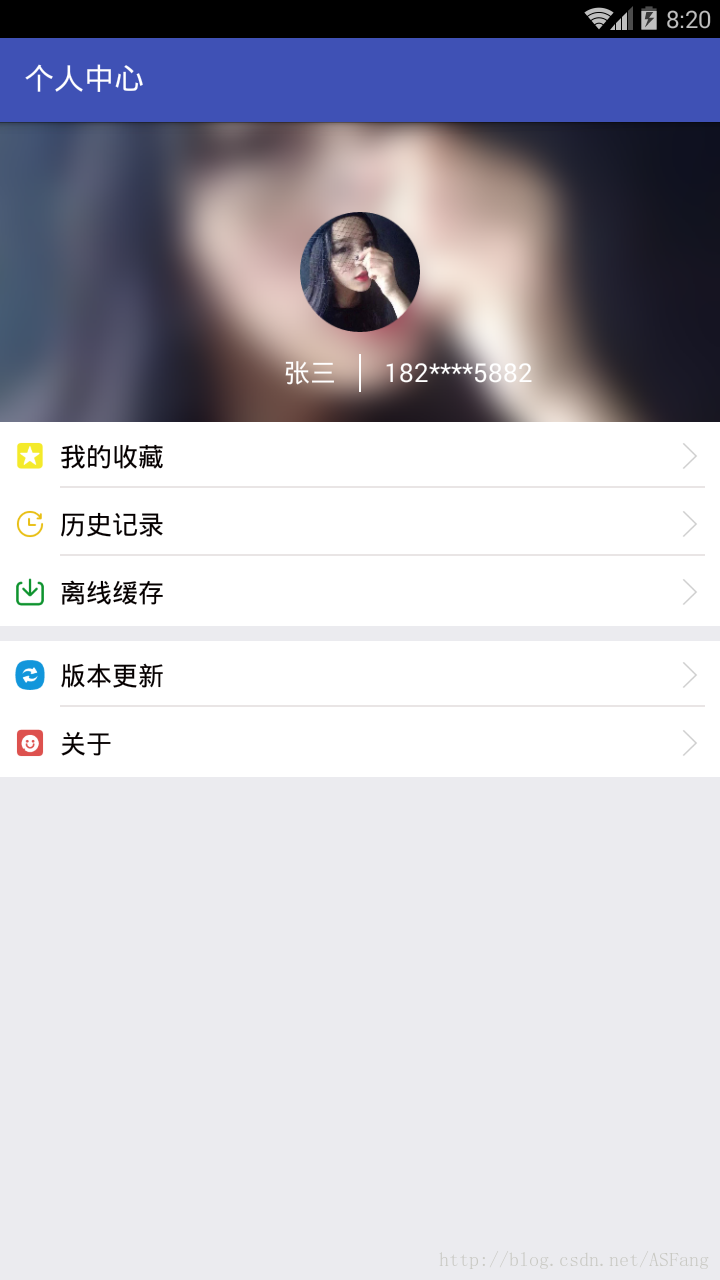

本先上效果图:
1.顶部磨砂图像背景以及圆形头像实现:
1)build.gradle中添加以下依赖:
compile 'com.github.bumptech.glide:glide:3.7.0'
compile 'jp.wasabeef:glide-transformations:2.0.1'
2)画布局
RelativeLayout

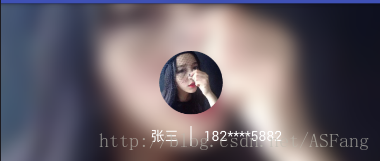

效果图:
布局代码
<RelativeLayout
android:layout_width="match_parent"
android:layout_height="wrap_content">
<ImageView
android:id="@+id/h_back"
android:layout_width="match_parent"
android:layout_height="200dp" />
<ImageView
android:id="@+id/h_head"
android:layout_width="80dp"
android:layout_height="80dp"
android:layout_centerInParent="true" />
<RelativeLayout
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:layout_alignBottom="@id/h_back"
android:orientation="horizontal"
android:layout_marginBottom="20dp">
<ImageView
android:id="@+id/user_line"
android:layout_width="1dp"
android:layout_height="25dp"
android:layout_marginLeft="15dp"
android:layout_centerHorizontal="true"
android:background="@color/white"/>
<TextView
android:id="@+id/user_name"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_toLeftOf="@id/user_line"
android:textSize="17sp"
android:textColor="@color/white"
android:text="张三"/>
<TextView
android:id="@+id/user_val"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_marginLeft="15dp"
android:textSize="17sp"
android:textColor="@color/white"
android:layout_toRightOf="@id/user_line"
android:text="182****5882"/>
</RelativeLayout>
</RelativeLayout>
Java代码:
Glide.with(this).load(R.drawable.head)
.bitmapTransform(new BlurTransformation(this, 25), new CenterCrop(this))
.into(blurImageView);
Glide.with(this).load(R.drawable.head)
.bitmapTransform(new CropCircleTransformation(this))
.into(avatarImageView);
以上就是实现头部磨砂布局代码
2.下面讲个人中心实现
经分析我们发现这个列表项都是相同的重复布局,只是前面的图标和中间的文字是不同,那么我们可以考虑自定义一个布局,通过自定义属性设置它的图标和文字。然后放到一个LinearLayout布局中就可以实现这个列表界面。

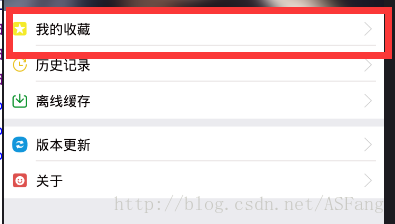

1)自定义一个布局,实现如图效果:

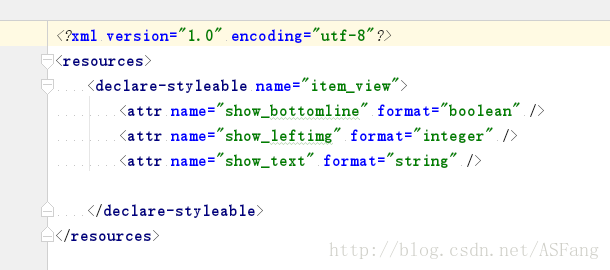

2)自定义属性参数
顺序分别为:是否显示下划线/左边图标/显示的文字

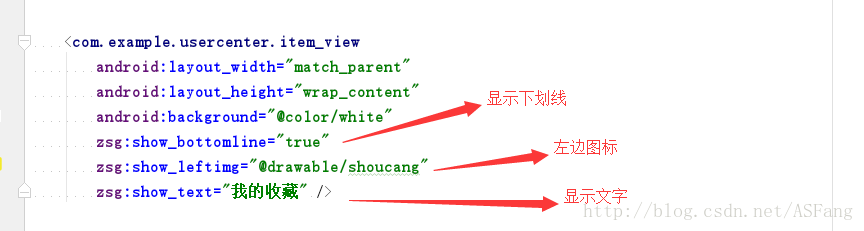

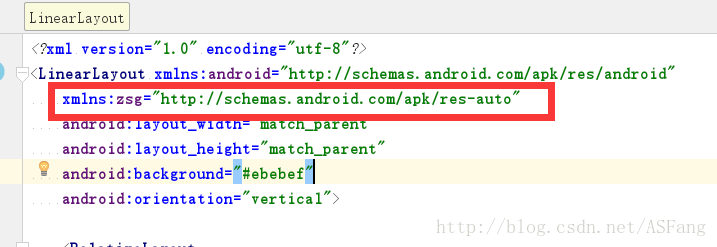

3)布局中引入自定义的命名空间/设置相关属性

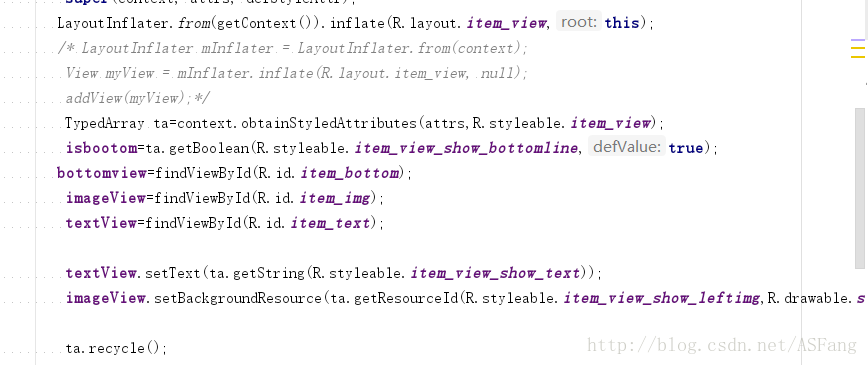

4)自定义view继承LinearLayout
获取设置的属性,动态设置给对应的控件
解释代码:
加载布局LayoutInflater.from(getContext()).inflate(R.layout.item_view,this);
获取设置属性对象:
TypedArray ta=context.obtainStyledAttributes(attrs,R.styleable.item_view);
获取控件,设置属性值:isbootom = ta.getBoolean(R.styleable.item_view_show_bottomline, true);
bottomview = findViewById(R.id.item_bottom);
imageView = findViewById(R.id.item_img); textView = findViewById(R.id.item_text); textView.setText(ta.getString(R.styleable.item_view_show_text)); imageView.setBackgroundResource(ta.getResourceId(R.styleable.item_view_show_leftimg, R.drawable.setting));回收属性对象:ta.recycle();
以上就是完整实现设置中心的代码。想要项目代码,下载地址。
