父工程的pom.xml
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<groupId>cn.hello</groupId>
<artifactId>hello-parent</artifactId>
<version>0.0.1-SNAPSHOT</version>
<packaging>pom</packaging>
<modules>
<module>hello-dao</module>
<module>hello-service</module>
<module>hello-web</module>
<module>hello-common</module>
</modules>
<!-- 初始化框架的版本号 -->
<properties>
<spring.version>4.3.7.RELEASE</spring.version>
<jdk.version>1.7</jdk.version>
<mysql.version>5.1.38</mysql.version>
<druid.version>1.0.28</druid.version>
<mybatis.version>3.2.5</mybatis.version>
<log4j.version>1.2.17</log4j.version>
<junit.version>4.12</junit.version>
<freemarker.version>2.3.23</freemarker.version>
<mybatis.spring.version>1.3.0</mybatis.spring.version>
<servlet.api.version>2.5</servlet.api.version>
<jsp.api.version>2.0</jsp.api.version>
<fastjson.version>1.2.30</fastjson.version>
<json.lib.version>2.4</json.lib.version>
<commons.fileupload.version>1.3.1</commons.fileupload.version>
<slf4j.version>1.7.2</slf4j.version>
</properties>
<dependencies>
<!-- 引入Spring(包含SpringMVC) 依赖 start -->
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-core</artifactId>
<version>${spring.version}</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-web</artifactId>
<version>${spring.version}</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-oxm</artifactId>
<version>${spring.version}</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-tx</artifactId>
<version>${spring.version}</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-jdbc</artifactId>
<version>${spring.version}</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-webmvc</artifactId>
<version>${spring.version}</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-aop</artifactId>
<version>${spring.version}</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-context-support</artifactId>
<version>${spring.version}</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-test</artifactId>
<version>${spring.version}</version>
</dependency>
<!-- 引入Spring 依赖 end -->
<!-- 加入ServletAPI -->
<!-- https://mvnrepository.com/artifact/javax.servlet/javax.servlet-api -->
<dependency>
<groupId>javax.servlet</groupId>
<artifactId>servlet-api</artifactId>
<version>${servlet.api.version}</version>
<scope>provided</scope>
</dependency>
<dependency>
<groupId>javax.servlet</groupId>
<artifactId>jsp-api</artifactId>
<version>${jsp.api.version}</version>
<scope>provided</scope>
</dependency>
<!-- MySQL依赖 -->
<dependency>
<groupId>mysql</groupId>
<artifactId>mysql-connector-java</artifactId>
<version>${mysql.version}</version>
<scope>runtime</scope>
</dependency>
<!-- 引用druid数据源依赖 -->
<dependency>
<groupId>com.alibaba</groupId>
<artifactId>druid</artifactId>
<version>${druid.version}</version>
</dependency>
<!-- 加入MyBatis 依赖 -->
<dependency>
<groupId>org.mybatis</groupId>
<artifactId>mybatis</artifactId>
<version>${mybatis.version}</version>
</dependency>
<!-- 引用插件依赖:MyBatis整合Spring -->
<dependency>
<groupId>org.mybatis</groupId>
<artifactId>mybatis-spring</artifactId>
<version>${mybatis.spring.version}</version>
</dependency>
<!-- jackson -->
<!-- <dependency>
<groupId>com.fasterxml.jackson.core</groupId>
<artifactId>jackson-core</artifactId>
<version>2.8.5</version>
</dependency>
<dependency>
<groupId>com.fasterxml.jackson.core</groupId>
<artifactId>jackson-databind</artifactId>
<version>2.8.5</version>
</dependency>
<dependency>
<groupId>com.fasterxml.jackson.core</groupId>
<artifactId>jackson-annotations</artifactId>
<version>2.8.5</version>
</dependency> -->
<!-- 文件上传 -->
<dependency>
<groupId>commons-fileupload</groupId>
<artifactId>commons-fileupload</artifactId>
<version>${commons.fileupload.version}</version>
</dependency>
<!-- json-lib -->
<dependency>
<groupId>net.sf.json-lib</groupId>
<artifactId>json-lib</artifactId>
<version>${json.lib.version}</version>
<classifier>jdk15</classifier>
</dependency>
<!-- Log4j -->
<dependency>
<groupId>log4j</groupId>
<artifactId>log4j</artifactId>
<version>${log4j.version}</version>
</dependency>
<!-- fastjson -->
<dependency>
<groupId>com.alibaba</groupId>
<artifactId>fastjson</artifactId>
<version>${fastjson.version}</version>
</dependency>
<!-- slf4j -->
<dependency>
<groupId>org.slf4j</groupId>
<artifactId>slf4j-api</artifactId>
<version>${slf4j.version}</version>
</dependency>
<!-- slf4j -->
<dependency>
<groupId>org.slf4j</groupId>
<artifactId>slf4j-log4j12</artifactId>
<version>${slf4j.version}</version>
</dependency>
<!-- junit -->
<dependency>
<groupId>junit</groupId>
<artifactId>junit</artifactId>
<version>${junit.version}</version>
<scope>test</scope>
</dependency>
<!-- freemarker -->
<dependency>
<groupId>org.freemarker</groupId>
<artifactId>freemarker</artifactId>
<version>${freemarker.version}</version>
</dependency>
</dependencies>
<build>
<!-- 打包时候的包名 -->
<finalName>${project.artifactId}</finalName>
<plugins>
<!-- 设置编译版本为1.7 -->
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-compiler-plugin</artifactId>
<configuration>
<source>${jdk.version}</source>
<target>${jdk.version}</target>
<encoding>UTF-8</encoding>
</configuration>
</plugin>
<!-- 加入Tomcat插件 -->
<!-- <plugin>
<groupId>org.apache.tomcat.maven</groupId>
<artifactId>tomcat7-maven-plugin</artifactId>
<version>2.2</version>
<configuration>
可以灵活配置工程路径
<path>/hello</path>
可以灵活配置端口号
<port>8080</port>
</configuration>
</plugin> -->
</plugins>
<!--配置Maven 对resource文件 过滤 -->
<resources>
<resource>
<directory>src/main/resources</directory>
<filtering>true</filtering>
<!-- 包含 -->
<includes>
<include>**/*.properties</include>
<include>**/*.xml</include>
</includes>
</resource>
<resource>
<directory>src/main/java</directory>
<filtering>true</filtering>
<includes>
<include>**/*.properties</include>
<include>**/*.xml</include>
</includes>
</resource>
</resources>
</build>
</project>
common工程的pom.xml
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<parent>
<groupId>cn.hello</groupId>
<artifactId>hello-parent</artifactId>
<version>0.0.1-SNAPSHOT</version>
</parent>
<artifactId>hello-common</artifactId>
</project>
dao工程的pom.xml
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<parent>
<groupId>cn.hello</groupId>
<artifactId>hello-parent</artifactId>
<version>0.0.1-SNAPSHOT</version>
</parent>
<artifactId>hello-dao</artifactId>
</project>
dao工程的数据库配置文件(下面的spring配置文件里面有参数详解)
url:jdbc:mysql://192.168.184.128:3306/test?allowMultiQueries=true&useUnicode=true&characterEncoding=UTF-8
username:root
password:123456
filters:wall
maxActive:20
initialSize:2
maxWait:60000
minIdle:10
maxIdle:15
timeBetweenEvictionRunsMillis:60000
minEvictableIdleTimeMillis:300000
validationQuery:SELECT * from dual
testWhileIdle:true
testOnBorrow:false
testOnReturn:false
maxOpenPreparedStatements:20
removeAbandoned:true
removeAbandonedTimeout:1800
logAbandoned:true
poolPreparedStatements:true
maxPoolPreparedStatementPerConnectionSize:33
service工程的pom.xml
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<parent>
<groupId>cn.hello</groupId>
<artifactId>hello-parent</artifactId>
<version>0.0.1-SNAPSHOT</version>
</parent>
<artifactId>hello-service</artifactId>
<dependencies>
<dependency>
<groupId>cn.hello</groupId>
<artifactId>hello-dao</artifactId>
<version>0.0.1-SNAPSHOT</version>
</dependency>
</dependencies>
</project>
web工程的pom.xml
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<parent>
<groupId>cn.hello</groupId>
<artifactId>hello-parent</artifactId>
<version>0.0.1-SNAPSHOT</version>
</parent>
<artifactId>hello</artifactId>
<packaging>war</packaging>
<dependencies>
<dependency>
<groupId>cn.hello</groupId>
<artifactId>hello-service</artifactId>
<version>0.0.1-SNAPSHOT</version>
</dependency>
<dependency>
<groupId>cn.hello</groupId>
<artifactId>hello-common</artifactId>
<version>0.0.1-SNAPSHOT</version>
</dependency>
</dependencies>
</project>
web工程的spring配置文件(application.xml)
<?xml version="1.0" encoding="GBK"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:p="http://www.springframework.org/schema/p"
xmlns:context="http://www.springframework.org/schema/context" xmlns:tx="http://www.springframework.org/schema/tx"
xmlns:aop="http://www.springframework.org/schema/aop" xmlns:task="http://www.springframework.org/schema/task"
xmlns:mvc="http://www.springframework.org/schema/mvc"
xsi:schemaLocation="
http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-4.1.xsd
http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.1.xsd
http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-4.1.xsd
http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-3.0.xsd
http://www.springframework.org/schema/task http://www.springframework.org/schema/task/spring-task-4.1.xsd
http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc-4.1.xsd
">
<context:component-scan base-package="com"/>
<bean id="propertyConfigurer"
class="org.springframework.beans.factory.config.PropertyPlaceholderConfigurer">
<property name="locations">
<list>
<value>classpath:db.properties</value>
</list>
</property>
</bean>
<!-- 配置数据源 -->
<bean name="driverManagerDataSource" class="com.alibaba.druid.pool.DruidDataSource"
init-method="init" destroy-method="close">
<!-- 数据库基本信息配置 -->
<property name="url" value="${url}" />
<property name="username" value="${username}" />
<property name="password" value="${password}" />
<property name="filters" value="${filters}" />
<!-- 最大并发连接数 -->
<property name="maxActive" value="${maxActive}" />
<!-- 初始化连接数量 -->
<property name="initialSize" value="${initialSize}" />
<!-- 配置获取连接等待超时的时间 -->
<property name="maxWait" value="${maxWait}" />
<!-- 最小空闲连接数 -->
<property name="minIdle" value="${minIdle}" />
<!-- 配置间隔多久才进行一次检测,检测需要关闭的空闲连接,单位是毫秒 -->
<property name="timeBetweenEvictionRunsMillis" value="${timeBetweenEvictionRunsMillis}" />
<!-- 配置一个连接在池中最小生存的时间,单位是毫秒 -->
<property name="minEvictableIdleTimeMillis" value="${minEvictableIdleTimeMillis}" />
<property name="validationQuery" value="${validationQuery}" />
<property name="testWhileIdle" value="${testWhileIdle}" />
<property name="testOnBorrow" value="${testOnBorrow}" />
<property name="testOnReturn" value="${testOnReturn}" />
<property name="maxOpenPreparedStatements" value="${maxOpenPreparedStatements}" />
<!-- 打开 removeAbandoned 功能 -->
<property name="removeAbandoned" value="${removeAbandoned}" />
<!-- 1800 秒,也就是 30 分钟 -->
<property name="removeAbandonedTimeout" value="${removeAbandonedTimeout}" />
<!-- 关闭 abanded 连接时输出错误日志 -->
<property name="logAbandoned" value="${logAbandoned}" />
<property name="poolPreparedStatements" value="${poolPreparedStatements}" />
<property name="maxPoolPreparedStatementPerConnectionSize"
value="${maxPoolPreparedStatementPerConnectionSize}" />
</bean>
<bean class="org.mybatis.spring.SqlSessionFactoryBean" id="sqlSessionFactoryBean">
<property name="dataSource" ref="driverManagerDataSource" />
<property name="mapperLocations" value="classpath:mapper/*.xml" />
</bean>
<bean class="org.mybatis.spring.mapper.MapperScannerConfigurer"
id="mapperScannerConfigurer">
<property name="basePackage" value="com.mapper" />
<property name="sqlSessionFactoryBeanName" value="sqlSessionFactoryBean" />
</bean>
<bean id="dataSourceTransactionManager"
class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
<property name="dataSource" ref="driverManagerDataSource" />
</bean>
</beans>
web工程的springmvc配置文件(application-mvc.xml)
<?xml version="1.0" encoding="GBK"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:p="http://www.springframework.org/schema/p"
xmlns:context="http://www.springframework.org/schema/context" xmlns:tx="http://www.springframework.org/schema/tx"
xmlns:aop="http://www.springframework.org/schema/aop" xmlns:task="http://www.springframework.org/schema/task"
xmlns:mvc="http://www.springframework.org/schema/mvc"
xsi:schemaLocation="
http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-4.1.xsd
http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.1.xsd
http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-4.1.xsd
http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-3.0.xsd
http://www.springframework.org/schema/task http://www.springframework.org/schema/task/spring-task-4.1.xsd
http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc-4.1.xsd
">
<context:component-scan base-package="com.controller" />
<mvc:annotation-driven >
<mvc:message-converters register-defaults="true">
<!-- 避免IE执行AJAX时,返回JSON出现下载文件 -->
<bean id="fastJsonHttpMessageConverter" class="com.alibaba.fastjson.support.spring.FastJsonHttpMessageConverter">
<property name="supportedMediaTypes">
<list>
<value>application/json;charset=UTF-8</value>
</list>
</property>
</bean>
</mvc:message-converters>
</mvc:annotation-driven>
<!--避免IE执行AJAX时,返回JSON出现下载文件 -->
<!-- <bean id="mappingJacksonHttpMessageConverter"
class="org.springframework.http.converter.json.MappingJackson2HttpMessageConverter">
<property name="supportedMediaTypes">
<list>
<value>text/html;charset=UTF-8</value>
</list>
</property>
</bean> -->
<!-- 启动SpringMVC的注解功能,完成请求和注解POJO的映射 -->
<!-- <bean
class="org.springframework.web.servlet.mvc.annotation.AnnotationMethodHandlerAdapter">
<property name="messageConverters">
<list>
<ref bean="mappingJacksonHttpMessageConverter" /> JSON转换器
</list>
</property>
</bean> -->
<!-- 定义跳转的文件的前后缀 ,视图模式配置-->
<!-- <bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
这里的配置我的理解是自动给后面action的方法return的字符串加上前缀和后缀,变成一个 可用的url地址
<property name="prefix" value="/WEB-INF/jsp/" />
<property name="suffix" value=".jsp" />
</bean> -->
<!-- 配置文件上传,如果没有使用文件上传可以不用配置,当然如果不配,那么配置文件中也不必引入上传组件包 -->
<bean id="multipartResolver"
class="org.springframework.web.multipart.commons.CommonsMultipartResolver">
<!-- 默认编码 -->
<property name="defaultEncoding" value="utf-8" />
<!-- 文件大小最大值 -->
<property name="maxUploadSize" value="10485760000" />
<!-- 内存中的最大值 -->
<property name="maxInMemorySize" value="40960" />
</bean>
</beans>
log4j的配置文件
log4j.rootLogger=INFO, A1 ,R
log4j.appender.A1=org.apache.log4j.ConsoleAppender
log4j.appender.A1.layout=org.apache.log4j.PatternLayout
log4j.appender.A1.layout.ConversionPattern=%-d{yyyy-MM-dd HH\:mm\:ss} [%c]-[%p] %m%n
log4j.appender.R=org.apache.log4j.DailyRollingFileAppender
log4j.appender.R.file=${xdapp.root}/appLog/appLog
log4j.appender.R.DatePattern='_'yyyy-MM-dd'.log'
log4j.appender.R.ImmediateFlush=true
log4j.appender.R.Append=true
log4j.appender.R.layout=org.apache.log4j.PatternLayout
log4j.appender.R.layout.ConversionPattern=%p %t %c - %m%n
web工程的web.xml
<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns="http://xmlns.jcp.org/xml/ns/javaee"
xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_3_1.xsd"
id="WebApp_ID" version="3.1">
<display-name>test-web</display-name>
<welcome-file-list>
<welcome-file>index.jsp</welcome-file>
</welcome-file-list>
<!-- Spring和mybatis的配置文件 -->
<context-param>
<param-name>contextConfigLocation</param-name>
<param-value>classpath*:application.xml</param-value>
</context-param>
<!-- Spring MVC servlet -->
<servlet>
<servlet-name>SpringMVC</servlet-name>
<servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
<init-param>
<param-name>contextConfigLocation</param-name>
<param-value>classpath*:application-mvc.xml</param-value>
</init-param>
<load-on-startup>1</load-on-startup>
<async-supported>true</async-supported>
</servlet>
<servlet-mapping>
<servlet-name>SpringMVC</servlet-name>
<!-- 此处可以可以配置成*.do,对应struts的后缀习惯 -->
<url-pattern>/</url-pattern>
</servlet-mapping>
<!-- 编码过滤器 -->
<filter>
<filter-name>encodingFilter</filter-name>
<filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
<async-supported>true</async-supported>
<init-param>
<param-name>encoding</param-name>
<param-value>UTF-8</param-value>
</init-param>
</filter>
<filter-mapping>
<filter-name>encodingFilter</filter-name>
<url-pattern>/*</url-pattern>
</filter-mapping>
<!-- 浏览器不支持put,delete等method,由该filter将/xxx?_method=delete转换为标准的http delete方法 -->
<filter>
<filter-name>HiddenHttpMethodFilter</filter-name>
<filter-class>org.springframework.web.filter.HiddenHttpMethodFilter</filter-class>
</filter>
<filter-mapping>
<filter-name>HiddenHttpMethodFilter</filter-name>
<servlet-name>SpringMVC</servlet-name>
</filter-mapping>
<!-- 防止Spring内存溢出监听器 -->
<listener>
<listener-class>org.springframework.web.util.IntrospectorCleanupListener</listener-class>
</listener>
<!-- Spring监听器 -->
<listener>
<listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
</listener>
</web-app>

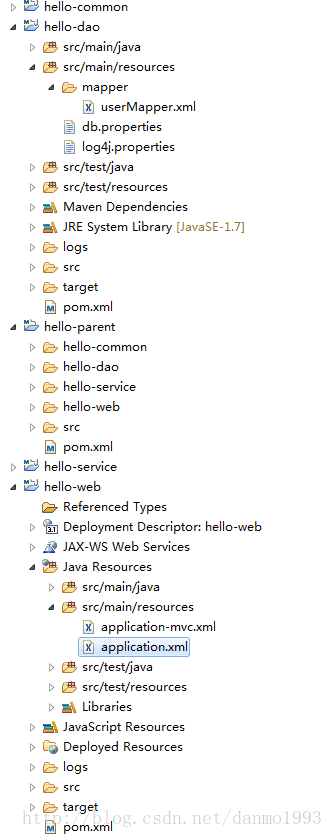

项目结构,一个简单的dao,service,controller(web)三层结构maven工程
