前面分析了BeanDefinition在IOC容器中的载入和解析过程。在这些动作完成以后，用户定义的BeanDefinition信息已经在容器内建立起了自己的数据结构以及相应的数据表示，但此时这些数据不能供IOC容器直接使用，需要在IOC容器中对这些BeanDefinition数据进行注册。这个注册为IOC容器提供了更友好的使用方式，在DefaultListableBeanFactory中，是通过HashMap来持有载入的BeanDefinition，这个HashMap的定义在DefaultListableBeanFactory中可以看到，如下：
/** Map from serialized id to factory instance */
private static final Map<String, Reference<DefaultListableBeanFactory>> serializableFactories =
new ConcurrentHashMap<String, Reference<DefaultListableBeanFactory>>(8);

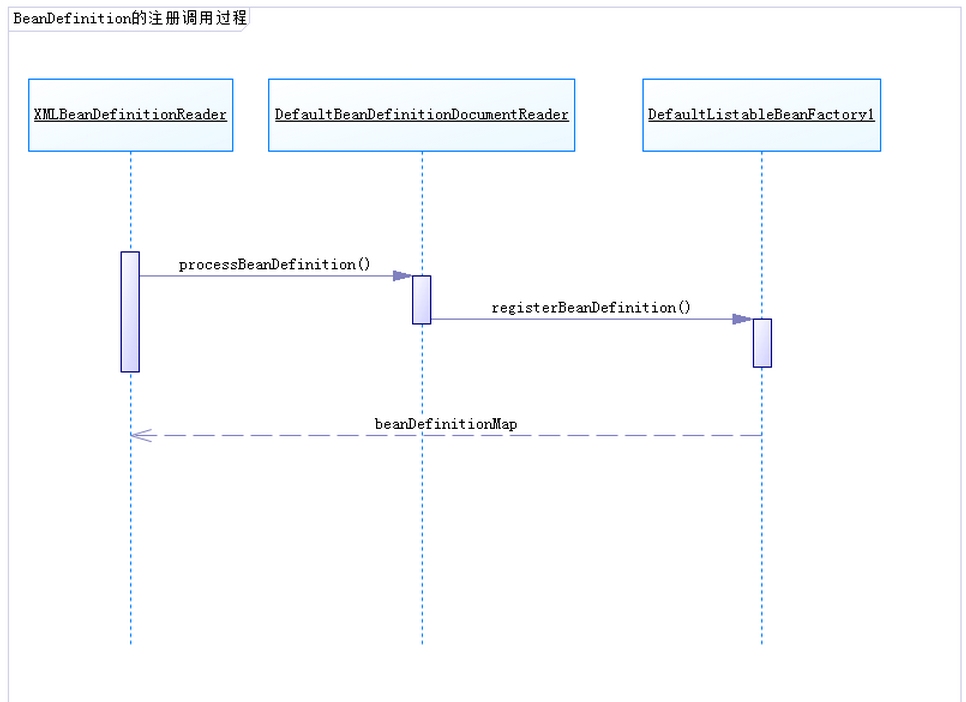

在DefaultListableBeanFactory中实现了BeanDefinitionRegistry的接口，这个接口的实现完成了BeanDefinition向容器的注册。这个注册过程不复杂，就是把解析得到的BeanDefinition设置到HashMap中去。需要注意的是，如果遇到同名的BeanDefinition，进行处理的时候需要依据allowBeanDefinitionOverriding的配置来完成，代码如下：
//---------------------------------------------------------------------
// Implementation of BeanDefinitionRegistry interface
//---------------------------------------------------------------------
public void registerBeanDefinition(String beanName, BeanDefinition beanDefinition)
throws BeanDefinitionStoreException {
Assert.hasText(beanName, "Bean name must not be empty");
Assert.notNull(beanDefinition, "BeanDefinition must not be null");
if (beanDefinition instanceof AbstractBeanDefinition) {
try {
((AbstractBeanDefinition) beanDefinition).validate();
}
catch (BeanDefinitionValidationException ex) {
throw new BeanDefinitionStoreException(beanDefinition.getResourceDescription(), beanName,
"Validation of bean definition failed", ex);
}
}
// 注册过程需要synchronized，保证数据的一致性
synchronized (this.beanDefinitionMap) {
// 这里检查是不是有相同名字的BeanDefinition已经在IOC容器中注册了，如果有相同名字的BeanDefinition
// 但又不允许覆盖，那会抛出异常
Object oldBeanDefinition = this.beanDefinitionMap.get(beanName);
if (oldBeanDefinition != null) {
if (!this.allowBeanDefinitionOverriding) {
throw new BeanDefinitionStoreException(beanDefinition.getResourceDescription(), beanName,
"Cannot register bean definition [" + beanDefinition + "] for bean '" + beanName +
"': There is already [" + oldBeanDefinition + "] bound.");
}
else {
if (this.logger.isInfoEnabled()) {
this.logger.info("Overriding bean definition for bean '" + beanName +
"': replacing [" + oldBeanDefinition + "] with [" + beanDefinition + "]");
}
}
}
// 这是正常注册BeanDefinition的过程，把Bean的名字存入到BeanDefinitionNames的同时，把BeanName作为
// Map的key，把beanDefinition作为value存入到IOC容器持有的beanDefinitionMap中去
else {
this.beanDefinitionNames.add(beanName);
this.frozenBeanDefinitionNames = null;
}
this.beanDefinitionMap.put(beanName, beanDefinition);
}
resetBeanDefinition(beanName);
}完成BeanDefinition的注册，就完成了IOC容器的初始化过程。此时，在使用IOC容器DefaultListableBeanFactory中已经建立了整个Bean的配置信息，而且这些BeanDefinition已经可以被容器使用了，他们都在BeanDefinitionMap里被检索和使用。容器的作用就是对这些信息进行处理和维护，这些信息时容器建立以来反转的基础，下面我们看看依赖注入是怎么完成的。
4、IOC容器的依赖注入
上面对IOC容器的初始化进行了详细的分析，这个初始化过程完成的主要工作是在IOC容器中建立BeanDefinition的数据映射。在此过程中并没有看到IOC容器对Bean依赖关系进行注入，接下来分析一下IOC容器是怎样对Bean的依赖关系进行注入的。

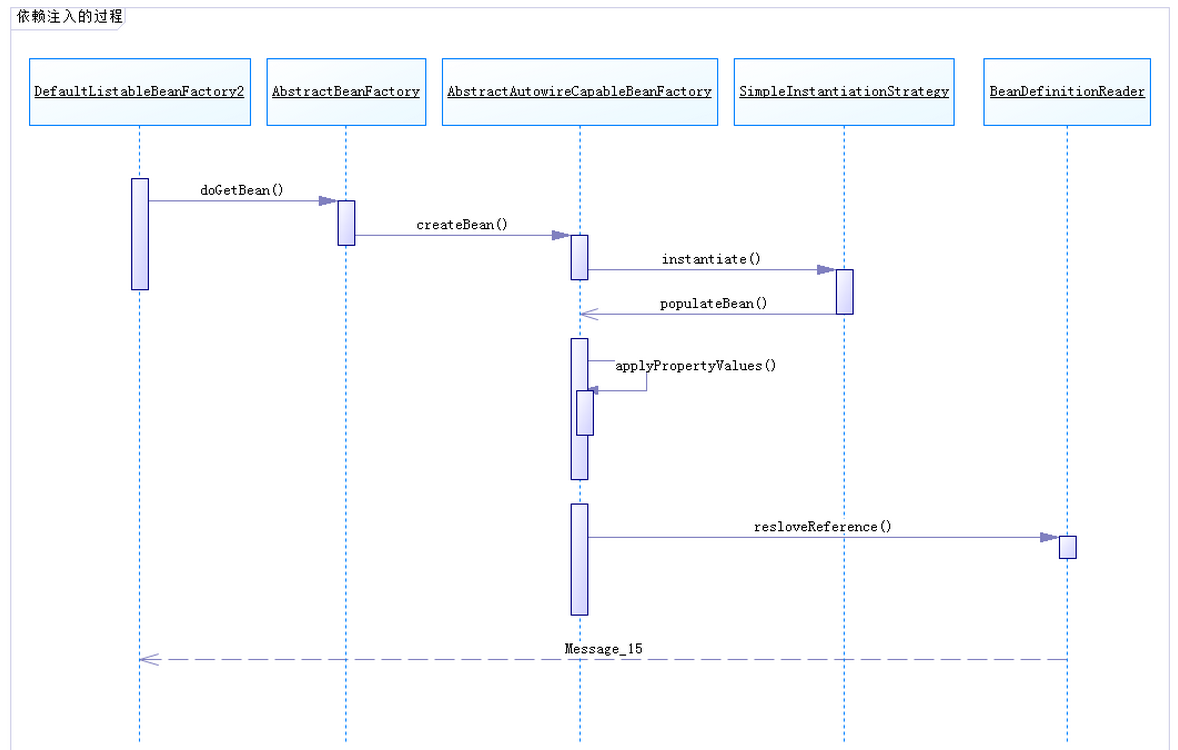

假设当前IOC容器已经载入了用户定义的Bean信息，开始分析依赖注入的原理。首先，注意到依赖注入的过程是用户第一次想IOC容器索要Bean时触发的，当然，也有例外，也就是我们可以在BeanDefinition信息中通过控制lazy-init属性来让容器完成Bean的预实例化。这个预实例化实际上也是一个完成依赖注入的过程，但他是在初始化的过程中完成的，稍后我们会详细分析这个预实例化处理。当用户向IOC容器索要Bean时，如果读者还有印象那一定还记得在基本的IOC容器接口BeanFactory中有一个getBean的接口定义，这个接口的实现就是触发依赖注入发生的地方。下面从DefaultListableBeanFactory的基类 AbstractBeanFactory入手去看看getBean的实现，代码如下:
//---------------------------------------------------------------------
// Implementation of BeanFactory interface
//---------------------------------------------------------------------
// AbstractBeanFactory extends FactoryBeanRegistrySupport implements ConfigurableBeanFactory
public Object getBean(String name) throws BeansException {
return doGetBean(name, null, null, false);
}
public <T> T getBean(String name, Class<T> requiredType) throws BeansException {
return doGetBean(name, requiredType, null, false);
}
public Object getBean(String name, Object... args) throws BeansException {
return doGetBean(name, null, args, false);
}下面是实际取得Bean的地方，也是触发依赖注入发生的地方
/**
* Return an instance, which may be shared or independent, of the specified bean.
* @param name the name of the bean to retrieve
* @param requiredType the required type of the bean to retrieve
* @param args arguments to use if creating a prototype using explicit arguments to a
* static factory method. It is invalid to use a non-null args value in any other case.
* @param typeCheckOnly whether the instance is obtained for a type check,
* not for actual use
* @return an instance of the bean
* @throws BeansException if the bean could not be created
*/
@SuppressWarnings("unchecked")
protected <T> T doGetBean(
final String name, final Class<T> requiredType, final Object[] args, boolean typeCheckOnly)
throws BeansException {
final String beanName = transformedBeanName(name);
Object bean;
// 先冲缓存中取得Bean，处理那些已经被创建过的单件模式的Bean，这个Bean的请求不需要重复创建
// Eagerly check singleton cache for manually registered singletons.
Object sharedInstance = getSingleton(beanName);
if (sharedInstance != null && args == null) {
if (logger.isDebugEnabled()) {
if (isSingletonCurrentlyInCreation(beanName)) {
logger.debug("Returning eagerly cached instance of singleton bean '" + beanName +
"' that is not fully initialized yet - a consequence of a circular reference");
}
else {
logger.debug("Returning cached instance of singleton bean '" + beanName + "'");
}
}
// 这里的getObjectForBeanInstance完成的是FactoryBean的相关处理，以取得FactoryBean的产生效果
// BeanFactory和FactoryBean的区别已经在前面讲过
bean = getObjectForBeanInstance(sharedInstance, name, beanName, null);
}
else {
// Fail if we're already creating this bean instance:
// We're assumably within a circular reference.
if (isPrototypeCurrentlyInCreation(beanName)) {
throw new BeanCurrentlyInCreationException(beanName);
}
// Check if bean definition exists in this factory.
// 这里对IOC容器中的BeanDefinition是否存在进行检查，检查是否能在当前的BeanFactory中取得需要的Bean，如果
// 当前的工厂中取不到，则到双亲BeanFactory中去取，如果当前的双亲工厂取不到，那就顺着BeanFactory链
// 一直向上找
BeanFactory parentBeanFactory = getParentBeanFactory();
if (parentBeanFactory != null && !containsBeanDefinition(beanName)) {
// Not found -> check parent.
String nameToLookup = originalBeanName(name);
if (args != null) {
// Delegation to parent with explicit args.
return (T) parentBeanFactory.getBean(nameToLookup, args);
}
else {
// No args -> delegate to standard getBean method.
return parentBeanFactory.getBean(nameToLookup, requiredType);
}
}
if (!typeCheckOnly) {
markBeanAsCreated(beanName);
}
try {
// 这里根据Bean的名字取得BeanDefinition
final RootBeanDefinition mbd = getMergedLocalBeanDefinition(beanName);
checkMergedBeanDefinition(mbd, beanName, args);
// 获取当前的Bean的所有依赖Bean，这样会触发getBean的递归调用，直到取到一个没有任何依赖的Bean为止
// Guarantee initialization of beans that the current bean depends on.
String[] dependsOn = mbd.getDependsOn();
if (dependsOn != null) {
for (String dependsOnBean : dependsOn) {
getBean(dependsOnBean);
registerDependentBean(dependsOnBean, beanName);
}
}
// Create bean instance.
// 这里通过调用createBean方法创建SingleTon Bean的实例，这里有一个回调函数getObject，会在getSingleTon
// 中调用ObjectFactory的createBean
// 下面会进入到createBean中进行详细分析
if (mbd.isSingleton()) {
sharedInstance = getSingleton(beanName, new ObjectFactory<Object>() {
public Object getObject() throws BeansException {
try {
return createBean(beanName, mbd, args);
}
catch (BeansException ex) {
// Explicitly remove instance from singleton cache: It might have been put there
// eagerly by the creation process, to allow for circular reference resolution.
// Also remove any beans that received a temporary reference to the bean.
destroySingleton(beanName);
throw ex;
}
}
});
bean = getObjectForBeanInstance(sharedInstance, name, beanName, mbd);
}
// 创建prototype
else if (mbd.isPrototype()) {
// It's a prototype -> create a new instance.
Object prototypeInstance = null;
try {
beforePrototypeCreation(beanName);
prototypeInstance = createBean(beanName, mbd, args);
}
finally {
afterPrototypeCreation(beanName);
}
bean = getObjectForBeanInstance(prototypeInstance, name, beanName, mbd);
}
else {
String scopeName = mbd.getScope();
final Scope scope = this.scopes.get(scopeName);
if (scope == null) {
throw new IllegalStateException("No Scope registered for scope '" + scopeName + "'");
}
try {
Object scopedInstance = scope.get(beanName, new ObjectFactory<Object>() {
public Object getObject() throws BeansException {
beforePrototypeCreation(beanName);
try {
return createBean(beanName, mbd, args);
}
finally {
afterPrototypeCreation(beanName);
}
}
});
bean = getObjectForBeanInstance(scopedInstance, name, beanName, mbd);
}
catch (IllegalStateException ex) {
throw new BeanCreationException(beanName,
"Scope '" + scopeName + "' is not active for the current thread; " +
"consider defining a scoped proxy for this bean if you intend to refer to it from a singleton",
ex);
}
}
}
catch (BeansException ex) {
cleanupAfterBeanCreationFailure(beanName);
throw ex;
}
}
// Check if required type matches the type of the actual bean instance.
// 对创建的Bean进行类型检查，如果没有问题就返回新建的Bean，这个Bean已经是包含了依赖关系的Bean
if (requiredType != null && bean != null && !requiredType.isAssignableFrom(bean.getClass())) {
try {
return getTypeConverter().convertIfNecessary(bean, requiredType);
}
catch (TypeMismatchException ex) {
if (logger.isDebugEnabled()) {
logger.debug("Failed to convert bean '" + name + "' to required type [" +
ClassUtils.getQualifiedName(requiredType) + "]", ex);
}
throw new BeanNotOfRequiredTypeException(name, requiredType, bean.getClass());
}
}
return (T) bean;
}这是依赖注入的入口，在这里出发了依赖注入，而依赖注入的发生是在容器中的BeanDefinition数据已经建立好的前提下进行的。“程序=数据+算法”，很经典，前面的BeanDefinition就是数据，下面看看这些数据是怎样为依赖注入服务的。虽然依赖注入的过程不涉及复杂的算法问题，但这个过程也不简单，我们都知道，对于IOC容器的使用，Spring提供了许多的参数配置，每一个参数配置实际上代表了一个IOC容器的实现特性，这些特性的实现很多都需要在依赖注入的过程中或者对Bean进行生命周期管理的过程 中完成。尽管可以用最简单的的方式来描述IOC容器，将他视为一个HashMap，但只能是这个hashMap，但只能说这个HashMap是容器的最基本的数据结构，而不是IOC容器的全部。Spring IOC容器作为一个产品，其价值体现在一系列相关的产品特性上，这些产品特性以依赖反转模式的实现为核心，为用户更好的使用依赖反转提供便利，从而实现了一个完整的IOC容器产品。这些产品特性的实现并不是一个简单的过程，他提供了一个成熟的IOC容器产品共用户使用。所以，尽管Spring IOC容器没有什么独特的算法，但却可以看出是一个成功的软件工程产品，有许多值得我们学习的地方。下面看一个依赖注入的大致过程：
重点来说，getBean是依赖注入的起点，之后会调用createBean，下面通过createBean代码来了解这个实现过程。在这个过程中，Bean对象会一局BeanDefinition定义的要求生成。在AbstractAutowireCapableBeanFactory中实现了这个createBean，createBean不但生成了需要的Bean，还对Bean初始化进行了处理，比如实现了在BeanDefinition中的init-method属性定义，Bean后置处理器等。具体代码如下：
/**
* Central method of this class: creates a bean instance,
* populates the bean instance, applies post-processors, etc.
* @see #doCreateBean
* class AbstractAutowireCapableBeanFactory extends AbstractBeanFactory implements
* AutowireCapableBeanFactory
*/
@Override
protected Object createBean(final String beanName, final RootBeanDefinition mbd, final Object[] args)
throws BeanCreationException {
if (logger.isDebugEnabled()) {
logger.debug("Creating instance of bean '" + beanName + "'");
}
// Make sure bean class is actually resolved at this point.
// 这里需要判断需要创建的Bean是否可以实例化，这个类是否可以通过类装载器来载入
resolveBeanClass(mbd, beanName);
// Prepare method overrides.
try {
mbd.prepareMethodOverrides();
}
catch (BeanDefinitionValidationException ex) {
throw new BeanDefinitionStoreException(mbd.getResourceDescription(),
beanName, "Validation of method overrides failed", ex);
}
try {
// Give BeanPostProcessors a chance to return a proxy instead of the target bean instance.
// 如果Bean配置了PostProcessor，那么这里返回的是一个proxy
Object bean = resolveBeforeInstantiation(beanName, mbd);
if (bean != null) {
return bean;
}
}
catch (Throwable ex) {
throw new BeanCreationException(mbd.getResourceDescription(), beanName,
"BeanPostProcessor before instantiation of bean failed", ex);
}
// 这里是创建Bean的调用
Object beanInstance = doCreateBean(beanName, mbd, args);
if (logger.isDebugEnabled()) {
logger.debug("Finished creating instance of bean '" + beanName + "'");
}
return beanInstance;
}接着到doCreateBean中看看Bean是怎样生成的
/**
* Actually create the specified bean. Pre-creation processing has already happened
* at this point, e.g. checking {@code postProcessBeforeInstantiation} callbacks.
* <p>Differentiates between default bean instantiation, use of a
* factory method, and autowiring a constructor.
* @param beanName the name of the bean
* @param mbd the merged bean definition for the bean
* @param args arguments to use if creating a prototype using explicit arguments to a
* static factory method. This parameter must be {@code null} except in this case.
* @return a new instance of the bean
* @throws BeanCreationException if the bean could not be created
* @see #instantiateBean
* @see #instantiateUsingFactoryMethod
* @see #autowireConstructor
*/
protected Object doCreateBean(final String beanName, final RootBeanDefinition mbd, final Object[] args) {
// Instantiate the bean.
// 这个BeanWrapper是用来持有创建出来的Bean对象的
BeanWrapper instanceWrapper = null;
// 如果是SingleTon，先把缓存中的同名Bean清除
if (mbd.isSingleton()) {
instanceWrapper = this.factoryBeanInstanceCache.remove(beanName);
}
// 这是创建Bean的地方，由createBeanInstance来完成
if (instanceWrapper == null) {
instanceWrapper = createBeanInstance(beanName, mbd, args);
}
final Object bean = (instanceWrapper != null ? instanceWrapper.getWrappedInstance() : null);
Class<?> beanType = (instanceWrapper != null ? instanceWrapper.getWrappedClass() : null);
// Allow post-processors to modify the merged bean definition.
synchronized (mbd.postProcessingLock) {
if (!mbd.postProcessed) {
applyMergedBeanDefinitionPostProcessors(mbd, beanType, beanName);
mbd.postProcessed = true;
}
}
// Eagerly cache singletons to be able to resolve circular references
// even when triggered by lifecycle interfaces like BeanFactoryAware.
boolean earlySingletonExposure = (mbd.isSingleton() && this.allowCircularReferences &&
isSingletonCurrentlyInCreation(beanName));
if (earlySingletonExposure) {
if (logger.isDebugEnabled()) {
logger.debug("Eagerly caching bean '" + beanName +
"' to allow for resolving potential circular references");
}
addSingletonFactory(beanName, new ObjectFactory<Object>() {
public Object getObject() throws BeansException {
return getEarlyBeanReference(beanName, mbd, bean);
}
});
}
// Initialize the bean instance.
// 这里是对Bean初始化、依赖注入往往这里发生，这个exposedObject在初始化处理完成以后会返回
// 作为依赖注入完成后的Bean
Object exposedObject = bean;
try {
populateBean(beanName, mbd, instanceWrapper);
if (exposedObject != null) {
exposedObject = initializeBean(beanName, exposedObject, mbd);
}
}
catch (Throwable ex) {
if (ex instanceof BeanCreationException && beanName.equals(((BeanCreationException) ex).getBeanName())) {
throw (BeanCreationException) ex;
}
else {
throw new BeanCreationException(mbd.getResourceDescription(), beanName, "Initialization of bean failed", ex);
}
}
if (earlySingletonExposure) {
Object earlySingletonReference = getSingleton(beanName, false);
if (earlySingletonReference != null) {
if (exposedObject == bean) {
exposedObject = earlySingletonReference;
}
else if (!this.allowRawInjectionDespiteWrapping && hasDependentBean(beanName)) {
String[] dependentBeans = getDependentBeans(beanName);
Set<String> actualDependentBeans = new LinkedHashSet<String>(dependentBeans.length);
for (String dependentBean : dependentBeans) {
if (!removeSingletonIfCreatedForTypeCheckOnly(dependentBean)) {
actualDependentBeans.add(dependentBean);
}
}
if (!actualDependentBeans.isEmpty()) {
throw new BeanCurrentlyInCreationException(beanName,
"Bean with name '" + beanName + "' has been injected into other beans [" +
StringUtils.collectionToCommaDelimitedString(actualDependentBeans) +
"] in its raw version as part of a circular reference, but has eventually been " +
"wrapped. This means that said other beans do not use the final version of the " +
"bean. This is often the result of over-eager type matching - consider using " +
"'getBeanNamesOfType' with the 'allowEagerInit' flag turned off, for example.");
}
}
}
}
// Register bean as disposable.
try {
registerDisposableBeanIfNecessary(beanName, bean, mbd);
}
catch (BeanDefinitionValidationException ex) {
throw new BeanCreationException(mbd.getResourceDescription(), beanName, "Invalid destruction signature", ex);
}
return exposedObject;
}在这里我们看到与依赖注入关系特别密切的方法有createBeanInstance何populateBean,下面分被介绍着两个方法。在createBeanInstance中生成了Bean所包含的Java对象，这个对象的生成有很多种不同的方式，可以通过工厂方法生成，也可以通过容器的autowire特性生成，这些生成方式都是由相关的BeanDefinition来指定的。代码如下：
/**
* Create a new instance for the specified bean, using an appropriate instantiation strategy:
* factory method, constructor autowiring, or simple instantiation.
* @param beanName the name of the bean
* @param mbd the bean definition for the bean
* @param args arguments to use if creating a prototype using explicit arguments to a
* static factory method. It is invalid to use a non-null args value in any other case.
* @return BeanWrapper for the new instance
* @see #instantiateUsingFactoryMethod
* @see #autowireConstructor
* @see #instantiateBean
*/
protected BeanWrapper createBeanInstance(String beanName, RootBeanDefinition mbd, Object[] args) {
// Make sure bean class is actually resolved at this point.
// 确认需要创建的Bean实例的类可以实例化
Class<?> beanClass = resolveBeanClass(mbd, beanName);
// 这里使用工厂方法对Bean进行实例化
if (beanClass != null && !Modifier.isPublic(beanClass.getModifiers()) && !mbd.isNonPublicAccessAllowed()) {
throw new BeanCreationException(mbd.getResourceDescription(), beanName,
"Bean class isn't public, and non-public access not allowed: " + beanClass.getName());
}
if (mbd.getFactoryMethodName() != null) {
return instantiateUsingFactoryMethod(beanName, mbd, args);
}
// Shortcut when re-creating the same bean...
boolean resolved = false;
boolean autowireNecessary = false;
if (args == null) {
synchronized (mbd.constructorArgumentLock) {
if (mbd.resolvedConstructorOrFactoryMethod != null) {
resolved = true;
autowireNecessary = mbd.constructorArgumentsResolved;
}
}
}
if (resolved) {
if (autowireNecessary) {
return autowireConstructor(beanName, mbd, null, null);
}
else {
return instantiateBean(beanName, mbd);
}
}
// Need to determine the constructor...
// 使用构造函数进行实例化
Constructor<?>[] ctors = determineConstructorsFromBeanPostProcessors(beanClass, beanName);
if (ctors != null ||
mbd.getResolvedAutowireMode() == RootBeanDefinition.AUTOWIRE_CONSTRUCTOR ||
mbd.hasConstructorArgumentValues() || !ObjectUtils.isEmpty(args)) {
return autowireConstructor(beanName, mbd, ctors, args);
}
// No special handling: simply use no-arg constructor.
// 使用默认的构造函数对Bean进行实例化
return instantiateBean(beanName, mbd);
}下面看看最常见的实例化过程instantiateBean
/**
* Instantiate the given bean using its default constructor.
* @param beanName the name of the bean
* @param mbd the bean definition for the bean
* @return BeanWrapper for the new instance
*/
protected BeanWrapper instantiateBean(final String beanName, final RootBeanDefinition mbd) {
// 使用默认的实例化策略对Bean进行实例化，默认的实例化策略时CglibSubclassingInstantiationStrategy
// 也就是使用Cglib来对Bean进行实例化，接着再看CglibSubclassingInstantiationStraegy的实现
try {
Object beanInstance;
final BeanFactory parent = this;
if (System.getSecurityManager() != null) {
beanInstance = AccessController.doPrivileged(new PrivilegedAction<Object>() {
public Object run() {
return getInstantiationStrategy().instantiate(mbd, beanName, parent);
}
}, getAccessControlContext());
}
else {
beanInstance = getInstantiationStrategy().instantiate(mbd, beanName, parent);
}
BeanWrapper bw = new BeanWrapperImpl(beanInstance);
initBeanWrapper(bw);
return bw;
}
catch (Throwable ex) {
throw new BeanCreationException(mbd.getResourceDescription(), beanName, "Instantiation of bean failed", ex);
}
}这里用CGLIB对Bean进行实例化，CGLIB是一个常用的字节码生成器的类库，他提供了一些列的API来提供生成和转换Java字节码功能。在Spring AOP中也使用了CGLIB对Java的字节码进行增强。在IOC容器中，要了解怎样使用CGLIB来生成Bean对象，需要看一下SimpleInstantiationStrategy类，这个Strategy是Spring用来生成Bean对象的默认类，他提供了两种实例化Java对象的方法，一种是通过BeanUtils，他使用了JVM的反射功能，一种是前面提到的CGLIB来生成，代码如下：
public Object instantiate(RootBeanDefinition beanDefinition, String beanName, BeanFactory owner) {
// Don't override the class with CGLIB if no overrides.
if (beanDefinition.getMethodOverrides().isEmpty()) {
// 这里取得指定的构造器或者生成的对象的工程方法来对Bean进行实例化
Constructor<?> constructorToUse;
synchronized (beanDefinition.constructorArgumentLock) {
constructorToUse = (Constructor<?>) beanDefinition.resolvedConstructorOrFactoryMethod;
if (constructorToUse == null) {
final Class<?> clazz = beanDefinition.getBeanClass();
if (clazz.isInterface()) {
throw new BeanInstantiationException(clazz, "Specified class is an interface");
}
try {
if (System.getSecurityManager() != null) {
constructorToUse = AccessController.doPrivileged(new PrivilegedExceptionAction<Constructor>() {
public Constructor<?> run() throws Exception {
return clazz.getDeclaredConstructor((Class[]) null);
}
});
}
else {
constructorToUse = clazz.getDeclaredConstructor((Class[]) null);
}
beanDefinition.resolvedConstructorOrFactoryMethod = constructorToUse;
}
catch (Exception ex) {
throw new BeanInstantiationException(clazz, "No default constructor found", ex);
}
}
}
// 通过BeanUtils进行实例化，这个BeanUtils的实例化通过Constructor来实例化Bean
// 在BeanUtils中可以看到具体的调用ctor.newInstance(args)
return BeanUtils.instantiateClass(constructorToUse);
}
else {
// Must generate CGLIB subclass.
// 使用CGLIB来实例化对象
return instantiateWithMethodInjection(beanDefinition, beanName, owner);
}
}在cglibSubclassingInstantiationStrategy中可以看到具体的实例化过程和CGLIB的使用方法，这里就不对CGLIB的使用进行过多的阐述了，如果读者有兴趣，可以去阅读CGLIB的使用文档，这里的Enhancer类，已经是CGLIB类了，通过这个Enhancer生成Java对象，使用Enhancer的create方法，代码如下：
/**
* Create a new instance of a dynamically generated subclasses implementing the
* required lookups.
* @param ctor constructor to use. If this is {@code null}, use the
* no-arg constructor (no parameterization, or Setter Injection)
* @param args arguments to use for the constructor.
* Ignored if the ctor parameter is {@code null}.
* @return new instance of the dynamically generated class
* class CglibSubclassingInstantiationStrategy extends SimpleInstantiationStrategy
*/
// 使用CGLIB的Enhancer生成Java对象
public Object instantiate(Constructor<?> ctor, Object[] args) {
// 生成Enhancer对象，并为Enhancer对象设置生成Java对象的参数，比如基类、回调方法等
Enhancer enhancer = new Enhancer();
enhancer.setSuperclass(this.beanDefinition.getBeanClass());
enhancer.setNamingPolicy(SpringNamingPolicy.INSTANCE);
enhancer.setCallbackFilter(new CallbackFilterImpl());
enhancer.setCallbacks(new Callback[] {
NoOp.INSTANCE,
new LookupOverrideMethodInterceptor(),
new ReplaceOverrideMethodInterceptor()
});
// 使用CGLIB的create生成实例化的Bean对象
return (ctor != null ? enhancer.create(ctor.getParameterTypes(), args) : enhancer.create());
}到这里已经分析了实例化Bean对象的整个过程，在实例化Bean对象生成的基础上，再介绍Spring是怎样对这些对象进行处理的，也就是Bean对象生成以后，怎样把这些Bean对象的依赖关系设置好，完成整个依赖注入过程。这个过程涉及对各种Bean对象的属性处理过程（依赖关系的处理过程）这些依赖关系处理的一局就是已经解析得到的BeanDefinition。要详细了解这个过程，需要回到前面的populateBean方法，在AbstractAutowireCapableBeanFactory中，代码如下：
/**
* Populate the bean instance in the given BeanWrapper with the property values
* from the bean definition.
* @param beanName the name of the bean
* @param mbd the bean definition for the bean
* @param bw BeanWrapper with bean instance
*/
protected void populateBean(String beanName, RootBeanDefinition mbd, BeanWrapper bw) {
// 这里取得在BeanDefinition中设置的property值，这个property来自对BeanDefinition的解析
// 具体的解析过程可以参看对载入和解析的BeanDefinition分析
PropertyValues pvs = mbd.getPropertyValues();
if (bw == null) {
if (!pvs.isEmpty()) {
throw new BeanCreationException(
mbd.getResourceDescription(), beanName, "Cannot apply property values to null instance");
}
else {
// Skip property population phase for null instance.
return;
}
}
// Give any InstantiationAwareBeanPostProcessors the opportunity to modify the
// state of the bean before properties are set. This can be used, for example,
// to support styles of field injection.
boolean continueWithPropertyPopulation = true;
if (!mbd.isSynthetic() && hasInstantiationAwareBeanPostProcessors()) {
for (BeanPostProcessor bp : getBeanPostProcessors()) {
if (bp instanceof InstantiationAwareBeanPostProcessor) {
InstantiationAwareBeanPostProcessor ibp = (InstantiationAwareBeanPostProcessor) bp;
if (!ibp.postProcessAfterInstantiation(bw.getWrappedInstance(), beanName)) {
continueWithPropertyPopulation = false;
break;
}
}
}
}
if (!continueWithPropertyPopulation) {
return;
}
// 开始依赖注入过程，先处理autowire的注入
if (mbd.getResolvedAutowireMode() == RootBeanDefinition.AUTOWIRE_BY_NAME ||
mbd.getResolvedAutowireMode() == RootBeanDefinition.AUTOWIRE_BY_TYPE) {
MutablePropertyValues newPvs = new MutablePropertyValues(pvs);
// Add property values based on autowire by name if applicable.
// 这里是对autowire注入的处理，可以根据Bean的名字或者类型
if (mbd.getResolvedAutowireMode() == RootBeanDefinition.AUTOWIRE_BY_NAME) {
autowireByName(beanName, mbd, bw, newPvs);
}
// Add property values based on autowire by type if applicable.
if (mbd.getResolvedAutowireMode() == RootBeanDefinition.AUTOWIRE_BY_TYPE) {
autowireByType(beanName, mbd, bw, newPvs);
}
pvs = newPvs;
}
boolean hasInstAwareBpps = hasInstantiationAwareBeanPostProcessors();
boolean needsDepCheck = (mbd.getDependencyCheck() != RootBeanDefinition.DEPENDENCY_CHECK_NONE);
if (hasInstAwareBpps || needsDepCheck) {
PropertyDescriptor[] filteredPds = filterPropertyDescriptorsForDependencyCheck(bw, mbd.allowCaching);
if (hasInstAwareBpps) {
for (BeanPostProcessor bp : getBeanPostProcessors()) {
if (bp instanceof InstantiationAwareBeanPostProcessor) {
InstantiationAwareBeanPostProcessor ibp = (InstantiationAwareBeanPostProcessor) bp;
pvs = ibp.postProcessPropertyValues(pvs, filteredPds, bw.getWrappedInstance(), beanName);
if (pvs == null) {
return;
}
}
}
}
if (needsDepCheck) {
checkDependencies(beanName, mbd, filteredPds, pvs);
}
}
// 对属性进行注入
applyPropertyValues(beanName, mbd, bw, pvs);通过applyPropertyValues了解具体的对属性进行解析然后注入过程
/**
* Apply the given property values, resolving any runtime references
* to other beans in this bean factory. Must use deep copy, so we
* don't permanently modify this property.
* @param beanName the bean name passed for better exception information
* @param mbd the merged bean definition
* @param bw the BeanWrapper wrapping the target object
* @param pvs the new property values
*/
protected void applyPropertyValues(String beanName, BeanDefinition mbd, BeanWrapper bw, PropertyValues pvs) {
if (pvs == null || pvs.isEmpty()) {
return;
}
MutablePropertyValues mpvs = null;
List<PropertyValue> original;
if (System.getSecurityManager() != null) {
if (bw instanceof BeanWrapperImpl) {
((BeanWrapperImpl) bw).setSecurityContext(getAccessControlContext());
}
}
if (pvs instanceof MutablePropertyValues) {
mpvs = (MutablePropertyValues) pvs;
if (mpvs.isConverted()) {
// Shortcut: use the pre-converted values as-is.
try {
bw.setPropertyValues(mpvs);
return;
}
catch (BeansException ex) {
throw new BeanCreationException(
mbd.getResourceDescription(), beanName, "Error setting property values", ex);
}
}
original = mpvs.getPropertyValueList();
}
else {
original = Arrays.asList(pvs.getPropertyValues());
}
TypeConverter converter = getCustomTypeConverter();
if (converter == null) {
converter = bw;
}
// 这个BeanDefinitionValueResolver对BeanDefinition的解析是在这个valueResolver中完成
BeanDefinitionValueResolver valueResolver = new BeanDefinitionValueResolver(this, beanName, mbd, converter);
// Create a deep copy, resolving any references for values.
// 这里为解析值创建一个副本，副本的数据将会被注入到bean中
List<PropertyValue> deepCopy = new ArrayList<PropertyValue>(original.size());
boolean resolveNecessary = false;
for (PropertyValue pv : original) {
if (pv.isConverted()) {
deepCopy.add(pv);
}
else {
String propertyName = pv.getName();
Object originalValue = pv.getValue();
Object resolvedValue = valueResolver.resolveValueIfNecessary(pv, originalValue);
Object convertedValue = resolvedValue;
boolean convertible = bw.isWritableProperty(propertyName) &&
!PropertyAccessorUtils.isNestedOrIndexedProperty(propertyName);
if (convertible) {
convertedValue = convertForProperty(resolvedValue, propertyName, bw, converter);
}
// Possibly store converted value in merged bean definition,
// in order to avoid re-conversion for every created bean instance.
if (resolvedValue == originalValue) {
if (convertible) {
pv.setConvertedValue(convertedValue);
}
deepCopy.add(pv);
}
else if (convertible && originalValue instanceof TypedStringValue &&
!((TypedStringValue) originalValue).isDynamic() &&
!(convertedValue instanceof Collection || ObjectUtils.isArray(convertedValue))) {
pv.setConvertedValue(convertedValue);
deepCopy.add(pv);
}
else {
resolveNecessary = true;
deepCopy.add(new PropertyValue(pv, convertedValue));
}
}
}
if (mpvs != null && !resolveNecessary) {
mpvs.setConverted();
}
// Set our (possibly massaged) deep copy.
// 这里是发生依赖注入的地方，会在BeanWrapperImpl中完成
try {
bw.setPropertyValues(new MutablePropertyValues(deepCopy));
}
catch (BeansException ex) {
throw new BeanCreationException(
mbd.getResourceDescription(), beanName, "Error setting property values", ex);
}
}未完待续……
20万+
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
