本节介绍如何对DHCP代理可扩展性和HA使用代理管理（别名代理）和调度程序（别名代理调度程序）扩展。
使用neutron ext-list client命令检查是否启用了这些扩展。检查代理和agent_scheduler包含在输出中。

$ neutron ext-list -c name -c alias
+-----------------+--------------------------+
| alias           | name                     |
+-----------------+--------------------------+
| agent_scheduler | Agent Schedulers         |
| binding         | Port Binding             |
| quotas          | Quota management support |
| agent           | agent                    |
| provider        | Provider Network         |
| router          | Neutron L3 Router        |
| lbaas           | Load Balancing service   |
| extraroute      | Neutron Extra Route      |
+-----------------+--------------------------+

设置演示

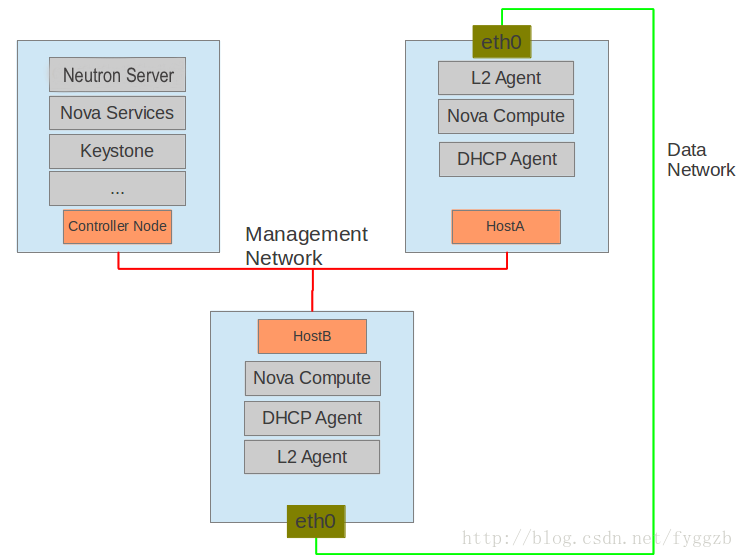

这里写图片描述

主机	描述
OpenStack controller host - controlnode	运行部署虚拟机所需的网络，身份和计算服务。节点必须至少有一个网络接口连接到管理网络。注意nova网络不应该运行，因为它被Neutron替代。
HostA	运行nova-compute, the Neutron L2 agent and DHCP agent
HostB	同HostA

配置

controlnode: neutron server
1.Neutron 配置文件 /etc/neutron/neutron.conf:

[DEFAULT]
core_plugin = linuxbridge
rabbit_host = controlnode
allow_overlapping_ips = True
host = controlnode
agent_down_time = 5
dhcp_agents_per_network = 1

在上面的配置中，我们使用dhcp_agents_per_network = 1进行演示。在常规部署中，我们建议将dhcp_agents_per_network设置为多个以匹配部署中DHCP代理的数量。

2.更新 plug-in 配置文件 /etc/neutron/plugins/linuxbridge/linuxbridge_conf.ini:

[vlans]
tenant_network_type = vlan
network_vlan_ranges = physnet1:1000:2999
[database]
connection = mysql://root:root@127.0.0.1:3306/neutron_linux_bridge
retry_interval = 2
[linux_bridge]
physical_interface_mappings = physnet1:eth0

HostA and HostB: L2 agent
1.Neutron 配置文件 /etc/neutron/neutron.conf:

[DEFAULT]
rabbit_host = controlnode
rabbit_password = openstack
# host = HostB on hostb
host = HostA

2.更新 plug-in 配置文件 /etc/neutron/plugins/linuxbridge/linuxbridge_conf.ini:

[vlans]
tenant_network_type = vlan
network_vlan_ranges = physnet1:1000:2999
[database]
connection = mysql://root:root@127.0.0.1:3306/neutron_linux_bridge
retry_interval = 2
[linux_bridge]
physical_interface_mappings = physnet1:eth0

3.更新 the nova 配置文件 /etc/nova/nova.conf:

[DEFAULT]
use_neutron=True
firewall_driver=nova.virt.firewall.NoopFirewallDriver

[neutron]
admin_username=neutron
admin_password=servicepassword
admin_auth_url=http://controlnode:35357/v2.0/
auth_strategy=keystone
admin_tenant_name=servicetenant
url=http://100.1.1.10:9696/

HostA and HostB: DHCP agent
更新 DHCP 配置文件 /etc/neutron/dhcp_agent.ini:

[DEFAULT]
interface_driver = neutron.agent.linux.interface.BridgeInterfaceDriver

演示的先决条件

需要管理员角色才能使用代理管理和调度程序扩展。确保在具有管理员角色的项目下运行以下命令。
要进行实验，您需要VM和Neutron网络：

$ nova list
+--------------------------------------+-----------+--------+---------------+
| ID                                   | Name      | Status | Networks      |
+--------------------------------------+-----------+--------+---------------+
| c394fcd0-0baa-43ae-a793-201815c3e8ce | myserver1 | ACTIVE | net1=10.0.1.3 |
| 2d604e05-9a6c-4ddb-9082-8a1fbdcc797d | myserver2 | ACTIVE | net1=10.0.1.4 |
| c7c0481c-3db8-4d7a-a948-60ce8211d585 | myserver3 | ACTIVE | net1=10.0.1.5 |
+--------------------------------------+-----------+--------+---------------+

$ neutron net-list
+--------------------------------------+------+--------------------------------------+
| id                                   | name | subnets                              |
+--------------------------------------+------+--------------------------------------+
| 89dca1c6-c7d4-4f7a-b730-549af0fb6e34 | net1 | f6c832e3-9968-46fd-8e45-d5cf646db9d1 |
+--------------------------------------+------+--------------------------------------+

管理Neutron部署中的代理

1.列出所有代理

$ neutron agent-list
+--------------------------------------+--------------------+-------+-------+----------------+
| id                                   | agent_type         | host  | alive | admin_state_up |
+--------------------------------------+--------------------+-------+-------+----------------+
| 1b69828d-6a9b-4826-87cd-1757f0e27f31 | Linux bridge agent | HostA | :-)   | True           |
| a0c1c21c-d4f4-4577-9ec7-908f2d48622d | DHCP agent         | HostA | :-)   | True           |
| ed96b856-ae0f-4d75-bb28-40a47ffd7695 | Linux bridge agent | HostB | :-)   | True           |
| f28aa126-6edb-4ea5-a81e-8850876bc0a8 | DHCP agent         | HostB | :-)   | True           |
+--------------------------------------+--------------------+-------+-------+----------------+

每个支持这些扩展的代理在启动时都会向neutron服务器注册。
输出显示四个代理的信息。活动字段显示:-)如果代理在neutron.conf文件中的agent_down_time选项定义的时间段内报告其状态。否则活着是xxx。

2.列出托管指定网络的DHCP代理：

$ neutron dhcp-agent-list-hosting-net net1
+--------------------------------------+-------+----------------+-------+
| id                                   | host  | admin_state_up | alive |
+--------------------------------------+-------+----------------+-------+
| a0c1c21c-d4f4-4577-9ec7-908f2d48622d | HostA | True           | :-)   |
+--------------------------------------+-------+----------------+-------+

3.列出由给定DHCP代理托管的网络：
此命令将显示给定dhcp代理正在管理的网络。

$ neutron net-list-on-dhcp-agent a0c1c21c-d4f4-4577-9ec7-908f2d48622d
+--------------------------------------+------+--------------------------------------------------+
| id                                   | name | subnets                                          |
+--------------------------------------+------+--------------------------------------------------+
| 89dca1c6-c7d4-4f7a-b730-549af0fb6e34 | net1 | f6c832e3-9968-46fd-8e45-d5cf646db9d1 10.0.1.0/24 |
+--------------------------------------+------+--------------------------------------------------+

4.显示代理详细信息。
neutron agent-show命令显示指定代理程序的详细信息：

$ neutron agent-show a0c1c21c-d4f4-4577-9ec7-908f2d48622d
+---------------------+--------------------------------------------------------+
| Field               | Value                                                  |
+---------------------+--------------------------------------------------------+
| admin_state_up      | True                                                   |
| agent_type          | DHCP agent                                             |
| alive               | False                                                  |
| binary              | neutron-dhcp-agent                                     |
| configurations      | {                                                      |
|                     |     "subnets": 1,                                      |
|                     |     "dhcp_driver": "neutron.agent.linux.dhcp.Dnsmasq", |
|                     |     "networks": 1,                                     |
|                     |     "dhcp_lease_time": 120,                            |
|                     |     "ports": 3                                         |
|                     | }                                                      |
| created_at          | 2013-03-16T01:16:18.000000                             |
| description         |                                                        |
| heartbeat_timestamp | 2013-03-17T01:37:22.000000                             |
| host                | HostA                                                  |
| id                  | 58f4ce07-6789-4bb3-aa42-ed3779db2b03                   |
| started_at          | 2013-03-16T06:48:39.000000                             |
| topic               | dhcp_agent                                             |
+---------------------+--------------------------------------------------------+

在此输出中，heartbeat_timestamp是neutron服务器上的时间。此扩展程序无需同步所有代理程序，即可正常运行。配置描述了代理程序或运行时数据的静态配置。此代理是DHCP代理，它承载一个网络，一个子网和三个端口。
不同类型的代理显示不同的细节。以下输出显示了Linux网桥代理的信息：

$ neutron agent-show ed96b856-ae0f-4d75-bb28-40a47ffd7695
+---------------------+--------------------------------------+
| Field               | Value                                |
+---------------------+--------------------------------------+
| admin_state_up      | True                                 |
| binary              | neutron-linuxbridge-agent            |
| configurations      | {                                    |
|                     |      "physnet1": "eth0",             |
|                     |      "devices": "4"                  |
|                     | }                                    |
| created_at          | 2013-03-16T01:49:52.000000           |
| description         |                                      |
| disabled            | False                                |
| group               | agent                                |
| heartbeat_timestamp | 2013-03-16T01:59:45.000000           |
| host                | HostB                                |
| id                  | ed96b856-ae0f-4d75-bb28-40a47ffd7695 |
| topic               | N/A                                  |
| started_at          | 2013-03-16T06:48:39.000000           |
| type                | Linux bridge agent                   |
+---------------------+--------------------------------------+

管理网络到DHCP代理的分配

单个网络可以分配给多个DHCP代理，一个DHCP代理可以承载多个网络。您可以向DHCP代理添加网络，并从中删除一个。
1.默认计划。
当您使用一个端口创建网络时，网络将被调度为活动的DHCP代理。如果许多活动DHCP代理正在运行，请随机选择一个。您可以设计更复杂的调度算法与nova-schedule相同的方式。

$ neutron net-create net2
$ neutron subnet-create net2 9.0.1.0/24 --name subnet2
$ neutron port-create net2
$ neutron dhcp-agent-list-hosting-net net2
+--------------------------------------+-------+----------------+-------+
| id                                   | host  | admin_state_up | alive |
+--------------------------------------+-------+----------------+-------+
| a0c1c21c-d4f4-4577-9ec7-908f2d48622d | HostA | True           | :-)   |
+--------------------------------------+-------+----------------+-------+

它分配给HostA上的DHCP代理。如果要通过dnsmasq命令验证行为，则必须为网络创建子网，因为DHCP代理仅在存在DHCP时启动dnsmasq服务。

2.为DHCP代理分配网络
要添加另一个DHCP代理来托管网络，请运行以下命令：

$ neutron dhcp-agent-network-add f28aa126-6edb-4ea5-a81e-8850876bc0a8 net2
Added network net2 to dhcp agent
$ neutron dhcp-agent-list-hosting-net net2
+--------------------------------------+-------+----------------+-------+
| id                                   | host  | admin_state_up | alive |
+--------------------------------------+-------+----------------+-------+
| a0c1c21c-d4f4-4577-9ec7-908f2d48622d | HostA | True           | :-)   |
| f28aa126-6edb-4ea5-a81e-8850876bc0a8 | HostB | True           | :-)   |
+--------------------------------------+-------+----------------+-------+

两个DHCP代理都托管net2网络。

3.从指定的DHCP代理中删除网络。
此命令是上一个命令的同级命令。从HostA的DHCP代理中删除net2：

$ neutron dhcp-agent-network-remove a0c1c21c-d4f4-4577-9ec7-908f2d48622d \
  net2
Removed network net2 to dhcp agent
$ neutron dhcp-agent-list-hosting-net net2
+--------------------------------------+-------+----------------+-------+
| id                                   | host  | admin_state_up | alive |
+--------------------------------------+-------+----------------+-------+
| f28aa126-6edb-4ea5-a81e-8850876bc0a8 | HostB | True           | :-)   |
+--------------------------------------+-------+----------------+-------+

可以看到只有HostB的DHCP代理托管net2网络。

DHCP代理的HA

在net2上引导虚拟机。让两个DHCP代理主机net2。依次失败代理查看VM是否仍然可以获得所需的IP。
1.在net2上启动虚拟机

$ neutron net-list
+--------------------------------------+------+--------------------------------------------------+
| id                                   | name | subnets                                          |
+--------------------------------------+------+--------------------------------------------------+
| 89dca1c6-c7d4-4f7a-b730-549af0fb6e34 | net1 | f6c832e3-9968-46fd-8e45-d5cf646db9d1 10.0.1.0/24 |
| 9b96b14f-71b8-4918-90aa-c5d705606b1a | net2 | 6979b71a-0ae8-448c-aa87-65f68eedcaaa 9.0.1.0/24  |
+--------------------------------------+------+--------------------------------------------------+
$ nova boot --image tty --flavor 1 myserver4 \
  --nic net-id=9b96b14f-71b8-4918-90aa-c5d705606b1a
...
$ nova list
+--------------------------------------+-----------+--------+---------------+
| ID                                   | Name      | Status | Networks      |
+--------------------------------------+-----------+--------+---------------+
| c394fcd0-0baa-43ae-a793-201815c3e8ce | myserver1 | ACTIVE | net1=10.0.1.3 |
| 2d604e05-9a6c-4ddb-9082-8a1fbdcc797d | myserver2 | ACTIVE | net1=10.0.1.4 |
| c7c0481c-3db8-4d7a-a948-60ce8211d585 | myserver3 | ACTIVE | net1=10.0.1.5 |
| f62f4731-5591-46b1-9d74-f0c901de567f | myserver4 | ACTIVE | net2=9.0.1.2  |
+--------------------------------------+-----------+--------+---------------+

确保两个托管net2的DHCP代理：
使用先前的命令将网络分配给代理。

$ neutron dhcp-agent-list-hosting-net net2
+--------------------------------------+-------+----------------+-------+
| id                                   | host  | admin_state_up | alive |
+--------------------------------------+-------+----------------+-------+
| a0c1c21c-d4f4-4577-9ec7-908f2d48622d | HostA | True           | :-)   |
| f28aa126-6edb-4ea5-a81e-8850876bc0a8 | HostB | True           | :-)   |
+--------------------------------------+-------+----------------+-------+

要测试DHCP代理的HA：
1.登录myserver4虚拟机，执行udhcpc，dhclient或其他DHCP客户端。
2.停止HostA上的DHCP代理。除了停止neutron-dhcp-agent二进制文件，必须停止dnsmasq进程。
3.在虚拟机中运行DHCP客户端，以查看它是否可以获得所需的IP。
4.停止HostB上的DHCP代理。
5.在VM中运行udhcpc; 它不能得到想要的IP。
6.在HostB上启动DHCP代理。 VM再次获取所需的IP。

禁用删除一个代理

如果计划进行系统硬件或软件升级，管理员可能需要禁用代理。一些支持调度的代理还支持禁用和启用代理，例如L3和DHCP代理。禁用代理后，调度程序不会向代理调度新资源。
禁用代理后，您可以安全地删除代理。即使在禁用代理后，也会继续分配代理上的资源。在删除代理之前，请确保删除代理上的资源。
在停止HostA之前禁用HostA上的DHCP代理：

$ neutron agent-update a0c1c21c-d4f4-4577-9ec7-908f2d48622d --admin-state-up False
$ neutron agent-list
+--------------------------------------+--------------------+-------+-------+----------------+
| id                                   | agent_type         | host  | alive | admin_state_up |
+--------------------------------------+--------------------+-------+-------+----------------+
| 1b69828d-6a9b-4826-87cd-1757f0e27f31 | Linux bridge agent | HostA | :-)   | True           |
| a0c1c21c-d4f4-4577-9ec7-908f2d48622d | DHCP agent         | HostA | :-)   | False          |
| ed96b856-ae0f-4d75-bb28-40a47ffd7695 | Linux bridge agent | HostB | :-)   | True           |
| f28aa126-6edb-4ea5-a81e-8850876bc0a8 | DHCP agent         | HostB | :-)   | True           |
+--------------------------------------+--------------------+-------+-------+----------------+

在HostA上停止DHCP代理后，可以通过以下命令删除它：

$ neutron agent-delete a0c1c21c-d4f4-4577-9ec7-908f2d48622d
Deleted agent: a0c1c21c-d4f4-4577-9ec7-908f2d48622d
$ neutron agent-list
+--------------------------------------+--------------------+-------+-------+----------------+
| id                                   | agent_type         | host  | alive | admin_state_up |
+--------------------------------------+--------------------+-------+-------+----------------+
| 1b69828d-6a9b-4826-87cd-1757f0e27f31 | Linux bridge agent | HostA | :-)   | True           |
| ed96b856-ae0f-4d75-bb28-40a47ffd7695 | Linux bridge agent | HostB | :-)   | True           |
| f28aa126-6edb-4ea5-a81e-8850876bc0a8 | DHCP agent         | HostB | :-)   | True           |
+--------------------------------------+--------------------+-------+-------+----------------+

默认开启DHCP高可用性

您可以通过在文件/etc/neutron/neutron.conf中设置以下配置选项来控制分配给网络的DHCP代理的默认数量。

dhcp_agents_per_network = 3
