通过CXF +spring 完成对webservice服务端搭建

webservice 服务端搭建，可以通过直接创建webservice项目，也可以在普通项目中搭建，本人感觉搭建主要在配置、类代码跟普通代码无太大区别

import java.util.ArrayList;
import java.util.List;
import javax.jws.WebService;
import com.cpp.procurement.projectregister.pojo.GEMForGBESExpertInfoVo;
@WebService(endpointInterface="com.procurement.projectregister.service.IWebserviceTest")
public class WebserviceTest implements IWebserviceTest{

	/**
	 * 业务逻辑的处理(测试时实用)
	 */
	@Override
	public List<GEMForGBESExpertInfoVo> GetExpertInfoList(String message) {
		GEMForGBESExpertInfoVo bean = new GEMForGBESExpertInfoVo();
		bean.setIdCard("11111");
		bean.setName("22222");
		bean.setPhone("3333333");
		List<GEMForGBESExpertInfoVo> expertInfoVos = new ArrayList<GEMForGBESExpertInfoVo>();
		expertInfoVos.add(bean);
		return expertInfoVos;
	}
}

接口类：

import java.util.List;
import javax.jws.WebMethod;
import javax.jws.WebService;

@WebService
public interface IWebserviceTest {
	@WebMethod
	public List<GEMForGBESExpertInfoVo> GetExpertInfoList(String message);
}

实体类

public class GEMForGBESExpertInfoVo {

	/**
	 * 专家身份证号
	 */
	private String idCard;
	/**
	 * 专家名称
	 */
	private String name;
	/**
	 * 电话
	 */
	private String phone;

	public String getIdCard() {
		return idCard;
	}
	public void setIdCard(String idCard) {
		this.idCard = idCard;
	}
	public String getName() {
		return name;
	}
	public void setName(String name) {
		this.name = name;
	}
	public String getPhone() {
		return phone;
	}
	public void setPhone(String phone) {
		this.phone = phone;
	}

特别主意：声明属性时一定要私有,使用private ,使用public启动服务时，一直抛异常，说srping 无法service类进行加载，找不到实体类的属性

spring 中xml的配置

在testservice完成了对实体类vo的注入

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xmlns:p="http://www.springframework.org/schema/p"
	xmlns:jaxws="http://cxf.apache.org/jaxws"
	xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-2.0.xsd
						http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-2.0.xsd
	 					http://cxf.apache.org/jaxws http://cxf.apache.org/schemas/jaxws.xsd">
	<import resource="classpath:META-INF/cxf/cxf.xml" />
	<import resource="classpath:META-INF/cxf/cxf-extension-soap.xml" />
	<import resource="classpath:META-INF/cxf/cxf-servlet.xml" />

	<bean id="GEMForGBESExpertInfoVo" class="com.procurement.projectregister.pojo.GEMForGBESExpertInfoVo"/>
	<jaxws:endpoint id="testService" implementorClass="com.procurement.projectregister.service.WebserviceTest" address="/test-service" >
		<jaxws:implementor ref="GEMForGBESExpertInfoVo">
		</jaxws:implementor>
	</jaxws:endpoint>
</beans>



Spring applicationContext.xml 中引入上述业务xml，也可以直接将上述xml内容写入到spring applicationContext.xml中

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-2.0.xsd"
	default-lazy-init="false">
	<import resource="classpath:com/procurement/projectregister/spring-webservice-test.xml"/>
</beans>



web.xml 配置

webservice地址请求时，是webservcie拦截、由cxf进行处理

<servlet>
		<servlet-name>cxf</servlet-name>
		<servlet-class>org.apache.cxf.transport.servlet.CXFServlet</servlet-class>
		</servlet>
<servlet>

<servlet-mapping>
		<servlet-name>cxf</servlet-name>
		<url-pattern>/webservice/*</url-pattern>
</servlet-mapping>

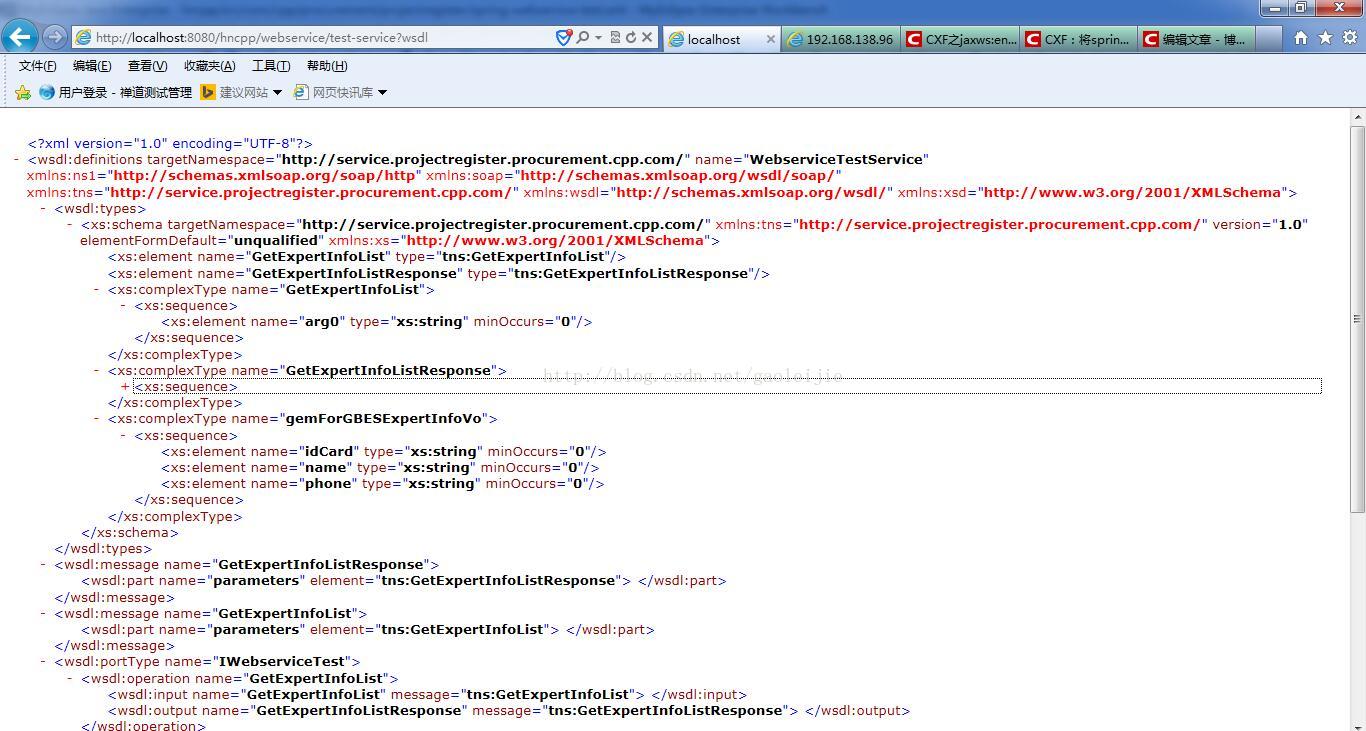

最后进行部署、地址访问
