一、Spring Security简介

SpringSecurity，这是一种基于Spring AOP和Servlet过滤器的安全框架。它提供全面的安全性解决方案，同时在Web请求级和方法调用级处理身份确认和授权。在Spring Framework基础上，Spring Security充分利用了依赖注入（DI，Dependency Injection）和面向切面技术。

二、建立工程

参考http://blog.csdn.net/haishu_zheng/article/details/51490299，用第二种方法创建名为spring-security-demo的Maven工程。

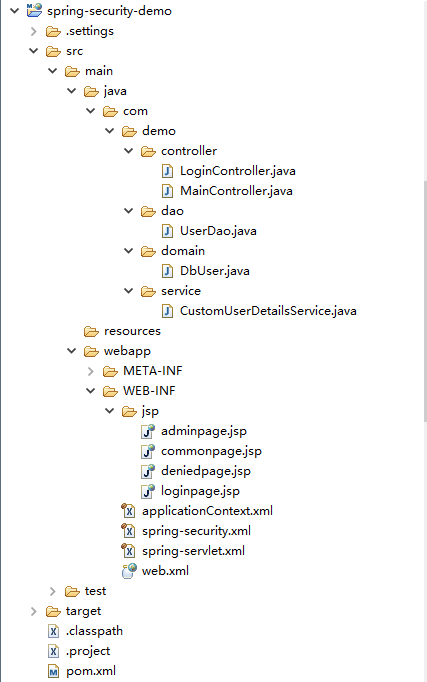

工程的最终目录结构为

三、源代码

1 pom.xml里引入所需要的包

<project xmlns="http://maven.apache.org/POM/4.0.0"xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xsi:schemaLocation="http://maven.apache.org/POM/4.0.0http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>
  <groupId>spring-security-demo</groupId>
  <artifactId>spring-security-demo</artifactId>
  <version>0.0.1-SNAPSHOT</version>
  <packaging>war</packaging>
  <name>spring-security-demo</name>
  <description/>
  <properties>
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
  </properties>
    <dependencies>
        <dependency>
            <groupId>javax</groupId>
            <artifactId>javaee-api</artifactId>
            <version>7.0</version>
            <scope>provided</scope>
        </dependency>
    <dependency>
        <groupId>jstl</groupId>
        <artifactId>jstl</artifactId>
        <version>1.2</version>
    </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-webmvc</artifactId>
            <version>3.2.9.RELEASE</version>
            <type>jar</type>
            <scope>compile</scope>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-context</artifactId>
            <version>3.2.9.RELEASE</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.security</groupId>
            <artifactId>spring-security-config</artifactId>
            <version>3.1.6.RELEASE</version>
            <type>jar</type>
            <scope>compile</scope>
        </dependency>
        <dependency>
            <groupId>org.springframework.security</groupId>
            <artifactId>spring-security-taglibs</artifactId>
            <version>3.1.6.RELEASE</version>
            <type>jar</type>
            <scope>compile</scope>
        </dependency>
        <dependency>
            <groupId>log4j</groupId>
            <artifactId>log4j</artifactId>
            <version>1.2.15</version>
            <type>jar</type>
            <scope>compile</scope>
        </dependency>
    </dependencies>

</project>

2 web.xml

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://xmlns.jcp.org/xml/ns/javaee" xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_3_1.xsd" id="WebApp_ID" version="3.1">
  <display-name>spring-security-demo</display-name>
	<filter>
		<filter-name>springSecurityFilterChain</filter-name>
		<filter-class>org.springframework.web.filter.DelegatingFilterProxy</filter-class>
	</filter>
	<filter-mapping>
		<filter-name>springSecurityFilterChain</filter-name>
		<url-pattern>/*</url-pattern>
	</filter-mapping>

	<context-param>
		<param-name>contextConfigLocation</param-name>
		<param-value>
		/WEB-INF/spring-security.xml
		/WEB-INF/applicationContext.xml
		</param-value>
	</context-param>

	<servlet>
		<servlet-name>spring</servlet-name>
		<servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
		<load-on-startup>1</load-on-startup>
	</servlet>
	<servlet-mapping>
		<servlet-name>spring</servlet-name>
		<url-pattern>/</url-pattern>
	</servlet-mapping>

	<listener>
		<listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
	</listener>
</web-app>

这里两处关于springsecurity的配置表示项目中所有路径的资源都要经过Spring Security。

注意：最好是将DelegatingFilterProxy写在DispatcherServlet之前，否则Spring Security可能不会正常工作。

3 spring-servlet.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:p="http://www.springframework.org/schema/p"
	xsi:schemaLocation="http://www.springframework.org/schema/beans
	   		http://www.springframework.org/schema/beans/spring-beans-3.0.xsd">

	<!-- 定义一个视图解析器 -->
	<bean id="viewResolver"
		class="org.springframework.web.servlet.view.InternalResourceViewResolver"
		p:prefix="/WEB-INF/jsp/" p:suffix=".jsp" />
</beans>

这个XML配置声明一个视图解析器.在控制器中会根据JSP名映射到/WEB-INF/jsp中相应的位置。

4 applicationContext.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xmlns:context="http://www.springframework.org/schema/context"
	xmlns:mvc="http://www.springframework.org/schema/mvc"
	xsi:schemaLocation="http://www.springframework.org/schema/beans
	   		http://www.springframework.org/schema/beans/spring-beans-3.0.xsd
	   		http://www.springframework.org/schema/context
	   		http://www.springframework.org/schema/context/spring-context-3.0.xsd
			http://www.springframework.org/schema/mvc
			http://www.springframework.org/schema/mvc/spring-mvc-3.0.xsd">

	<!-- 激活spring的注解. -->
	<context:annotation-config />

	<!-- 扫描注解组件并且自动的注入spring beans中.
	例如,他会扫描@Controller 和@Service下的文件.所以确保此base-package设置正确. -->
	<context:component-scan base-package="com.demo" />

	<!-- 配置注解驱动的Spring MVC Controller 的编程模型.注:次标签只在 Servlet MVC工作! -->
	<mvc:annotation-driven />

</beans>

5 spring-security.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns:security="http://www.springframework.org/schema/security"
	xsi:schemaLocation="http://www.springframework.org/schema/beans
	   		http://www.springframework.org/schema/beans/spring-beans-3.0.xsd
			http://www.springframework.org/schema/security
			http://www.springframework.org/schema/security/spring-security-3.1.xsd">

	<!--  Spring-Security 的配置 -->
	<!-- 注意use-expressions=true.表示开启表达式,否则表达式将不可用.
	see:http://www.family168.com/tutorial/springsecurity3/html/el-access.html
	 -->
	<security:http auto-config="true" use-expressions="true" access-denied-page="/auth/denied" >

		<security:intercept-url pattern="/auth/login" access="permitAll"/>
		<security:intercept-url pattern="/main/admin" access="hasRole('ROLE_ADMIN')"/>
		<security:intercept-url pattern="/main/common" access="hasRole('ROLE_USER')"/>

		<security:form-login
				login-page="/auth/login"
				authentication-failure-url="/auth/login?error=true"
				default-target-url="/main/common"/>

		<security:logout
				invalidate-session="true"
				logout-success-url="/auth/login"
				logout-url="/auth/logout"/>

	</security:http>

	<!-- 指定一个自定义的authentication-manager :customUserDetailsService -->
	<security:authentication-manager>
	        <security:authentication-provider user-service-ref="customUserDetailsService">
	        		<security:password-encoder ref="passwordEncoder"/>
	        </security:authentication-provider>
	</security:authentication-manager>

	<!-- 对密码进行MD5编码 -->
	<bean class="org.springframework.security.authentication.encoding.Md5PasswordEncoder" id="passwordEncoder"/>

	<!--
		通过 customUserDetailsService,Spring会自动的用户的访问级别.
		也可以理解成:以后我们和数据库操作就是通过customUserDetailsService来进行关联.
	 -->
	<bean id="customUserDetailsService" class="com.demo.service.CustomUserDetailsService"/>

</beans>

分析：

（一）

这里/auth/login的权限为permitAll，表示所有人都可以访问此页面；/main/admin的权限为ROLE_ADMIN，表示属于ROLE_ADMIN角色的用户才有权访问此页面；/main/common的权限为ROLE_USER，表示属于ROLE_USER的用户才有权访问此页面。

需要注意的是我们使用了SpringEL表达式来指定角色的访问.

以下是表达式对应的用法：

hasRole([role])返回 true 如果当前主体拥有特定角色。

hasAnyRole([role1,role2])返回 true 如果当前主体拥有任何一个提供的角色（使用逗号分隔的字符串队列）

principal 允许直接访问主体对象，表示当前用户

authentication允许直接访问当前 Authentication对象从SecurityContext中获得

permitAll 一直返回true

denyAll 一直返回false

isAnonymous()如果用户是一个匿名登录的用户就会返回 true

isRememberMe()如果用户是通过remember-me 登录的用户就会返回true

isAuthenticated()如果用户不是匿名用户就会返回true

isFullyAuthenticated()如果用户不是通过匿名也不是通过remember-me登录的用户时，就会返回true。

（二）

        <security:form-login
                login-page="/auth/login"
                authentication-failure-url="/auth/login?error=true"
                default-target-url="/main/common"/>

表示通过 /auth/login这个映射进行登录.

如果验证失败则返回一个URL:/auth/login?error=true
如果登录成功则默认指向:/main/common

（三）

<security:logout
                invalidate-session="true"
                logout-success-url="/auth/login"
                logout-url="/auth/logout"/>

这里我们开启了session失效功能。注销URL为:/auth/logout；注销成功后转向:/auth/login。

（四）

    <bean id="customUserDetailsService" class="com.demo.service.CustomUserDetailsService"/>

一个自定义的CustomUserDetailsService,是实现SpringSecurity的UserDetailsService接口,但我们重写了他即便于我们进行数据库操作.

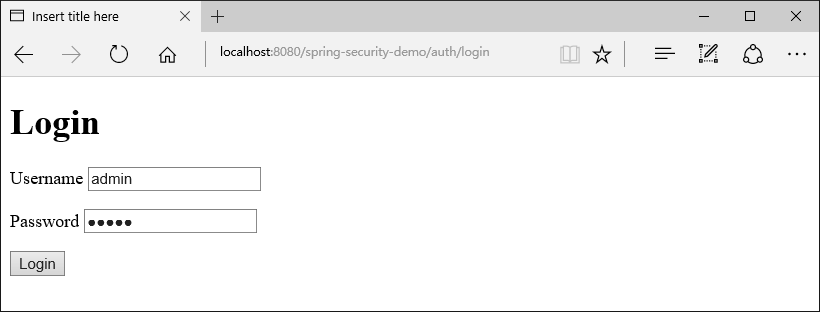

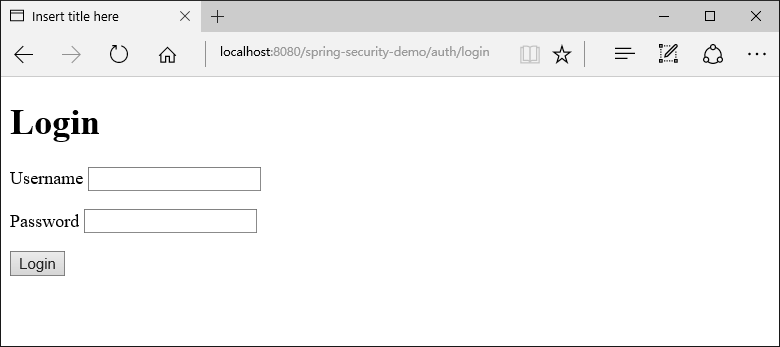

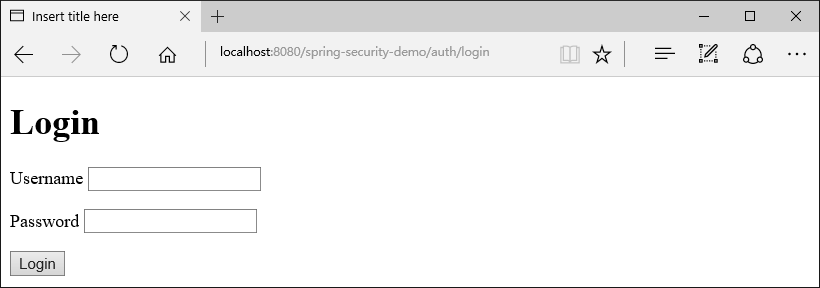

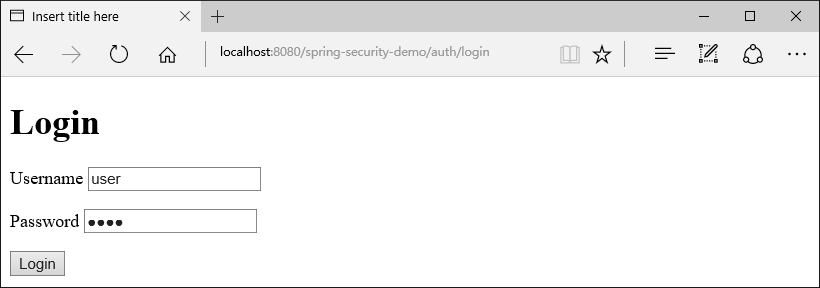

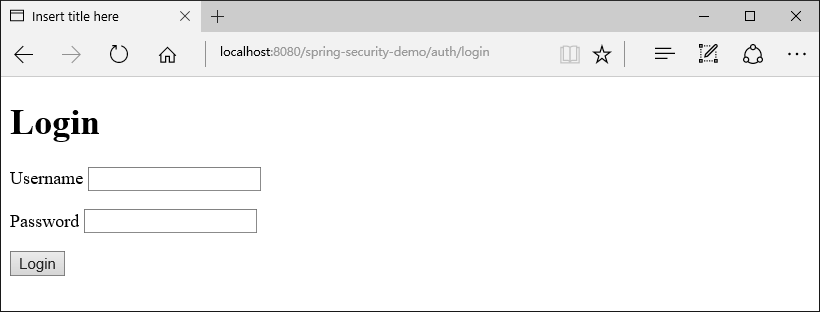

6 loginpage.jsp

<%@ taglib uri="http://java.sun.com/jsp/jstl/core" prefix="c"%>
<%@ taglib uri="http://www.springframework.org/tags/form" prefix="form"%>
<%@ taglib uri="http://www.springframework.org/tags" prefix="spring"%>

<%@ page language="java" contentType="text/html; charset=UTF-8"
	pageEncoding="UTF-8"%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
<title>Insert title here</title>
</head>
<body>

	<h1>Login</h1>

	<div id="login-error">${error}</div>

	<form action="../j_spring_security_check" method="post">

		<p>
			<label for="j_username">Username</label> <input id="j_username"
				name="j_username" type="text" />
		</p>

		<p>
			<label for="j_password">Password</label> <input id="j_password"
				name="j_password" type="password" />
		</p>

		<input type="submit" value="Login" />

	</form>

</body>
</html>

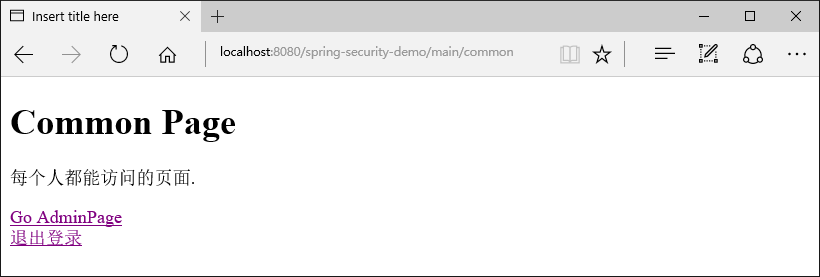

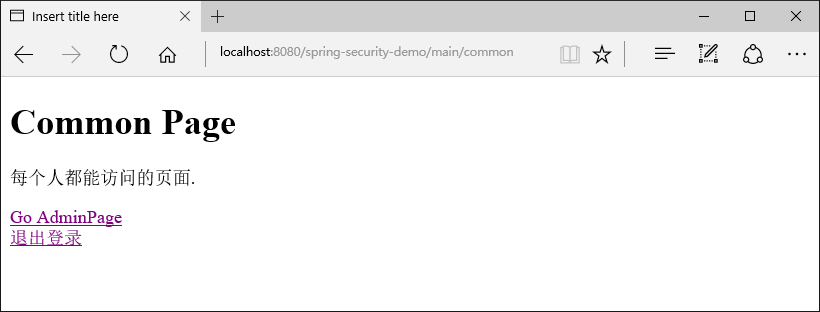

7 commonpage.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8"
	pageEncoding="UTF-8"%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
<title>Insert title here</title>
</head>
<body>
	<h1>Common Page</h1>
	<p>每个人都能访问的页面.</p>
	<a href="/spring-security-demo/main/admin"> Go AdminPage </a>
	<br />
	<a href="/spring-security-demo/auth/login">退出登录</a>

</body>
</html>

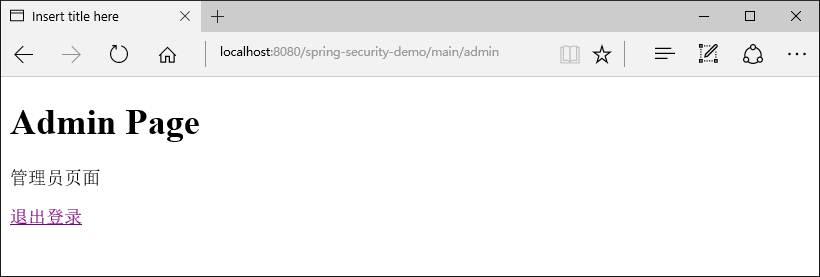

8 adminpage.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8"
	pageEncoding="UTF-8"%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
<title>Insert title here</title>
</head>
<body>
	<h1>Admin Page</h1>
	<p>管理员页面</p>
	<a href="/spring-security-demo/auth/login">退出登录</a>
</body>
</html>

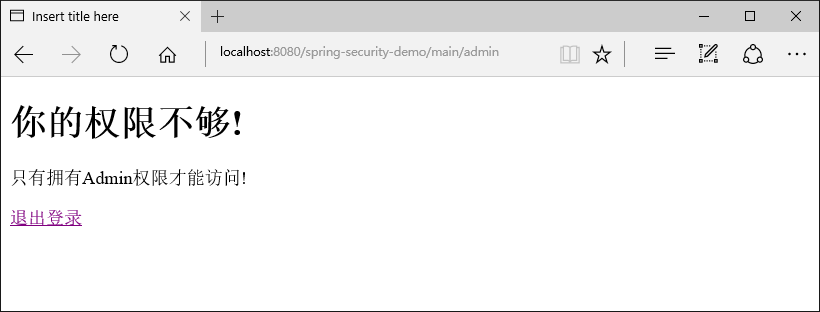

9 deniedpage.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8"
	pageEncoding="UTF-8"%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
<title>Insert title here</title>
</head>
<body>
	<h1>你的权限不够!</h1>
	<p>只有拥有Admin权限才能访问!</p>
	<a href="/spring-security-demo/auth/login">退出登录</a>
</body>
</html>

10 数据模型DbUser.java

package com.demo.domain;

public class DbUser {

	private String username;
	private String password;
	private Integer access;

	public String getUsername() {
		return username;
	}

	public void setUsername(String username) {
		this.username = username;
	}

	public String getPassword() {
		return password;
	}

	public void setPassword(String password) {
		this.password = password;
	}

	public Integer getAccess() {
		return access;
	}

	public void setAccess(Integer access) {
		this.access = access;
	}

}

11 UserDao.java，通过一个初始化的List来模拟数据库操作

package com.demo.dao;

import java.util.ArrayList;
import java.util.List;

import org.apache.log4j.Logger;
import com.demo.domain.DbUser;

public class UserDao {

	protected static Logger logger = Logger.getLogger("dao");

	public DbUser getDatabase(String username) {

		List<DbUser> users = internalDatabase();

		for (DbUser dbUser : users) {
			if (dbUser.getUsername().equals(username) == true) {
				logger.debug("User found");
				return dbUser;
			}
		}
		logger.error("User does not exist!");
		throw new RuntimeException("User does not exist!");

	}

	/**
	 * 初始化数据
	 */
	private List<DbUser> internalDatabase() {

		List<DbUser> users = new ArrayList<DbUser>();
		DbUser user = null;

		user = new DbUser();
		user.setUsername("admin");

		// "admin"经过MD5加密后
		user.setPassword("21232f297a57a5a743894a0e4a801fc3");
		user.setAccess(1);

		users.add(user);

		user = new DbUser();
		user.setUsername("user");

		// "user"经过MD5加密后
		user.setPassword("ee11cbb19052e40b07aac0ca060c23ee");
		user.setAccess(2);

		users.add(user);

		return users;

	}
}

12 CustomUserDetailsService.java，自定义UserDetailsService,可以通过继承UserDetailsService来达到灵活的自定义UserDetailsService

package com.demo.service;

import java.util.ArrayList;
import java.util.Collection;
import java.util.List;

import org.apache.log4j.Logger;
import com.demo.dao.UserDao;
import com.demo.domain.DbUser;
import org.springframework.dao.DataAccessException;
import org.springframework.security.core.GrantedAuthority;
import org.springframework.security.core.authority.GrantedAuthorityImpl;
import org.springframework.security.core.userdetails.User;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.security.core.userdetails.UserDetailsService;
import org.springframework.security.core.userdetails.UsernameNotFoundException;

/**
 * 一个自定义的service用来和数据库进行操作. 即以后我们要通过数据库保存权限.则需要我们继承UserDetailsService
 *
 */
public class CustomUserDetailsService implements UserDetailsService {

	protected static Logger logger = Logger.getLogger("service");

	private UserDao userDAO = new UserDao();

	public UserDetails loadUserByUsername(String username)
			throws UsernameNotFoundException, DataAccessException {

		UserDetails user = null;

		try {

			// 搜索数据库以匹配用户登录名.
			// 我们可以通过dao使用JDBC来访问数据库
			DbUser dbUser = userDAO.getDatabase(username);

			// Populate the Spring User object with details from the dbUser
			// Here we just pass the username, password, and access level
			// getAuthorities() will translate the access level to the correct
			// role type

			user = new User(dbUser.getUsername(), dbUser.getPassword()
					.toLowerCase(), true, true, true, true,
					getAuthorities(dbUser.getAccess()));

		} catch (Exception e) {
			logger.error("Error in retrieving user");
			throw new UsernameNotFoundException("Error in retrieving user");
		}

		return user;
	}

	/**
	 * 获得访问角色权限
	 *
	 * @param access
	 * @return
	 */
	public Collection<GrantedAuthority> getAuthorities(Integer access) {

		List<GrantedAuthority> authList = new ArrayList<GrantedAuthority>(2);

		// 所有的用户默认拥有ROLE_USER权限
		logger.debug("Grant ROLE_USER to this user");
		authList.add(new GrantedAuthorityImpl("ROLE_USER"));

		// 如果参数access为1.则拥有ROLE_ADMIN权限
		if (access.compareTo(1) == 0) {
			logger.debug("Grant ROLE_ADMIN to this user");
			authList.add(new GrantedAuthorityImpl("ROLE_ADMIN"));
		}

		return authList;
	}
}

13 控制器LoginController.java

package com.demo.controller;

import org.apache.log4j.Logger;
import org.springframework.stereotype.Controller;
import org.springframework.ui.ModelMap;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.RequestParam;

@Controller
@RequestMapping("auth")
public class LoginController {
	protected static Logger logger = Logger.getLogger("controller");

	/**
	 * 指向登录页面
	 */
	@RequestMapping(value = "/login", method = RequestMethod.GET)
	public String getLoginPage(
			@RequestParam(value = "error", required = false) boolean error,
			ModelMap model) {

		logger.debug("Received request to show login page");

		if (error == true) {
			// Assign an error message
			model.put("error",
					"You have entered an invalid username or password!");
		} else {
			model.put("error", "");
		}
		return "loginpage";
	}

	/**
	 * 指定无访问额权限页面
	 *
	 * @return
	 */
	@RequestMapping(value = "/denied", method = RequestMethod.GET)
	public String getDeniedPage() {

		logger.debug("Received request to show denied page");

		return "deniedpage";
	}
}

该controller有两个mapping映射

main/common

main/admin

现在我们将同过Spring Security框架实现成功登陆的人都能访问到main/common，但只有拥有admin权限的用户才能访问main/admin。

14 控制器MainController.java

package com.demo.controller;

import org.apache.log4j.Logger;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;

@Controller
@RequestMapping("/main")
public class MainController {
	protected static Logger logger = Logger.getLogger("controller");

	/**
	 * 跳转到commonpage页面
	 *
	 * @return
	 */
	@RequestMapping(value = "/common", method = RequestMethod.GET)
	public String getCommonPage() {
		logger.debug("Received request to show common page");
		return "commonpage";
	}

	/**
	 * 跳转到adminpage页面
	 *
	 * @return
	 */
	@RequestMapping(value = "/admin", method = RequestMethod.GET)
	public String getAadminPage() {
		logger.debug("Received request to show admin page");
		return "adminpage";

	}

}

四、运行结果

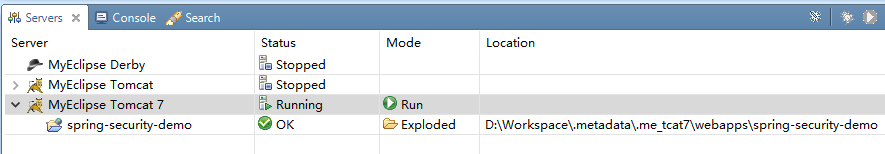

1 启动spring-security-demo程序

2 在浏览器里输入http://localhost:8080/spring-security-demo/auth/login

3 输入用户名admin密码admin后，点击“Login”按纽

4 点击“Go AdminPage”链接，因为有权限，所以可看到管理员页面

5 点击“退出登录”，返回登录页

6 输入用户名user密码user并登录

7 点击Go AdminPage链接，因为没有权限，所以看到权限不够的提示

8 退出登录，返回登录页

五、源码下载地址

CSDN: http://download.csdn.net/detail/haishu_zheng/9555916

Github: https://github.com/zhenghaishu/Spring-Security-Demo

海天一树

关注

1
点赞
踩
3

收藏

觉得还不错? 一键收藏
6
评论
Spring Security入门Demo

一、Spring Security简介SpringSecurity，这是一种基于Spring AOP和Servlet过滤器的安全框架。它提供全面的安全性解决方案，同时在Web请求级和方法调用级处理身份确认和授权。在Spring Framework基础上，Spring Security充分利用了依赖注入（DI，Dependency Injection）和面向切面技术。二、建立工程我
复制链接

扫一扫
