利用ffmpeg将RTSP传输的h264原始码流保存到文件中,没有做任何处理,直接将h264码流保存到文件中。
其中测试的RTSP地址是网上公开的一个 rtsp流媒体测试地址。
下面是程序:
/**
*作者:HJL
*最后更新:2015.7.18
*利用ffmpeg将RTSP传输的h264原始码流保存到文件中
*未加任何效果,不显示
**/
#include <stdio.h>
#define __STDC_CONSTANT_MACROS
#ifdef _WIN32
//Windows
extern "C"
{
#include "libavcodec/avcodec.h"
#include "libavformat/avformat.h"
#include "libswscale/swscale.h"
#include "SDL2/SDL.h"
};
#else
//Linux...
#ifdef __cplusplus
extern "C"
{
#endif
#include <libavcodec/avcodec.h>
#include <libavformat/avformat.h>
#include <libswscale/swscale.h>
#include <SDL2/SDL.h>
#ifdef __cplusplus
};
#endif
#endif
int main(int argc, char* argv[])
{
AVFormatContext *pFormatCtx;
int i, videoindex;
AVCodecContext *pCodecCtx;
AVCodec *pCodec;
AVFrame *pFrame,*pFrameYUV;
uint8_t *out_buffer;
AVPacket *packet;
int ret, got_picture;
struct SwsContext *img_convert_ctx;
//下面是公共的RTSP测试地址
char filepath[]="rtsp://218.204.223.237:554/live/1/0547424F573B085C/gsfp90ef4k0a6iap.sdp";
av_register_all();
avformat_network_init();
pFormatCtx = avformat_alloc_context();
if(avformat_open_input(&pFormatCtx,filepath,NULL,NULL)!=0)打开网络流或文件流
{
printf("Couldn't open input stream.\n");
return -1;
}
if(avformat_find_stream_info(pFormatCtx,NULL)<0)
{
printf("Couldn't find stream information.\n");
return -1;
}
videoindex=-1;
for(i=0; i<pFormatCtx->nb_streams; i++)
if(pFormatCtx->streams[i]->codec->codec_type==AVMEDIA_TYPE_VIDEO)
{
videoindex=i;
break;
}
if(videoindex==-1)
{
printf("Didn't find a video stream.\n");
return -1;
}
pCodecCtx=pFormatCtx->streams[videoindex]->codec;
pCodec=avcodec_find_decoder(pCodecCtx->codec_id);
if(pCodec==NULL)
{
printf("Codec not found.\n");
return -1;
}
if(avcodec_open2(pCodecCtx, pCodec,NULL)<0)
{
printf("Could not open codec.\n");
return -1;
}
pFrame=av_frame_alloc();
pFrameYUV=av_frame_alloc();
out_buffer=(uint8_t *)av_malloc(avpicture_get_size(PIX_FMT_YUV420P, pCodecCtx->width, pCodecCtx->height));
avpicture_fill((AVPicture *)pFrameYUV, out_buffer, PIX_FMT_YUV420P, pCodecCtx->width, pCodecCtx->height);
//Output Info---输出一些文件(RTSP)信息
printf("---------------- File Information ---------------\n");
av_dump_format(pFormatCtx,0,filepath,0);
printf("-------------------------------------------------\n");
img_convert_ctx = sws_getContext(pCodecCtx->width, pCodecCtx->height, pCodecCtx->pix_fmt,
pCodecCtx->width, pCodecCtx->height, PIX_FMT_YUV420P, SWS_BICUBIC, NULL, NULL, NULL);
packet=(AVPacket *)av_malloc(sizeof(AVPacket));
FILE *fpSave;
if((fpSave = fopen("geth264.h264", "ab")) == NULL) //h264保存的文件名
return 0;
for (;;)
{
//------------------------------
if(av_read_frame(pFormatCtx, packet)>=0)
{
if(packet->stream_index==videoindex)
{
fwrite(packet->data,1,packet->size,fpSave);//写数据到文件中
}
av_free_packet(packet);
}
}
//--------------
av_frame_free(&pFrameYUV);
av_frame_free(&pFrame);
avcodec_close(pCodecCtx);
avformat_close_input(&pFormatCtx);
return 0;
}

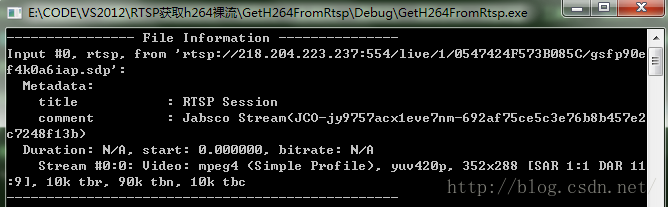

控制台打印的信息如下:

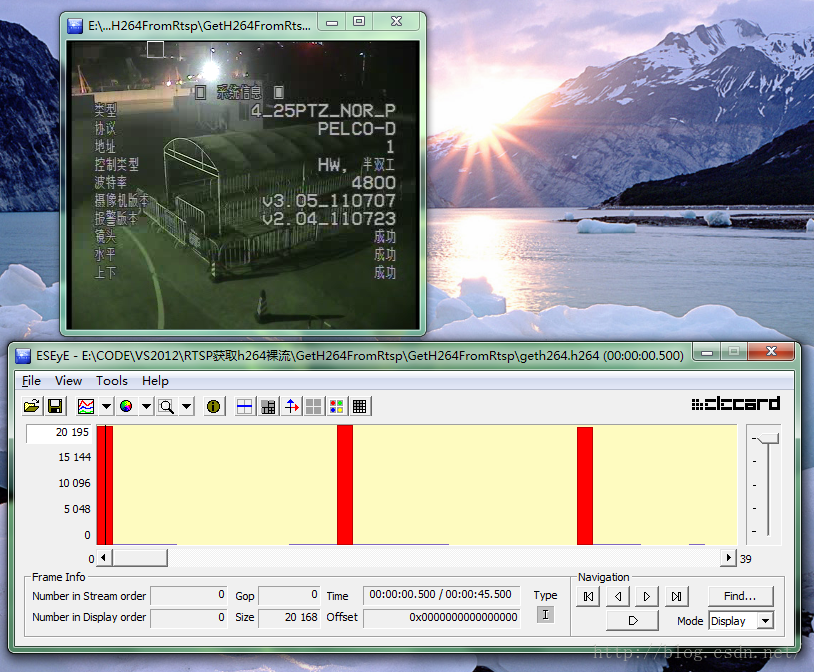

最后保存的h264码流的文件用h264播放器打开后如下:
整个VS2012工程文件可以在这里下载。
参考文章:http://blog.csdn.net/leixiaohua1020/article/details/38868499
