Cts框架解析(11)-ICommandOptions

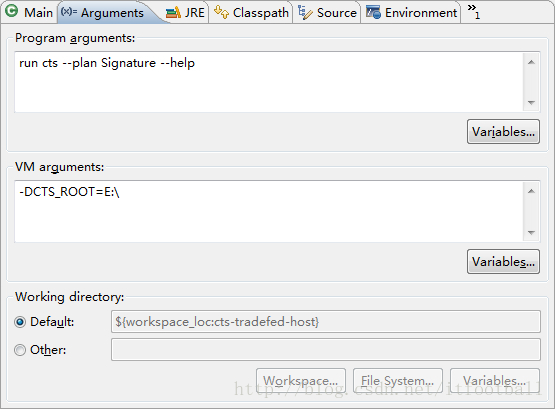

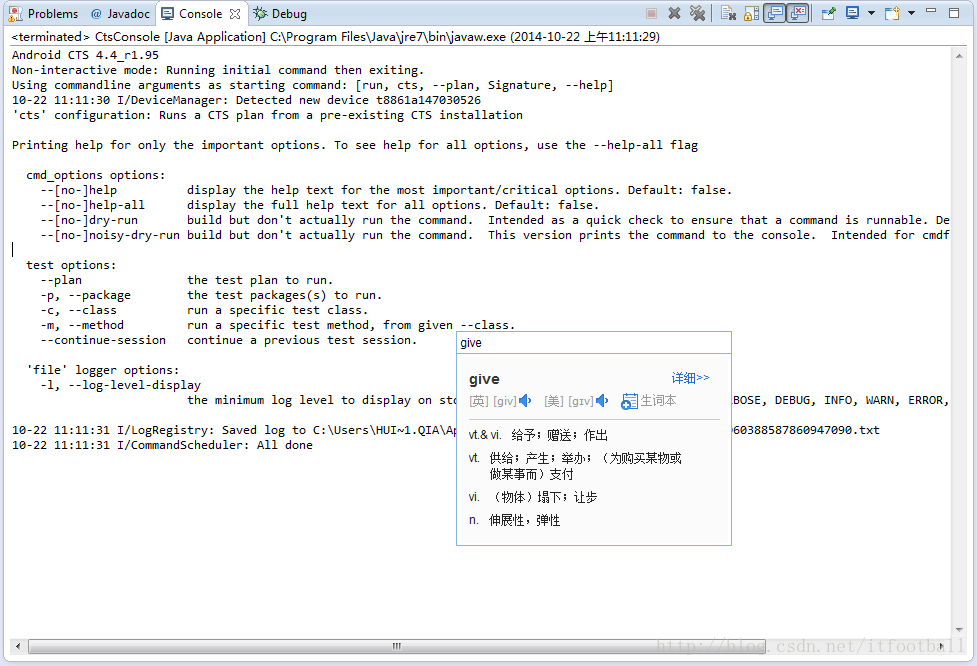

命令行选项就是你在敲run cts --plan UI命令时可以再跟一个参数，比如在debug配置参数时加入--help看一下效果。

所以这里面定义的类一般是可以在命令行上加参数的形更改的。先来看一下里面有哪些参数

接口

/*
 * Copyright (C) 2011 The Android Open Source Project
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package com.android.tradefed.command;

/**
 *  Container for execution options for commands.
 */
public interface ICommandOptions {

	public boolean isNeedPrepare();

	public void setNeedPrepare(boolean needPrepare);

	public boolean isNeedTearDown();

	public void setNeedTearDown(boolean needTearDown);

    /**
     * Returns <code>true</code> if abbreviated help mode has been requested
     */
    public boolean isHelpMode();

    /**
     * Returns <code>true</code> if full detailed help mode has been requested
     */
    public boolean isFullHelpMode();

    /**
     * Return <code>true</code> if we should <emph>skip</emph> adding this command to the queue.
     */
    public boolean isDryRunMode();

    /**
     * Return <code>true</code> if we should print the command out to the console before we
     * <emph>skip</emph> adding it to the queue.
     */
    public boolean isNoisyDryRunMode();

    /**
     * Return the loop mode for the config.
     */
    public boolean isLoopMode();

    /**
     * Get the min loop time for the config.
     */
    public long getMinLoopTime();

    /**
     * Sets the loop mode for the command
     *
     * @param loopMode
     */
    public void setLoopMode(boolean loopMode);

    /**
     * Creates a copy of the {@link ICommandOptions} object.
     * @return
     */
    public ICommandOptions clone();

    /**
     * Return true if command should run on all devices.
     */
    public boolean runOnAllDevices();

}

实现类

/*
 * Copyright (C) 2011 The Android Open Source Project
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */
package com.android.tradefed.command;

import com.android.tradefed.config.ConfigurationException;
import com.android.tradefed.config.Option;
import com.android.tradefed.config.Option.Importance;
import com.android.tradefed.config.OptionCopier;
import com.android.tradefed.log.LogUtil.CLog;

/**
 * Implementation of {@link ICommandOptions}.
 */
public class CommandOptions implements ICommandOptions {

    @Option(name = "help", description =
        "display the help text for the most important/critical options.",
        importance = Importance.ALWAYS)
    private boolean mHelpMode = false;

    @Option(name = "help-all", description = "display the full help text for all options.",
            importance = Importance.ALWAYS)
    private boolean mFullHelpMode = false;

    @Option(name = "dry-run",
            description = "build but don't actually run the command.  Intended as a quick check " +
                    "to ensure that a command is runnable.",
            importance = Importance.ALWAYS)
    private boolean mDryRunMode = false;

    @Option(name = "noisy-dry-run",
            description = "build but don't actually run the command.  This version prints the " +
                    "command to the console.  Intended for cmdfile debugging.",
            importance = Importance.ALWAYS)
    private boolean mNoisyDryRunMode = false;

    @Option(name = "min-loop-time", description =
            "the minimum invocation time in ms when in loop mode.")
    private long mMinLoopTime = 10 * 60 * 1000;

    @Option(name = "loop", description = "keep running continuously.")
    private boolean mLoopMode = true;

    @Option(name = "all-devices", description =
            "fork this command to run on all connected devices.")
    private boolean mAllDevices = true;

    @Option(name = "need-prepare", description = "is needed to prepare device")
    private boolean mNeedPrepare = true;

//    @Option(name = "need-flash", description = "is needed to fastboot device")
//    private boolean mNeedFlash = true;

    @Option(name = "need-tearDown", description = "is needed to clean device")
    private boolean mNeedTearDown = true;


    public boolean isNeedPrepare() {
		return mNeedPrepare;
	}

	public void setNeedPrepare(boolean needPrepare) {
		mNeedPrepare = needPrepare;
	}

	public boolean isNeedTearDown() {
		return mNeedTearDown;
	}

	public void setNeedTearDown(boolean needTearDown) {
		mNeedTearDown = needTearDown;
	}

	/**
     * Set the help mode for the config.
     * <p/>
     * Exposed for testing.
     */
    void setHelpMode(boolean helpMode) {
        mHelpMode = helpMode;
    }

    /**
     * {@inheritDoc}
     */
    @Override
    public boolean isHelpMode() {
        return mHelpMode;
    }

    /**
     * {@inheritDoc}
     */
    @Override
    public boolean isFullHelpMode() {
        return mFullHelpMode;
    }

    /**
     * Set the dry run mode for the config.
     * <p/>
     * Exposed for testing.
     */
    void setDryRunMode(boolean dryRunMode) {
        mDryRunMode = dryRunMode;
    }

    /**
     * {@inheritDoc}
     */
    @Override
    public boolean isDryRunMode() {
        return mDryRunMode || mNoisyDryRunMode;
    }

    /**
     * {@inheritDoc}
     */
    @Override
    public boolean isNoisyDryRunMode() {
        return mNoisyDryRunMode;
    }

    /**
     * Set the loop mode for the config.
     */
    @Override
    public void setLoopMode(boolean loopMode) {
        mLoopMode = loopMode;
    }

    /**
     * {@inheritDoc}
     */
    @Override
    public boolean isLoopMode() {
        return mLoopMode;
    }

    /**
     * Set the min loop time for the config.
     * <p/>
     * Exposed for testing.
     */
    void setMinLoopTime(long loopTime) {
        mMinLoopTime = loopTime;
    }

    /**
     * {@inheritDoc}
     */
    @Override
    public long getMinLoopTime() {
        return mMinLoopTime;
    }

    @Override
    public ICommandOptions clone() {
        CommandOptions clone = new CommandOptions();
        try {
            OptionCopier.copyOptions(this, clone);
        } catch (ConfigurationException e) {
            CLog.e("failed to clone command options", e);
        }
        return clone;
    }

    /**
     * {@inheritDoc}
     */
    @Override
    public boolean runOnAllDevices() {
        return mAllDevices;
    }
}

实现类里定义了接口中的方法对应的属性分别是：

help就是你要在命令行后的参数，就如文章一开头我添加的--help模式。如果你添加了就等于mHelpMode = true;打印帮助信息，但是只有注解中importance属性的才打印

@Option(name = "help", description =
        "display the help text for the most important/critical options.",
        importance = Importance.ALWAYS)
    private boolean mHelpMode = false;

和上面一样，但是会打印所有option注解的信息，不管有没有importance选项

@Option(name = "help-all", description = "display the full help text for all options.",
            importance = Importance.ALWAYS)
    private boolean mFullHelpMode = false;

测试命令是否可行。

@Option(name = "dry-run",
            description = "build but don't actually run the command.  Intended as a quick check " +
                    "to ensure that a command is runnable.",
            importance = Importance.ALWAYS)
    private boolean mDryRunMode = false;

    @Option(name = "noisy-dry-run",
            description = "build but don't actually run the command.  This version prints the " +
                    "command to the console.  Intended for cmdfile debugging.",
            importance = Importance.ALWAYS)
    private boolean mNoisyDryRunMode = false;

是否循环执行命令以及循环的时间

@Option(name = "min-loop-time", description =
            "the minimum invocation time in ms when in loop mode.")
    private long mMinLoopTime = 10 * 60 * 1000;

    @Option(name = "loop", description = "keep running continuously.")
    private boolean mLoopMode = true;

是否全设备测试

@Option(name = "all-devices", description =
            "fork this command to run on all connected devices.")
    private boolean mAllDevices = true;

测试前的准备工作和测试后的还原工作

@Option(name = "need-prepare", description = "is needed to prepare device")
    private boolean mNeedPrepare = true;


    @Option(name = "need-tearDown", description = "is needed to clean device")
    private boolean mNeedTearDown = true;
