Elasticsearch 入门：logstash 5.0.0 安装及输出数据到 elasticsearch

首先安装：elasticsearch 、 kibana ，以下测试会用到。

安装参考：

Elasticsearch 入门：CentOS 5.6 安装 Elasticsearch 5.0

Elasticsearch 入门：Elasticsearch 5.0 安装 kibana 5.0

logstash多种安装方法： https://www.elastic.co/guide/en/logstash/5.0/installing-logstash.html

logstash下载 ：https://www.elastic.co/downloads/logstash

logstash5.0.0下载：https://www.elastic.co/downloads/past-releases/logstash-5-0-0

部署，使用的是离线安装，因有的服务器不能连接网络

shell> tar zxvf logstash-5.0.0.tar.gz
shell> mv logstash-5.0.0 /usr/local/elasticsearch/files/logstash
shell> cd /usr/local/elasticsearch/files/logstash

运行

shell> bin/logstash -e 'input { stdin {} } output { stdout {} }'
Sending Logstash logs to /usr/local/elasticsearch/files/logstash/logs which is now configured via log4j2.properties.
The stdin plugin is now waiting for input:
[2017-01-14T20:27:54,232][INFO ][logstash.pipeline        ] Starting pipeline {"id"=>"main", "pipeline.workers"=>1, "pipeline.batch.size"=>125, "pipeline.batch.delay"=>5, "pipeline.max_inflight"=>125}
[2017-01-14T20:27:54,429][INFO ][logstash.pipeline        ] Pipeline main started
[2017-01-14T20:27:54,603][INFO ][logstash.agent           ] Successfully started Logstash API endpoint {:port=>9600}
2017-01-14T12:27:54.427Z 0.0.0.0

在当前窗口输入第一行信息，可看到第二行输出结果：

hello logstash!
2017-01-14T12:31:14.798Z 0.0.0.0 hello logstash!

ctrl + C 退出，使用配置文件方法启动，创建配置文件（另一种格式输出：codec => rubydebug）

shell> vi config/logstashtest.conf
input {
	stdin {}
}
output {
	stdout {
		codec => rubydebug
	}
}

运行，使用配置文件

shell> bin/logstash -f config/logstashtest.conf

Sending Logstash logs to /usr/local/elasticsearch/files/logstash/logs which is now configured via log4j2.properties.
The stdin plugin is now waiting for input:
[2017-01-14T22:26:15,834][INFO ][logstash.pipeline        ] Starting pipeline {"id"=>"main", "pipeline.workers"=>1, "pipeline.batch.size"=>125, "pipeline.batch.delay"=>5, "pipeline.max_inflight"=>125}
[2017-01-14T22:26:15,926][INFO ][logstash.pipeline        ] Pipeline main started
[2017-01-14T22:26:16,404][INFO ][logstash.agent           ] Successfully started Logstash API endpoint {:port=>9601}
{
    "@timestamp" => 2017-01-14T14:26:15.952Z,
      "@version" => "1",
          "host" => "0.0.0.0",
       "message" => ""
}

输入第一行信息，可看到输出结果：

hello logstash!
{
    "@timestamp" => 2017-01-14T14:26:47.163Z,
      "@version" => "1",
          "host" => "0.0.0.0",
       "message" => "hello logstash!"
}

现在配置输出到 Elasticsearch，也保留 stdout 的输出.(注意名称：hosts！)

hell> vi config/logstashtest.conf
input {
	stdin {}
}
output{
	elasticsearch {
		 hosts => ["192.168.1.222:9200"]
		 index => "test"
	}
	stdout {
		codec => rubydebug
	}
}

运行，使用配置文件

shell> bin/logstash -f config/logstashtest.conf

Sending Logstash logs to /usr/local/elasticsearch/files/logstash/logs which is now configured via log4j2.properties.
The stdin plugin is now waiting for input:
[2017-01-14T23:10:11,512][INFO ][logstash.outputs.elasticsearch] Elasticsearch pool URLs updated {:changes=>{:removed=>[], :added=>["http://192.168.1.222:9200"]}}
[2017-01-14T23:10:11,521][INFO ][logstash.outputs.elasticsearch] Using mapping template from {:path=>nil}
[2017-01-14T23:10:11,785][INFO ][logstash.outputs.elasticsearch] Attempting to install template
	{:manage_template=>{"template"=>"logstash-*", "version"=>50001, "settings"=>{"index.refresh_interval"=>"5s"}
	, "mappings"=>{"_default_"=>{"_all"=>{"enabled"=>true, "norms"=>false}
	, "dynamic_templates"=>[{"message_field"=>{"path_match"=>"message", "match_mapping_type"=>"string"
	, "mapping"=>{"type"=>"text", "norms"=>false}}}, {"string_fields"=>{"match"=>"*", "match_mapping_type"=>"string"
	, "mapping"=>{"type"=>"text", "norms"=>false, "fields"=>{"keyword"=>{"type"=>"keyword"}}}}}]
	, "properties"=>{"@timestamp"=>{"type"=>"date", "include_in_all"=>false}, "@version"=>{"type"=>"keyword", "include_in_all"=>false}
	, "geoip"=>{"dynamic"=>true, "properties"=>{"ip"=>{"type"=>"ip"}, "location"=>{"type"=>"geo_point"}, "latitude"=>{"type"=>"half_float"}
	, "longitude"=>{"type"=>"half_float"}}}}}}}}
[2017-01-14T23:10:17,071][INFO ][logstash.outputs.elasticsearch] Installing elasticsearch template to _template/logstash
[2017-01-14T23:10:33,701][INFO ][logstash.outputs.elasticsearch] New Elasticsearch output {:class=>"LogStash::Outputs::ElasticSearch", :hosts=>["192.168.1.222:9200"]}
[2017-01-14T23:10:33,714][INFO ][logstash.pipeline        ] Starting pipeline {"id"=>"main", "pipeline.workers"=>1, "pipeline.batch.size"=>125, "pipeline.batch.delay"=>5, "pipeline.max_inflight"=>125}
[2017-01-14T23:10:33,715][INFO ][logstash.pipeline        ] Pipeline main started
[2017-01-14T23:10:35,171][INFO ][logstash.agent           ] Successfully started Logstash API endpoint {:port=>9601}

启动使用了模板，接着输入“hello logstash!”会正常输出 ，但是有没有保存到  elasticsearch 呢？？

打开浏览器访问 kibana 地址： http://192.168.1.222:5601/

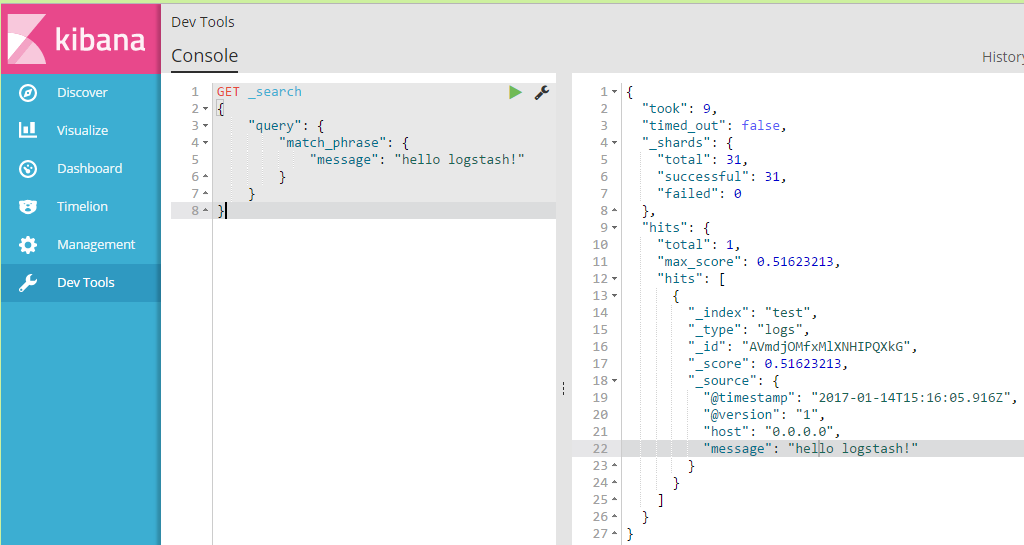

点击选项 “Dev Tools”，查询输入的语句或单词：

GET _search
{
    "query": {
        "match_phrase": {
            "message": "hello logstash!"
        }
    }
}

输出结果如下：

{
  "took": 48,
  "timed_out": false,
  "_shards": {
    "total": 31,
    "successful": 31,
    "failed": 0
  },
  "hits": {
    "total": 1,
    "max_score": 0.51623213,
    "hits": [
      {
        "_index": "test",
        "_type": "logs",
        "_id": "AVmdjOMfxMlXNHIPQXkG",
        "_score": 0.51623213,
        "_source": {
          "@timestamp": "2017-01-14T15:16:05.916Z",
          "@version": "1",
          "host": "0.0.0.0",
          "message": "hello logstash!"
        }
      }
    ]
  }
}

可以看到索引为 “test” ， message 为 "hello logstash!" ，已经保持进来了！

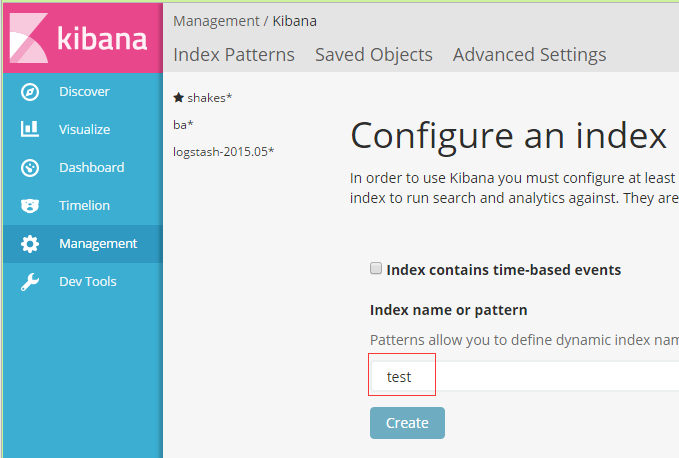

要方便在可视化界面中搜索查询， 先在 kibana 中创建一个索引，名称为 “test”

现在可以在 kibana 中查询了！

好了，简单测试完成！
