Java 工厂方法模式

工厂方法模式（Factory Method Pattern），是简单工厂模式的扩展，其英文原话是"Define an interface for creating an object,but let the subclasses decide which class to instantiate.Factory Method lets a class defer instantiation to subclasses"，翻译是：定义一个创建对象的借口，但是让子类来觉得该实例化那个类。工厂方法让一个类推迟实例化至它的子类中。工厂方法模式有四个角色：

抽象工厂（Creator）角色：这是工厂方法模式的核心，定义了创建产品的方法。与应用系统无关。具体工厂角色必须实现这个接口才能创建对象。

具体工厂（Concrete Creator）角色：实现了抽象工厂角色的接口，含有与应用密切相关的逻辑，并且接受应用程序的调用以创建产品对象。

抽象产品（Product）角色：定义了产品的共性，实现对产品最抽象的定义。

具体产品（Concrete Product）角色：实现抽象产品角色的接口。工厂方法所创建的对象就是该角色的实例。

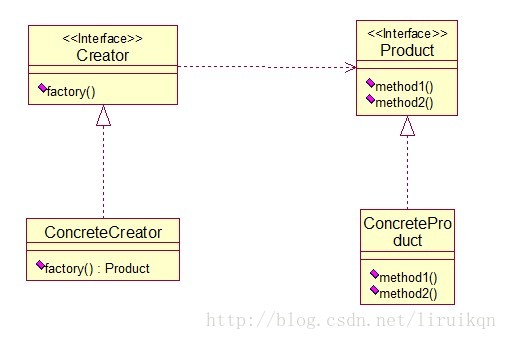

工厂方法模其类图如下：



抽象工厂的代码模式：

public interface Creator{
	//这就是工厂方法，提供具体产品的类对象即可创建产品；
	public <T extends Product> T factory(Class<T> c);
}

抽象产品的代码模式：

public interface Product{
	//产品的公共方法
	public void method1();
	public void method2();
}

具体工厂的代码模式：

public class ConcreteCreator implements Creator{

	//具体工厂生产的具体产品
	Product product = null;
	@Override
	public <T extends Product> T factory(Class<T> c) {
		// TODO Auto-generated method stub
		//生产出产品
		product = (Product) Class.forName(c.getName()).newInstance();
		//或这样
		//product = c.newInstance();
		return (T)product;
	}
}

具体产品的代码模式：

public class ConcreteProduct implements Product{

	@Override
	public void method1() {
		//do somthing
	}

	@Override
	public void method2() {
		//do something
	}
}

下面通过一个demo，来展示下工厂方法模式的应用；该例子是工厂生产水果的例子，首先需要一个抽象工厂Factory和抽象水果Fruit，Factory定义了生产水果的方法，Fruit定义了水果的共性；然后再由具体的工厂生产具体的水果，如AppleFactory（implements Factory）生产Apple（implements Fruit）；GrapeFactory（implements Factory）生产Grape（implements Fruit），下面上代码。

Factory类：

//抽象工厂，定义了生产产品的接口；
public interface Factory {
	/**
	 * @param c 具体产品的Class对象；
	 * @return 返回产品的父类，具体工厂调用得到产品时需要转型；
	 */
	public Fruit factory(Class c);
}

Fruit类：

//抽象产品，定义了产品的共性；
public interface Fruit {
	public void plant();
	public void grow();
	public void harvest();
}

AppleFactory类：

//具体工厂，生产具体的产品，AppleFactory生产Apple
public class AppleFactory implements Factory {

	@Override
	public Apple factory(Class c) {
		// TODO Auto-generated method stub
		try {
			//生产苹果
			Apple apple = (Apple)Class.forName(c.getName()).newInstance();
			//或这样 Apple apple = (Apple) c.newInstance();
			apple.setTreeAge(0);
			return apple;
		} catch (InstantiationException e) {
			// TODO Auto-generated catch block
			e.printStackTrace();
		} catch (IllegalAccessException e) {
			// TODO Auto-generated catch block
			e.printStackTrace();
		}catch (ClassNotFoundException e) {
			// TODO Auto-generated catch block
			e.printStackTrace();
		}
		return null;
	}
}

GrapeFactory类：

public class GrapeFactory implements Factory {

	@Override
	public Grape factory(Class c) {
		// TODO Auto-generated method stub
		try {
			Grape grape = (Grape)Class.forName(c.getName()).newInstance();
			//或这样 Grape grape = (Grape) c.newInstance();
			grape.setSeedless(true);
			grape.setTreeAge(0);
			return grape;
		} catch (InstantiationException e) {
			// TODO Auto-generated catch block
			e.printStackTrace();
		} catch (IllegalAccessException e) {
			// TODO Auto-generated catch block
			e.printStackTrace();
		} catch (ClassNotFoundException e) {
			// TODO Auto-generated catch block
			e.printStackTrace();
		}
		return null;
	}
}

Apple类：

//具体产品
public class Apple implements Fruit {

	private int treeAge;

	@Override
	public void plant() {
		// TODO Auto-generated method stub
		System.out.println("Apple Tree is planted");
	}

	@Override
	public void grow() {
		// TODO Auto-generated method stub
		System.out.println("Apple Tree is growing");
	}

	@Override
	public void harvest() {
		// TODO Auto-generated method stub
		System.out.println("Apple Tree is harvesting");
	}

	/**
	 * @return the treeAge
	 */
	public int getTreeAge() {
		return treeAge;
	}

	/**
	 * @param treeAge the treeAge to set
	 */
	public void setTreeAge(int treeAge) {
		this.treeAge = treeAge;
	}

	/* (non-Javadoc)
	 * @see java.lang.Object#toString()
	 */
	@Override
	public String toString() {
		return "Apple [treeAge=" + treeAge + "]";
	}
}

Grape类：

//具体产品
public class Grape implements Fruit {

	boolean seedless;
	private int treeAge;
	@Override
	public void plant() {
		// TODO Auto-generated method stub
		System.out.println("Grape is palnted");
	}

	@Override
	public void grow() {
		// TODO Auto-generated method stub
		System.out.println("Grape is growing");
	}

	@Override
	public void harvest() {
		// TODO Auto-generated method stub
		System.out.println("Grape is harvesting");
	}

	/**
	 * @return the seedless
	 */
	public boolean isSeedless() {
		return seedless;
	}

	/**
	 * @return the treeAge
	 */
	public int getTreeAge() {
		return treeAge;
	}

	/**
	 * @param seedless the seedless to set
	 */
	public void setSeedless(boolean seedless) {
		this.seedless = seedless;
	}

	/**
	 * @param treeAge the treeAge to set
	 */
	public void setTreeAge(int treeAge) {
		this.treeAge = treeAge;
	}

	/* (non-Javadoc)
	 * @see java.lang.Object#toString()
	 */
	@Override
	public String toString() {
		return "Grape [seedless=" + seedless + ", treeAge=" + treeAge + "]";
	}

}

主方法入口类FactoryMethodTest：

public class FactoryMethodTest {

	/**
	 * @param args
	 */
	public static void main(String[] args) {
		// TODO Auto-generated method stub
		//生产产品的工厂，以父类引用标示；或者也可以分别定义GrapeFactory和AppleFactory，这样fac.factory()这句就不用转型了；
		Factory fac ;
		//具体产品
		Apple apple;
		Grape grape;
		fac = new AppleFactory();
		//Apple的Class对象传给factory方法；
		apple = (Apple) fac.factory(Apple.class);
		System.out.println(apple);
		apple.plant();
		apple.grow();
		apple.harvest();

		fac = new GrapeFactory();
		grape = (Grape)fac.factory(Grape.class);
		System.out.println(grape);
		grape.plant();
		grape.grow();
		grape.harvest();
	}
}

运行结果：

Apple [treeAge=0]
Apple Tree is planted
Apple Tree is growing
Apple Tree is harvesting
Grape [seedless=true, treeAge=0]
Grape is palnted
Grape is growing
Grape is harvesting

总结：

工厂方法模式就是由具体的工厂生产具体的产品，当增加新产品时，只需增加一个新工厂即可。
