iOS之悬浮视图:按钮/图片/轮播图/gif图/视频/音频/自定义view

本文链接：https://blog.csdn.net/luochuanad/article/details/71522241

这篇博客详细介绍了如何在iOS应用中实现各种类型的悬浮视图，包括悬浮按钮、悬浮图片、悬浮Gif图、悬浮轮播图和悬浮视频。作者通过代码片段讲解了实现这些功能的关键步骤，并且讨论了在处理用户交互和事件响应链时可能遇到的问题。同时提供了GitHub项目链接供读者参考和使用。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

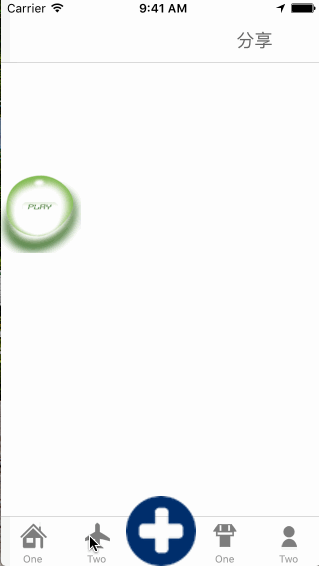

悬浮按钮:

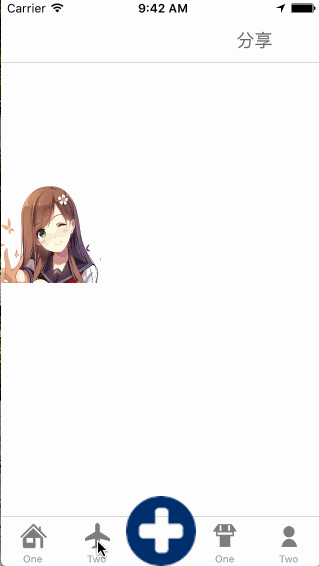

悬浮图片:

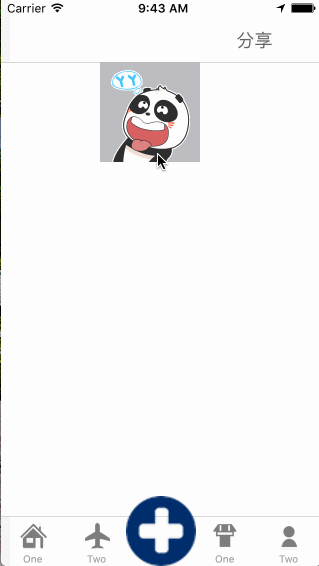

悬浮Gif图:

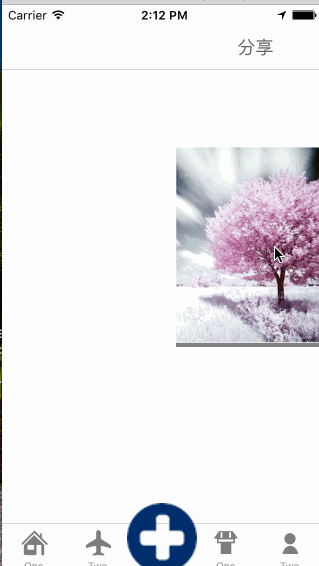

悬浮轮播图:

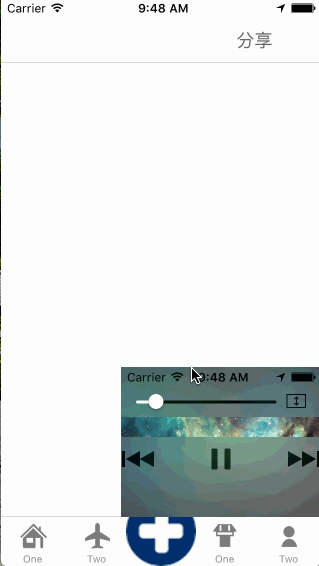

悬浮视频:

讲解:(代码片段)

问题一:

对于悬浮视图, 我需要的是在所有的页面都能看到这个悬浮视图,包括二,三级等所有子页面.

所以:通过创建一个新的窗口UIWindow. 在一般的的APP中弹框Alert的等级是最高的了,但是悬浮视图的windowLevel比弹框更高.如下代码:

- (UIWindow *)createCustomWindow{
    if (!_customWindow) {
        _customWindow=[[UIWindow alloc]init];
        _customWindow.frame=CGRectMake(WINDOWS.width-viewWidth,WINDOWS.height-viewHeight-49, viewWidth, viewHeight);
        _customWindow.windowLevel=UIWindowLevelAlert+1;//等级加一
        _customWindow.backgroundColor=[UIColor clearColor];

    }
    return _customWindow;
}

问题二:

对于悬浮视图的类型: 按钮,图片,gif图. 要求的是在屏幕任意滚动,且 "可点击!"

我自定义个

LCSuspendCustomView继承UIView 在这个View中我添加了按钮(UIButton),图片(UIImageView),GIF图(UIWebView)到视图上.

重写了touchsbegan:/touchsMoved:/touchsEnded:三个方法.如下:

- (void)touchesBegan:(NSSet<UITouch *> *)touches withEvent:(UIEvent *)event{
    [super touchesBegan:touches withEvent:event];
    UITouch *touch=[touches anyObject];
    _startPoint=[touch locationInView:_rootView];

}
- (void)touchesMoved:(NSSet<UITouch *> *)touches withEvent:(UIEvent *)event{
    [super touchesMoved:touches withEvent:event];
    UITouch *touch=[touches anyObject];
    CGPoint currentPoint=[touch locationInView:_rootView];
    self.superview.center=currentPoint;



}
- (void)touchesEnded:(NSSet<UITouch *> *)touches withEvent:(UIEvent *)event{
    [super touchesEnded:touches withEvent:event];
    UITouch *touch=[touches anyObject];
    CGPoint currentPoint=[touch locationInView:_rootView];

我在touchesEnded:方法中判断,如果悬浮视图移动的距离超小,我判断这是点击手势, 遵守协议,调用点击事件. 所以此时按钮,图片,GIF图就不需要额外的添加点击事件了.此时设置按钮/图片/gif图

userInteractionEnabled=NO

代码如下:

if ((pow((_startPoint.x-currentPoint.x), 2)+pow((_startPoint.y-currentPoint.y), 2))<1) {
        if ([self.suspendDelegate respondsToSelector:@selector(suspendCustomViewClicked:)]) {
            [self.suspendDelegate  suspendCustomViewClicked:self];
        }
    }

问题三:

对于音频/视频/自定义View 可以建界面UI添加到

customContentView上.那么对于界面UI上的一些有用到点击事件,用户交互的.肯定是userInteractionEnabled=YES.为了不让自定义的UI阻塞响应链. 那么需要自定义控件(按钮/图片/webView等等),同时需要重写touchsbegan:/touchsMoved:/touchsEnded:三个方法. 代码如下:

@implementation SuspendButton
- (void)touchesBegan:(NSSet<UITouch *> *)touches withEvent:(UIEvent *)event{
    [[self nextResponder]touchesBegan:touches withEvent:event];
}
- (void)touchesMoved:(NSSet<UITouch *> *)touches withEvent:(UIEvent *)event{
    [[self nextResponder]touchesMoved:touches withEvent:event];
}
- (void)touchesEnded:(NSSet<UITouch *> *)touches withEvent:(UIEvent *)event{
    [[self nextResponder]touchesEnded:touches withEvent:event];
}

@end
@implementation SuspendScrollView
- (void)touchesBegan:(NSSet<UITouch *> *)touches withEvent:(UIEvent *)event{
    [[self nextResponder]touchesBegan:touches withEvent:event];
}
- (void)touchesMoved:(NSSet<UITouch *> *)touches withEvent:(UIEvent *)event{
    [[self nextResponder]touchesMoved:touches withEvent:event];
}
- (void)touchesEnded:(NSSet<UITouch *> *)touches withEvent:(UIEvent *)event{
    [[self nextResponder]touchesEnded:touches withEvent:event];
}

@end
@implementation SuspendImageView
- (void)touchesBegan:(NSSet<UITouch *> *)touches withEvent:(UIEvent *)event{
    [[self nextResponder]touchesBegan:touches withEvent:event];
}
- (void)touchesMoved:(NSSet<UITouch *> *)touches withEvent:(UIEvent *)event{
    [[self nextResponder]touchesMoved:touches withEvent:event];
}
- (void)touchesEnded:(NSSet<UITouch *> *)touches withEvent:(UIEvent *)event{
    [[self nextResponder]touchesEnded:touches withEvent:event];
}

@end
@implementation SuspendView
- (void)touchesBegan:(NSSet<UITouch *> *)touches withEvent:(UIEvent *)event{
    [[self nextResponder]touchesBegan:touches withEvent:event];
}
- (void)touchesMoved:(NSSet<UITouch *> *)touches withEvent:(UIEvent *)event{
    [[self nextResponder]touchesMoved:touches withEvent:event];
}
- (void)touchesEnded:(NSSet<UITouch *> *)touches withEvent:(UIEvent *)event{
    [[self nextResponder]touchesEnded:touches withEvent:event];
}

@end

问题四:

想让悬浮视图消失.代码如下:

- (void)cancelWindow{

[_customWindow resignFirstResponder];

_customWindow=nil;

}

使用:

- (void)viewDidLoad {
    [super viewDidLoad];

    LCSuspendCustomBaseViewController *floatVC=[[LCSuspendCustomBaseViewController alloc]init];
    floatVC.suspendType=SCROLLVIEW;
    [self addChildViewController:floatVC];
    [self.view addSubview:floatVC.view];


}
