序言

注解在Java中到底是什么样的东西？具体是如何实现的？
本文将一层一层深入探究注解的实现原理。为了尽可能的将分析的过程呈现出来，所以文章包含了大量的截图和代码。（ps：如果图片看不清楚，请将网页放大来看，chrome可以通过ctrl+鼠标滚轮放大）

前期准备

知识方面

开始分析前，提醒一下，下面的分析必须具备以下知识
1. 知道如何自定义注解
2. 理解Java动态代理机制
3. 了解Java常量池
如果不具备以上的知识，会看得云里雾里的。上面提到的知识点谷歌百度都可以找到许多相关的文章。

工具方面

Intellij 2016

开始分析

首先写一个简单的自定义注解小程序。

先自定义一个运行时注解

@Target(ElementType.TYPE)
@Retention(RetentionPolicy.RUNTIME)
public @interface HelloAnnotation {

    String say() default "Hi";

}

然后在Main函数中解析注解

@HelloAnnotation(say = "Do it!")
public class TestMain {
    public static void main(String[] args) {
        HelloAnnotation annotation = TestMain.class.getAnnotation(HelloAnnotation.class);//获取TestMain类上的注解对象
        System.out.println(annotation.say());//调用注解对象的say方法，并打印到控制台
    }
}

运行程序，输出结果如下：

Do it!

下面将围绕上面的代码来研究Java注解（Annotation）的实现原理

1. 注解对象具体是什么？

首先，我们先在main函数第一行断点，看看HelloAnnotation具体是什么类的对象

可以看到HelloAnnotation注解的实例是jvm生成的动态代理类的对象。

这个运行时生成的动态代理对象是可以导出到文件的，方法有两种

在代码中加入System.setProperty("sun.misc.ProxyGenerator.saveGeneratedFiles", "true");
在运行时加入jvm 参数 -Dsun.misc.ProxyGenerator.saveGeneratedFiles=true

这里使用第一种，↓

这里写图片描述

然后运行程序。

这里写图片描述

可以看到，已经导出了运行时生成的代理类。↑

HelloAnnotation的动态代理类是$Proxy1.class，Intellij自带了反编译工具，直接双击打开，得到如下的Java代码

//
// Source code recreated from a .class file by IntelliJ IDEA
// (powered by Fernflower decompiler)
//

package com.sun.proxy;

import com.kevin.java.annotation.runtimeAnnotation.HelloAnnotation;
import java.lang.reflect.InvocationHandler;
import java.lang.reflect.Method;
import java.lang.reflect.Proxy;
import java.lang.reflect.UndeclaredThrowableException;

public final class $Proxy1 extends Proxy implements HelloAnnotation {
    private static Method m1;
    private static Method m2;
    private static Method m4;
    private static Method m3;
    private static Method m0;

    public $Proxy1(InvocationHandler var1) throws  {
        super(var1);
    }

    public final boolean equals(Object var1) throws  {
        try {
            return ((Boolean)super.h.invoke(this, m1, new Object[]{var1})).booleanValue();
        } catch (RuntimeException | Error var3) {
            throw var3;
        } catch (Throwable var4) {
            throw new UndeclaredThrowableException(var4);
        }
    }

    public final String toString() throws  {
        try {
            return (String)super.h.invoke(this, m2, (Object[])null);
        } catch (RuntimeException | Error var2) {
            throw var2;
        } catch (Throwable var3) {
            throw new UndeclaredThrowableException(var3);
        }
    }

    public final Class annotationType() throws  {
        try {
            return (Class)super.h.invoke(this, m4, (Object[])null);
        } catch (RuntimeException | Error var2) {
            throw var2;
        } catch (Throwable var3) {
            throw new UndeclaredThrowableException(var3);
        }
    }

    public final String say() throws  {
        try {
            return (String)super.h.invoke(this, m3, (Object[])null);
        } catch (RuntimeException | Error var2) {
            throw var2;
        } catch (Throwable var3) {
            throw new UndeclaredThrowableException(var3);
        }
    }

    public final int hashCode() throws  {
        try {
            return ((Integer)super.h.invoke(this, m0, (Object[])null)).intValue();
        } catch (RuntimeException | Error var2) {
            throw var2;
        } catch (Throwable var3) {
            throw new UndeclaredThrowableException(var3);
        }
    }

    static {
        try {
            m1 = Class.forName("java.lang.Object").getMethod("equals", new Class[]{Class.forName("java.lang.Object")});
            m2 = Class.forName("java.lang.Object").getMethod("toString", new Class[0]);
            m4 = Class.forName("com.kevin.java.annotation.runtimeAnnotation.HelloAnnotation").getMethod("annotationType", new Class[0]);
            m3 = Class.forName("com.kevin.java.annotation.runtimeAnnotation.HelloAnnotation").getMethod("say", new Class[0]);
            m0 = Class.forName("java.lang.Object").getMethod("hashCode", new Class[0]);
        } catch (NoSuchMethodException var2) {
            throw new NoSuchMethodError(var2.getMessage());
        } catch (ClassNotFoundException var3) {
            throw new NoClassDefFoundError(var3.getMessage());
        }
    }
}

从第14行我们可以看到，我们自定义的注解HelloAnnotation是一个接口，而$Proxy1这个Java生成的动态代理类就是它的实现类

我们接着看一下HelloAnnotation的字节码

 $ javap -verbose HelloAnnotation
Warning: Binary file HelloAnnotation contains com.kevin.java.annotation.runtimeAnnotation.HelloAnnotation
Classfile /home/kevin/Workspace/IdeaProjects/JavaLearn/out/production/JavaLearn/com/kevin/java/annotation/runtimeAnnotation/HelloAnnotation.class
  Last modified Aug 6, 2016; size 496 bytes
  MD5 checksum a6c87f863669f6ab9050ffa310160ea5
  Compiled from "HelloAnnotation.java"
public interface com.kevin.java.annotation.runtimeAnnotation.HelloAnnotation extends java.lang.annotation.Annotation
  minor version: 0
  major version: 52
  flags: ACC_PUBLIC, ACC_INTERFACE, ACC_ABSTRACT, ACC_ANNOTATION
Constant pool:
   #1 = Class              #18            // com/kevin/java/annotation/runtimeAnnotation/HelloAnnotation
   #2 = Class              #19            // java/lang/Object
   #3 = Class              #20            // java/lang/annotation/Annotation
   #4 = Utf8               say
   #5 = Utf8               ()Ljava/lang/String;
   #6 = Utf8               AnnotationDefault
   #7 = Utf8               Hi
   #8 = Utf8               SourceFile
   #9 = Utf8               HelloAnnotation.java
  #10 = Utf8               RuntimeVisibleAnnotations
  #11 = Utf8               Ljava/lang/annotation/Target;
  #12 = Utf8               value
  #13 = Utf8               Ljava/lang/annotation/ElementType;
  #14 = Utf8               TYPE
  #15 = Utf8               Ljava/lang/annotation/Retention;
  #16 = Utf8               Ljava/lang/annotation/RetentionPolicy;
  #17 = Utf8               RUNTIME
  #18 = Utf8               com/kevin/java/annotation/runtimeAnnotation/HelloAnnotation
  #19 = Utf8               java/lang/Object
  #20 = Utf8               java/lang/annotation/Annotation
{
  public abstract java.lang.String say();
    descriptor: ()Ljava/lang/String;
    flags: ACC_PUBLIC, ACC_ABSTRACT
    AnnotationDefault:
      default_value: s#7}
SourceFile: "HelloAnnotation.java"
RuntimeVisibleAnnotations:
  0: #11(#12=[e#13.#14])
  1: #15(#12=e#16.#17)

看到第7行。很明显，HelloAnnotation就是继承了Annotation的接口。再看第10行，flag字段中，我们可以看到，有个ACC_ANNOTATION标记，说明是一个注解，所以注解本质是一个继承了Annotation的特殊接口。

而Annotation接口声明了以下方法。

package java.lang.annotation;

public interface Annotation {
    boolean equals(Object var1);

    int hashCode();

    String toString();

    Class<? extends Annotation> annotationType();
}

这些方法，已经被$Proxy1实现了。（这就是动态代理的机制）

小结

现在我们知道了HelloAnnotation注解（接口）是一个继承了Annotation接口的特殊接口，而我们通过反射获取注解时，返回的是Java运行时生成的动态代理对象$Proxy1，该类就是HelloAnnotation注解（接口）的具体实现类。

2. 动态代理类$Proxy1是如何处理annotation.say()方法的调用？

无论是否了解动态代理，这里只需要明确一点，动态代理方法的调用最终会传递给绑定的InvocationHandler实例的invoke方法处理。我们可以看看源码

$Proxy1.java

public final class $Proxy1 extends Proxy implements HelloAnnotation {
   .....
   public final String say() throws  {
        try {
            return (String)super.h.invoke(this, m3, (Object[])null);
        } catch (RuntimeException | Error var2) {
            throw var2;
        } catch (Throwable var3) {
            throw new UndeclaredThrowableException(var3);
        }
    }
    ....
}

Proxy.java

public class Proxy implements java.io.Serializable {

    /**
     * the invocation handler for this proxy instance.
     * @serial
     */
    protected InvocationHandler h;

从上面不难看出，say方法最终会执行(String)super.h.invoke(this, m3, (Object[])null);，而这其中的h对象类型就是InvocationHandler接口的某个实现类

断点调试，看看InvocationHandler具体实现类是哪个。

这里写图片描述

可以看到h对象是AnnotationInvocationHandler的实例。让我们来看看该实现类的invoke方法。

class AnnotationInvocationHandler implements InvocationHandler, Serializable {
    private static final long serialVersionUID = 6182022883658399397L;
    private final Class<? extends Annotation> type;
    private final Map<String, Object> memberValues;
    private transient volatile Method[] memberMethods = null;

    AnnotationInvocationHandler(Class<? extends Annotation> var1, Map<String, Object> var2) {
        Class[] var3 = var1.getInterfaces();
        if(var1.isAnnotation() && var3.length == 1 && var3[0] == Annotation.class) {
            this.type = var1;
            this.memberValues = var2;
        } else {
            throw new AnnotationFormatError("Attempt to create proxy for a non-annotation type.");
        }
    }

    public Object invoke(Object var1, Method var2, Object[] var3) {
        String var4 = var2.getName();
        Class[] var5 = var2.getParameterTypes();
        if(var4.equals("equals") && var5.length == 1 && var5[0] == Object.class) {
            return this.equalsImpl(var3[0]);
        } else if(var5.length != 0) {
            throw new AssertionError("Too many parameters for an annotation method");
        } else {
            byte var7 = -1;
            switch(var4.hashCode()) {
            case -1776922004:
                if(var4.equals("toString")) {
                    var7 = 0;
                }
                break;
            case 147696667:
                if(var4.equals("hashCode")) {
                    var7 = 1;
                }
                break;
            case 1444986633:
                if(var4.equals("annotationType")) {
                    var7 = 2;
                }
            }

            switch(var7) {
            case 0:
                return this.toStringImpl();
            case 1:
                return Integer.valueOf(this.hashCodeImpl());
            case 2:
                return this.type;
            default:
                Object var6 = this.memberValues.get(var4);
                if(var6 == null) {
                    throw new IncompleteAnnotationException(this.type, var4);
                } else if(var6 instanceof ExceptionProxy) {
                    throw ((ExceptionProxy)var6).generateException();
                } else {
                    if(var6.getClass().isArray() && Array.getLength(var6) != 0) {
                        var6 = this.cloneArray(var6);
                    }

                    return var6;
                }
            }
        }
    }
    .......
}

我们直接从invoke方法第一行开始单步调试，看看invoke方法是如何处理我们annotation.say()方法的调用的。

这里再贴一次测试代码，不然就得翻到前面了

@HelloAnnotation(say = "Do it!")
public class TestMain {
    public static void main(String[] args) {
        HelloAnnotation annotation = TestMain.class.getAnnotation(HelloAnnotation.class);
        System.out.println(annotation.say());
    }
}

这里写图片描述

可以看到，say方法的返回值是从一个Map中获取到的。这个map以key（注解方法名）—value（注解方法对应的值）存储TestMain类上的注解

那memberValues这个Map对象是怎么生成的，继续调试
通过方法调用栈找到memberValues的本源

这里写图片描述

我们继续跟进parseMemberValue（）方法

这里写图片描述

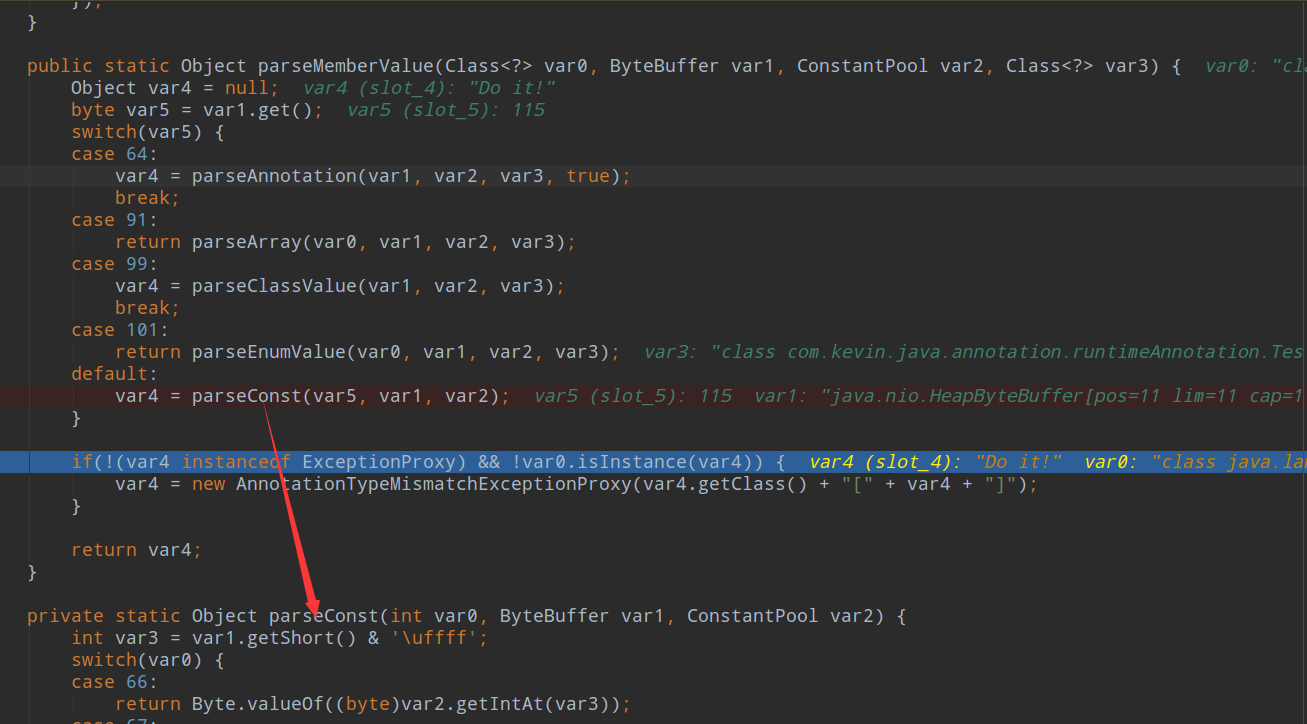

在parseMemberValue（）中会调用parseConst方法，继续跟进到parseConst方法

这里写图片描述

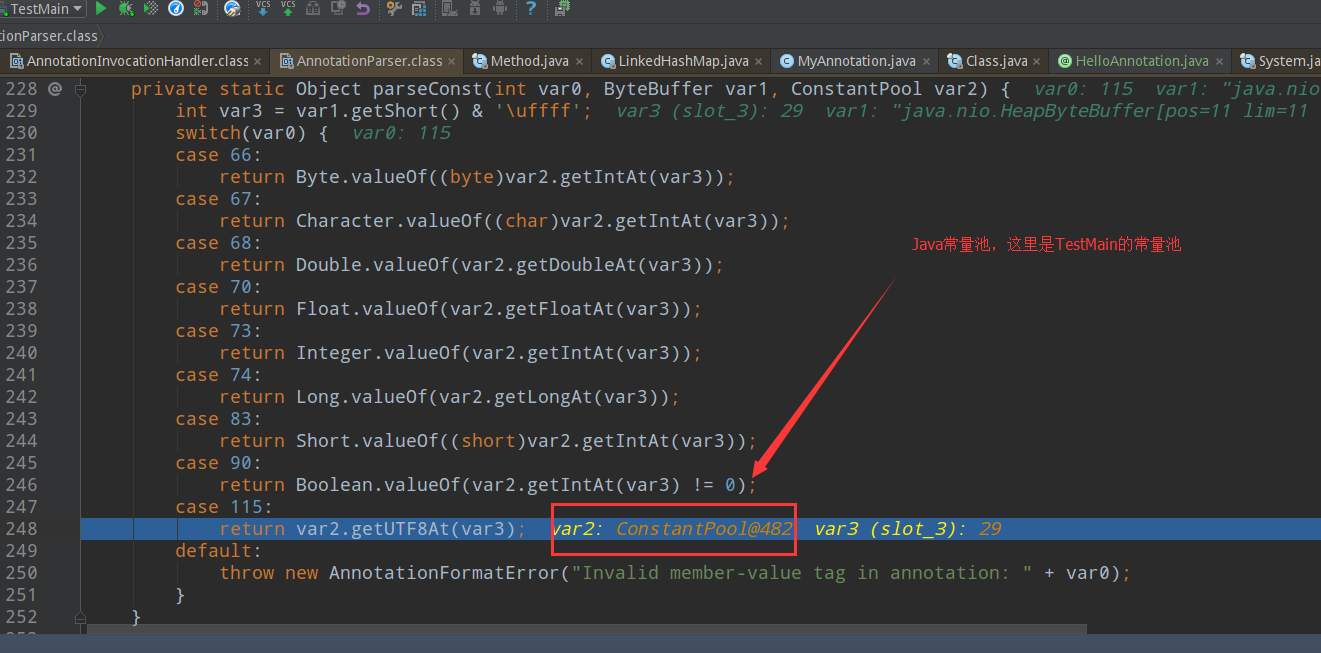

可以看到，memberValues是通过常量池获取到，return var2.getUTF8At(var3);中的var3就是常量池中的序号。继续执行返回到parseMemberValue（）方法

这里写图片描述

可以看到获取的就是我们定义在TestMain类上注解的say的值——“Do it！”

这里可以通过javap -verbose TestMain查看TestMain字节码中的常量池

$ javap -verbose TestMain
Warning: Binary file TestMain contains com.kevin.java.annotation.runtimeAnnotation.TestMain
Classfile /home/kevin/Workspace/IdeaProjects/JavaLearn/out/production/JavaLearn/com/kevin/java/annotation/runtimeAnnotation/TestMain.class
  Last modified Aug 10, 2016; size 1117 bytes
  MD5 checksum 610b7176c7dfdad08bc4862247df7123
  Compiled from "TestMain.java"
public class com.kevin.java.annotation.runtimeAnnotation.TestMain
  minor version: 0
  major version: 52
  flags: ACC_PUBLIC, ACC_SUPER
Constant pool://常量池
   #1 = Methodref          #11.#30        // java/lang/Object."<init>":()V
   #2 = String             #31            // sun.misc.ProxyGenerator.saveGeneratedFiles
   #3 = String             #32            // true
   #4 = Methodref          #33.#34        // java/lang/System.setProperty:(Ljava/lang/String;Ljava/lang/String;)Ljava/lang/String;
   #5 = Class              #35            // com/kevin/java/annotation/runtimeAnnotation/TestMain
   #6 = Class              #36            // com/kevin/java/annotation/runtimeAnnotation/HelloAnnotation
   #7 = Methodref          #37.#38        // java/lang/Class.getAnnotation:(Ljava/lang/Class;)Ljava/lang/annotation/Annotation;
   #8 = Fieldref           #33.#39        // java/lang/System.out:Ljava/io/PrintStream;
   #9 = InterfaceMethodref #6.#40         // com/kevin/java/annotation/runtimeAnnotation/HelloAnnotation.say:()Ljava/lang/String;
  #10 = Methodref          #41.#42        // java/io/PrintStream.println:(Ljava/lang/String;)V
  #11 = Class              #43            // java/lang/Object
  #12 = Utf8               <init>
  #13 = Utf8               ()V
  #14 = Utf8               Code
  #15 = Utf8               LineNumberTable
  #16 = Utf8               LocalVariableTable
  #17 = Utf8               this
  #18 = Utf8               Lcom/kevin/java/annotation/runtimeAnnotation/TestMain;
  #19 = Utf8               main
  #20 = Utf8               ([Ljava/lang/String;)V
  #21 = Utf8               args
  #22 = Utf8               [Ljava/lang/String;
  #23 = Utf8               annotation
  #24 = Utf8               Lcom/kevin/java/annotation/runtimeAnnotation/HelloAnnotation;
  #25 = Utf8               SourceFile
  #26 = Utf8               TestMain.java
  #27 = Utf8               RuntimeVisibleAnnotations
  #28 = Utf8               say
  #29 = Utf8               Do it!
  #30 = NameAndType        #12:#13        // "<init>":()V
  #31 = Utf8               sun.misc.ProxyGenerator.saveGeneratedFiles
  #32 = Utf8               true
  #33 = Class              #44            // java/lang/System
  #34 = NameAndType        #45:#46        // setProperty:(Ljava/lang/String;Ljava/lang/String;)Ljava/lang/String;
  #35 = Utf8               com/kevin/java/annotation/runtimeAnnotation/TestMain
  #36 = Utf8               com/kevin/java/annotation/runtimeAnnotation/HelloAnnotation
  #37 = Class              #47            // java/lang/Class
  #38 = NameAndType        #48:#49        // getAnnotation:(Ljava/lang/Class;)Ljava/lang/annotation/Annotation;
  #39 = NameAndType        #50:#51        // out:Ljava/io/PrintStream;
  #40 = NameAndType        #28:#52        // say:()Ljava/lang/String;
  #41 = Class              #53            // java/io/PrintStream
  #42 = NameAndType        #54:#55        // println:(Ljava/lang/String;)V
  #43 = Utf8               java/lang/Object
  #44 = Utf8               java/lang/System
  #45 = Utf8               setProperty
  #46 = Utf8               (Ljava/lang/String;Ljava/lang/String;)Ljava/lang/String;
  #47 = Utf8               java/lang/Class
  #48 = Utf8               getAnnotation
  #49 = Utf8               (Ljava/lang/Class;)Ljava/lang/annotation/Annotation;
  #50 = Utf8               out
  #51 = Utf8               Ljava/io/PrintStream;
  #52 = Utf8               ()Ljava/lang/String;
  #53 = Utf8               java/io/PrintStream
  #54 = Utf8               println
  #55 = Utf8               (Ljava/lang/String;)V
{
  public com.kevin.java.annotation.runtimeAnnotation.TestMain();
    descriptor: ()V
    flags: ACC_PUBLIC
    Code:
      stack=1, locals=1, args_size=1
         0: aload_0
         1: invokespecial #1                  // Method java/lang/Object."<init>":()V
         4: return
      LineNumberTable:
        line 10: 0
      LocalVariableTable:
        Start  Length  Slot  Name   Signature
            0       5     0  this   Lcom/kevin/java/annotation/runtimeAnnotation/TestMain;

  public static void main(java.lang.String[]);
    descriptor: ([Ljava/lang/String;)V
    flags: ACC_PUBLIC, ACC_STATIC
    Code:
      stack=2, locals=2, args_size=1
         0: ldc           #2                  // String sun.misc.ProxyGenerator.saveGeneratedFiles
         2: ldc           #3                  // String true
         4: invokestatic  #4                  // Method java/lang/System.setProperty:(Ljava/lang/String;Ljava/lang/String;)Ljava/lang/String;
         7: pop
         8: ldc           #5                  // class com/kevin/java/annotation/runtimeAnnotation/TestMain
        10: ldc           #6                  // class com/kevin/java/annotation/runtimeAnnotation/HelloAnnotation
        12: invokevirtual #7                  // Method java/lang/Class.getAnnotation:(Ljava/lang/Class;)Ljava/lang/annotation/Annotation;
        15: checkcast     #6                  // class com/kevin/java/annotation/runtimeAnnotation/HelloAnnotation
        18: astore_1
        19: getstatic     #8                  // Field java/lang/System.out:Ljava/io/PrintStream;
        22: aload_1
        23: invokeinterface #9,  1            // InterfaceMethod com/kevin/java/annotation/runtimeAnnotation/HelloAnnotation.say:()Ljava/lang/String;
        28: invokevirtual #10                 // Method java/io/PrintStream.println:(Ljava/lang/String;)V
        31: return
      LineNumberTable:
        line 13: 0
        line 14: 8
        line 15: 19
        line 16: 31
      LocalVariableTable:
        Start  Length  Slot  Name   Signature
            0      32     0  args   [Ljava/lang/String;
           19      13     1 annotation   Lcom/kevin/java/annotation/runtimeAnnotation/HelloAnnotation;
}
SourceFile: "TestMain.java"
RuntimeVisibleAnnotations:
  0: #24(#28=s#29)

仔细看第40行#29 = Utf8 Do it!，可以看到#29与var3的29对应（也就常量池的索引），对应的值就是Do it!。

以上就是say方法调用的细节。

总结

注解本质是一个继承了Annotation的特殊接口，其具体实现类是Java运行时生成的动态代理类。通过代理对象调用自定义注解（接口）的方法，会最终调用AnnotationInvocationHandler的invoke方法。该方法会从memberValues这个Map中索引出对应的值。而memberValues的来源是Java常量池。
