【Android基础知识】Fragment和Activity通信

Fragment和Activity如何互相获取对象

1.Fragment可调用getActivity（）方法获取它所在的Activity

2.Activity可调用FragmentManager的findFragmentById()或findFragmentByTag()方法获取Fragment。

Fragment和Activity互相传递数据

Activity -> Fragment ：在Activity中创建Bundle数据包，并调用Fragment的setArguments（Bundle bundle）方法。

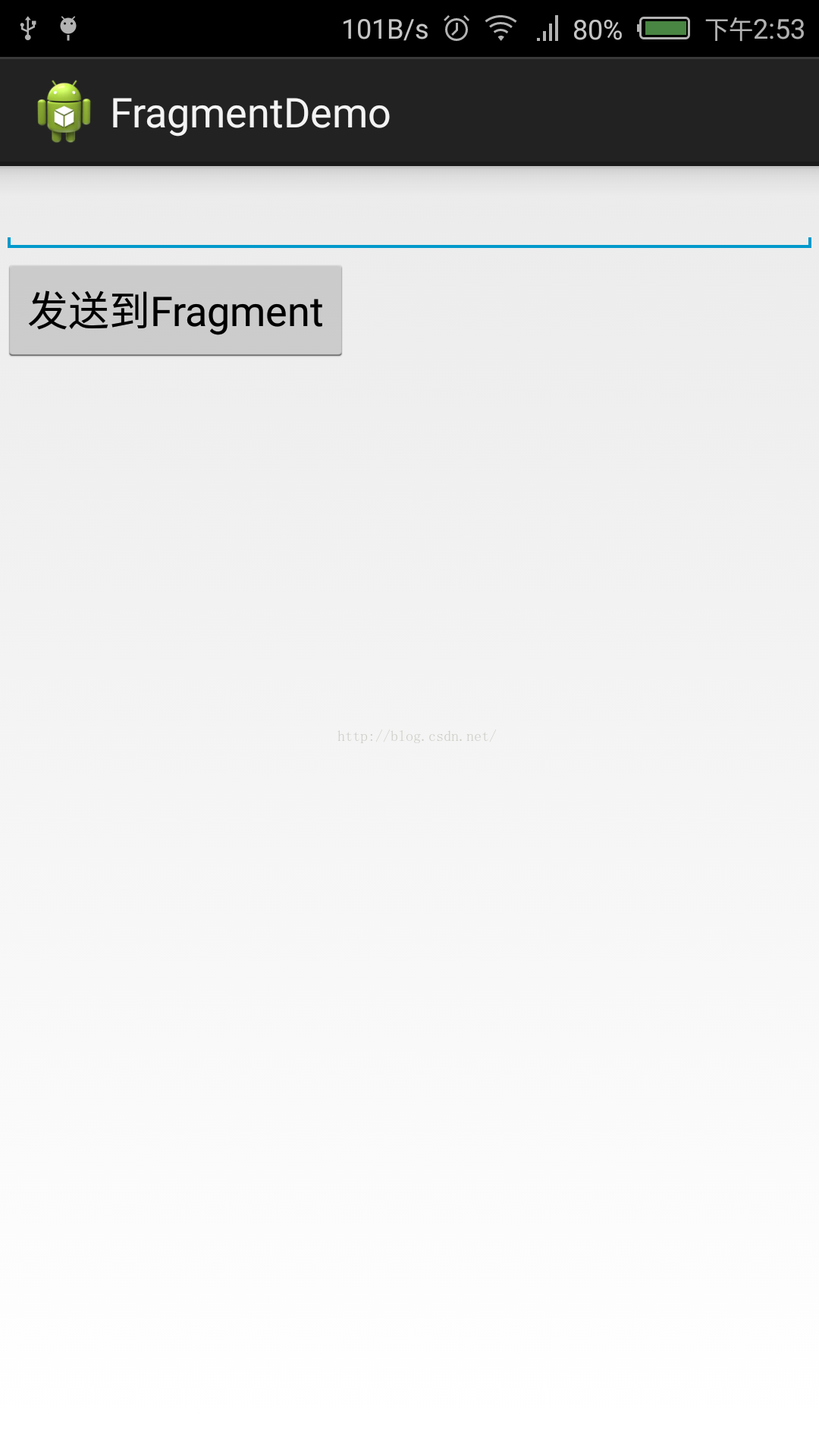

1.实现一个Activity，布局和代码文件如下：

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical"
    android:id="@+id/frame" >
    <EditText
        android:id="@+id/editText"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"/>
    <Button
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:id="@+id/send"
        android:text="发送到Fragment"/>

</LinearLayout>

MainActivity.java

public class MainActivity extends Activity {
	private EditText mEditText ;
	private Button mButton;
	@Override
	protected void onCreate(Bundle savedInstanceState) {
		super.onCreate(savedInstanceState);
		setContentView(R.layout.activity_main);
		mEditText = (EditText)findViewById(R.id.editText);
		mButton = (Button)findViewById(R.id.send);
		mButton.setOnClickListener(new OnClickListener() {

			@Override
			public void onClick(View v) {
				String str = mEditText.getText().toString();
				MyFragemnt fragemnt = new MyFragemnt();
				Bundle bundle = new Bundle();
				bundle.putString("text",str);
				//使用setArguments(bundle)方法向fragment发送数据
				fragemnt.setArguments(bundle);
				FragmentManager manager = getFragmentManager();
				FragmentTransaction transaction = manager.beginTransaction();
				transaction.add(R.id.frame, fragemnt,"fragment");
				transaction.commit();
				Toast.makeText(MainActivity.this, "向fragment发送数据",
						Toast.LENGTH_SHORT).show();
			}
		});
	}
}

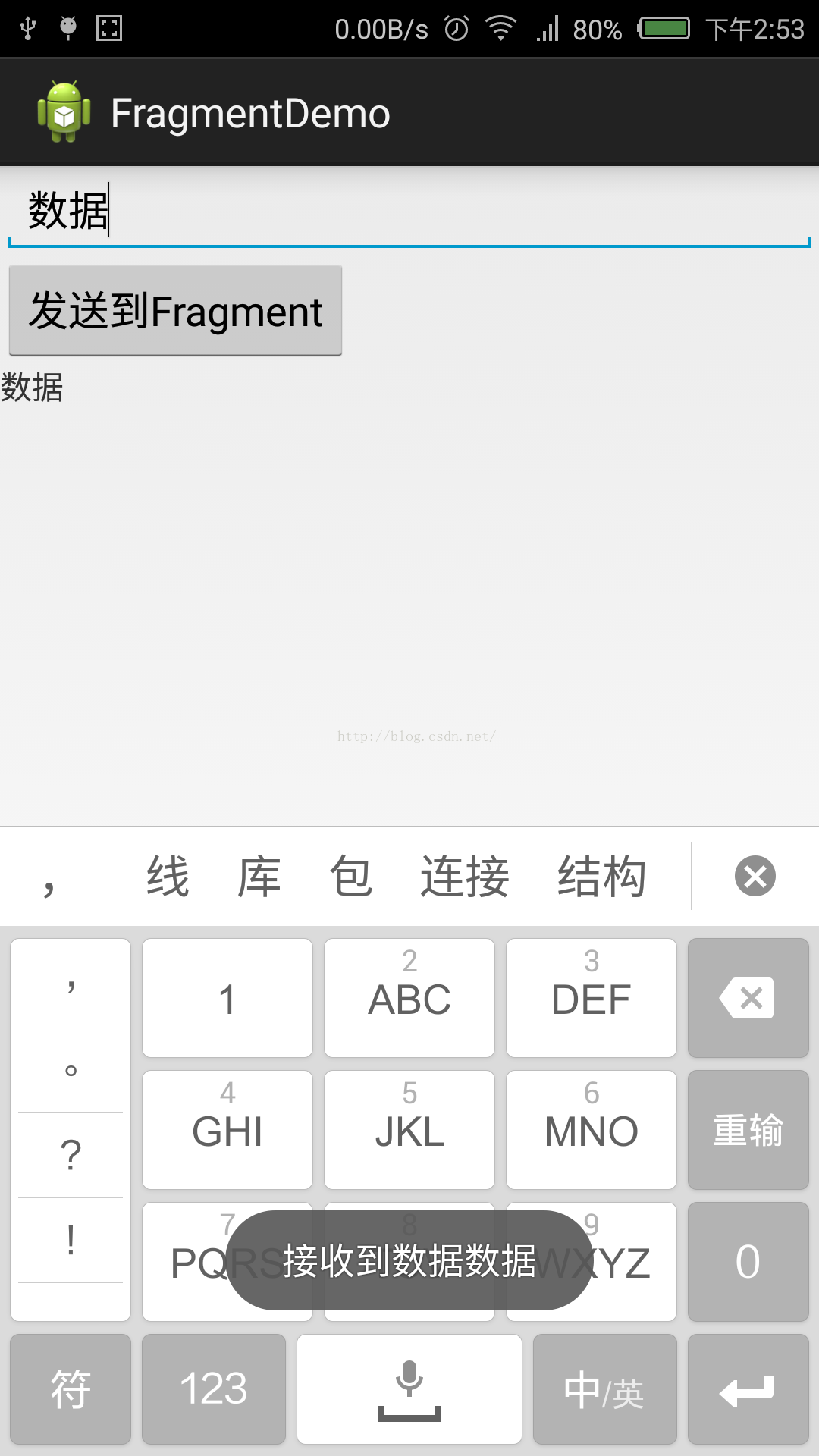

2.实现一个Fragment，布局为一个TextView，代码如下：

public class MyFragemnt extends Fragment{

	@Override
	public View onCreateView(LayoutInflater inflater, ViewGroup container,
			Bundle savedInstanceState) {
		View view = inflater.inflate(R.layout.fragment, container,false);
		TextView textView  = (TextView)view.findViewById(R.id.text);
		//接收Activity发送过来的数据
		String text = getArguments().get("text").toString();
		textView.setText(text);
		Toast.makeText(getActivity(), "接收到数据"+text,
				Toast.LENGTH_SHORT).show();
		return view;
	}
}

Fragment -> Activity ：需要在Fragment中定义一个内部回调接口，让包含该Fragment的Activity实现该回调接口。这样Fragment可调用回调方法将数据传递给Activity

1.在MyFragment中定义接口并调用接口的方法向Activity传递数据

MyFragment.java

public class MyFragemnt extends Fragment{

	private String codeString = "Thank you ,Activity!";
	public MyListener listener;
	//定义一个内部的接口，向Fragm传值
	public interface MyListener{
		public void Thanks(String str);
	}
	@Override
	public void onAttach(Activity activity) {
		super.onAttach(activity);
		//确保Activity实现了这个接口，初始化listener对象
		if(activity instanceof MyListener){
			listener = (MyListener) activity;
		}
	}
	@Override
	public View onCreateView(LayoutInflater inflater, ViewGroup container,
			Bundle savedInstanceState) {
		View view = inflater.inflate(R.layout.fragment, container,false);
		TextView textView  = (TextView)view.findViewById(R.id.text);
		//接收Activity发送过来的数据
		String text = getArguments().get("text").toString();
		textView.setText(text);
		Toast.makeText(getActivity(), "接收到数据"+text,
				Toast.LENGTH_SHORT).show();
		if(listener != null){
			listener.Thanks(codeString);
		}
		return view;
	}
}

2.Activity实现MyListenr接口并打印接收到的数据

public class MainActivity extends Activity implements MyListener{
	private EditText mEditText ;
	private Button mButton;
	@Override
	protected void onCreate(Bundle savedInstanceState) {
		super.onCreate(savedInstanceState);
		setContentView(R.layout.activity_main);
		mEditText = (EditText)findViewById(R.id.editText);
		mButton = (Button)findViewById(R.id.send);
		mButton.setOnClickListener(new OnClickListener() {

			@Override
			public void onClick(View v) {
				String str = mEditText.getText().toString();
				MyFragemnt fragemnt = new MyFragemnt();
				Bundle bundle = new Bundle();
				bundle.putString("text",str);
				//使用setArguments(bundle)方法向fragment发送数据
				fragemnt.setArguments(bundle);
				FragmentManager manager = getFragmentManager();
				FragmentTransaction transaction = manager.beginTransaction();
				transaction.add(R.id.frame, fragemnt,"fragment");
				transaction.commit();
				Toast.makeText(MainActivity.this, "向fragment发送数据",
						Toast.LENGTH_SHORT).show();
			}
		});
		/*
		 * 静态Fragment传值

		FragmentManager manager = getFragmentManager();
		Fragment fragment = manager.findFragmentById(R.id.fragment);
		MyFragemnt myFragemnt = (MyFragemnt)fragment;
		//使用myFragment传值
*/	}
	/**
	 * 实现Fragment中定义的接口，接收fragment传递过来的值
	 */
	@Override
	public void Thanks(String str) {
		Toast.makeText(MainActivity.this, "已接收到Fragment数据" + str,
				Toast.LENGTH_SHORT).show();
	}
}
