Kibana User Guide [4.2] » Getting Started with Kibana » Putting it all Together with Dashboards

标签: ELK Kibana
436人阅读 评论(0) 收藏 举报

 Putting it all Together with Dashboards

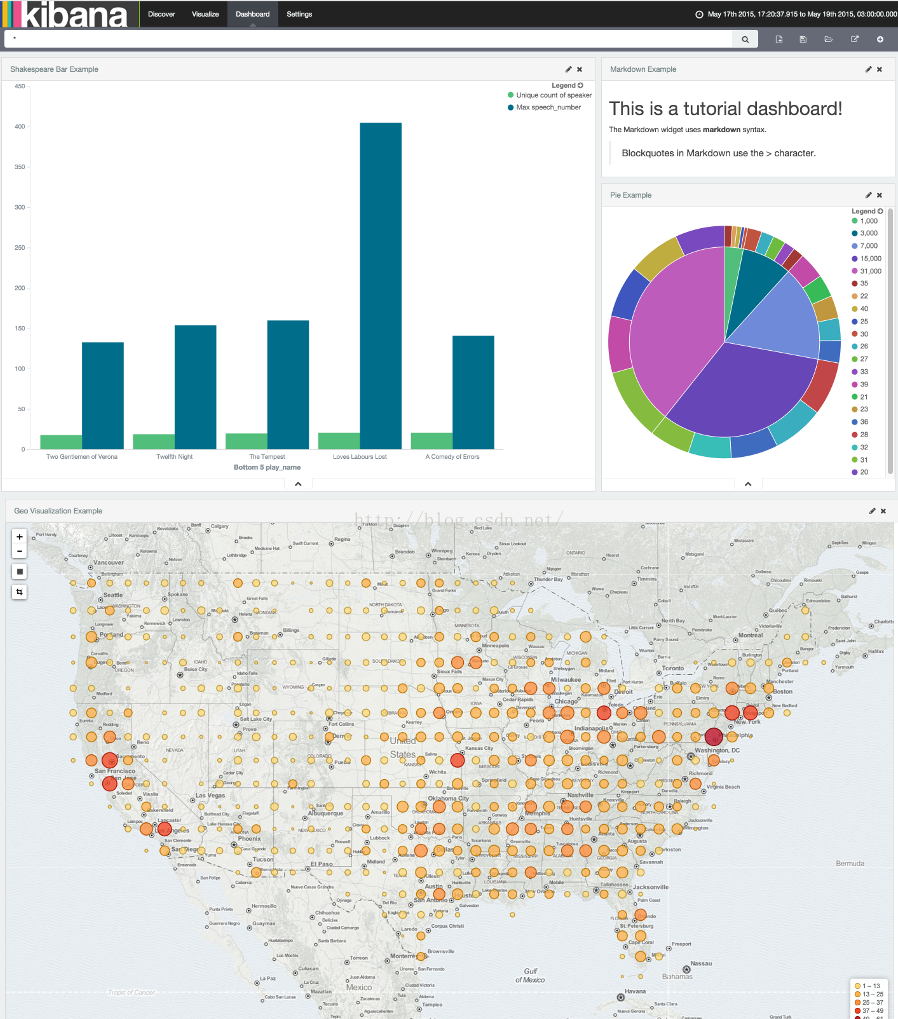

A Kibana dashboard is a collection of visualizations that you can arrange and share. To get started, click the Dashboard tab, then the Add Visualization button at the far right of the search box to display the list of saved visualizations. Select Markdown ExamplePie ExampleBar Example, and Map Example, then close the list of visualizations by clicking the small up-arrow at the bottom of the list. You can move the containers for each visualization by clicking and dragging the title bar. Resize the containers by dragging the lower right corner of a visualization’s container. Your sample dashboard should end up looking roughly like this:

Kibana仪表盘是对你整理和分享的可视化结果的整合。启动时,点击’Dashboard‘按钮,然后是在搜索栏右边的’Add Visualization‘按钮,来展示保存的可视化结果列表。选择Markdown ExamplePie ExampleBar Example, 和 Map Example,然后通过点击列表底部的向上符号关闭列表。你可以点击拖拽标题条为每个可视化结果建立一个容器。拖拽右下角重新确定容器大小。最后,你的样例仪表盘应该看起来是这样的:

Click the Save Dashboard button, then name the dashboard Tutorial Dashboard. You can share a saved dashboard by clicking the Share button to display HTML embedding code as well as a direct link.

点击’Save Dashboard‘按钮,然后把仪表盘命名为’Tutorial Dashboard‘。你可以使用’Share‘按钮分析保存的仪表盘,分享的可以是HTML嵌入代码,或者直接是链接。

Wrapping Up


Now that you’ve handled the basic aspects of Kibana’s functionality, you’re ready to explore Kibana in further detail. Take a look at the rest of the documentation for more details!

你已经知道Kibana 的基本保证了,要准备好了解更多细节了。接下来,请看下面的内容。
