最近滑动菜单比较流行,像facebook和人人等都在使用滑动菜单,今天做了一个小demo大体效果如下:
这次用了一个开源的项目ECSlidingViewController这个也是一个挺著名的托管在Github上的开源项目:
Github上Project的URL是:https://github.com/edgecase/ECSlidingViewController
大体步骤如下:
创建一个SingleView applicaton:
下面把下载的源码包含进来:
解压缩后打开 找到 ECSlidingViewController/Vendor/ECSlidingViewController 下的两个文件,我们把整个Vendor文件夹都导入:
添加一个类库:
打开StoryBoard另外再创建两个UIViewController

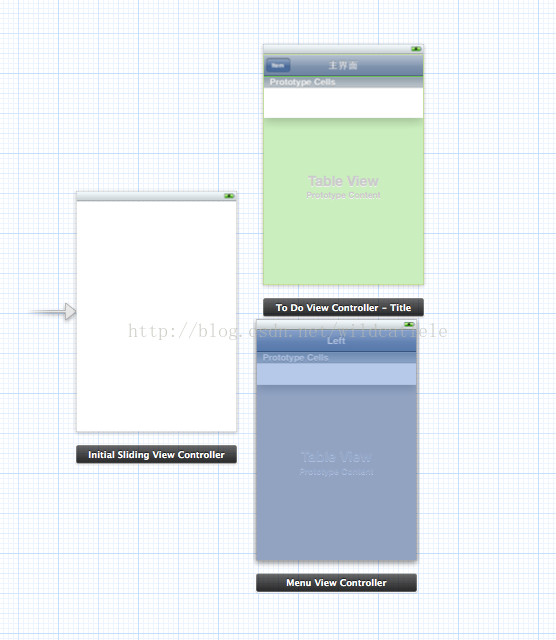

创建后大概界面如下:
1.新建两个文件分别为:ToDoViewController和MenuViewController都继承于UIviewController:
2.把新建时自带的ViewController两个文件删除,新建一个文件为:InitialSlidingViewController,打开stroryBoard并把它设为RootViewController。
3.在stroryBoard中把刚才新建的两个ToDoViewController和MenuViewController进行设置:
先设置ToDoViewController:把controller类设为:ToDoViewController标示符设为:ToDoView
MenuViewController的设置如上:把controller类设为:MenuViewController标示符设为:MenuView
下面修改代码:
InitialSlidingViewController.m
#import "InitialSlidingViewController.h"
#import "ToDoViewController.h"
@interface InitialSlidingViewController ()
@end
@implementation InitialSlidingViewController
- (void)viewDidLoad
{
[super viewDidLoad];
self.topViewController = [self.storyboard instantiateViewControllerWithIdentifier:@"ToDoView"];
}
@end
ToDoViewController.m:中修改如下:
- (void)viewWillAppear:(BOOL)animated
{
[super viewWillAppear:animated];
// Add a shadow to the top view so it looks like it is on top of the others
self.view.layer.shadowOpacity = 0.75f;
self.view.layer.shadowRadius = 10.0f;
self.view.layer.shadowColor = [[UIColor blackColor] CGColor];
// Tell it which view should be created under left
if (![self.slidingViewController.underLeftViewController isKindOfClass:[MenuViewController class]]) {
self.slidingViewController.underLeftViewController = [self.storyboard instantiateViewControllerWithIdentifier:@"MenuView"];
}
// Add the pan gesture to allow sliding
[self.view addGestureRecognizer:self.slidingViewController.panGesture];
}
MenuViewController修改如下:
- (void)viewDidLoad
{
[super viewDidLoad];
[self.slidingViewController setAnchorRightRevealAmount:240.0f];
self.slidingViewController.underLeftWidthLayout = ECFullWidth;
}
为了美观你可以设置一下 ToDoViewController和MenuViewController的背景色:

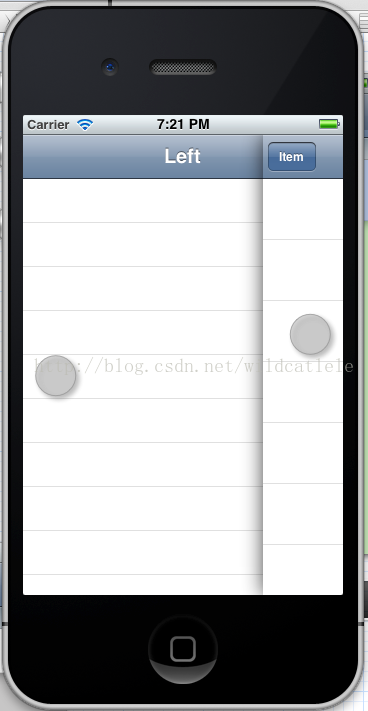

运行一下效果大体如下:
接下来你可以自己添加个性的View和segue了
转载请注明:
原文转载自:http://blog.csdn.net/wildcatlele
原文参考:http://kingscocoa.com/tutorials/slide-out-navigation/
