本文介绍了一种使用Visual Basic .NET从MDB文件加载地理空间数据到地图控件的方法。通过创建特征图层，并将MDB数据库中的要素类添加到地图中进行显示。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

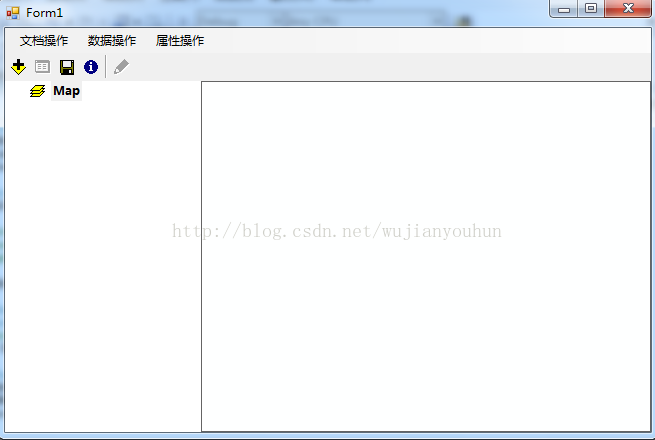

加载控件，连接并加载相应功能，如下图所示

Private void GetDataFromMDBToolStripMenumItem_Click(object sender,EventArgs e)
{
	  IWorkspaceFactory MyWorkSpaceFactory = new AccessWorkspaceFactoryClass();
            IWorkspace MyWorkSpace = MyWorkSpaceFactory.OpenFromFile(@"C:\数据资料等\hzdatabase.mdb", 0);//我的MDB数据库存放的路径
            IFeatureWorkspace MyFeatureWorkSpace=MyWorkSpace as IFeatureWorkspace;
            IEnumDataset MyEnum = MyWorkSpace.get_Datasets(esriDatasetType.esriDTAny);
            IDataset MyDataSat = MyEnum.Next();
            while (MyDataSat != null)
            {
                IFeatureDataset MyFeatureDataSat =(IFeatureDataset) MyDataSat;
                if (MyDataSat.Type == esriDatasetType.esriDTFeatureClass)
                {
		//这部分是在视图中加载不同的图层
                 IFeatureLayer  FeatureLayer = new FeatureLayerClass();
                         FeatureLayer.FeatureClass = MyFeatureWorkSpace.OpenFeatureClass(DataSat.Name);
                         ILayer  MyLayer = FeatureLayer as ILayer;
                         MyLayer.Name = MyDataSat.Name;
                        axMapControl1.Map.AddLayer(MyLayer);
                        MyDataSat = MyDataSatEnum.Next();                         }
                else if (MyDataSat.Type == esriDatasetType.esriDTFeatureDataset)
                {
                    IEnumDataset DataSatEnum = MyDataSat.Subsets;
                    IDataset DataSat = DataSatEnum.Next();
                   while (DataSat != null)
                    {
                       IFeatureLayer MyFeatureLayer = new FeatureLayerClass();
                         MyFeatureLayer.FeatureClass = MyFeatureWorkSpace.OpenFeatureClass(DataSat.Name);
                         ILayer Layer = MyFeatureLayer as ILayer;
                         Layer.Name = DataSat.Name;
                        axMapControl1.Map.AddLayer(Layer);
                        DataSat = DataSatEnum.Next();                    }
                }
                MyDataSat = MyEnum.Next();
            }
}

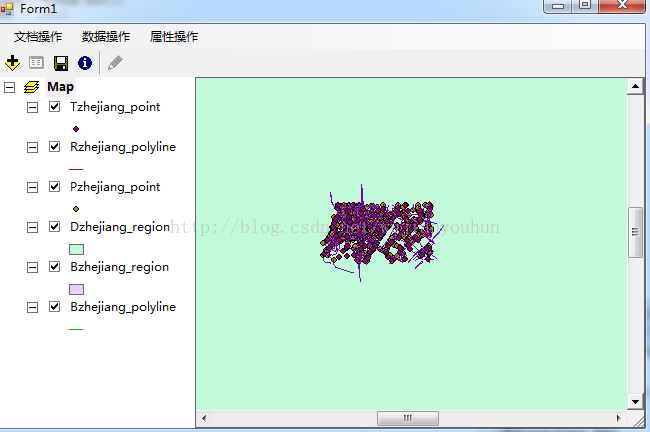

F5运行，结果如下图：
