Now let锟絪 get on with the actual process of light mapping. The complete process of calculating light maps is split into three parts. They are:
1. Calculating / retrieving light map texture co-ordinates.
2. Calculating the world position and normal for every pixel in every light map.
3. Calculating the final color for every pixel.
a. Calculating / retrieving light map texture co-ordinates:
This is the very first and basic process. It involves assigning each polygon to a specific area of the light map. This topic in itself is a candidate for a lengthy article. Hence, I'm going to skip this topic and jump to the next one.
However, if you want links to articles that explain this, then, I've provided some in the links section, at the very end of this article.
Also, this is one of the most important processes, since it determines the efficiency of using texture space. This can either be done in an automated process or can be done manually in editing tools such as 3DS Max锟?or Maya锟?
However, if you want a quick way to generate a world to test light maps, then you can do this:
Create an empty cube, a pretty large one. (empty, hence collision detection is not required)
Assign diffuse and light map texture co-ordinates manually.
Even better, you could use one diffuse for all the faces of the cube and use six different lightmaps for each face(polygon) of the cube.
This way, you can map the light map to the polygons of the cube with a ratio of 1:1.
Create one or two lights at the extreme top ends of the cube.
Use this setup to test your light map generation.
In the next level, to test shadow generation, you can add a box at the bottom center of the cube, and add collision detection routines.
b. Calculating the world position and normal for every pixel in every light map:
This is the pre-processing stage of the light map calculation. As you know, each pixel in the light map will map to a position in the world. This is exactly what we need to calculate. As long as the world geometry and the light map texture sizes doesn锟絫 change, this data is static, i.e. it can be calculated once and reused.
This is how it is done. Now consider a triangle like this. Why we have only 2D components for vertex position in the below triangle will be explained in later paragraphs.
Let锟絪 see what are all the know factors here:
a. We know the end points of the triangle (2D).
b. We know the (light map) texture co-ordinates for all the 3 vertices.
What do we need to calculate here: Given a texture co-ordinate value (on or within the 2D triangle), retrieve the 2D position on or within the 2D triangle. We have to do it for every pixel of the light map that this polygon owns. (Remember, a pixel from a light map can belong to one and only one triangle / polygon.) Let's see how we can achieve this.
NOTE: In the following few paragraphs, I锟絤 using certain equations, illustrations and quotes from . Please refer to the above said article for more information.
Consider triangle P0, P1, P2 in the above diagram. Each vertex has a screen space (2D SPACE) associated with it i.e. (X, Y). But in addition, there is an arbitrary parameter, C, which is, color for Gouraud Shading, or 1/Z, u/z or v/z for perspective texture mapping. Hence 锟紺锟?is any parameter we can linearly interpolate over the surface of the two-dimensional triangle. For the derivation, two points P3 and P4 are constructed as shown in the above diagram.
Therefore,
x1 - x2 x4 锟?x2
-------- = --------
y1 锟?y2 y4 锟?y2
and
c1 锟?c2 c4 锟?c2
-------- = --------
y1 锟?y2 y4 锟?y2
|
We know that y4 = y0 and x3 = x0.
Click here to see the derivation as to how we arrived at equation 1 and 2 mentioned below. For the triangle, we get the following two equations:
The above two equations tell how much of variable 锟紺锟?varies w.r.t X and Y. i.e. given a position (x, y) we can calculate 锟紺锟?for that position. For our lightmap solution, we need just the opposite. We know the texture co-ordinates (i.e. 锟紺锟? and we need to retrieve the position. I will be using the formulas as mentioned below. These are directly inherited from the above two equations. (Please refer to figure 1 for the variable names)
denominator = (v0-v2)(u1-u2) 锟?(v1-v2)(u0-u2)
dp dx (x1-x2)(v0-v2) 锟?(x0-x2)(v1-v2)
--- = --- = --------------------------------------
du du denominator
dp dx (x1-x2)(u0-u2) 锟?(x0-x2)(u1-u2)
--- = --- = --------------------------------------
dv dv -denominator
dq dy (y1-y2)(v0-v2) 锟?(y0-y2)(v1-v2)
--- = --- = --------------------------------------
du du denominator
dq dy (y1-y2)(u0-u2) 锟?(y0-y2)(u1-u2)
--- = --- = --------------------------------------
dv dv -denominator
|
Now get uv position relative to the first vertex锟絪 light map texture co-ordinate.
duv.x = uv->x 锟?u0
duv.y = uv->y 锟?v0
|
uv is the pointer to the texture co-ordinate for which the 锟絯orld-position锟?has to be computed. U0 and V0 are the light map texture co-ordinates for the first vertex.
Let pos be the pointer to final position.
Equation 3
pos->x = (x0) + (dpdu * duv.x) + (dpdv * duv.y)
pos->y = (y0) + (dqdu * duv.x) + (dqdv * duv.y)
|
Now we have the 2D position corresponding to the triangle and the UV coordinate.
Let's look at the figure 1 as an example, and try to retrieve the position for a given UV co-ordinate:
Let the UV co-ordinate for which the Position has to be calculated be {0.5, 1.0 } We definitely know that co-ordinates {0.5, 1.0 } fall well within (or on) the triangle.
We get the following values:
dxdu = dpdu = 100
dxdv = dpdv = 0
dydu = dqdu = 0
dydv = dqdv = 200
duv.x = (0.5 锟?0) = 0.5
duv.y = (1.0 锟?0) = 1.0
|
Hence the position is:
Pos->x = 150
Pos->y = 300
|
You can change the winding order and try 锟?you'll get the same result. Only the dxdu, dxdv, dydu, dydv, and duv values will change.
Now, we've retrieved the 2D position w.r.t a UV co-ordinate. But finally, we need a 3D position to do any 3D calculations. How do we do this? Here's the plane equation to the rescue. We know that a plane is represented by the equation: Ax+By+Cz+D = 0. Every polygon / triangle has a plane equation associated with it. Also, we can project any triangle/polygon along two of it's major axis. i.e. we are projecting a 3D triangle to 2D, by ignoring one of it锟絪 axis. This is required, because a texture is 2D whereas a triangle is in 3D space.
Which axis 锟?X, Y or Z to ignore? How we choose the axis to ignore is, given the plane normal, choose the two axis that are most aligned to the plane normal. If a, b, c (analogous to x, y, z axis) represent the plane normal, then, find out the maximum of the absolute of these three values, and ignore that axis.
Ex. If plane normal is (0, 1, 0), then, we would choose XZ axis and ignore the Y component. If plane normal is (0, -1, 0), then also, we would choose XZ axis.
Now we'll refer back to figure 1.
If the plane normal for the given triangle in figure 1 was (0, 1, 0), then the (Xn, Yn) values specified for each vertex in the figure, would actually be Xn and Zn. , I've used (Xn, Yn) in the figure to keep the derivation consistent.
Remember, the triangle is still in 3D, but we锟絩e converting it to 2D by ignoring one component.
Look at equation 3. Now, we've the world position of the lumel in 2D co-ordinates. We've to convert it to 3D. So, use the plane equation. Depending on which axis we锟絭e projected the triangle, we have to use the appropriate equation.
For example: The plane normal was (0.123, 0.824, 0.34).
According to what I锟絭e mentioned above, we ignore the Y 锟?component. Hence, when we get the 2D position of the lumel, it will be the X and Z components. We need to calculate the Y component.
We have Ax+By+Cz+D = 0.
By = -(Ax+Cz+D)
y = -(Ax+Cz+D) / B.
Thus we have the Y component. Similarly, we can calculate the missing component for other projections also.
First, let's look at the Lumel structure.
struct Lumel
{
D3DXVECTOR3 Position ; // lumel position in the world.
D3DXVECTOR3 Normal ; // lumel normal (used for
// calculating N.L)
DWORD Color ; // final color.
BYTE r, g, b, a; // the red, green, blue and alpha
// component.
int LegalPosition ; // is this lumel legal.
DWORD polygonIndex ; // index of the polygon that it
// belongs to.
} ;
|
This structure is used for every pixel in every light map. Ex. If the dimensions of a light map are 64x64, then, the memory required to hold the lumel info Would be:
size of each Lumel structure = 40 bytes.
Total size = (64 * 64 * 40) bytes = 163840 Bytes = 160 Kbytes.
This is just a test case. You CAN reduce the memory foot print.
"LegalPosition" member of the Lumel structure, will hold information whether the particular pixel belongs to any polygon or not.
The structure for a vertex displaying a light map would look something like this.
struct LMVertex
{
D3DXVECTOR3 Position ; // vertex position.
D3DXVECTOR3 Normal ; // vertex normal
DWORD Color ; // vertex color.
D3DXVECTOR2 t0 ; // diffuse texture co-ordinates.
D3DXVECTOR2 t1 ; // light map texture co-ordinates.
} ;
|
The structure for a polygon displaying a light map would look something like this.
struct LMPolygon
{
LMVertex *vertices ; // array of vertices.
WORD *indices ; // array of indices.
DWORD VertexCount, // No. of vertices in the array
FaceCount ; // No. of faces to draw in this
// polygon.
DWORD DiffuseTextureIndex ; // the index in to the diffuse
// texture array
DWORD LMTextureIndex ; // the index in to the light-map
// texture array
} ;
|
Here锟絪 the pseudocode for a function called BuildLumelInfo() that actually fills in the world position for every pixel in the light map:
BuildLumelInfo()
{
// this function has to be called for each light map texture
for(0 to lightmap height)
{
for(0 to lightmap width)
{
w = current width during the iteration (for loop)
h = current height during the iteration (for loop)
U = (w+0.5) / width
V = (h+0.5) / height
UV.x = U
UV.y = V
if (LumelGetWorldPosition(/*UV, this light map texture*/)) SUCCEEDED
then
// Mark this lumel as LEGAL.
else
{
// Mark this lumel as illegal 锟?in the sense that no triangle uses this pixel / lumel.
}
}
}
}
LumelGetWorldPosition( UV, light map texture )
{
for( number of polygons sharing this light map texture )
{
// do the "Bounding Box" lightmap texture co-ordinate rejection // test.
if( /*UV co-ordinates of the light map do not fall inside the
polygon锟絪 MAXIMUM and MINIMUM UV co-ordinates*/ )
then
//try next polygon ;
// code for the above explanation
if(uv->x < poly->minUV.x) continue ;
if(uv->y < poly->minUV.y) continue ;
if(uv->x > poly->maxUV.x) continue ;
if(uv->y > poly->maxUV.y) continue ;
for( /* number of faces in this polygon */ )
{
/*Get the three vertices that make up this face.
Check if light map UV co-ordinates actually fall inside the polygon锟絪
UV co-ordinates. This routine is similar to routines like 锟絇ointInPolygon锟? or 锟絇ointInTriangle锟?
If YES, then call GetWorldPos to get the actual world position in 3D
for this given light map UV co-ordinate.
If NO, then this is not a legal pixel, i.e. this pixel does not
belong to THIS polygon.*/
}
}
}
GetWorldPos(UV uv)
{
// get uv position relative to uv0
duv.x = uv->x - uv0->x ;
duv.y = uv->y - uv0->y ;
// retrieve the components of the two major axis.
// i.e. here we are converting from 3D triangle to 2D.
switch(PlaneProjection)
{
case PLANE_XZ :
// collect X and Z components
break ;
case PLANE_XY :
// collect X and Y components
break ;
case PLANE_YZ :
// collect Y and Z components
break ;
}
// Calculate the gradients from the equations derived above.
// See Equation 3 above.
Now calculate gradients.
i.e. dp/du, dp/dv, dq/du, dq/dv, etc.
// In the following line, I have used a, b, instead of X, Y or Z.
// This is because, depending on the polygon锟絪 plane we
// choose either XY or YZ or XZ components. Hence, a and b map to
// either XY or YZ or XZ components
pos->a = (a0) + (dpdu * duv.x) + (dpdv * duv.y)
pos->b = (b0) + (dqdu * duv.x) + (dqdv * duv.y)
// get the world pos in 3D
// calculate the remaining single co-ordinate based on the polygon锟絪
// plane.
switch(PlaneProjection)
{
case PLANE_XZ :
// We would have got X and Z as the 2D components.
// calculate the Y component.
y = -(Ax+Cz+D) / B.
break ;
case PLANE_XY :
// We would have got X and Y as the 2D components.
// calculate the Z component.
z = -(Ax+By+D) / C.
break ;
case PLANE_YZ :
// We would have got Y and Z as the 2D components.
// calculate the X component.
x = -(By+Cz+D) / A.
break ;
}
}
|
The function to build the lumel information is as follows: Remember, as long as the geometry, light map texture co-ordinates and light map texture sizes are constant, this function can be called only once and re-used again and again. This way, if you change a property for a light, then, you don't have to build the whole data base again. All you have to call is the function BuildLightMaps. BuildLumelInfoForAllLightmaps() should be called before BuildLightMaps().
BuildLumelInfoForAllLightmaps()
{
// Do initialization here.
for (number of light maps)
{
// If memory for Lumels not allocated, then,
// Allocate memory to hold the lumel info for this particular
// light map.
BuildLumelInfo(this_light_map) ; // Calculates the
// world position for all the lumels.
}
}
|
c. Calculating the final color for every pixel:
This is the last process involved in the calculation of light maps. Here we fill out the actual pixel values in every light map. I'll first give the pseudo code here which calculates the color for every pixel in the light map.
BuildThisLightMap()
{
for(0 to lightmap height)
{
for(0 to lightmap width)
{
lumel = current lumel ;
if(lumel is not legal)
then
try next lumel.
for( number of lights )
{
// cos theta = N.L
dir = lightPosition - lumel->Position
dot = D3DXVec3Dot(&lumel->Normal, &dir) ;
// if light is facing away from the lumel, then ignore
// the effect of this light on this lumel.
if( dot < 0.0 )
try next light ;
distance = distance between lumel and light source.
if(distance > light range)
try next light ;
// Check Collision of ray from light source to lumel.
if( collision occurred )
then
{
// lumel is in shadow.
continue ;
}
// GetColorFromLightSource.
// Write color info to lumel.
}
}
}
}
|
As you can see, the pseudo code explains itself pretty well. It's the basic light calculation. I won锟絫 spend too much time there. Let's look at the procedure which starts the process of calculating colors for all the light maps.
BuildLightMaps()
{
for (number of light maps)
{
BuildThisLightMap () ; // does all the lighting calculations.
BlurThisMap() ; // blur锟絪 the light map.
FillAllIllegalPixelsForThisLightMap() ; // fills all the illegal
// lumels with the closest
// color 锟?to prevent bleeding when
// bi-linear filtering is used.
WriteThisLightMapToFile() ; // finally write the lightmap colors
// to file.
// I write it in a 24-bit BMP format.
}
}
|
Lets look closely at what the two functions BlurThisMap and FillAllIllegalPixelsForThisLightMap do.
No matter whatever we do, if you锟絭e NOT turned on any filtering, then, "pixels" can be seen in the final rendered image. This is very unrealistic and can easily annoy the player / viewer. Hence, we try to smoothen out the "pixels".
You can use any filter you want for smoothing. I锟絤 using a BOX filter in my code. This is exactly what my BlurThisMap does.
BlurThisMap()
{
for(0 to height)
{
for(0 to width)
{
w = current width during the iteration (for loop)
h = current height during the iteration (for loop)
current_pixel = GetCurrentPixel(w,h)
// Get neighboring 8 pixels for current_pixel, ignoring the
// illegal pixels.
sum_color = Add color from the neighboring legal pixels.
// calculate the average.
final_color = sum_color / no. of neighboring legal pixels.
SetCurrentPixelColor(w, h, final_color) ;
}
}
}
|
Actually, if you锟絭e turned on Bi-Linear filtering in your game, then, the effect of "pixels" are reduced. But, still we smoothen out the map, to make the final image appear really smooth. If the final result (in the game) looks good without blurring the light map texture, then, you may skip the BlurThisMap procedure.
There's another problem if we use bi-linear filtering. It's the "bleeding" problem.
When bi-linear filtering is turned on in your game, then, whenever a pixel is chosen, the final color will not be the color from the pixel alone, but, the average of the pixels around it. (average of how many pixels - depends on the kind of filtering used.)
As you know, some of the pixels in our texture map will be illegal. It means, that particular pixel belongs to no polygon.
Usually, the color of any illegal pixel will be zero, since no color calculation is being done for that pixel.
So, while rendering, whenever a pixel is chosen, the average of the color around that pixel will be considered. In this process, even the "illegal" pixels may be chosen. This is why "bleeding" happens.
If we're using bi-linear or tri-linear filtering (which I bet we would be) in ourgame, then, we somehow got to get rid of the illegal pixels.
Actually, we can't get rid of them. What we can do is fill every illegal pixel with a color from the closest "legal pixel". This way, during filtering, it is assured that the closest and most appropriate color is chosen.
This way, most of the "bleeding" problems will be solved. This is what the procedure FillAllIllegalPixelsForThisLightMap does.
One way of solving "bleeding" problem, without having to fill out illegal pixels, is to set the color of all the illegal pixels to ambient color. Even though this gives decent results and is also very inexpensive, it's not the correct way of doing it. Maybe, you can consider this method for real-time light map generation.
Take a look at the figure below:
Bleeding due to bi-linear filtering being turned on.

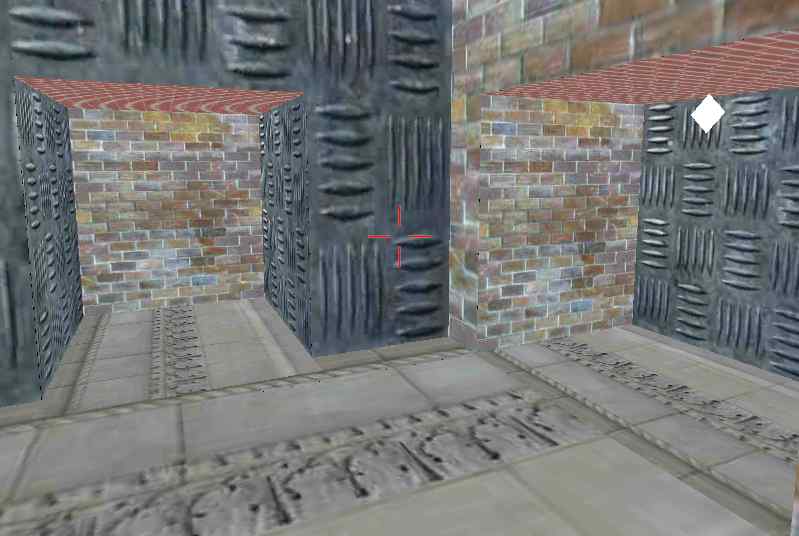

No bleeding even if bi-linear filtering is turned on.
Showing the lightmap:
Now that you锟絭e taken so much time to calculate the light maps, it锟絪 锟絛isplay time锟? Here锟絪 the code for DirectX 8.1:
// set the appropriate values for the texture stages.
// here I锟絤 assuming that the device supports two or more texture stages.
SETTEXTURESTAGE(device8, 0, D3DTSS_COLOROP, D3DTOP_SELECTARG1) ;
SETTEXTURESTAGE(device8, 0, D3DTSS_COLORARG1, D3DTA_TEXTURE) ;

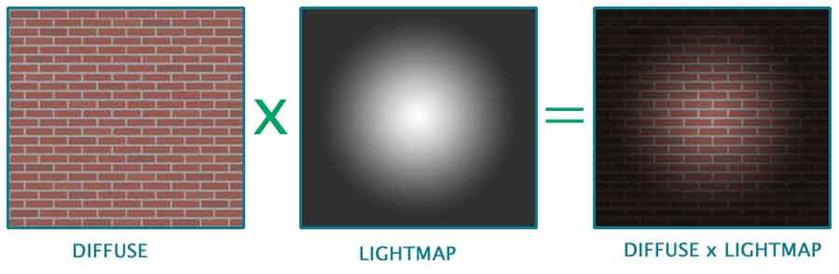

// multiply
SETTEXTURESTAGE(device8, 1, D3DTSS_COLOROP, D3DTOP_MODULATE) ;
SETTEXTURESTAGE(device8, 1, D3DTSS_COLORARG2, D3DTA_TEXTURE) ;
SETTEXTURESTAGE(device8, 1, D3DTSS_COLORARG1, D3DTA_CURRENT) ;
// set the appropriate vertex shader.
SETVERTEXSHADER(device8, FVF_MYVERTEXSHADER) ;
SETTRANSFORM(device8, D3DTS_WORLD) ; // set the world matrix
// set the texture for the first stage.
SETTEXTURE(device8, 0, diffuseTexture) ;
// set the texture for the second stage.
SETTEXTURE(device8, 1, lightMapTexture) ;
DrawPrimitive() ; // draw the polygons
|
Chris Hecker锟絪 article on Perspective Texture Mapping |
