赵雅智_fragment动态添加实现

步骤

• 新建主layout包含两个RelativeLayout布局
• 新建2个Fragment类分别对应2个layout
• 在主activity中进行动态添加
  • 获取FragmentManager对象

  • 获取FragmentTransaction对象

  • 添加Fragment对象

  • 提交事务

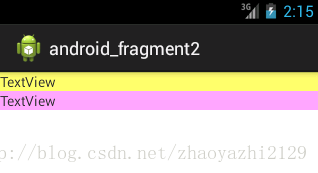

运行效果：

主要代码：

activity_main.xml

<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:id="@+id/container"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".MainActivity" >

    <RelativeLayout
        android:id="@+id/relativeLayout1"
        android:layout_width="match_parent"
        android:layout_height="wrap_content" >
    </RelativeLayout>

    <RelativeLayout
        android:id="@+id/relativeLayout2"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_below="@+id/relativeLayout1" >
    </RelativeLayout>

</RelativeLayout>

activity_fragment1.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="wrap_content"
    android:orientation="vertical"
    android:background="#FFFF6F" >

    <TextView
        android:id="@+id/textView1"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="TextView" />

</LinearLayout>

activity_fragment2.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="wrap_content"
    android:orientation="vertical"
    android:background="#ffa6ff" >

    <TextView
        android:id="@+id/textView1"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="TextView" />

</LinearLayout>

MainActivity.java

package com.example.android_fragment2;

import android.os.Bundle;
import android.app.Activity;
import android.app.FragmentManager;
import android.app.FragmentTransaction;

public class MainActivity extends Activity {

	@Override
	protected void onCreate(Bundle savedInstanceState) {
		super.onCreate(savedInstanceState);
		setContentView(R.layout.activity_main);
		//1.获取FragmentManager对象
		FragmentManager manager = getFragmentManager();
		//2.获取FragmentTransaction对象
		FragmentTransaction transaction = manager.beginTransaction();
		//添加Fragment对象
		transaction.add(R.id.relativeLayout1, new Fragment1(), "fragment1");
		transaction.add(R.id.relativeLayout2, new Fragment2(), "fragment2");
		//4.提交
		transaction.commit();
	}


}

Fragment1.java

package com.example.android_fragment2;

import android.app.Fragment;
import android.os.Bundle;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;

public class Fragment1 extends Fragment {

	@Override
	public View onCreateView(LayoutInflater inflater, ViewGroup container,
			Bundle savedInstanceState) {
		return inflater.inflate(R.layout.activity_fragment1, container, false);
	}

}

Fragment2.java

package com.example.android_fragment2;

import android.app.Fragment;
import android.os.Bundle;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;

public class Fragment2 extends Fragment {

	@Override
	public View onCreateView(LayoutInflater inflater, ViewGroup container,
			Bundle savedInstanceState) {
		return inflater.inflate(R.layout.activity_fragment2, container, false);
	}

}
