鸿蒙Harmony OS Next原生开发通过修改Hello World案例的布局了解Column和Row的特点

鸿蒙初开,开天辟地

 今天带大家在Hello World中尝试修改对应的页面布局效果

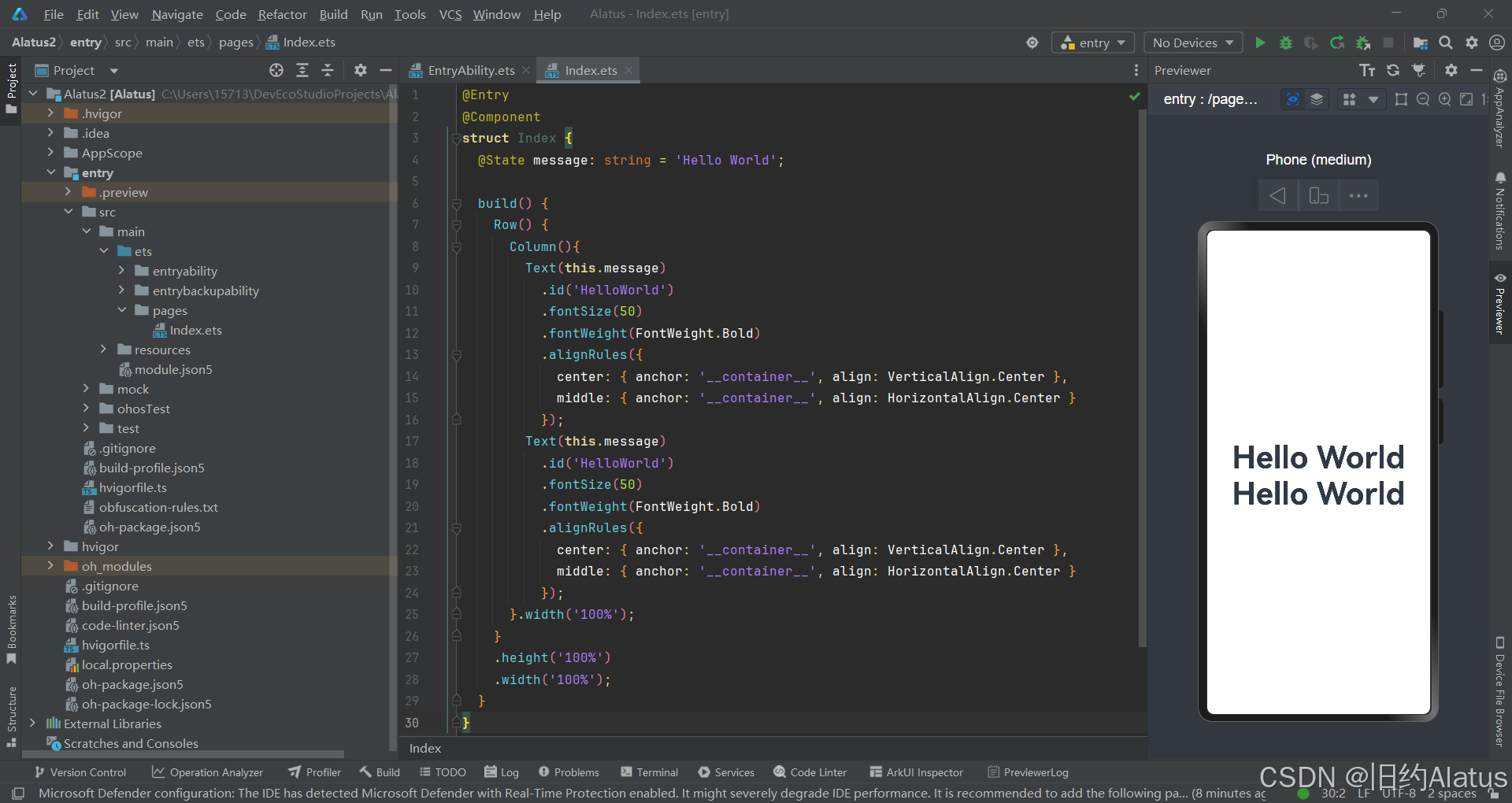

首先,我们再添加一行Text组件,让它同时存在两行

@Entry
@Component
struct Index {
  @State message: string = 'Hello World';

  build() {
    Row() {
      Column(){
        Text(this.message)
          .id('HelloWorld')
          .fontSize(50)
          .fontWeight(FontWeight.Bold)
          .alignRules({
            center: { anchor: '__container__', align: VerticalAlign.Center },
            middle: { anchor: '__container__', align: HorizontalAlign.Center }
          });
        Text(this.message)
          .id('HelloWorld')
          .fontSize(50)
          .fontWeight(FontWeight.Bold)
          .alignRules({
            center: { anchor: '__container__', align: VerticalAlign.Center },
            middle: { anchor: '__container__', align: HorizontalAlign.Center }
          });
      }.width('100%');
    }
    .height('100%')
    .width('100%');
  }
}

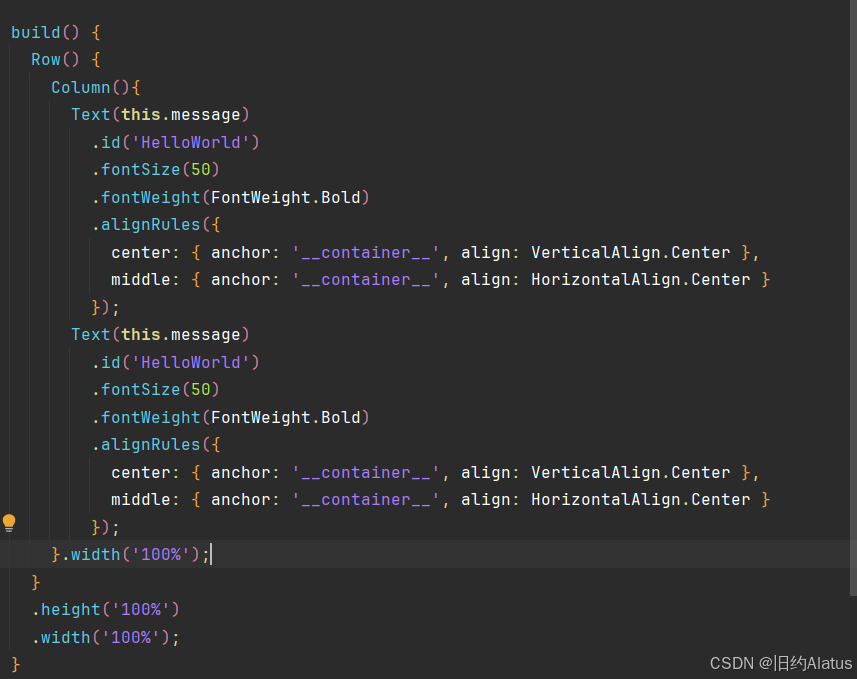

build() {
    Row() {
      Column(){
        Text(this.message)
          .id('HelloWorld')
          .fontSize(50)
          .fontWeight(FontWeight.Bold)
          .alignRules({
            center: { anchor: '__container__', align: VerticalAlign.Center },
            middle: { anchor: '__container__', align: HorizontalAlign.Center }
          });
        Text(this.message)
          .id('HelloWorld')
          .fontSize(50)
          .fontWeight(FontWeight.Bold)
          .alignRules({
            center: { anchor: '__container__', align: VerticalAlign.Center },
            middle: { anchor: '__container__', align: HorizontalAlign.Center }
          });
      }.width('100%');
    }
    .height('100%')
    .width('100%');
  }

事实证明Column()组件就是竖向排列的,其中的元素组件也如预期般排布了

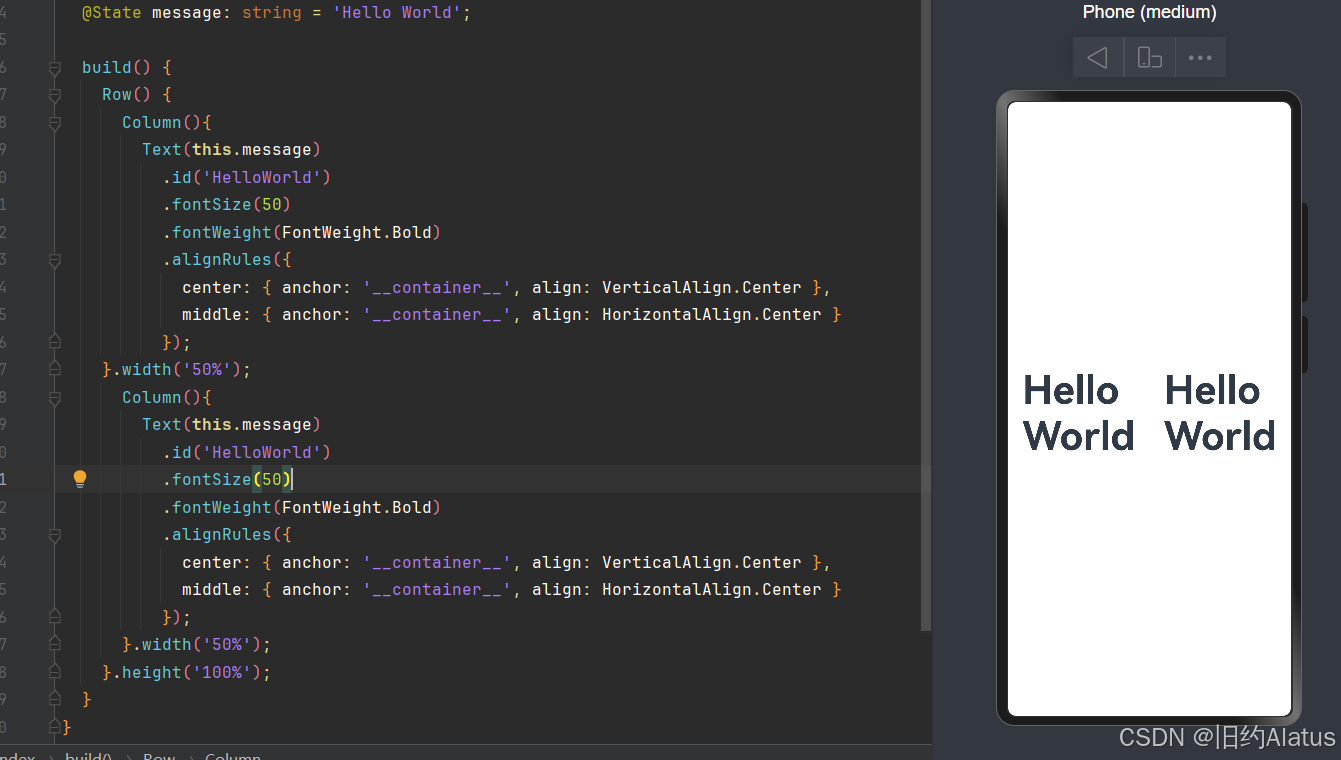

接下来我们调整一下左右,让左右两边都有这个Hello World效果,让它们左右排布

@Entry
@Component
struct Index {
  @State message: string = 'Hello World';

  build() {
    Row() {
      Column(){
        Text(this.message)
          .id('HelloWorld')
          .fontSize(50)
          .fontWeight(FontWeight.Bold)
          .alignRules({
            center: { anchor: '__container__', align: VerticalAlign.Center },
            middle: { anchor: '__container__', align: HorizontalAlign.Center }
          });
    }.width('50%');
      Column(){
        Text(this.message)
          .id('HelloWorld')
          .fontSize(50)
          .fontWeight(FontWeight.Bold)
          .alignRules({
            center: { anchor: '__container__', align: VerticalAlign.Center },
            middle: { anchor: '__container__', align: HorizontalAlign.Center }
          });
      }.width('50%');
    }.height('100%');
  }
}

build() {
    Row() {
      Column(){
        Text(this.message)
          .id('HelloWorld')
          .fontSize(50)
          .fontWeight(FontWeight.Bold)
          .alignRules({
            center: { anchor: '__container__', align: VerticalAlign.Center },
            middle: { anchor: '__container__', align: HorizontalAlign.Center }
          });
    }.width('50%');
      Column(){
        Text(this.message)
          .id('HelloWorld')
          .fontSize(50)
          .fontWeight(FontWeight.Bold)
          .alignRules({
            center: { anchor: '__container__', align: VerticalAlign.Center },
            middle: { anchor: '__container__', align: HorizontalAlign.Center }
          });
      }.width('50%');
    }.height('100%');
  }
