ST-link Utility检测不到串口 Can not connect to target! 已解决

对于ST-link检测stm32 串口出现

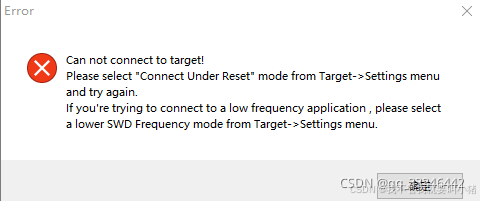

Can not connect to target! Please select "Connect Under Reset" mode from Target->Settings menu and try again. If you're trying to connect to a low frequency application , please select a lower SWD Frequency mode from Target->Settings menu.

尝试多次无法解决

后反省

发现是接线口错误

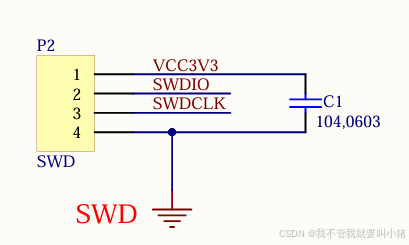

如图所示，vcc3.3v 不接外机可用，遂以记之。
