H3C:IPV6,OSPFv3,RIPng（简单小实验，没有备注和截屏效果）

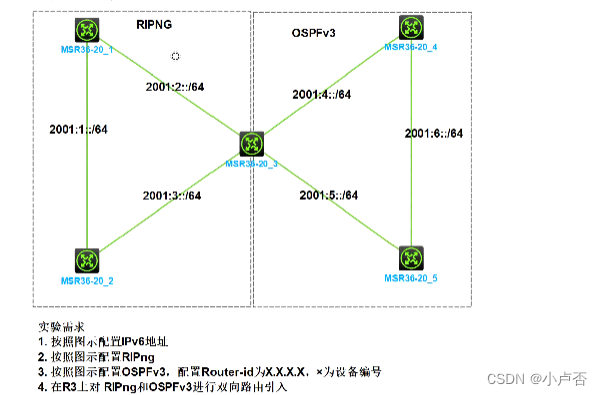

实验要求：

1.按照图示配置ipv6

2.按照图示配置RIPng

3.按照图示配置OSPFv3，配置Router-id为x.x.x.x x为设备编号

4.在R3上对RIPng和OSPFv3进行双向路由引入

1.按照图示配置ipv6

[r1]int g0/0
[r1-GigabitEthernet0/0]ipv6 address 2001:2::1 64
[r1-GigabitEthernet0/0]int g0/1
[r1-GigabitEthernet0/1]ipv6 address 2001:1::1 64

[r2]int g0/1
[r2-GigabitEthernet0/1]ipv6 address 2001:1::2 64
[r2-GigabitEthernet0/1]int g0/0
[r2-GigabitEthernet0/0]ipv6 address 2001:3::2 64

[r3]int g0/0
[r3-GigabitEthernet0/0]ipv6 address 2001:2::3 64
[r3-GigabitEthernet0/0]int g0/1
[r3-GigabitEthernet0/1]ipv6 address 2001:3::3 64
[r3-GigabitEthernet0/1]int g0/2
[r3-GigabitEthernet0/2]ipv6 address 2001:4::3 64
[r3-GigabitEthernet0/2]int g5/0
[r3-GigabitEthernet5/0]ipv6 address 2001:5::3 64

[r4]int g0/0
[r4-GigabitEthernet0/0]ipv6 add
[r4-GigabitEthernet0/0]ipv6 address 2001:4::4 64
[r4-GigabitEthernet0/0]int g0/1
[r4-GigabitEthernet0/1]ipv6 add
[r4-GigabitEthernet0/1]ipv6 address 2001:6::4 64

[r5]int g0/0
[r5-GigabitEthernet0/0]ipv6 address 2001:5::5 64
[r5-GigabitEthernet0/0]int g0/1
[r5-GigabitEthernet0/1]ipv6 address 2001:6::5 64


2.按照图示配置RIPng

[r1]ripng
[r1-ripng-1]int g0/0
[r1-GigabitEthernet0/0]ripng 1 enable
[r1-GigabitEthernet0/0]int g0/1
[r1-GigabitEthernet0/1]ripng 1 enable


[r2]ripng
[r2-ripng-1]int g0/0
[r2-GigabitEthernet0/0]ripng 1 enable
[r2-GigabitEthernet0/0]int g0/1
[r2-GigabitEthernet0/1]rip 1 enable

[r3]ripng
[r3-ripng-1]int g0/0
[r3-GigabitEthernet0/0]ripng 1 enable
[r3-GigabitEthernet0/0]int g0/1
[r3-GigabitEthernet0/1]ripng 1 enable
[r3-GigabitEthernet0/1]qu

3.按照图示配置OSPFv3，配置Router-id为x.x.x.x x为设备编号

[r3]ospfv3
[r3-ospfv3-1]router-id 3.3.3.3
[r3-ospfv3-1]qu
[r3]int range g0/2 g5/0
[r3-if-range]ospfv3 1 area 0

[r4]ospfv3
[r4-ospfv3-1]router-id 4.4.4.4
[r4-ospfv3-1]qu
[r4]int range g0/0 g0/1
[r4-if-range]ospfv3 1 area 0


[r5]ospfv3
[r5-ospfv3-1]router-id 5.5.5.5
[r5-ospfv3-1]qu
[r5]int range g0/1 g0/0
[r5-if-range]ospfv3 1 area 0
