PooledByteBufAllocator初始化

PoolThreadCache初始化

PoolAerna初始化

PoolChunk初始化

PoolSubpage初始化

PooledUnsafeDirectByteBuf初始化

分配微小型PooledByteBuf（未命中缓存场景）

分配小型PooledByteBuf（未命中缓存场景）

分配普通型PooledByteBuf（未命中缓存场景）

PoolChunkList源码解析

ReferenceCountUpdater源码解析

Recycler及基内部类初始化

Recycler.Stack＜T＞压入对象

Recycler.Stack＜T＞弹出对象

PooledByteBuf的回收

构造方法

PoolThreadCache(PoolArena<byte[]> heapArena, PoolArena<ByteBuffer> directArena,
                    int tinyCacheSize, int smallCacheSize, int normalCacheSize,
                    int maxCachedBufferCapacity, int freeSweepAllocationThreshold) {
        checkPositiveOrZero(maxCachedBufferCapacity, "maxCachedBufferCapacity");
        this.freeSweepAllocationThreshold = freeSweepAllocationThreshold;
        this.heapArena = heapArena;
        this.directArena = directArena;
        if (directArena != null) {
            tinySubPageDirectCaches = createSubPageCaches(
                    tinyCacheSize, PoolArena.numTinySubpagePools, SizeClass.Tiny);
            smallSubPageDirectCaches = createSubPageCaches(
                    smallCacheSize, directArena.numSmallSubpagePools, SizeClass.Small);

            numShiftsNormalDirect = log2(directArena.pageSize);
            normalDirectCaches = createNormalCaches(
                    normalCacheSize, maxCachedBufferCapacity, directArena);
            //arena的关联线程数+1
            directArena.numThreadCaches.getAndIncrement();
        } else {
            // No directArea is configured so just null out all caches
            tinySubPageDirectCaches = null;
            smallSubPageDirectCaches = null;
            normalDirectCaches = null;
            numShiftsNormalDirect = -1;
        }
        if (heapArena != null) {
            // Create the caches for the heap allocations
            tinySubPageHeapCaches = createSubPageCaches(
                    tinyCacheSize, PoolArena.numTinySubpagePools, SizeClass.Tiny);
            smallSubPageHeapCaches = createSubPageCaches(
                    smallCacheSize, heapArena.numSmallSubpagePools, SizeClass.Small);

            numShiftsNormalHeap = log2(heapArena.pageSize);
            normalHeapCaches = createNormalCaches(
                    normalCacheSize, maxCachedBufferCapacity, heapArena);
            //arena的关联线程数+1
            heapArena.numThreadCaches.getAndIncrement();
        } else {
            // No heapArea is configured so just null out all caches
            tinySubPageHeapCaches = null;
            smallSubPageHeapCaches = null;
            normalHeapCaches = null;
            numShiftsNormalHeap = -1;
        }

        // Only check if there are caches in use.
        if ((tinySubPageDirectCaches != null || smallSubPageDirectCaches != null || normalDirectCaches != null
                || tinySubPageHeapCaches != null || smallSubPageHeapCaches != null || normalHeapCaches != null)
                && freeSweepAllocationThreshold < 1) {
            throw new IllegalArgumentException("freeSweepAllocationThreshold: "
                    + freeSweepAllocationThreshold + " (expected: > 0)");
        }
    }

属性分析

属性含义值
final PoolArena<byte[]> heapArena
堆内存区域
final PoolArena<ByteBuffer> directArena
直接内存区域
final MemoryRegionCache<byte[]>[] tinySubPageHeapCaches
微小型子页堆内存缓存数组长度为32
同tinySubPageDirectCaches
final MemoryRegionCache<byte[]>[] smallSubPageHeapCaches
小型子页堆内存缓存数组长度为4
同smallSubPageDirectCaches
final MemoryRegionCache<byte[]>[] normalHeapCaches
普通型子页堆内存缓存数组长度为3
同normalDirectCaches
final MemoryRegionCache<ByteBuffer>[] tinySubPageDirectCaches
微小型子页直接内存缓存数组长度为32

PoolArena.numTinySubpagePools = 512 >>> 4 也就是32;

tinyCacheSize = 512

tinySubPageDirectCaches = createSubPageCaches(
tinyCacheSize, PoolArena.numTinySubpagePools, SizeClass.Tiny);

private static <T> MemoryRegionCache<T>[] createSubPageCaches(
int cacheSize, int numCaches, SizeClass sizeClass) {
// cacheSize = 512 ; numCaches = 32
if (cacheSize > 0 && numCaches > 0) {
@SuppressWarnings("unchecked")
MemoryRegionCache<T>[] cache = new MemoryRegionCache[numCaches];
for (int i = 0; i < cache.length; i++) {
// TODO: maybe use cacheSize / cache.length
cache[i] = new SubPageMemoryRegionCache<T>(cacheSize, sizeClass);
}
return cache;
} else {
return null;
}
}
final MemoryRegionCache<ByteBuffer>[] smallSubPageDirectCaches
小型子页直接内存缓存数组长度为4

directArena.numSmallSubpagePools = pageShifts - 9; 也就是13-9=4

smallCacheSize = 256

smallSubPageDirectCaches = createSubPageCaches(
smallCacheSize, directArena.numSmallSubpagePools, SizeClass.Small);

private static <T> MemoryRegionCache<T>[] createSubPageCaches(
int cacheSize, int numCaches, SizeClass sizeClass) {
// cacheSize = 256 ; numCaches = 4
if (cacheSize > 0 && numCaches > 0) {
@SuppressWarnings("unchecked")
MemoryRegionCache<T>[] cache = new MemoryRegionCache[numCaches];
for (int i = 0; i < cache.length; i++) {
// TODO: maybe use cacheSize / cache.length
cache[i] = new SubPageMemoryRegionCache<T>(cacheSize, sizeClass);
}
return cache;
} else {
return null;
}
}
final MemoryRegionCache<ByteBuffer>[] normalDirectCaches
普通型子页直接内存缓存数组长度为3

maxCachedBufferCapacity = 32 * 1024 是PooledByteBufAllocator.DEFAULT_MAX_CACHED_BUFFER_CAPACITY

normalCacheSize = 64

normalDirectCaches = createNormalCaches(
normalCacheSize, maxCachedBufferCapacity, directArena)

private static <T> MemoryRegionCache<T>[] createNormalCaches(
int cacheSize, int maxCachedBufferCapacity, PoolArena<T> area) {
   // cacheSize = 64 ; numCaches = 32 * 1024
if (cacheSize > 0 && maxCachedBufferCapacity > 0) {
   //max = 32 * 1024
int max = Math.min(area.chunkSize, maxCachedBufferCapacity);
   //arraySize = 3
int arraySize = Math.max(1, log2(max / area.pageSize) + 1);

@SuppressWarnings("unchecked")
MemoryRegionCache<T>[] cache = new MemoryRegionCache[arraySize];
for (int i = 0; i < cache.length; i++) {
cache[i] = new NormalMemoryRegionCache<T>(cacheSize);
}
return cache;
} else {
return null;
}
}
final int numShiftsNormalDirect
pageSize的log2
也就是log2(8192) = 13
final int numShiftsNormalHeap
pageSize的log2
也就是log2(8192) = 13
final int freeSweepAllocationThreshold
对应PooledByteBufAllocator的DEFAULT_CACHE_TRIM_INTERVAL
8192
final AtomicBoolean freed = new AtomicBoolean()
是否free
int allocations
分配次数

属性	含义	值
`final PoolArena<byte[]> heapArena`	堆内存区域
`final PoolArena<ByteBuffer> directArena`	直接内存区域
`final MemoryRegionCache<byte[]>[] tinySubPageHeapCaches`	微小型子页堆内存缓存数组长度为32	同tinySubPageDirectCaches
`final MemoryRegionCache<byte[]>[] smallSubPageHeapCaches`	小型子页堆内存缓存数组长度为4	同smallSubPageDirectCaches
`final MemoryRegionCache<byte[]>[] normalHeapCaches`	普通型子页堆内存缓存数组长度为3	同normalDirectCaches
`final MemoryRegionCache<ByteBuffer>[] tinySubPageDirectCaches`	微小型子页直接内存缓存数组长度为32	PoolArena.numTinySubpagePools = 512 >>> 4 也就是32; tinyCacheSize = 512 tinySubPageDirectCaches = createSubPageCaches( tinyCacheSize, PoolArena.numTinySubpagePools, SizeClass.Tiny); private static <T> MemoryRegionCache<T>[] createSubPageCaches( int cacheSize, int numCaches, SizeClass sizeClass) { // cacheSize = 512 ; numCaches = 32 if (cacheSize > 0 && numCaches > 0) { @SuppressWarnings("unchecked") MemoryRegionCache<T>[] cache = new MemoryRegionCache[numCaches]; for (int i = 0; i < cache.length; i++) { // TODO: maybe use cacheSize / cache.length cache[i] = new SubPageMemoryRegionCache<T>(cacheSize, sizeClass); } return cache; } else { return null; } }
`final MemoryRegionCache<ByteBuffer>[] smallSubPageDirectCaches`	小型子页直接内存缓存数组长度为4	directArena.numSmallSubpagePools = pageShifts - 9; 也就是13-9=4 smallCacheSize = 256 smallSubPageDirectCaches = createSubPageCaches( smallCacheSize, directArena.numSmallSubpagePools, SizeClass.Small); private static <T> MemoryRegionCache<T>[] createSubPageCaches( int cacheSize, int numCaches, SizeClass sizeClass) { // cacheSize = 256 ; numCaches = 4 if (cacheSize > 0 && numCaches > 0) { @SuppressWarnings("unchecked") MemoryRegionCache<T>[] cache = new MemoryRegionCache[numCaches]; for (int i = 0; i < cache.length; i++) { // TODO: maybe use cacheSize / cache.length cache[i] = new SubPageMemoryRegionCache<T>(cacheSize, sizeClass); } return cache; } else { return null; } }
`final MemoryRegionCache<ByteBuffer>[] normalDirectCaches`	普通型子页直接内存缓存数组长度为3	maxCachedBufferCapacity = 32 * 1024 是PooledByteBufAllocator.DEFAULT_MAX_CACHED_BUFFER_CAPACITY normalCacheSize = 64 normalDirectCaches = createNormalCaches( normalCacheSize, maxCachedBufferCapacity, directArena) private static <T> MemoryRegionCache<T>[] createNormalCaches( int cacheSize, int maxCachedBufferCapacity, PoolArena<T> area) { // cacheSize = 64 ; numCaches = 32 * 1024 if (cacheSize > 0 && maxCachedBufferCapacity > 0) { //max = 32 * 1024 int max = Math.min(area.chunkSize, maxCachedBufferCapacity); //arraySize = 3 int arraySize = Math.max(1, log2(max / area.pageSize) + 1); @SuppressWarnings("unchecked") MemoryRegionCache<T>[] cache = new MemoryRegionCache[arraySize]; for (int i = 0; i < cache.length; i++) { cache[i] = new NormalMemoryRegionCache<T>(cacheSize); } return cache; } else { return null; } }
`final int numShiftsNormalDirect`	pageSize的log2	也就是log2(8192) = 13
`final int numShiftsNormalHeap`	pageSize的log2	也就是log2(8192) = 13
`final int freeSweepAllocationThreshold`	对应PooledByteBufAllocator的DEFAULT_CACHE_TRIM_INTERVAL	8192
`final AtomicBoolean freed = new AtomicBoolean()`	是否free
`int allocations`	分配次数

内部类private abstract static class MemoryRegionCache<T>分析

    private abstract static class MemoryRegionCache<T> {
        //定义queue的大小 微小型大小为512,小型大小为256,普通型大小为64
        private final int size;
        private final Queue<Entry<T>> queue;//队列
        private final SizeClass sizeClass;//类型,分为微小,小,普通
        private int allocations;

        MemoryRegionCache(int size, SizeClass sizeClass) {
            this.size = MathUtil.safeFindNextPositivePowerOfTwo(size);
            queue = PlatformDependent.newFixedMpscQueue(this.size);
            this.sizeClass = sizeClass;
        }

        protected abstract void initBuf(PoolChunk<T> chunk, ByteBuffer nioBuffer, long handle,PooledByteBuf<T> buf, int reqCapacity);

子类

    private static final class NormalMemoryRegionCache<T> extends MemoryRegionCache<T> {
        NormalMemoryRegionCache(int size) {
            super(size, SizeClass.Normal);
        }

        @Override
        protected void initBuf(
                PoolChunk<T> chunk, ByteBuffer nioBuffer, long handle, PooledByteBuf<T> buf, int reqCapacity) {
            chunk.initBuf(buf, nioBuffer, handle, reqCapacity);
        }
    }

    private static final class SubPageMemoryRegionCache<T> extends MemoryRegionCache<T> {
        SubPageMemoryRegionCache(int size, SizeClass sizeClass) {
            super(size, sizeClass);
        }

        @Override
        protected void initBuf(
                PoolChunk<T> chunk, ByteBuffer nioBuffer, long handle, PooledByteBuf<T> buf, int reqCapacity) {
            chunk.initBufWithSubpage(buf, nioBuffer, handle, reqCapacity);
        }
    }

Entry<T>

        static final class Entry<T> {
            final Handle<Entry<?>> recyclerHandle;
            PoolChunk<T> chunk;
            ByteBuffer nioBuffer;
            long handle = -1;

            Entry(Handle<Entry<?>> recyclerHandle) {
                this.recyclerHandle = recyclerHandle;
            }

            void recycle() {
                chunk = null;
                nioBuffer = null;
                handle = -1;
                recyclerHandle.recycle(this);
            }
        }

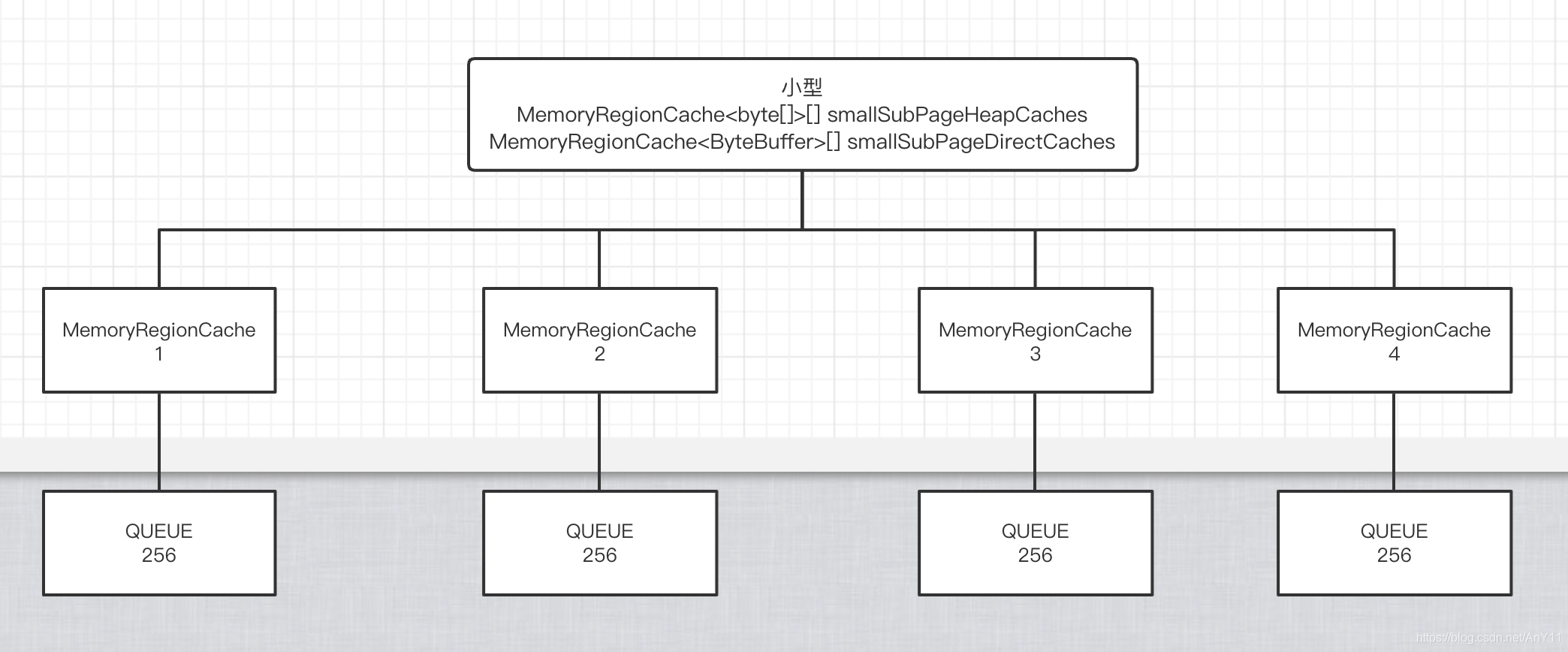

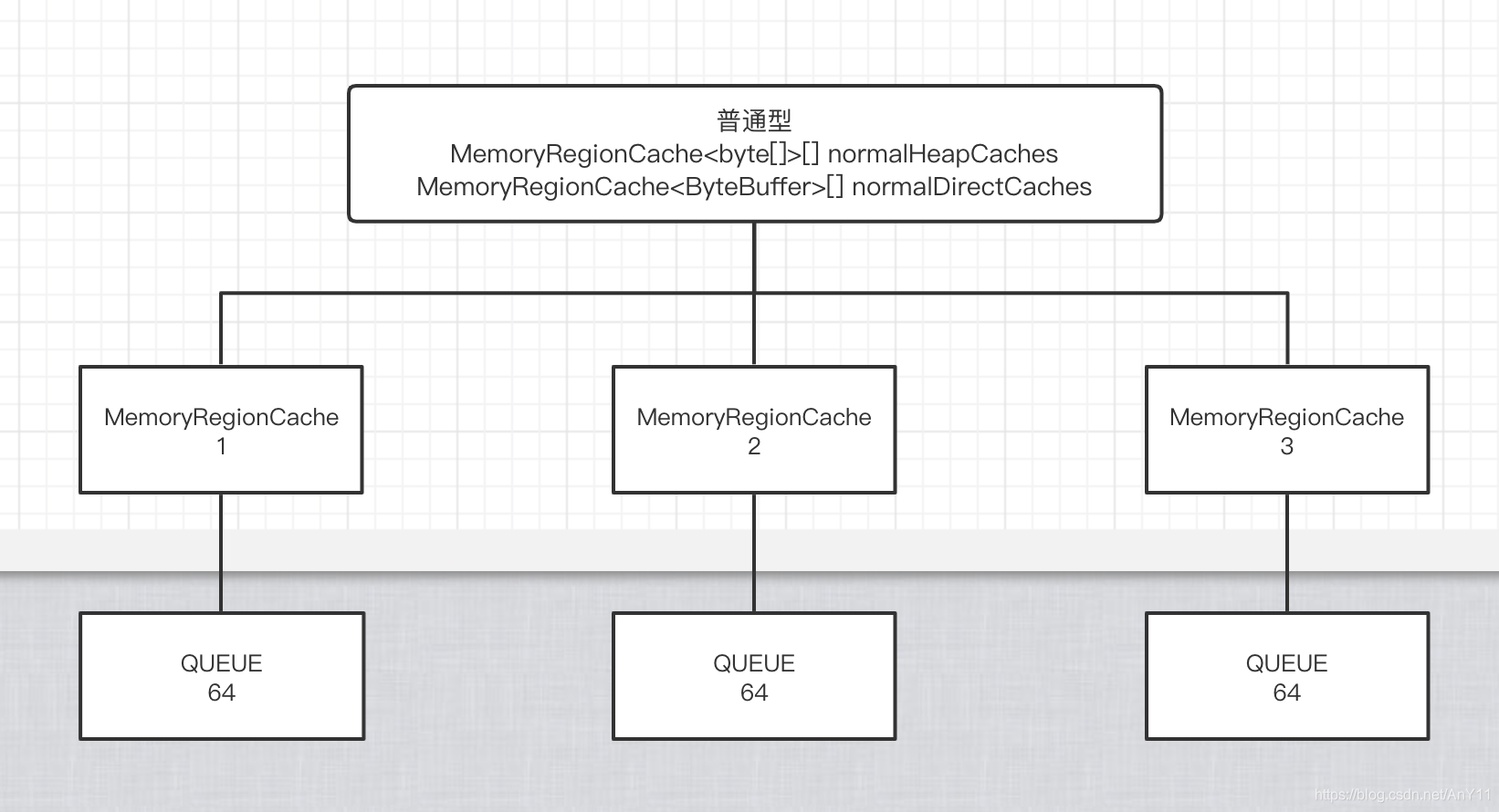

重要的数据结构
