Primefaces，Spring 4 with JPA（Hibernate 4 / EclipseLink）示例教程
Java Persistence API是标准规范。它提供了一个由不同实现者框架实现的持久性模型。
目录[ 隐藏 ]
- 1 Primefaces Spring Hibernate EclipseLink
- 1.1 Primefaces Spring JPA Hibernate EclipseLink示例所需工具
- 1.2 Primefaces Spring JPA Hibernate EclipseLink示例项目结构
- 1.3 Primefaces Spring JPA Hibernate EclipseLink示例数据库表
- 1.4 Primefaces Spring JPA Hibernate EclipseLink示例域类
- 1.5 Primefaces Spring JPA Hibernate EclipseLink示例持久性单元
- 1.6 Primefaces Spring JPA Hibernate EclipseLink示例Maven依赖项
- 1.7 Hibernate / JPA Spring配置
- 1.8 EclipseLink / JPA Spring配置
- 1.9 Primefaces部署描述符
- 1.10 Spring EmployeeService
- 1.11 Primefaces Managed Bean - RegisterEmployee
- 1.12 Primefaces员工注册页面
- 1.13 Primefaces Spring JPA Hibernate EclipseLink示例摘要
Primefaces Spring Hibernate EclipseLink
Hibernate＆EclipseLink是两种最常用的实现，用于针对某种持久性存储（如关系数据库）持久保存给定的业务模型。因此，本教程将为您提供一个完整的示例，其中包含开发使用以下内容的分层应用程序所需的所有配置步骤：
- Primefaces组件开发了一个引人注目的用户界面，旨在处理用户的交互并验证用户的输入。
- Hibernate / EclipseLink实现在JPA伞下开发对象/关系映射。
- Spring框架作为一种粘合剂，可以将所有东西连接在一起。
我们之前已经讨论过使用Hibernate ORM来持久化给定的域类。但今天我们将只使用基于JPA的配置。
JPA规范以不同的方式进行引导。在hibernate中，我们使用hibernate.cfg.xmlfile 引导了我们的应用程序，但JPA没有指定该文件。
JPA提供了另一种配置方式，它使用persistence.xml位于您classpath和您的META-INF文件夹下的文件。
让我们看看我们如何使用Hibernate和EclipseLink实现单一注册表单。
Primefaces Spring JPA Hibernate EclipseLink示例所需工具
在继续前进之前，您必须准备应包含以下内容的环境：
- JDK 1.6+。
- Eclipse Kepler 4.3。
- Hibernate 4.3.6.Final。
- Spring 4.0.3.RELEASE。
- EclipseLink 2.5.0-RC1
- Maven构建工具
- MySQL 5.x.

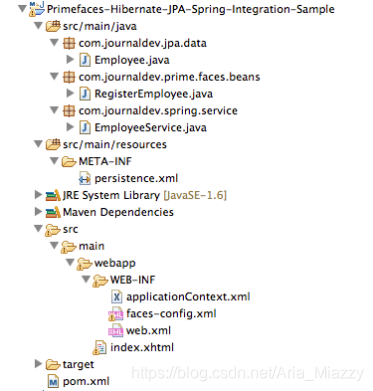

Primefaces Spring JPA Hibernate EclipseLink示例项目结构
Primefaces Spring JPA Hibernate EclipseLink示例数据库表

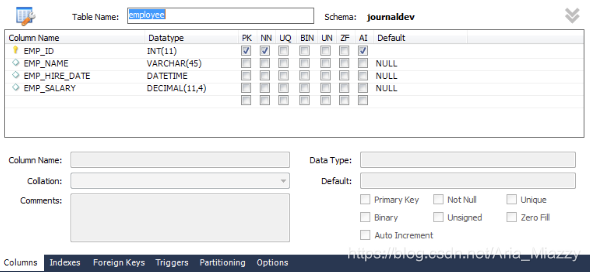

我们在MySQL数据库中有Employee表，您可以使用下面的脚本来创建它。
CREATE TABLE `employee` (
`EMP_ID` int(11) NOT NULL AUTO_INCREMENT,
`EMP_NAME` varchar(45) DEFAULT NULL,
`EMP_HIRE_DATE` datetime DEFAULT NULL,
`EMP_SALARY` decimal(11,4) DEFAULT NULL,
PRIMARY KEY (`EMP_ID`)
) ENGINE=InnoDB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8;
- 员工表包含一个具有自动增量值的主键。
Primefaces Spring JPA Hibernate EclipseLink示例域类
我们还有一个域类将持久存入我们的数据库Employee表。
Employee.java
package com.journaldev.hibernate.jpa.data;
import java.util.Date;
import javax.persistence.Column;
import javax.persistence.Entity;
import javax.persistence.Id;
import javax.persistence.Temporal;
import javax.persistence.TemporalType;
@Entity
public class Employee {
@Id
@Column(name="EMP_ID")
private long employeeId;
@Column(name="EMP_NAME")
private String employeeName;
@Column(name="EMP_HIRE_DATE")
@Temporal(TemporalType.TIMESTAMP)
private Date employeeHireDate;
@Column(name="EMP_SALARY")
private double employeeSalary;
public long getEmployeeId() {
return employeeId;
}
public void setEmployeeId(long employeeId) {
this.employeeId = employeeId;
}
public String getEmployeeName() {
return employeeName;
}
public void setEmployeeName(String employeeName) {
this.employeeName = employeeName;
}
public Date getEmployeeHireDate() {
return employeeHireDate;
}
public void setEmployeeHireDate(Date employeeHireDate) {
this.employeeHireDate = employeeHireDate;
}
public double getEmployeeSalary() {
return employeeSalary;
}
public void setEmployeeSalary(double employeeSalary) {
this.employeeSalary = employeeSalary;
}
}
- JPA提供了@Entity，它将用于将Employee指示为持久域类。将发生默认映射以便将此持久性实体与其Employee表映射。如果您提供的表名称或类名称不相同，则必须使用@Table。
- @Id注释用于指示给定Employee实例的标识。由于属性名称和列名称之间存在差异，因此必须提供@column。
- @Column name annotation采用映射列名的参数。
Primefaces Spring JPA Hibernate EclipseLink示例持久性单元
正如我们之前提到的，JPA提供了一种引导JPA框架的替代方法，它是一个persistence.xml文件。此文件的最小数量应如下所示：
persistence.xml
<persistence xmlns="http://java.sun.com/xml/ns/persistence"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://java.sun.com/xml/ns/persistence http://java.sun.com/xml/ns/persistence/persistence_2_0.xsd"
version="2.0">
<!-- Will be referenced in Spring Context File -->
<persistence-unit name="jpa-persistence" transaction-type="RESOURCE_LOCAL">
<class>com.journaldev.hibernate.jpa.data.Employee</class>
<properties>
<property name="javax.persistence.jdbc.url" value="jdbc:mysql://localhost:3306/journaldev" />
<property name="javax.persistence.jdbc.user" value="pankaj" />
<property name="javax.persistence.jdbc.driver" value="com.mysql.jdbc.Driver" />
<property name="javax.persistence.jdbc.password" value="pankaj123" />
</properties>
</persistence-unit>
</persistence>
持久性单元应该定义：
- 持久性单元名称。该名称将由Spring上下文引用。
- 事务类型 - JPA实现可以选择通过自身（
RESOURCE_LOCAL）管理资源，也可以通过应用程序服务器的JTA实现来管理资源。 - 有关数据库连接的信息
Primefaces Spring JPA Hibernate EclipseLink示例Maven依赖项
所有必需的库都列在pom.xmlMaven自己读取的文件中。
pom.xml
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd">
<modelVersion>4.0.0</modelVersion>
<groupId>com.journaldev</groupId>
<artifactId>Primefaces-Hibernate-JPA-Spring-Integration-Sample</artifactId>
<packaging>war</packaging>
<version>0.0.1-SNAPSHOT</version>
<name>Primefaces-Hibernate-JPA-Spring-Integration-Sample Maven Webapp</name>
<url>http://maven.apache.org</url>
<repositories>
<repository>
<id>prime-repo</id>
<name>PrimeFaces Maven Repository</name>
<url>http://repository.primefaces.org</url>
<layout>default</layout>
</repository>
</repositories>
<dependencies>
<dependency>
<groupId>junit</groupId>
<artifactId>junit</artifactId>
<version>3.8.1</version>
<scope>test</scope>
</dependency>
<!-- Servlet -->
<dependency>
<groupId>javax.servlet</groupId>
<artifactId>servlet-api</artifactId>
<version>2.5</version>
<scope>provided</scope>
</dependency>
<!-- Faces Implementation -->
<dependency>
<groupId>com.sun.faces</groupId>
<artifactId>jsf-impl</artifactId>
<version>2.2.4</version>
</dependency>
<!-- Faces Library -->
<dependency>
<groupId>com.sun.faces</groupId>
<artifactId>jsf-api</artifactId>
<version>2.2.4</version>
</dependency>
<!-- Primefaces Version 5 -->
<dependency>
<groupId>org.primefaces</groupId>
<artifactId>primefaces</artifactId>
<version>5.0</version>
</dependency>
<!-- JSP Library -->
<dependency>
<groupId>javax.servlet.jsp</groupId>
<artifactId>javax.servlet.jsp-api</artifactId>
<version>2.3.1</version>
</dependency>
<!-- JSTL Library -->
<dependency>
<groupId>javax.servlet</groupId>
<artifactId>jstl</artifactId>
<version>1.1.2</version>
</dependency>
<!-- Hibernate 4.3.6 core library library -->
<dependency>
<groupId>org.hibernate</groupId>
<artifactId>hibernate-core</artifactId>
<version>4.3.6.Final</version>
</dependency>
<!-- Hibernate 4.3.6 JPA support -->
<dependency>
<groupId>org.hibernate</groupId>
<artifactId>hibernate-entitymanager</artifactId>
<version>4.3.6.Final</version>
</dependency>
<!-- MySQL driver connector library -->
<dependency>
<groupId>mysql</groupId>
<artifactId>mysql-connector-java</artifactId>
<version>5.1.31</version>
</dependency>
<!-- Spring ORM -->
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-orm</artifactId>
<version>4.0.3.RELEASE</version>
</dependency>
<!-- Spring Web -->
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-webmvc</artifactId>
<version>4.0.3.RELEASE</version>
</dependency>
<!-- Dependencies for Eclipse JPA Persistence API -->
<dependency>
<groupId>org.eclipse.persistence</groupId>
<artifactId>eclipselink</artifactId>
<version>2.5.0-RC1</version>
</dependency>
</dependencies>
<build>
<plugins>
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-compiler-plugin</artifactId>
<configuration>
<source>1.6</source>
<target>1.6</target>
</configuration>
</plugin>
</plugins>
</build>
</project>
Hibernate / JPA Spring配置
持久使用JPA需要EntityManager的实例。可以通过配置适当的Spring上下文来获取此实例。
applicationContext.xml
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:tx="http://www.springframework.org/schema/tx"
xmlns:context="http://www.springframework.org/schema/context"
xmlns:aop="http://www.springframework.org/schema/aop" xmlns:util="http://www.springframework.org/schema/util"
xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop.xsd http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-3.2.xsd http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-3.2.xsd">
<!-- Enable Spring Annotation Configuration -->
<context:annotation-config />
<!-- Scan for all of Spring components such as Spring Service -->
<context:component-scan base-package="com.journaldev.spring.service"></context:component-scan>
<!-- Necessary to get the entity manager injected into the factory bean -->
<bean class="org.springframework.orm.jpa.support.PersistenceAnnotationBeanPostProcessor" />
<!-- Define Hibernate JPA Vendor Adapter -->
<bean id="jpaVendorAdapter"
class="org.springframework.orm.jpa.vendor.HibernateJpaVendorAdapter">
<property name="databasePlatform"
value="org.hibernate.dialect.MySQLDialect" />
</bean>
<!-- Entity Manager Factory -->
<bean id="entityManagerFactory"
class="org.springframework.orm.jpa.LocalEntityManagerFactoryBean">
<property name="persistenceUnitName" value="hibernate.jpa"></property>
<property name="jpaVendorAdapter" ref="jpaVendorAdapter" />
</bean>
<!-- Transaction Manager -->
<bean id="transactionManager" class="org.springframework.orm.jpa.JpaTransactionManager">
<property name="entityManagerFactory" ref="entityManagerFactory" />
</bean>
<!-- Detect @Transactional -->
<tx:annotation-driven transaction-manager="transactionManager" />
</beans>
- JPA需要一个entityManagerFactory对象，它是一个实例
org.springframework.orm.jpa.LocalEntityFactoryBean。必须为此实例提供persistenceUnit和JPAVendorAdapter的名称。 - 要
@Trasnactional正确使用注释，应定义TransactionManager。 - Spring上下文配置的默认名称和位置
applicationContext.xml位于WEB-INF文件夹下方。
EclipseLink / JPA Spring配置
EclipseLink将使用相同的配置，需要进行一些小改动才能提供EclipseLink的JPA供应商。只需将jpaVendorAdapter bean 更改为以下，使用的JPA实现将是EclipseLink。
applicationContext.xml
<!-- Define EclipseLink JPA Vendor Adapter -->
<bean id="jpaVendorAdapter"
class="org.springframework.orm.jpa.vendor.EclipseLinkJpaVendorAdapter">
<property name="databasePlatform"
value="org.eclipse.persistence.platform.database.MySQLPlatform" />
<property name="generateDdl" value="false" />
<property name="showSql" value="true" />
</bean>
Primefaces部署描述符
正确配置Spring需要在Primefaces的部署描述符web.xml应用程序中添加Spring监听器。
web.xml
<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns="http://java.sun.com/xml/ns/javaee" xmlns:web="http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd"
xsi:schemaLocation="http://java.sun.com/xml/ns/javaee
http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd"
id="WebApp_ID" version="2.5" metadata-complete="true">
<servlet>
<servlet-name>Faces Servlet</servlet-name>
<servlet-class>javax.faces.webapp.FacesServlet</servlet-class>
<load-on-startup>1</load-on-startup>
</servlet>
<servlet-mapping>
<servlet-name>Faces Servlet</servlet-name>
<url-pattern>/faces/*</url-pattern>
</servlet-mapping>
<servlet-mapping>
<servlet-name>Faces Servlet</servlet-name>
<url-pattern>*.xhtml</url-pattern>
</servlet-mapping>
<context-param>
<description>State saving method: 'client' or 'server' (=default). See JSF Specification 2.5.2</description>
<param-name>javax.faces.STATE_SAVING_METHOD</param-name>
<param-value>client</param-value>
</context-param>
<listener>
<listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
</listener>
<listener>
<listener-class>com.sun.faces.config.ConfigureListener</listener-class>
</listener>
</web-app>
Spring EmployeeService
Spring服务是表示层和持久层之间的交互点。如果你熟悉DAO，你可以认为它类似。
EmployeeService.java
package com.journaldev.spring.service;
import javax.persistence.EntityManager;
import javax.persistence.PersistenceContext;
import org.springframework.stereotype.Component;
import org.springframework.transaction.annotation.Transactional;
import com.journaldev.hibernate.jpa.data.Employee;
@Component
public class EmployeeService {
@PersistenceContext
private EntityManager em;
public EntityManager getEm() {
return em;
}
public void setEm(EntityManager em) {
this.em = em;
}
@Transactional
public void register(Employee emp) {
// Save employee
this.em.persist(emp);
}
}
- 使用
@PersistenceContext注释注入EntityManager 。即使您已经定义了EntityManagerFactory的实例，但是JPA实现将非常智能地为您注入EntityManager的实例。EntityManager与Hibernate中的Session类似。如果您在上下文和活动事务中都调用了任何CRUD操作，那么您的操作将持久存储在持久性存储中。注意em.persist（）和在注册方法上使用@Transactional注释。
Primefaces Managed Bean - RegisterEmployee
RegisterEmployee是一个faces托管bean，用于处理用户交互和用户输入的验证。
ResgiterEmployee.java
package com.journaldev.prime.faces.beans;
import javax.faces.application.FacesMessage;
import javax.faces.bean.ManagedBean;
import javax.faces.bean.ManagedProperty;
import javax.faces.bean.SessionScoped;
import javax.faces.context.FacesContext;
import com.journaldev.jpa.data.Employee;
import com.journaldev.spring.service.EmployeeService;
@ManagedBean
@SessionScoped
public class RegisterEmployee {
@ManagedProperty("#{employeeService}")
private EmployeeService employeeService;
private Employee employee = new Employee();
public EmployeeService getEmployeeService() {
return employeeService;
}
public void setEmployeeService(EmployeeService employeeService) {
this.employeeService = employeeService;
}
public Employee getEmployee() {
return employee;
}
public void setEmployee(Employee employee) {
this.employee = employee;
}
public String register() {
// Calling Business Service
employeeService.register(employee);
// Add message
FacesContext.getCurrentInstance().addMessage(null,
new FacesMessage("The Employee "+this.employee.getEmployeeName()+" Is Registered Successfully"));
return "";
}
}
- Spring服务使用使用faces-config.xml声明的Spring el-reslover注入EmployeeService。
- Register方法将调用委托给注入的EmployeeService实例。因此，EmployeeService将处理实际注册。

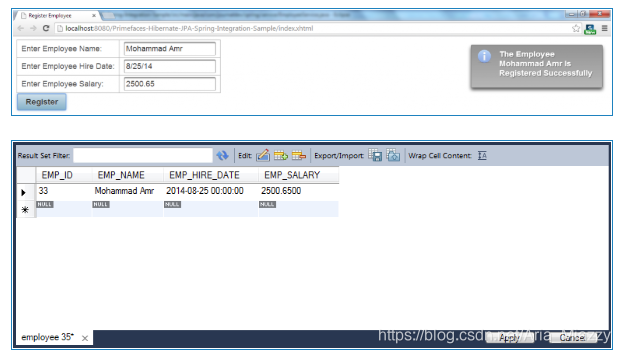

Primefaces员工注册页面
index.xhtml
<html xmlns="http://www.w3.org/1999/xhtml"
xmlns:ui="http://java.sun.com/jsf/facelets"
xmlns:h="http://java.sun.com/jsf/html"
xmlns:f="http://java.sun.com/jsf/core"
xmlns:p="http://primefaces.org/ui">
<h:head>
<script name="jquery/jquery.js" library="primefaces"></script>
<title>Register Employee</title>
</h:head>
<h:form>
<p:growl id="messages"></p:growl>
<p:panelGrid columns="2">
<p:outputLabel value="Enter Employee Name:"></p:outputLabel>
<p:inputText value="#{registerEmployee.employee.employeeName}"></p:inputText>
<p:outputLabel value="Enter Employee Hire Date:"></p:outputLabel>
<p:calendar value="#{registerEmployee.employee.employeeHireDate}"></p:calendar>
<p:outputLabel value="Enter Employee Salary:"></p:outputLabel>
<p:inputText value="#{registerEmployee.employee.employeeSalary}"></p:inputText>
</p:panelGrid>
<p:commandButton value="Register" action="#{registerEmployee.register}" update="messages"></p:commandButton>
</h:form>
</html>
Primefaces Spring JPA Hibernate EclipseLink示例摘要
本教程旨在帮助您获得项目中使用的Hibernate和EclipseLink JPA实现。JPA改变了你的生活，它很容易配置，使用和跟踪。它插入了一个默认的日志记录机制，可以帮助您尽快找到问题。通过下面的评论为我们做贡献，并找到下载的源代码。
下载Primefaces Spring JPA Hibernate EclipseLink项目
转载来源：https://www.journaldev.com/4058/primefaces-spring-4-jpa-hibernate-eclipselink-example-tutorial
684
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
