20220717_JavaWeb_利用Session实现用户登录_注册_验证_记住功能

本例在原有MVC三层架构案例的基础上进行扩展，添加登录和注册的功能，MVC案例在之前这篇文章里有详细记录
MVC三层架构案例

show databases ;
use mybatis;
show tables ;

-- 创建用户表
drop table if exists users
CREATE TABLE users
(
    id       int primary key auto_increment,
    username varchar(20) unique,
    password varchar(32)
);

-- 添加数据
INSERT INTO users(username, password)
values ('马大帅', '1234'),
       ('范德彪', '2345');

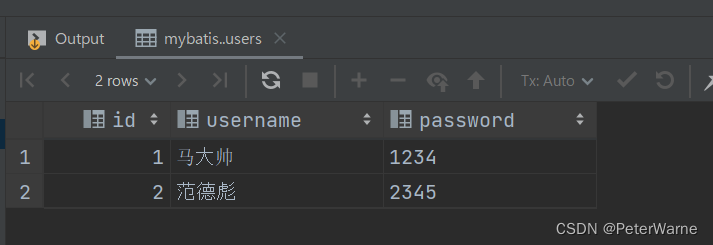

SELECT *
FROM users;

pojo包下添加User类

package com.diy.pojo;

public class User {


    private Integer id;
    private String username;
    private String password;

    public Integer getId() {

        return id;
    }

    public void setId(Integer id) {

        this.id = id;
    }

    public String getUsername() {

        return username;
    }

    public void setUsername(String username) {

        this.username = username;
    }

    public String getPassword() {

        return password;
    }

    public void setPassword(String password) {

        this.password = password;
    }

    @Override
    public String toString() {

        return "User{" +
                "id=" + id +
                ", username='" + username + '\'' +
                ", password='" + password + '\'' +
                '}';
    }
}

mapper包下添加对应user表的接口代理类

package com.diy.mapper;

import com.diy.pojo.User;
import org.apache.ibatis.annotations.Insert;
import org.apache.ibatis.annotations.Param;
import org.apache.ibatis.annotations.Select;

public interface UserMapper {



    /**
     * 根据用户名和密码查询用户对象
     * @param username
     * @param password
     * @return
     */
    @Select("select * from mybatis.users where username = #{username} and password = #{password}")
    User select(@Param("username") String username, @Param("password")  String password);

    /**
     * 根据用户名查询用户对象
     * @param username
     * @return
     */
    @Select("select * from mybatis.users where username = #{username}")
    User selectByUsername(String username);

    /**
     * 添加用户
     * @param user
     */
    @Insert("insert into mybatis.users values(null,#{username},#{password})")
    void add(User user);
}

resources包下同名路径，添加sql映射文件，本例无需ResultMap，有命名空间即可

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
        PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.diy.mapper.UserMapper">

</mapper>

service包下添加服务类，暂时不写方法，生成一个工厂即可

package com.diy.service;

import com.diy.util.SqlSessFactUtils;
import org.apache.ibatis.session.SqlSessionFactory;

public class UserService {


    /**
     * create a sql factory here as a static resource
     */
    SqlSessionFactory ssf = SqlSessFactUtils.getSsf();


}

util包下添加生成验证码的工具类，代码别处拷的，不用自己写

package com.diy.util;

import javax.imageio.ImageIO;
import java.awt.*;
import java.awt.geom.AffineTransform;
import java.awt.image.BufferedImage;
import java.io.File;
import java.io.FileOutputStream;
import java.io.IOException;
import java.io.OutputStream;
import java.util.Arrays;
import java.util.Random;

/**
 * 生成验证码工具类
 */
public class CheckCodeUtil {


    public static final String VERIFY_CODES = "123456789ABCDEFGHIJKLMNOPQRSTUVWXYZ";
    private static Random random = new Random();



    /**
     * 输出随机验证码图片流,并返回验证码值（一般传入输出流，响应response页面端，Web项目用的较多）
     *
     * @param w
     * @param h
     * @param os
     * @param verifySize
     * @return
     * @throws IOException
     */
    public static String outputVerifyImage(int w, int h, OutputStream os, int verifySize) throws IOException {

        String verifyCode = generateVerifyCode(verifySize);
        outputImage(w, h, os, verifyCode);
        return verifyCode;
    }

    /**
     * 使用系统默认字符源生成验证码
     *
     * @param verifySize 验证码长度
     * @return
     */
    public static String generateVerifyCode(int verifySize) {

        return generateVerifyCode(verifySize, VERIFY_CODES);
    }

    /**
     * 使用指定源生成验证码
     *
     * @param verifySize 验证码长度
     * @param sources    验证码字符源
     * @return
     */
    public static String generateVerifyCode(int verifySize, String sources) {

        // 未设定展示源的字码，赋默认值大写字母+数字
        if (sources == null || sources.length() == 0) {

            sources = VERIFY_CODES;
        }
        int codesLen = sources.length();
        Random rand = new Random(System.currentTimeMillis());
        StringBuilder verifyCode = new StringBuilder(verifySize);
        for (int i = 0; i < verifySize; i++) {

            verifyCode.append(sources.charAt(rand.nextInt(codesLen - 1)));
        }
        return verifyCode.toString();
    }

    /**
     * 生成随机验证码文件,并返回验证码值 (生成图片形式，用的较少)
     *
     * @param w
     * @param h
     * @param outputFile
     * @param verifySize
     * @return
     * @throws IOException
     */
    public static String outputVerifyImage(int w, int h, File outputFile, int verifySize) throws IOException {

        String verifyCode = generateVerifyCode(verifySize);
        outputImage(w, h, outputFile, verifyCode);
        return verifyCode;
    }



    /**
     * 生成指定验证码图像文件
     *
     * @param w
     * @param h
     * @param outputFile
     * @param code
     * @throws IOException
     */
    public static void outputImage(int w, int h, File outputFile, String code) throws IOException {

        if (outputFile == null) {

            return;
        }
        File dir = outputFile.getParentFile();
        //文件不存在
        if (!dir.exists()) {

            //创建
            dir.mkdirs();
        }
        try {

            outputFile.createNewFile();
            FileOutputStream fos = new FileOutputStream(outputFile);
            outputImage(w, h, fos, code);
            fos.close();
        } catch (IOException e) {

            throw e;
        }
    }

    /**
     * 输出指定验证码图片流
     *
     * @param w
     * @param h
     * @param os
     * @param code
     * @throws IOException
     */
    public static void outputImage(int w, int h, OutputStream os, String code) throws IOException {

        int verifySize = code.length();
        BufferedImage image = new BufferedImage(w, h, BufferedImage.TYPE_INT_RGB);
        Random rand = new Random();
        Graphics2D g2 = image.createGraphics();
        g2.setRenderingHint(RenderingHints.KEY_ANTIALIASING, RenderingHints.VALUE_ANTIALIAS_ON);

        // 创建颜色集合，使用java.awt包下的类
        Color[] colors = new Color[5];
        Color[] colorSpaces = new Color[]{
   Color.WHITE, Color.CYAN,
                Color.GRAY, Color.LIGHT_GRAY, Color.MAGENTA, Color.ORANGE,
                Color.PINK, Color.YELLOW};
        float[] fractions = new float[colors.length];
        for (int i = 0; i < colors.length; i++) {

            colors[i] = colorSpaces[rand.nextInt(colorSpaces.length)];
            fractions[i] = rand.nextFloat();
        }
        Arrays.sort(fractions);
        // 设置边框色
        g2.setColor(Color.GRAY);
        g2.fillRect(0, 0, w, h);

        Color c = getRandColor(200, 250);
        // 设置背景色
        g2.setColor(c);
        g2.fillRect(0, 2, w, h - 4);

        // 绘制干扰线
        Random random = new Random();
        // 设置线条的颜色
        g2.setColor(getRandColor(160, 200));
        for (int i = 0; i < 20; i++) {

            int x = random.nextInt(w - 1);
            int y = random.nextInt(h - 1);
            int xl = random.nextInt(6) + 1;
            int yl = random.nextInt(12) + 1;
            g2.drawLine(x, y, x + xl + 40, y + yl + 20);
        }

        // 添加噪点
        // 噪声率
        float yawpRate = 0.05f;
        int area = (int) (yawpRate * w * h);
        for (int i = 0; i < area; i++) {

            int x = random.nextInt(w);
            int y = random.nextInt(h);
            // 获取随机颜色
            int rgb = getRandomIntColor();
            image.setRGB(x, y, rgb);
        }
        // 添加图片扭曲
        shear(g2, w, h
