Android调用百度地图Web端接口,实现百度定位、导航

一、概述

第一次写博客,希望各位朋友勿喷!因为之前做过什么百度定位和高德地图导航这些,都是嵌入它们的SDK,代码量
又很复杂,过程也有点繁琐,写这篇文章也是因为个人觉得自己做得还不够百度自带写的好尴尬,能力太差没办法哭
另外IOS端(或者其他)的可上官网查看:http://developer.baidu.com/map/wiki/index.php?title=uri/api/android

提前说明,工程是在手机客户端调用百度地图的Web端接口,而不是直接在自己的项目显示,到时候不要看错怪我哟

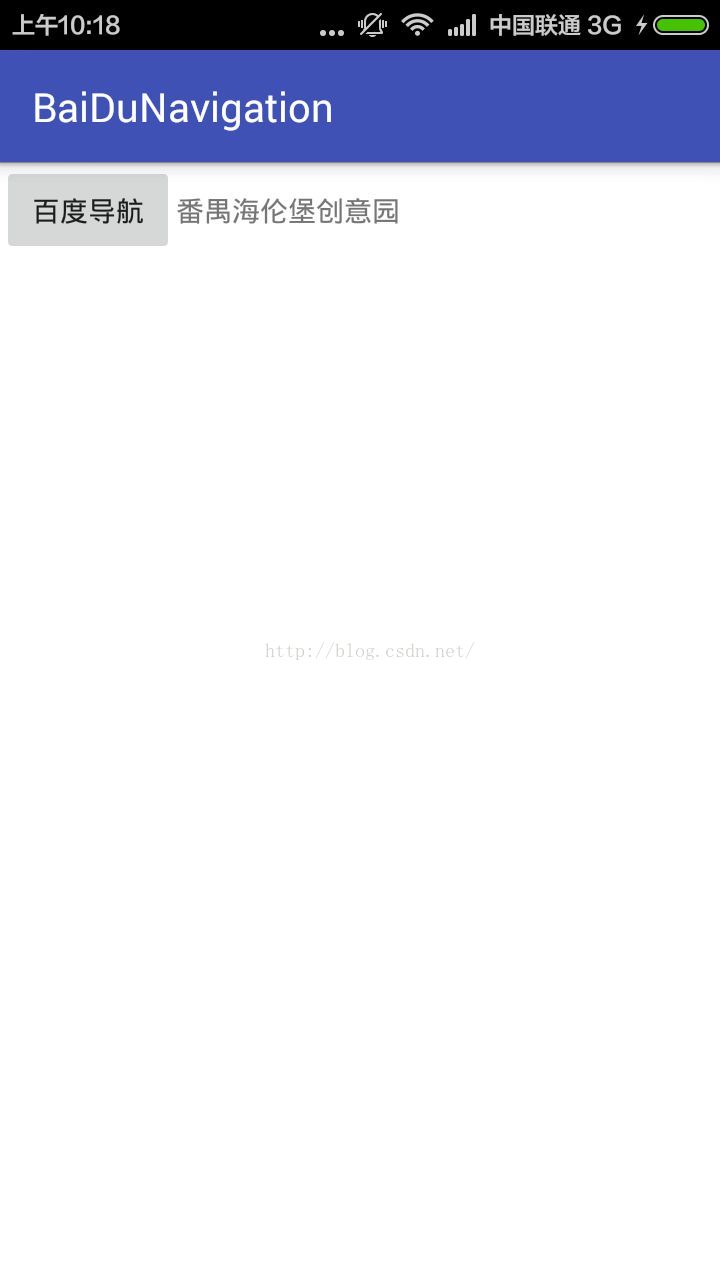

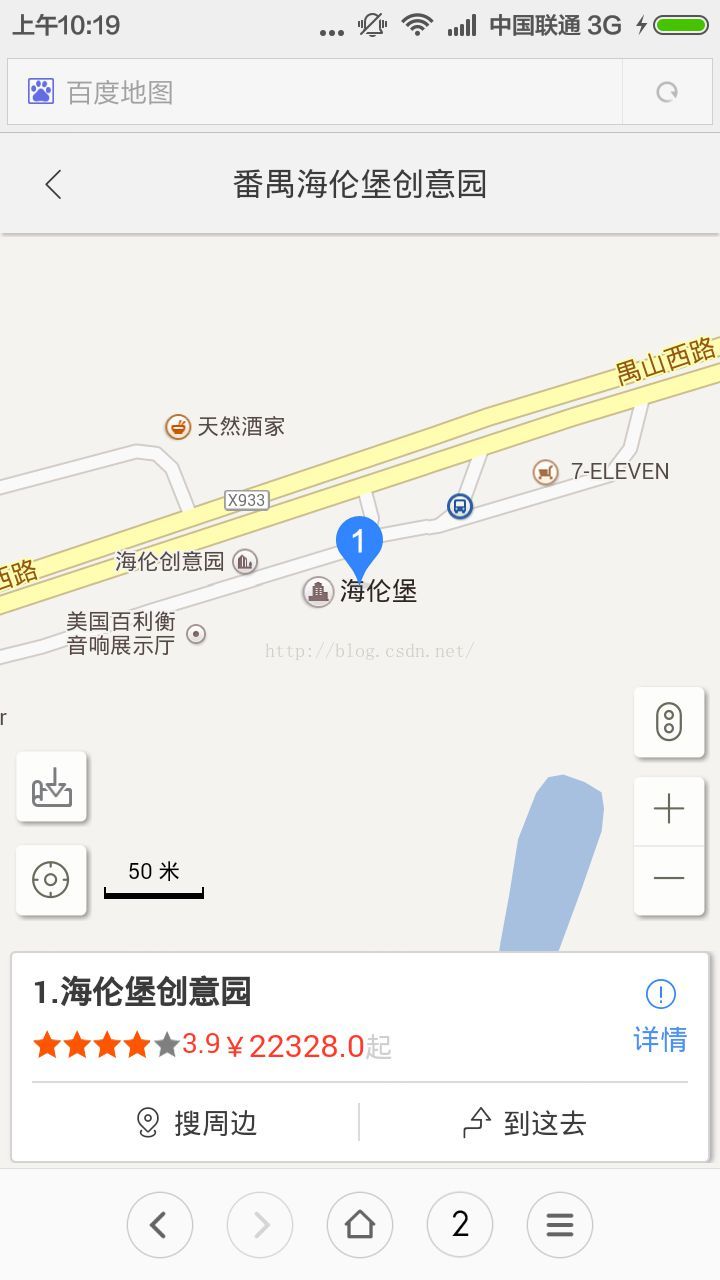

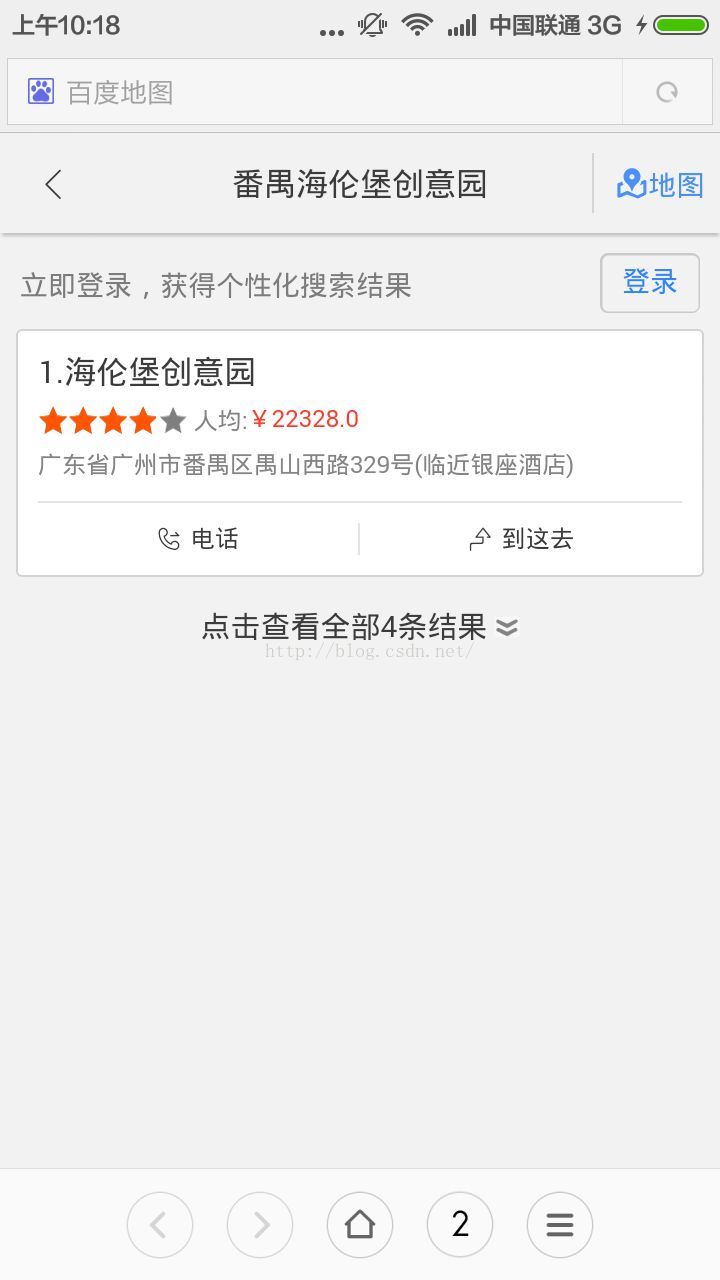

二、效果图


三、代码

代码很简单,三句搞定一切。不用导入包,不用加权限。如果想改变地址,只需要把位置传给Url中的address

public class MainActivity extends AppCompatActivity {
    private TextView addressText;
    private Button navigationButton;
    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        addressText = (TextView) findViewById(R.id.id_address);
        navigationButton = (Button) findViewById(R.id.id_navigation);

        navigationButton.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View view) {
                String address = "address=" + addressText.getText().toString();
                /**调用百度地图Web页面
                 * address=LocaltionAddress&src=YourAppName
                 */
                String uristr = "http://api.map.baidu.com/geocoder?" + address
                        + "&output=html&src=yhc";
                Uri uri = Uri.parse(uristr);
                Intent intent = new Intent(Intent.ACTION_VIEW, uri);
                startActivity(intent);
            }
        });
    }
}
布局就两个控件,一个TextView和Button,不用贴代码了吧,我比较懒,所以界面就那个样子偷笑最后我不知道为什么头部插入代码的时候会出现一大块空格,而且还删不掉。知道的朋友记得留言教教小白。

1.需要在 http://developer.baidu.com/ 注册开发者(个人或公司)账号 2.需要申请Key 打开网址 http://developer.baidu.com/map/index.php 点击 创建应用,跟流程创建应用app 3.点击相关下载->一键下载 4.调用百度地图的APP 需要在 AndroidManifest.xml 添加 <application android:name="baidumapsdk.demo.DemoApplication" android:icon="@drawable/ic_launcher" android:label="@string/app_name" > 这里需要添加key,创建应用后,会有这个key <meta-data android:name="com.baidu.lbsapi.API_KEY" android:value="6t2yuIFylnRG7ECj1xHYuelY" /> ..... package com.obtk.mapdemo; import com.baidu.location.BDLocation; import com.baidu.location.BDLocationListener; import com.baidu.location.LocationClient; import com.baidu.location.LocationClientOption; import com.baidu.mapapi.SDKInitializer; import com.baidu.mapapi.map.BaiduMap; import com.baidu.mapapi.map.BaiduMapOptions; import com.baidu.mapapi.map.MapStatusUpdate; import com.baidu.mapapi.map.MapStatusUpdateFactory; import com.baidu.mapapi.map.MapView; import com.baidu.mapapi.map.MyLocationData; import com.baidu.mapapi.map.MyLocationConfiguration.LocationMode; import com.baidu.mapapi.model.LatLng; import com.baidu.mapapi.search.core.SearchResult; import com.baidu.mapapi.search.geocode.GeoCodeResult; import com.baidu.mapapi.search.geocode.GeoCoder; import com.baidu.mapapi.search.geocode.OnGetGeoCoderResultListener; import com.baidu.mapapi.search.geocode.ReverseGeoCodeOption; import com.baidu.mapapi.search.geocode.ReverseGeoCodeResult; import android.os.Bundle; import android.util.Log; import android.view.Menu; import android.view.View; import android.view.View.OnClickListener; import android.widget.Button; import android.widget.RelativeLayout; import android.widget.Toast; import android.app.Activity; import com.obtk.mapdemo.R; public class MapApiDemoActivity extends Activity implements OnGetGeoCoderResultListener { private MapView mMapView = null; private BaiduMap mBaiduMap = null; private GeoCoder mSearch = null; @Override protected void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); // SDK初始化 SDKInitializer.initialize(getApplicationContext()); //当前视图 setContentView(R.layout.activity_map_api_demo); //创建地图对象 init(); final Button btn_location = (Button) findViewById(R.id.btn_location); btn_location.setOnClickListener(new OnClickListener() { @Override public void onClick(View arg0) { // TODO Auto-generated method stub getLocation(); btn_location.setEnabled(false); } }); } @Override public boolean onCreateOptionsMenu(Menu menu) { // Inflate the menu; this adds items to the action bar if it is present. getMenuInflater().inflate(R.menu.activity_map_api_demo, menu); return true; } /** * 初始化方法 */ private void init() { //mMapView = (MapView) findViewById(R.id.bmapview); mMapView = new MapView(this, new BaiduMapOptions()); mBaiduMap = mMapView.getMap(); /**添加一个对象*/ RelativeLayout rlly_map = (RelativeLayout)findViewById(R.id.rlly_map); rlly_map.addView(mMapView); // 开启定位图层 mBaiduMap.setMyLocationEnabled(true); //初始化搜索模块,注册事件监听 mSearch = GeoCoder.newInstance(); mSearch.setOnGetGeoCodeResultListener(this); } @Override protected void onResume() { super.onResume(); mMapView.onResume(); } @Override protected void onPause() { super.onPause(); mMapView.onPause(); } @Override protected void onDestroy() { // 退出时销毁定位 mLocClient.stop(); // 关闭定位图层 mBaiduMap.setMyLocationEnabled(false); mMapView.onDestroy(); mMapView = null; super.onDestroy(); } // 定位相关 LocationClient mLocClient; public MyLocationListenner myListener = new MyLocationListenner(); private LocationMode mCurrentMode; private boolean isFirstLoc = true; /** * 定位SDK监听函数 */ public class MyLocationListenner implements BDLocationListener { @Override public void onReceiveLocation(BDLocation location) { // map view 销毁后不在处理新接收的位置 if (location == null || mMapView == null) return; MyLocationData locData = new MyLocationData.Builder() .accuracy(location.getRadius()) //此处设置开发者获取到的方向信息,顺时针0-360 .direction(100).latitude(location.getLatitude()) .longitude(location.getLongitude()).build(); mBaiduMap.setMyLocationData(locData); if (isFirstLoc) { isFirstLoc = false; LatLng ll = new LatLng(location.getLatitude(), location.getLongitude()); MapStatusUpdate u = MapStatusUpdateFactory.newLatLng(ll); mBaiduMap.animateMapStatus(u); } String addr = location.getAddrStr(); if (addr != null) { Log.i("Test", addr); } else { Log.i("Test","error"); } double longitude = location.getLongitude(); double latitude = location.getLatitude(); if (longitude > 0 && latitude > 0) { Log.i("Test",String.format("纬度:%f 经度:%f", latitude,longitude)); LatLng ptCenter = new LatLng(latitude,longitude); // 反Geo搜索 mSearch.reverseGeoCode(new ReverseGeoCodeOption() .location(ptCenter)); } //停止定位 mLocClient.stop(); } public void onReceivePoi(BDLocation poiLocation) { } } private void getLocation() { // 定位初始化 mLocClient = new LocationClient(this); mLocClient.registerLocationListener(myListener); LocationClientOption option = new LocationClientOption(); option.setOpenGps(true);//打开gps option.setCoorType("bd09ll"); //设置坐标类型 option.setScanSpan(5000); //定位时间间隔 mLocClient.setLocOption(option); mLocClient.start(); } @Override public void onGetGeoCodeResult(GeoCodeResult arg0) { // TODO Auto-generated method stub } @Override public void onGetReverseGeoCodeResult(ReverseGeoCodeResult result) { // TODO Auto-generated method stub if (result == null || result.error != SearchResult.ERRORNO.NO_ERROR) { Toast.makeText(MapApiDemoActivity.this, "抱歉,未能找到结果", Toast.LENGTH_LONG) .show(); return; } mBaiduMap.clear(); // mBaiduMap.addOverlay(new MarkerOptions().position(result.getLocation()) // .icon(BitmapDescriptorFactory // .fromResource(R.drawable.icon_marka))); mBaiduMap.setMapStatus(MapStatusUpdateFactory.newLatLng(result .getLocation())); Toast.makeText(MapApiDemoActivity.this, result.getAddress(), Toast.LENGTH_LONG).show(); String province = result.getAddressDetail().province; String city = result.getAddressDetail().city; if (province != null && city != null) { } } }
