一、minion信息查询

测试所有节点

[root@server3 salt]# salt '*' test.ping
server5:
    True
server3:
    True
server4:
    True

1、查询所有信息

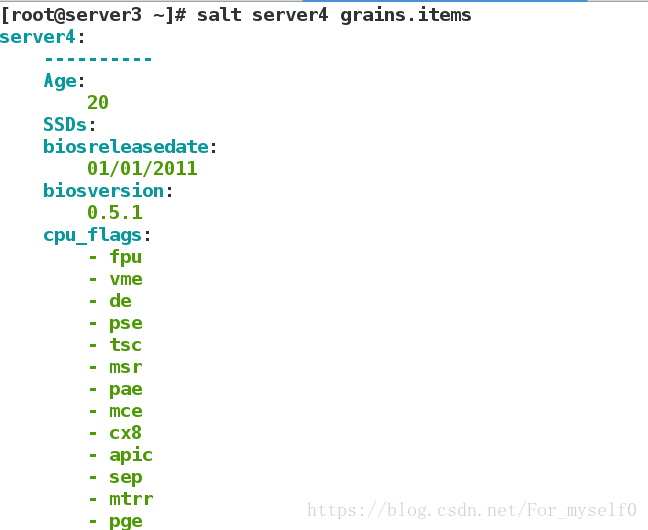

[root@server3 salt]# salt server4 grains.items

这里写图片描述

2、查询指定信息

[root@server3 salt]# salt server4 grains.item os
server4:
    ----------
    os:
        RedHat
[root@server3 salt]# salt server4 grains.item fqdn
server4:
    ----------
    fqdn:
        server4

3、过滤指定信息（G：指定静态）

[root@server3 salt]# salt -G 'fqdn:server5' test.ping
server5:
    True
[root@server3 salt]# salt -G 'name:test' test.ping
server4:
    True

4、根据信息匹配主机

关闭minion端服务

[root@server4 ~]# /etc/init.d/httpd stop
Stopping httpd:                                            [  OK  ]
[root@server5 ~]# /etc/init.d/nginx status
nginx is stopped

master端修改发布订阅信息

[root@server3 salt]# pwd
/srv/salt
[root@server3 salt]# cat top.sls
base:
  'server3':
    - haproxy.install
  'roles:apache':   ##采用信息匹配方式
    - match: grain
    - httpd.service
  'server5':
    - nginx.server

[root@server3 salt]# salt '*' state.highstate

minion端服务开启

[root@server4 salt]# /etc/init.d/httpd status
httpd (pid  2963) is running...

[root@server5 ~]# /etc/init.d/nginx status
nginx (pid  1887) is running...

二、静态信息grains定义

1、方法1：

[root@server4 salt]# vim minion
120 grains:
121   roles:
122     - apache

[root@server4 salt]# /etc/init.d/salt-minion restart
Stopping salt-minion:root:server4 daemon: OK
Starting salt-minion:root:server4 daemon: OK

master查看 roles

[root@server3 salt]# salt server4 grains.item roles
server4:
    ----------
    roles:
        - apache

2、方法2：

[root@server4 salt]# vim grains
[root@server4 salt]# cat grains
name: test

[root@server4 salt]# /etc/init.d/salt-minion restart
Stopping salt-minion:root:server4 daemon: OK
Starting salt-minion:root:server4 daemon: OK

master查看 name

[root@server3 salt]# salt server4 grains.item name
server4:
    ----------
    name:
        test

3、方法3：

[root@server4 salt]# cat grains
name: test
state: Running

master查看 state

[root@server3 salt]# salt server4 saltutil.sync_grains
server4:
[root@server3 salt]# salt server4 grains.item state
server4:
    ----------
    state:
        Running

4、方法4：

[root@server3 salt]# mkdir _grains
[root@server3 salt]# cd _grains/
[root@server3 _grains]# vim my_grains.py
#!/usr/bin/env python

def my_grains():
    grains = {};
    grains['Age'] = '20'
    return grains

[root@server3 _grains]# salt server4 saltutil.sync_grains
server4:
    - grains.my_grains
[root@server3 _grains]# salt server4 grains.item Age
server4:
    ----------
    Age:
        20

minion端同步信息(top.sls信息与master一致)

[root@server4 base]# pwd
/var/cache/salt/minion/files/base
[root@server4 base]# tree .
.
├── _grains
│   └── my_grains.py
├── httpd
│   ├── apache.sls
│   ├── files
│   │   └── httpd.conf
│   ├── install.sls
│   └── service.sls
└── top.sls

三、动态信息 pillar 定义

1、配置文件修改

[root@server3 _grains]# cd /etc/salt/
[root@server3 salt]# vim master
 694 pillar_roots:
 695   base:
 696     - /srv/pillar

[root@server3 salt]# mkdir /srv/pillar
[root@server3 salt]# /etc/init.d/salt-master restart
Stopping salt-master daemon:                               [  OK  ]
Starting salt-master daemon:                               [  OK  ]

2、建立pillar推送信息

[root@server3 salt]# cd /srv/pillar
[root@server3 pillar]# mkdir web
[root@server3 pillar]# vim web/install.sls
{% if grains['fqdn'] == 'server4' %}
webserver: httpd
{% elif grains['fqdn'] == 'server5' %}
webserver: nginx
{% elif grains['fqdn'] == 'server3' %}
webserver: haproxy
{% endif %}

[root@server3 pillar]# vim top.sls
base:
  '*':
    - web.install

3、刷新 piller

[root@server3 pillar]# salt '*' saltutil.refresh_pillar
server3:
    True
server5:
    True
server4:
    True

获取 piller 信息

[root@server3 pillar]# salt '*' pillar.items
server3:
    ----------
    webserver:
        haproxy
server5:
    ----------
    webserver:
        nginx
server4:
    ----------
    webserver:
        httpd

指定信息查询（I：动态信息）

[root@server3 pillar]# salt -I 'webserver:nginx' cmd.run hostname
server5:
    server5
[root@server3 pillar]# salt -I 'webserver:haproxy' cmd.run hostname
server3:
    server3
[root@server3 pillar]# salt -I 'webserver:httpd' cmd.run hostname
server4:
    server4

4、查询同一Vlan的活跃主机

[root@server3 pillar]# salt -S 172.25.120.0/24 test.ping
server4:
    True
server5:
    True
server3:
    True

四、不同主机设定不同参数(jinja模板)

{% %}：定义
{{ }}：取值

1、配置httpd服务端口

脚本定义固定端口

[root@server3 salt]# vim httpd/service.sls
/etc/httpd/conf/httpd.conf:
  file.managed:
    - source: salt://httpd/files/httpd.conf
    - mode: 644
    - user: root
    - group: root
    - template: jinja
    - contest:
      port: 8080

配置文件 port 设为变量

[root@server3 salt]# vim httpd/files/httpd.conf
 135 #Listen 12.34.56.78:80
 136 Listen {{ port }}

[root@server3 salt]# salt server4 state.sls httpd.service
              ----------
              diff:
                  ---
                  +++
                  @@ -133,7 +133,7 @@
                   # prevent Apache from glomming onto all bound IP addresses (0.0.0.0)
                   #
                   #Listen 12.34.56.78:80
                  -Listen 80
                  +Listen 8080

                   #
                   # Dynamic Shared Object (DSO) Support
----------

2、定义为动态信息（无需刷新)

[root@server3 salt]# vim /srv/pillar/web/install.sls
{% if grains['fqdn'] == 'server4' %}
webserver: httpd
port: 80    ##不同主机指定不同参数
{% elif grains['fqdn'] == 'server5' %}
webserver: nginx
{% elif grains['fqdn'] == 'server3' %}
webserver: haproxy
{% endif %}

[root@server3 salt]# vim httpd/service.sls
/etc/httpd/conf/httpd.conf:
  file.managed:
    - source: salt://httpd/files/httpd.conf
    - mode: 644
    - user: root
    - group: root
    - template: jinja
    - contest:      ##取值 port
      port: {{ pillar['port'] }}

[root@server3 salt]# salt server4 state.sls httpd.service
              ----------
              diff:
                  ---
                  +++
                  @@ -133,7 +133,7 @@
                   # prevent Apache from glomming onto all bound IP addresses (0.0.0.0)
                   #
                   #Listen 12.34.56.78:80
                  -Listen 8080
                  +Listen 80

                   #
                   # Dynamic Shared Object (DSO) Support
----------

3、模板导入的格式

[root@server3 salt]# vim lib.sls
{% set bind = '172.25.120.4' %}

[root@server3 salt]# vim httpd/files/httpd.conf
   1 {% from 'lib.sls' import bind with context %}
 136 #Listen 12.34.56.78:80
 137 Listen {{ bind }}:{{ port }}

推送ok

[root@server3 salt]# salt server4 state.sls httpd.service
                  @@ -133,7 +134,7 @@
                   #Listen 12.34.56.78:80
                  -Listen 8080
                  +Listen 172.25.120.4:8080

改变监听端口，需要重启（修改脚本，reload-> restart)

[root@server4 ~]# /etc/init.d/httpd restart
Stopping httpd:                                            [FAILED]
Starting httpd: httpd: Could not reliably determine the server's fully qualified domain name, using 172.25.120.4 for ServerName
                                                           [  OK  ]
[root@server4 ~]# netstat -antuple | grep http
tcp        0      0 172.25.120.4:8080           0.0.0.0:*                   LISTEN      0          14850      3517/httpd

4、grains方法

[root@server3 salt]# vim httpd/files/httpd.conf     ##注释：模块
   1 #{% from 'lib.sls' import bind with context %}
 136 #Listen 12.34.56.78:80
 137 Listen {{ bind }}:{{ port }}

[root@server3 salt]# vim httpd/service.sls
    - template: jinja
    - contest:
      port: {{ pillar['port'] }}
      bind: {{ grains['ipv4'][-1] }}

[root@server3 salt]# salt server4 state.sls httpd.service
------------
Succeeded: 3 (changed=2)
Failed:    0
------------

5、pillar、grains取值

[root@server3 salt]# vim httpd/service.sls
#    - contest:
#      port: {{ pillar['port'] }}
#      bind: {{ grains['ipv4'][-1] }}

[root@server3 salt]# vim /srv/pillar/web/install.sls
port: 80

[root@server3 salt]# vim httpd/files/httpd.conf
 136 #Listen 12.34.56.78:80
 137 Listen {{ grains['fqdn_ip4'][0] }}:{{ pillar['port'] }}

[root@server3 salt]# salt server4 state.sls httpd.service
                   #Listen 12.34.56.78:80
                  -Listen 172.25.120.4:8080
                  +Listen 172.25.120.4:80

6、pillar方法

[root@server3 salt]# vim httpd/service.sls
    - template: jinja
    - contest:
      port: {{ pillar['port'] }}
      bind: {{ pillar['bind'] }}

[root@server3 salt]# vim /srv/pillar/web/install.sls
{% if grains['fqdn'] == 'server4' %}
webserver: httpd
port: 80
bind: 172.25.120.4

[root@server3 salt]# salt server4 state.sls httpd.service

五、Saltstack一键部署keepalived

业余版：

[root@server3 keepalived]# salt server3 state.sls keepalived.install
include:
  - pkgs.make

keepalived-install:
  file.managed:
    - name: /opt/keepalived-1.4.3.tar.gz
    - source: salt://keepalived/files/keepalived-1.4.3.tar.gz

  cmd.run:
    - name: cd /opt && tar zxf keepalived-1.4.3.tar.gz && cd keepalived-1.4.3 && ./configure --prefix=/usr/local/keepalived --with-init=SYSV &> /dev/null && make > /dev/null && make install > /dev/null && cd /usr/local/keepalived/etc/rc.d/init.d && chmod +x keepalived && ln -s /usr/local/keepalived/etc/keepalived/ /etc&& ln -s /usr/local/keepalived/etc/sysconfig/keepalived  /etc/sysconfig/ && ln -s /usr/local/keepalived/etc/rc.d/init.d/keepalived  /etc/init.d/ && ln -s /usr/local/keepalived/sbin/keepalived /sbin/
    - creates: /usr/local/keepalived

1、准备配置文件（可以先推送业余版）

[root@server3 salt]# cp /usr/local/keepalived/etc/keepalived/keepalived.conf keepalived/files/
[root@server3 salt]# cp /usr/local/keepalived/etc/rc.d/init.d/keepalived keepalived/files/
[root@server3 salt]# ls keepalived/files/keepalived
keepalived  keepalived-1.4.3.tar.gz  keepalived.conf

2、修改配置文件

[root@server3 salt]# vim keepalived/files/keepalived.conf
  3 global_defs {
  4    notification_email {
  5         root@localhost
  6    }
  7    notification_email_from keepalived@localhost
  8    smtp_server 127.0.0.1
 12    #vrrp_strict     ##注释，否则火墙会出问题
 18     state {{ STATE }}   ##获取变量值
 20     virtual_router_id {{ vrid }}
 21     priority {{ priority }}
 27     virtual_ipaddress { ##配置VIP
 28         172.25.120.100
 29     }

3、编写脚本

[root@server3 salt]# vim keepalived/install.sls
include:
  - pkgs.make
keepalived-install:
  file.managed:
    - name: /opt/keepalived-1.4.3.tar.gz
    - source: salt://keepalived/files/keepalived-1.4.3.tar.gz
  cmd.run:
    - name: cd /opt && tar zxf keepalived-1.4.3.tar.gz && cd keepalived-1.4.3 && ./configure --prefix=/usr/local/keepalived --with-init=SYSV &> /dev/null && make > /dev/null && make install > /dev/null
    - creates: /usr/local/keepalived
/etc/sysconfig/keepalived:
  file.symlink:
    - target : /usr/local/keepalived/etc/sysconfig/keepalived
/sbin/keepalived:
  file.symlink:
    - target : /usr/local/keepalived/sbin/keepalived
/etc/keepalived:
  file.directory:
    - mode: 755

[root@server3 salt]# vim keepalived/service.sls
include:
  - keepalived.install

/etc/keepalived/keepalived.conf:
  file.managed:
    - source: salt://keepalived/files/keepalived.conf
    - template: jinja
    - context:
      STATE: {{ pillar['state'] }}
      vrid: {{ pillar['vrid'] }}
      priority: {{ pillar['priority'] }}

keepalived-service:
  file.managed:
    - name: /etc/init.d/keepalived
    - source: salt://keepalived/files/keepalived
    - mode: 755

  service.running:
    - name: keepalived
    - reload: True
    - watch:
      - file: /etc/keepalived/keepalived.conf

4、定义变量

[root@server3 salt]# cd ..
[root@server3 srv]# cd pillar/
[root@server3 pillar]# mkdir keepalived
[root@server3 pillar]# cp web/install.sls keepalived/install.sls
[root@server3 pillar]# vim keepalived/install.sls
{% if grains['fqdn'] == 'server3' %}
state: MASTER
vrid: 120
priority: 100
{% elif grains['fqdn'] == 'server6' %}
state: BACKUP
vrid: 120
priority: 50
{% endif %}

5、修改base

[root@server3 pillar]# vim top.sls
base:
  'server4':
    - web.install
  'server5':
    - web.install
  'server3':
    - keepalived.install
  'server6':
    - keepalived.install

[root@server3 pillar]# cd ..
[root@server3 srv]# cd salt/
[root@server3 salt]# vim top.sls
base:
  'server3':
    - haproxy.install
    - keepalived.service
  'server6':
    - haproxy.install
    - keepalived.service
  'roles:apache':
    - match: grain
    - httpd.service
  'server5':
    - nginx.server

6、推送

[root@server3 salt]# salt '*' state.highstate

ok后查看VIP

[root@server3 salt]# ip addr
2: eth0:
    inet 172.25.120.3/24 brd 172.25.120.255 scope global eth0
    inet 172.25.120.100/32 scope global eth0

7、keepalived测试

访问vip出现轮询

[root@server3 salt]# curl 172.25.120.100
server4
[root@server3 salt]# curl 172.25.120.100
server5
[root@server3 salt]# curl 172.25.120.100
server4
[root@server3 salt]# curl 172.25.120.100
server5

测试高可用

[root@server3 salt]# /etc/init.d/keepalived stop
Stopping keepalived:                                       [  OK  ]
[root@server3 salt]# curl 172.25.120.100
server4
[root@server3 salt]# curl 172.25.120.100
server5
[root@server3 salt]# curl 172.25.120.100
server4
[root@server3 salt]# curl 172.25.120.100
server5
