比特币源码情景分析之启动初始化

       源码情景分析系列写到这里,大家可能会有疑惑,标准套路不是一开始就讲启动初始化的嘛,为啥现在才姗姗来迟.其实我一开始也是从main函数入手开始一步一步看下去,但是发现,只能看个大概,没什么感觉(当然,这一步我推荐也是要走的,只不过只需要初略的看完即可,然后就应该带有目的的去看具体模块)。于是就以具体情境需求出发,带有问题有针对性的去看具体代码,比如P2SH究竟是什么(有了script相关的博文)? SPV支持如何实现的(有了spv, bloom filter的相关文章)?区块是如何sync下来的,别人挖到新区块后本节点是如何拿到区块内容的(有了前面的message相关的文章)。然后探索这几个问题的时候,一部分初始化的内容其实也已经接触到了,比如脚本执行线程初始化,消息处理线程初始化, 网络事件监听线程初始化。所以接下来就是走下整个启动初始化以更了解更多细节。


哪个才是真正的main函数

    我们知道c++可执行程序的入口是main函数,由于bitcoin包含了各种测试程序,所以整个源码有多个main函数的,不过通过看文件名即可大概猜出bitcoind.cpp的main函数才是真正core的入口.


int main(int argc, char* argv[])
{
    //这个函数基本没做什么有用的事
    SetupEnvironment();

    // Connect bitcoind signal handlers
    // 初始化signal handlers
    // signal handlers是什么呢?很多博文以较大篇幅来描述这个,其实我觉得这个概念很简单
    // 你可以认为是系统定义了很多全局函数指针signal,各个模块可以调用这些函数指针
    // 而具体函数的实现就是handler, 通过connect函数来将实现(handler)赋值给指针signal来实现,并且可以动态更改
    noui_connect();

    //所以实际性的初始化就是AppInit函数了
    return (AppInit(argc, argv) ? EXIT_SUCCESS : EXIT_FAILURE);
}

void SetupEnvironment()
{
#ifdef HAVE_MALLOPT_ARENA_MAX
    // glibc-specific: On 32-bit systems set the number of arenas to 1.
    // By default, since glibc 2.10, the C library will create up to two heap
    // arenas per core. This is known to cause excessive virtual address space
    // usage in our usage. Work around it by setting the maximum number of
    // arenas to 1.
    if (sizeof(void*) == 4) {
        mallopt(M_ARENA_MAX, 1);
    }
#endif
    // On most POSIX systems (e.g. Linux, but not BSD) the environment's locale
    // may be invalid, in which case the "C" locale is used as fallback.
#if !defined(WIN32) && !defined(MAC_OSX) && !defined(__FreeBSD__) && !defined(__OpenBSD__)
    try {
        std::locale(""); // Raises a runtime error if current locale is invalid
    } catch (const std::runtime_error&) {
        setenv("LC_ALL", "C", 1);
    }
#endif
    // The path locale is lazy initialized and to avoid deinitialization errors
    // in multithreading environments, it is set explicitly by the main thread.
    // A dummy locale is used to extract the internal default locale, used by
    // fs::path, which is then used to explicitly imbue the path.
    std::locale loc = fs::path::imbue(std::locale::classic());
    fs::path::imbue(loc);
}

void noui_connect()
{
    // Connect bitcoind signal handlers
    // 将具体实现绑定到各个全局函数指针signal
    //这几个函数也没啥什么用,可以不用看
    uiInterface.ThreadSafeMessageBox.connect(noui_ThreadSafeMessageBox);
    uiInterface.ThreadSafeQuestion.connect(noui_ThreadSafeQuestion);
    uiInterface.InitMessage.connect(noui_InitMessage);
}

还是看核心函数AppInit吧

bool AppInit(int argc, char* argv[])
{
    bool fRet = false;

#if ENABLE_WALLET
    //如果钱包功能开启了,就会初始化钱包模块,这里是由宏控制,所以这是一个编译选项而不是运行参数
    g_wallet_init_interface.reset(new WalletInit);
#else
    g_wallet_init_interface.reset(new DummyWalletInit);
#endif

    //
    // Parameters
    //
    // If Qt is used, parameters/bitcoin.conf are parsed in qt/bitcoin.cpp's main()
    gArgs.ParseParameters(argc, argv);

    // Process help and version before taking care about datadir
    if (HelpRequested(gArgs) || gArgs.IsArgSet("-version")) {
        std::string strUsage = strprintf(_("%s Daemon"), _(PACKAGE_NAME)) + " " + _("version") + " " + FormatFullVersion() + "\n";

        if (gArgs.IsArgSet("-version"))
        {
            strUsage += FormatParagraph(LicenseInfo());
        }
        else
        {
            strUsage += "\n" + _("Usage:") + "\n" +
                  "  bitcoind [options]                     " + strprintf(_("Start %s Daemon"), _(PACKAGE_NAME)) + "\n";

            strUsage += "\n" + HelpMessage(HelpMessageMode::BITCOIND);
        }

        fprintf(stdout, "%s", strUsage.c_str());
        return true;
    }

    try
    {
        //检测程序配置目录是否存在,如果是通过参数指定的,必须存在,否则会创建默认的目录
        if (!fs::is_directory(GetDataDir(false)))
        {
            fprintf(stderr, "Error: Specified data directory \"%s\" does not exist.\n", gArgs.GetArg("-datadir", "").c_str());
            return false;
        }
        try
        {
            //读取配置文件bitcoin.conf
            gArgs.ReadConfigFile(gArgs.GetArg("-conf", BITCOIN_CONF_FILENAME));
        } catch (const std::exception& e) {
            fprintf(stderr,"Error reading configuration file: %s\n", e.what());
            return false;
        }
        // Check for -testnet or -regtest parameter (Params() calls are only valid after this clause)
       // 选择网络,比如是testnet,还mainnet还是私有网络
        try {
            SelectParams(ChainNameFromCommandLine());
        } catch (const std::exception& e) {
            fprintf(stderr, "Error: %s\n", e.what());
            return false;
        }


        // -server defaults to true for bitcoind but not for the GUI so do this here
        gArgs.SoftSetBoolArg("-server", true);
        // Set this early so that parameter interactions go to console
        // 和log相关的配置,比如是否打印ip等,不太重要
        InitLogging();
        //这个是和网络相关的配置,比如监听端口,ip, 白名单ip, dnsseed等, dnsseed比较重要,因为peer节点最开始就是这些seed,然后这些节点又可以返回更多节点信息
        InitParameterInteraction();
        //系统相关的配置,比如SIGTERM, SIGINT, SIGUP信号的处理, 系统默认权限sysperm配置
        if (!AppInitBasicSetup())
        {
            // InitError will have been called with detailed error, which ends up on console
            return false;
        }
        // 这个是个核心函数,大部分的参数解释在这里, 比如最大连接数,是否prune,mempool的大小,checkpoint点
        if (!AppInitParameterInteraction())
        {
            // InitError will have been called with detailed error, which ends up on console
            return false;
        }
        //这个是程序完整性验证, 比如依赖库是否存在啊
        if (!AppInitSanityChecks())
        {
            // InitError will have been called with detailed error, which ends up on console
            return false;
        }
        if (gArgs.GetBoolArg("-daemon", false))
        {
#if HAVE_DECL_DAEMON
            fprintf(stdout, "Bitcoin server starting\n");

            // Daemonize
            if (daemon(1, 0)) { // don't chdir (1), do close FDs (0)
                fprintf(stderr, "Error: daemon() failed: %s\n", strerror(errno));
                return false;
            }
#else
            fprintf(stderr, "Error: -daemon is not supported on this operating system\n");
            return false;
#endif // HAVE_DECL_DAEMON
        }
        // Lock data directory after daemonization
        //锁定数据目录
        if (!AppInitLockDataDirectory())
        {
            // If locking the data directory failed, exit immediately
            return false;
        }
        //这个是最大核心,前面的初始化都是局限在参数解释等小打小闹
        fRet = AppInitMain();
    }
    catch (const std::exception& e) {
        PrintExceptionContinue(&e, "AppInit()");
    } catch (...) {
        PrintExceptionContinue(nullptr, "AppInit()");
    }

    if (!fRet)
    {
        Interrupt();
    } else {
        WaitForShutdown();
    }
    Shutdown();

    return fRet;
}

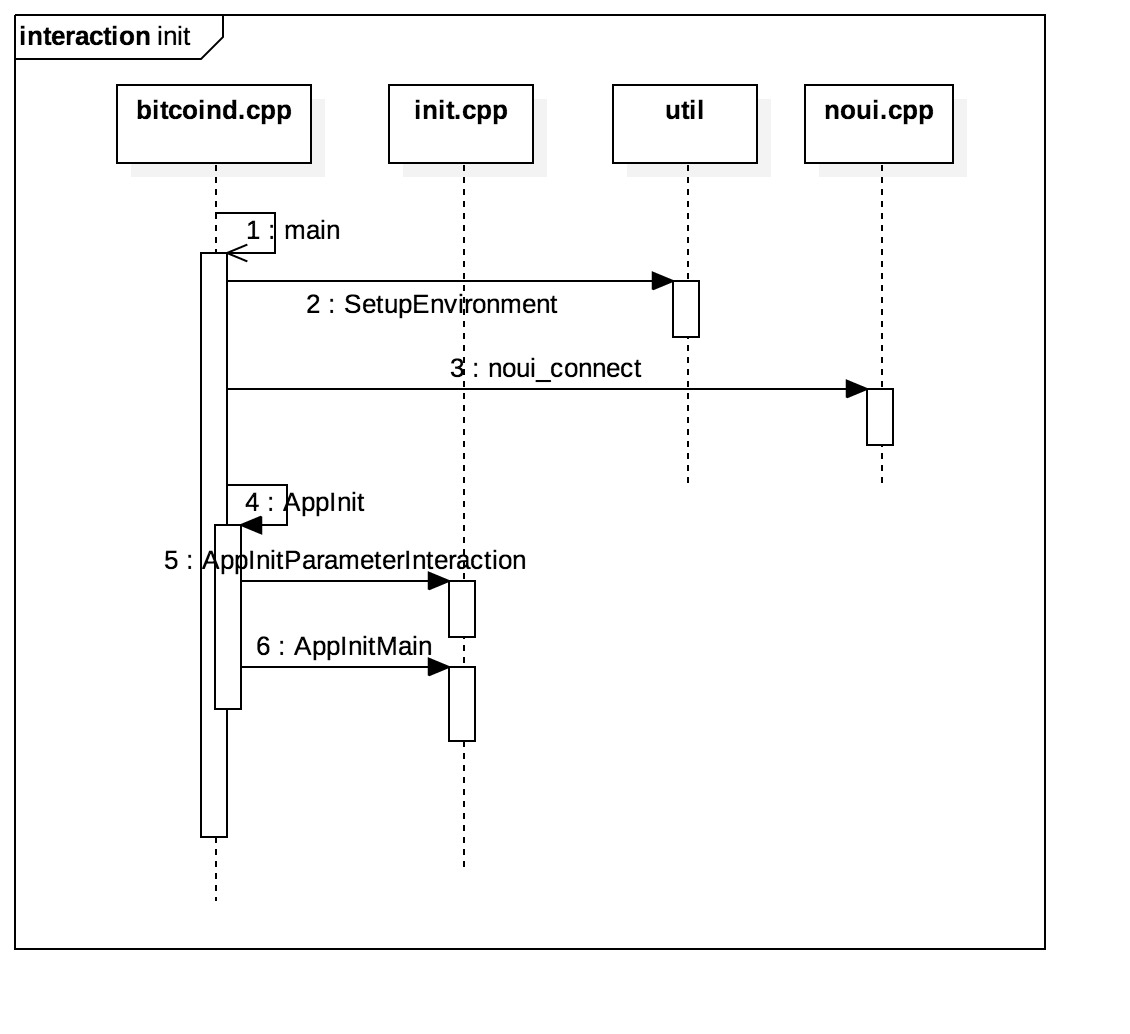

总结下来,有这几个函数:
  • InitLogging():日志记录以及打印配置初始化, 比如是输出到终端还是文件。
  • InitParameterInteraction():监听端口,代理等网络参数初始化。
  • AppInitBasicSetup():系统相关的配置,比如SIGTERM, SIGINT, SIGUP消息的处理, 系统默认权限sysperm配置
  • AppInitParameterInteraction():设置区块链运行参数,例如最大连接数,是否prune,mempool,交易费等等。
  • AppInitSanityChecks():程序运行环境比如库是否完整。
  • AppInitMain():核心初始化函数。
  • ShutDown():关闭所有后台进程并清理程序。
上面橙色的函数才是需要重点看的,其他的大家基本可以忽略,等有具体业务再看都行。

AppInitParameterInteraction函数


bool AppInitParameterInteraction()
{
    const CChainParams& chainparams = Params();
    // ********************************************************* Step 2: parameter interactions

    // also see: InitParameterInteraction()

    //存储block数据的目录是否存在
    if (!fs::is_directory(GetBlocksDir(false))) {
        return InitError(strprintf(_("Specified blocks directory \"%s\" does not exist.\n"), gArgs.GetArg("-blocksdir", "").c_str()));
    }

    // if using block pruning, then disallow txindex
    if (gArgs.GetArg("-prune", 0)) {
        if (gArgs.GetBoolArg("-txindex", DEFAULT_TXINDEX))
            return InitError(_("Prune mode is incompatible with -txindex."));
    }

    // -bind and -whitebind can't be set when not listening
    // 监听网络绑定到哪个ip,可以绑定哪些ip, 这个主要是多网卡时(无线,有限网络),主动选择网络,一般设置为0.0.0.0自动即可,比如有些VPS用的是虚拟网络,可能会变化
    size_t nUserBind = gArgs.GetArgs("-bind").size() + gArgs.GetArgs("-whitebind").size();
    if (nUserBind != 0 && !gArgs.GetBoolArg("-listen", DEFAULT_LISTEN)) {
        return InitError("Cannot set -bind or -whitebind together with -listen=0");
    }

    // Make sure enough file descriptors are available
    int nBind = std::max(nUserBind, size_t(1));
    //获取用户配置的最大连接数,并检测系统网络最大连接数
    nUserMaxConnections = gArgs.GetArg("-maxconnections", DEFAULT_MAX_PEER_CONNECTIONS);
    nMaxConnections = std::max(nUserMaxConnections, 0);

    // Trim requested connection counts, to fit into system limitations
    nMaxConnections = std::max(std::min(nMaxConnections, FD_SETSIZE - nBind - MIN_CORE_FILEDESCRIPTORS - MAX_ADDNODE_CONNECTIONS), 0);
    nFD = RaiseFileDescriptorLimit(nMaxConnections + MIN_CORE_FILEDESCRIPTORS + MAX_ADDNODE_CONNECTIONS);
    if (nFD < MIN_CORE_FILEDESCRIPTORS)
        return InitError(_("Not enough file descriptors available."));
    nMaxConnections = std::min(nFD - MIN_CORE_FILEDESCRIPTORS - MAX_ADDNODE_CONNECTIONS, nMaxConnections);

    if (nMaxConnections < nUserMaxConnections)
        InitWarning(strprintf(_("Reducing -maxconnections from %d to %d, because of system limitations."), nUserMaxConnections, nMaxConnections));

    // ********************************************************* Step 3: parameter-to-internal-flags
    if (gArgs.IsArgSet("-debug")) {
        // Special-case: if -debug=0/-nodebug is set, turn off debugging messages
        const std::vector<std::string> categories = gArgs.GetArgs("-debug");

        if (std::none_of(categories.begin(), categories.end(),
            [](std::string cat){return cat == "0" || cat == "none";})) {
            for (const auto& cat : categories) {
                uint32_t flag = 0;
                if (!GetLogCategory(&flag, &cat)) {
                    InitWarning(strprintf(_("Unsupported logging category %s=%s."), "-debug", cat));
                    continue;
                }
                logCategories |= flag;
            }
        }
    }

    // Now remove the logging categories which were explicitly excluded
    for (const std::string& cat : gArgs.GetArgs("-debugexclude")) {
        uint32_t flag = 0;
        if (!GetLogCategory(&flag, &cat)) {
            InitWarning(strprintf(_("Unsupported logging category %s=%s."), "-debugexclude", cat));
            continue;
        }
        logCategories &= ~flag;
    }

    // Check for -debugnet
    if (gArgs.GetBoolArg("-debugnet", false))
        InitWarning(_("Unsupported argument -debugnet ignored, use -debug=net."));
    // Check for -socks - as this is a privacy risk to continue, exit here
    if (gArgs.IsArgSet("-socks"))
        return InitError(_("Unsupported argument -socks found. Setting SOCKS version isn't possible anymore, only SOCKS5 proxies are supported."));
    // Check for -tor - as this is a privacy risk to continue, exit here
    if (gArgs.GetBoolArg("-tor", false))
        return InitError(_("Unsupported argument -tor found, use -onion."));

    if (gArgs.GetBoolArg("-benchmark", false))
        InitWarning(_("Unsupported argument -benchmark ignored, use -debug=bench."));

    if (gArgs.GetBoolArg("-whitelistalwaysrelay", false))
        InitWarning(_("Unsupported argument -whitelistalwaysrelay ignored, use -whitelistrelay and/or -whitelistforcerelay."));

    //新版本不支持这个参数了,打印提示
    if (gArgs.IsArgSet("-blockminsize"))
        InitWarning("Unsupported argument -blockminsize ignored.");

    // Checkmempool and checkblockindex default to true in regtest mode
    int ratio = std::min<int>(std::max<int>(gArgs.GetArg("-checkmempool", chainparams.DefaultConsistencyChecks() ? 1 : 0), 0), 1000000);
    if (ratio != 0) {
        mempool.setSanityCheck(1.0 / ratio);
    }
    // checkpointindex读取,checkpoint是一中类似milestone的快照,不可逆的区块历史快照,这个我会在后面单独一篇博文介绍的
    fCheckBlockIndex = gArgs.GetBoolArg("-checkblockindex", chainparams.DefaultConsistencyChecks());
    fCheckpointsEnabled = gArgs.GetBoolArg("-checkpoints", DEFAULT_CHECKPOINTS_ENABLED);

    hashAssumeValid = uint256S(gArgs.GetArg("-assumevalid", chainparams.GetConsensus().defaultAssumeValid.GetHex()));
    if (!hashAssumeValid.IsNull())
        LogPrintf("Assuming ancestors of block %s have valid signatures.\n", hashAssumeValid.GetHex());
    else
        LogPrintf("Validating signatures for all blocks.\n");

    //最小工作量
    if (gArgs.IsArgSet("-minimumchainwork")) {
        const std::string minChainWorkStr = gArgs.GetArg("-minimumchainwork", "");
        if (!IsHexNumber(minChainWorkStr)) {
            return InitError(strprintf("Invalid non-hex (%s) minimum chain work value specified", minChainWorkStr));
        }
        nMinimumChainWork = UintToArith256(uint256S(minChainWorkStr));
    } else {
        nMinimumChainWork = UintToArith256(chainparams.GetConsensus().nMinimumChainWork);
    }
    LogPrintf("Setting nMinimumChainWork=%s\n", nMinimumChainWork.GetHex());
    if (nMinimumChainWork < UintToArith256(chainparams.GetConsensus().nMinimumChainWork)) {
        LogPrintf("Warning: nMinimumChainWork set below default value of %s\n", chainparams.GetConsensus().nMinimumChainWork.GetHex());
    }

    // mempool limits
    // mempool大小值
    int64_t nMempoolSizeMax = gArgs.GetArg("-maxmempool", DEFAULT_MAX_MEMPOOL_SIZE) * 1000000;
    int64_t nMempoolSizeMin = gArgs.GetArg("-limitdescendantsize", DEFAULT_DESCENDANT_SIZE_LIMIT) * 1000 * 40;
    if (nMempoolSizeMax < 0 || nMempoolSizeMax < nMempoolSizeMin)
        return InitError(strprintf(_("-maxmempool must be at least %d MB"), std::ceil(nMempoolSizeMin / 1000000.0)));
    // incremental relay fee sets the minimum feerate increase necessary for BIP 125 replacement in the mempool
    // and the amount the mempool min fee increases above the feerate of txs evicted due to mempool limiting.
    if (gArgs.IsArgSet("-incrementalrelayfee"))
    {
        CAmount n = 0;
        if (!ParseMoney(gArgs.GetArg("-incrementalrelayfee", ""), n))
            return InitError(AmountErrMsg("incrementalrelayfee", gArgs.GetArg("-incrementalrelayfee", "")));
        incrementalRelayFee = CFeeRate(n);
    }

    // -par=0 means autodetect, but nScriptCheckThreads==0 means no concurrency
    //脚本执行线程的数量
    nScriptCheckThreads = gArgs.GetArg("-par", DEFAULT_SCRIPTCHECK_THREADS);
    if (nScriptCheckThreads <= 0)
        nScriptCheckThreads += GetNumCores();
    if (nScriptCheckThreads <= 1)
        nScriptCheckThreads = 0;
    else if (nScriptCheckThreads > MAX_SCRIPTCHECK_THREADS)
        nScriptCheckThreads = MAX_SCRIPTCHECK_THREADS;

    // block pruning; get the amount of disk space (in MiB) to allot for block & undo files
    int64_t nPruneArg = gArgs.GetArg("-prune", 0);
    if (nPruneArg < 0) {
        return InitError(_("Prune cannot be configured with a negative value."));
    }
    nPruneTarget = (uint64_t) nPruneArg * 1024 * 1024;
    if (nPruneArg == 1) {  // manual pruning: -prune=1
        LogPrintf("Block pruning enabled.  Use RPC call pruneblockchain(height) to manually prune block and undo files.\n");
        nPruneTarget = std::numeric_limits<uint64_t>::max();
        fPruneMode = true;
    } else if (nPruneTarget) {
        if (nPruneTarget < MIN_DISK_SPACE_FOR_BLOCK_FILES) {
            return InitError(strprintf(_("Prune configured below the minimum of %d MiB.  Please use a higher number."), MIN_DISK_SPACE_FOR_BLOCK_FILES / 1024 / 1024));
        }
        LogPrintf("Prune configured to target %uMiB on disk for block and undo files.\n", nPruneTarget / 1024 / 1024);
        fPruneMode = true;
    }

    nConnectTimeout = gArgs.GetArg("-timeout", DEFAULT_CONNECT_TIMEOUT);
    if (nConnectTimeout <= 0)
        nConnectTimeout = DEFAULT_CONNECT_TIMEOUT;

    if (gArgs.IsArgSet("-minrelaytxfee")) {
        CAmount n = 0;
        if (!ParseMoney(gArgs.GetArg("-minrelaytxfee", ""), n)) {
            return InitError(AmountErrMsg("minrelaytxfee", gArgs.GetArg("-minrelaytxfee", "")));
        }
        // High fee check is done afterward in WalletParameterInteraction()
        ::minRelayTxFee = CFeeRate(n);
    } else if (incrementalRelayFee > ::minRelayTxFee) {
        // Allow only setting incrementalRelayFee to control both
        ::minRelayTxFee = incrementalRelayFee;
        LogPrintf("Increasing minrelaytxfee to %s to match incrementalrelayfee\n",::minRelayTxFee.ToString());
    }

    // Sanity check argument for min fee for including tx in block
    // TODO: Harmonize which arguments need sanity checking and where that happens
    if (gArgs.IsArgSet("-blockmintxfee"))
    {
        CAmount n = 0;
        if (!ParseMoney(gArgs.GetArg("-blockmintxfee", ""), n))
            return InitError(AmountErrMsg("blockmintxfee", gArgs.GetArg("-blockmintxfee", "")));
    }

    // Feerate used to define dust.  Shouldn't be changed lightly as old
    // implementations may inadvertently create non-standard transactions
    if (gArgs.IsArgSet("-dustrelayfee"))
    {
        CAmount n = 0;
        if (!ParseMoney(gArgs.GetArg("-dustrelayfee", ""), n))
            return InitError(AmountErrMsg("dustrelayfee", gArgs.GetArg("-dustrelayfee", "")));
        dustRelayFee = CFeeRate(n);
    }

    return true;
}

-prune参数在SPV章节也有提到过,用于删除raw block,undo data这两种数据, 取值有以下几种:
  • 0:默认值,该功能不开启。
  • 1:允许手动使用RPC命令删除旧的区块。
  • 大于等于550:允许保存的文件大小是:raw block + undo data,其中550MB = MIN_DISK_SPACE_FOR_BLOCK_FILES。
    raw block 保存在~/.bitcoin/blocks 对应文件为blk***.dat
    undo block 保存在~/.bitcoin/blocks 对应文件为rec***.dat,

与费用相关的配置,这些配置可以让每个节点内部过滤一些交易以避免接收过多的交易,
  • minrelaytxfee:最小的转发费用,如果交易费小于这个值,节点就直接忽略该交易。默认值为0.00001 BTC/KB。
  • dustrelayfee:dust 交易是一种特殊的交易,费用一般较低,这个就是用了设置这类交易的最低费用的,低于这个值则忽略该交易。默认值为0.00001BTC/KB。
  • incrementalrelayfee:这个有点像分时电价,白天电价贵,晚上电价便宜,当mempool交易量不超过阈值时采用minrelaytxfee,当mempool中的交易数量超过阈值时,交易费用阈值便会增加,增加的程度就由incrementalrelayfee决定。默认值为0.00001BTC/KB。

AppInitMain


backgroundScheduler线程

backgroundScheduler线程是一个后台线程,backgroundScheduler用作来调度任务在该线程上执行

bool AppInitMain()
{
    const CChainParams& chainparams = Params();
    // ********************************************************* Step 4a: application initialization
    //创建脚本执行线程,这个在script脚本博文中已经提到过了,更多细节      //https://blog.csdn.net/itleaks/article/details/79922497
    LogPrintf("Using %u threads for script verification\n", nScriptCheckThreads);
    if (nScriptCheckThreads) {
        for (int i=0; i<nScriptCheckThreads-1; i++)
            threadGroup.create_thread(&ThreadScriptCheck);
    }

    // Start the lightweight task scheduler thread
    CScheduler::Function serviceLoop = boost::bind(&CScheduler::serviceQueue, &scheduler);
    threadGroup.create_thread(boost::bind(&TraceThread<CScheduler::Function>, "scheduler", serviceLoop));

    GetMainSignals().RegisterBackgroundSignalScheduler(scheduler);
    GetMainSignals().RegisterWithMempoolSignals(mempool);

    /* Register RPC commands regardless of -server setting so they will be
     * available in the GUI RPC console even if external calls are disabled.
     */
    RegisterAllCoreRPCCommands(tableRPC);
    g_wallet_init_interface->RegisterRPC(tableRPC);

boost:bind的作用是封装函数,比如:
CScheduler::Function serviceLoop = boost::bind(&CScheduler::serviceQueue, &scheduler);
    调用serviceLoop() 等价于调用scheduler->serviceQueue(),这样的好处是什么呢?解耦合,就是有些模块只需要一个函数,不需要知道对象。比如而这里的serviceQueue是类对象的非静态函数,没法作为thread的入口函数
GetMainSignals().RegisterBackgroundSignalScheduler(scheduler);
void CMainSignals::RegisterBackgroundSignalScheduler(CScheduler& scheduler) {
    assert(!m_internals);
    m_internals.reset(new MainSignalsInstance(&scheduler));
}

struct MainSignalsInstance {
    SingleThreadedSchedulerClient m_schedulerClient;

    explicit MainSignalsInstance(CScheduler *pscheduler) : m_schedulerClient(pscheduler) {}
};

void CallFunctionInValidationInterfaceQueue(std::function<void ()> func) {
    //让backgroudScheduler线程执行某一函数
    g_signals.m_internals->m_schedulerClient.AddToProcessQueue(std::move(func));
}


void CMainSignals::UpdatedBlockTip(const CBlockIndex *pindexNew, const CBlockIndex *pindexFork, bool fInitialDownload) {
    m_internals->m_schedulerClient.AddToProcessQueue([pindexNew, pindexFork, fInitialDownload, this] {
        //该函数在backgroudScheduler线程执行
        m_internals->UpdatedBlockTip(pindexNew, pindexFork, fInitialDownload);
    });
}

void CMainSignals::TransactionAddedToMempool(const CTransactionRef &ptx) {
    m_internals->m_schedulerClient.AddToProcessQueue([ptx, this] {
        //该函数在backgroudScheduler线程执行
        m_internals->TransactionAddedToMempool(ptx);
    });
}

从上可知RegisterBackgroundSignalScheduler(scheduler)是将scheduler作为全局signal暴露出去,可以让任何模块代码调用全局的函数让BackgroundSignalScheduler线程执行某一任务(函数的形式)

各种网络服务初始化


    /* Start the RPC server already.  It will be started in "warmup" mode
     * and not really process calls already (but it will signify connections
     * that the server is there and will be ready later).  Warmup mode will
     * be disabled when initialisation is finished.
     */
    if (gArgs.GetBoolArg("-server", false))
    {
        uiInterface.InitMessage.connect(SetRPCWarmupStatus);
        if (!AppInitServers())
            return InitError(_("Unable to start HTTP server. See debug log for details."));
    }

bool AppInitServers()
{
    RPCServer::OnStarted(&OnRPCStarted);
    RPCServer::OnStopped(&OnRPCStopped);
    if (!InitHTTPServer())
        return false;
    if (!StartRPC())
        return false;
    if (!StartHTTPRPC())
        return false;
    if (gArgs.GetBoolArg("-rest", DEFAULT_REST_ENABLE) && !StartREST())
        return false;
    if (!StartHTTPServer())
        return false;
    return true;
}

    大家能看出上面5个蓝色字体函数的差异吗?只有第一个是Init,其他都是Start,这说明啥,RPC, HTTPRPC, REST都是基于http服务的。bitcoin使用evhttp搭建的http 服务,evhttp接收到http数据后转发给RPC, REST服务解释处理, 具体细节如下:

bool InitHTTPServer()
{
    /* Create a new evhttp object to handle requests. */
    raii_evhttp http_ctr = obtain_evhttp(base_ctr.get());
    struct evhttp* http = http_ctr.get();
    if (!http) {
        LogPrintf("couldn't create evhttp. Exiting.\n");
        return false;
    }

    evhttp_set_timeout(http, gArgs.GetArg("-rpcservertimeout", DEFAULT_HTTP_SERVER_TIMEOUT));
    evhttp_set_max_headers_size(http, MAX_HEADERS_SIZE);
    evhttp_set_max_body_size(http, MAX_SIZE);
    evhttp_set_gencb(http, http_request_cb, nullptr);

    if (!HTTPBindAddresses(http)) {
        LogPrintf("Unable to bind any endpoint for RPC server\n");
        return false;
    }

    LogPrint(BCLog::HTTP, "Initialized HTTP server\n");
    int workQueueDepth = std::max((long)gArgs.GetArg("-rpcworkqueue", DEFAULT_HTTP_WORKQUEUE), 1L);
    LogPrintf("HTTP: creating work queue of depth %d\n", workQueueDepth);

    workQueue = new WorkQueue<HTTPClosure>(workQueueDepth);
    // transfer ownership to eventBase/HTTP via .release()
    eventBase = base_ctr.release();
    eventHTTP = http_ctr.release();
    return true;
}

//http_request_cb处理http请求并生成HTTPWorkItem,然后push到WorkQueue
static void http_request_cb(struct evhttp_request* req, void* arg)
{
    // Find registered handler for prefix
    std::string strURI = hreq->GetURI();
    std::string path;
    std::vector<HTTPPathHandler>::const_iterator i = pathHandlers.begin();
    std::vector<HTTPPathHandler>::const_iterator iend = pathHandlers.end();
    for (; i != iend; ++i) {
        bool match = false;
        if (i->exactMatch)
            match = (strURI == i->prefix);
        else
            match = (strURI.substr(0, i->prefix.size()) == i->prefix);
        if (match) {
            path = strURI.substr(i->prefix.size());
            break;
        }
    }

    // Dispatch to worker thread
    if (i != iend) {
        std::unique_ptr<HTTPWorkItem> item(new HTTPWorkItem(std::move(hreq), path, i->handler));
        assert(workQueue);
        if (workQueue->Enqueue(item.get()))
            item.release(); /* if true, queue took ownership */
        }
    } else {
        hreq->WriteReply(HTTP_NOTFOUND);
    }
}


class WorkQueue
{
private:
    std::deque<std::unique_ptr<WorkItem>> queue;
public:
    /** Enqueue a work item */
    //evhttp接收到Http请求处理完后会调用该函数将数据入队列
    bool Enqueue(WorkItem* item)
    {
        std::unique_lock<std::mutex> lock(cs);
        if (queue.size() >= maxDepth) {
            return false;
        }
        queue.emplace_back(std::unique_ptr<WorkItem>(item));
        cond.notify_one();
        return true;
    }
    /** Thread function */
    //这个在StartHttpServer时调用
    void Run()
    {
        while (true) {
            std::unique_ptr<WorkItem> i;
            {
                std::unique_lock<std::mutex> lock(cs);
                while (running && queue.empty())
                    cond.wait(lock);
                if (!running)
                    break;
                i = std::move(queue.front());
                queue.pop_front();
            }
            (*i)(); //这个函数就是下面的HTTPWorkItem::operator()()
        }
    }
};

class HTTPWorkItem final : public HTTPClosure
{
public:
    HTTPWorkItem(std::unique_ptr<HTTPRequest> _req, const std::string &_path, const HTTPRequestHandler& _func):
        req(std::move(_req)), path(_path), func(_func)
    {
    }
    void operator()() override
    {
        //这个func是HTTPRequestHandler
        func(req.get(), path);
    }

    std::unique_ptr<HTTPRequest> req;

private:
    std::string path;
    HTTPRequestHandler func;
};

//上面的HTTPRequestHandler是通过RegisterHTTPHandler注册的
void RegisterHTTPHandler(const std::string &prefix, bool exactMatch, const HTTPRequestHandler &handler)
{
    LogPrint(BCLog::HTTP, "Registering HTTP handler for %s (exactmatch %d)\n", prefix, exactMatch);
    pathHandlers.push_back(HTTPPathHandler(prefix, exactMatch, handler));
}


bool StartHTTPRPC()
{
    LogPrint(BCLog::RPC, "Starting HTTP RPC server\n");
    if (!InitRPCAuthentication())
        return false;

    RegisterHTTPHandler("/", true, HTTPReq_JSONRPC);
#ifdef ENABLE_WALLET
    // ifdef can be removed once we switch to better endpoint support and API versioning
    RegisterHTTPHandler("/wallet/", false, HTTPReq_JSONRPC);
#endif
}


bool StartREST()
{
    for (unsigned int i = 0; i < ARRAYLEN(uri_prefixes); i++)
        RegisterHTTPHandler(uri_prefixes[i].prefix, false, uri_prefixes[i].handler);
    return true;
}

bool StartHTTPServer()
{
    //为evhttp服务创建执行线程
    threadHTTP = std::thread(std::move(task), eventBase, eventHTTP);
    for (int i = 0; i < rpcThreads; i++) {
       //为workQueue分配执行线程,线程的入口函数是HTTPWorkQueueRun
        g_thread_http_workers.emplace_back(HTTPWorkQueueRun, workQueue);
    }
    return true;

    return true;
}

static void HTTPWorkQueueRun(WorkQueue<HTTPClosure>* queue)
{
    RenameThread("bitcoin-httpworker");
    queue->Run();
}

     总结,节点收到http请求时,evhttp服务线程会解释http请求的path,并将数据push到WorkQueue队列, 而RPC,REST等网络服务注册HTTPHandler,这些handler就会被WorkQueue线程调用继续处理http请求。这些服务的具体处理逻辑我后面会单独写一篇博文来分析,这里就不深入了。

PeerLogicValidation初始化


    PeerLogicValidation这个类在前面分析message的时候应该经常看到,这个是一个新区块发现或者生成时的事件处理类。为了实现解耦和可扩展性,作者通过boost的signal的动态绑定特性实现解耦和高扩展性。具体事件定义及绑定代码如下:

void AppInitMain()
{
    CConnman& connman = *g_connman;

    peerLogic.reset(new PeerLogicValidation(&connman, scheduler));
    RegisterValidationInterface(peerLogic.get());
}

//RegisterValidationInterface里涉及的signal其实就是区块层事件的接口抽象
void RegisterValidationInterface(CValidationInterface* pwalletIn) {
    g_signals.m_internals->UpdatedBlockTip.connect(boost::bind(&CValidationInterface::UpdatedBlockTip, pwalletIn, _1, _2, _3));
    g_signals.m_internals->TransactionAddedToMempool.connect(boost::bind(&CValidationInterface::TransactionAddedToMempool, pwalletIn, _1));
    g_signals.m_internals->BlockConnected.connect(boost::bind(&CValidationInterface::BlockConnected, pwalletIn, _1, _2, _3));
    g_signals.m_internals->BlockDisconnected.connect(boost::bind(&CValidationInterface::BlockDisconnected, pwalletIn, _1));
    g_signals.m_internals->TransactionRemovedFromMempool.connect(boost::bind(&CValidationInterface::TransactionRemovedFromMempool, pwalletIn, _1));
    g_signals.m_internals->SetBestChain.connect(boost::bind(&CValidationInterface::SetBestChain, pwalletIn, _1));
    g_signals.m_internals->Inventory.connect(boost::bind(&CValidationInterface::Inventory, pwalletIn, _1));
    g_signals.m_internals->Broadcast.connect(boost::bind(&CValidationInterface::ResendWalletTransactions, pwalletIn, _1, _2));
    g_signals.m_internals->BlockChecked.connect(boost::bind(&CValidationInterface::BlockChecked, pwalletIn, _1, _2));
    g_signals.m_internals->NewPoWValidBlock.connect(boost::bind(&CValidationInterface::NewPoWValidBlock, pwalletIn, _1, _2));
}

bool CChainState::AcceptBlock(const std::shared_ptr<const CBlock>& pblock, CValidationState& state, const CChainParams& chainparams, CBlockIndex** ppindex, bool fRequested, const CDiskBlockPos* dbp, bool* fNewBlock)
    if (!IsInitialBlockDownload() && chainActive.Tip() == pindex->pprev)
        GetMainSignals().NewPoWValidBlock(pindex, pblock);
}


从本地文件及数据库中恢复区块信息


区块信息包括区块链表,钱包信息(比如utxos),具体涉及到如下几个重要变量的构建:

  • BlockMap& mapBlockIndex = g_chainstate.mapBlockIndex;
  • std::unique_ptr<CCoinsViewDB> pcoinsdbview;
  • std::unique_ptr<CCoinsViewCache> pcoinsTip;
  • std::unique_ptr<CBlockTreeDB> pblocktree;
由于这个过程涉及的内容过多,我打算后面单独写一篇博文来解读,这里也不再详谈了,大家可先看看源码

    bool fLoaded = false;
    while (!fLoaded && !fRequestShutdown) {
        bool fReset = fReindex;
        std::string strLoadError;

        uiInterface.InitMessage(_("Loading block index..."));

        LOCK(cs_main);

        nStart = GetTimeMillis();
        do {
            try {
                UnloadBlockIndex();
                //这些是钱包相关功能的数据
                pcoinsTip.reset();
                pcoinsdbview.reset();
                pcoinscatcher.reset();
                // new CBlockTreeDB tries to delete the existing file, which
                // fails if it's still open from the previous loop. Close it first:
                pblocktree.reset();
                pblocktree.reset(new CBlockTreeDB(nBlockTreeDBCache, false, fReset));

                // LoadBlockIndex will load fTxIndex from the db, or set it if
                // we're reindexing. It will also load fHavePruned if we've
                // ever removed a block file from disk.
                // Note that it also sets fReindex based on the disk flag!
                // From here on out fReindex and fReset mean something different!
              //加载区块链信息,会构建mapBlockIndex变量
                if (!LoadBlockIndex(chainparams)) {
                    strLoadError = _("Error loading block database");
                    break;
                }

                // At this point we're either in reindex or we've loaded a useful
                // block tree into mapBlockIndex!

                pcoinsdbview.reset(new CCoinsViewDB(nCoinDBCache, false, fReset || fReindexChainState));
                pcoinscatcher.reset(new CCoinsViewErrorCatcher(pcoinsdbview.get()));

                // If necessary, upgrade from older database format.
                // This is a no-op if we cleared the coinsviewdb with -reindex or -reindex-chainstate
                if (!pcoinsdbview->Upgrade()) {
                    strLoadError = _("Error upgrading chainstate database");
                    break;
                }

                // ReplayBlocks is a no-op if we cleared the coinsviewdb with -reindex or -reindex-chainstate
                if (!ReplayBlocks(chainparams, pcoinsdbview.get())) {
                    strLoadError = _("Unable to replay blocks. You will need to rebuild the database using -reindex-chainstate.");
                    break;
                }

                // The on-disk coinsdb is now in a good state, create the cache
                pcoinsTip.reset(new CCoinsViewCache(pcoinscatcher.get()));

                bool is_coinsview_empty = fReset || fReindexChainState || pcoinsTip->GetBestBlock().IsNull();
                if (!is_coinsview_empty) {
                    // LoadChainTip sets chainActive based on pcoinsTip's best block
                    if (!LoadChainTip(chainparams)) {
                        strLoadError = _("Error initializing block database");
                        break;
                    }
                    assert(chainActive.Tip() != nullptr);
                }

                if (!fReset) {
                    // Note that RewindBlockIndex MUST run even if we're about to -reindex-chainstate.
                    // It both disconnects blocks based on chainActive, and drops block data in
                    // mapBlockIndex based on lack of available witness data.
                    uiInterface.InitMessage(_("Rewinding blocks..."));
                    if (!RewindBlockIndex(chainparams)) {
                        strLoadError = _("Unable to rewind the database to a pre-fork state. You will need to redownload the blockchain");
                        break;
                    }
                }
            } catch (const std::exception& e) {
                LogPrintf("%s\n", e.what());
                strLoadError = _("Error opening block database");
                break;
            }

            fLoaded = true;
        } while(false);
    }



P2P相关部分初始化


P2P负责区块链的去中心化,可想而知P2P是核心模块,它的初始化如下:

Void AppInitMain()
{
    if (!connman.Start(scheduler, connOptions)) {
        return false;
    }
}


bool CConnman::Start(CScheduler& scheduler, const Options& connOptions)
{
    Init(connOptions);
    //创建listen网络
    if (fListen && !InitBinds(connOptions.vBinds, connOptions.vWhiteBinds)) {
    }
    for (const auto& strDest : connOptions.vSeedNodes) {
        AddOneShot(strDest);
    }

    if (clientInterface) {
        clientInterface->InitMessage(_("Loading P2P addresses..."));
    }
    // Load addresses from peers.dat
    int64_t nStart = GetTimeMillis();
    {
        CAddrDB adb;
        //从peer 节点地址数据库中读取地址信息
        if (adb.Read(addrman))
            LogPrintf("Loaded %i addresses from peers.dat  %dms\n", addrman.size(), GetTimeMillis() - nStart);
        else {
            addrman.Clear(); // Addrman can be in an inconsistent state after failure, reset it
            LogPrintf("Invalid or missing peers.dat; recreating\n");
            DumpAddresses();
        }
    }
    …..

    uiInterface.InitMessage(_("Starting network threads..."));

    fAddressesInitialized = true;

    //
    // Start threads
    //
    assert(m_msgproc);
    InterruptSocks5(false);
    interruptNet.reset();
    flagInterruptMsgProc = false;

    {
        std::unique_lock<std::mutex> lock(mutexMsgProc);
        fMsgProcWake = false;
    }

    // Send and receive from sockets, accept connections
    threadSocketHandler = std::thread(&TraceThread<std::function<void()> >, "net", std::function<void()>(std::bind(&CConnman::ThreadSocketHandler, this)));

    if (!gArgs.GetBoolArg("-dnsseed", true))
        LogPrintf("DNS seeding disabled\n");
    else
        threadDNSAddressSeed = std::thread(&TraceThread<std::function<void()> >, "dnsseed", std::function<void()>(std::bind(&CConnman::ThreadDNSAddressSeed, this)));

    // Initiate outbound connections from -addnode
    threadOpenAddedConnections = std::thread(&TraceThread<std::function<void()> >, "addcon", std::function<void()>(std::bind(&CConnman::ThreadOpenAddedConnections, this)));

    if (connOptions.m_use_addrman_outgoing && !connOptions.m_specified_outgoing.empty()) {
        if (clientInterface) {
            clientInterface->ThreadSafeMessageBox(
                _("Cannot provide specific connections and have addrman find outgoing connections at the same."),
                "", CClientUIInterface::MSG_ERROR);
        }
        return false;
    }
    if (connOptions.m_use_addrman_outgoing || !connOptions.m_specified_outgoing.empty())
        threadOpenConnections = std::thread(&TraceThread<std::function<void()> >, "opencon", std::function<void()>(std::bind(&CConnman::ThreadOpenConnections, this, connOptions.m_specified_outgoing)));

    // Process messages
    threadMessageHandler = std::thread(&TraceThread<std::function<void()> >, "msghand", std::function<void()>(std::bind(&CConnman::ThreadMessageHandler, this)));

    // Dump network addresses
    scheduler.scheduleEvery(std::bind(&CConnman::DumpData, this), DUMP_ADDRESSES_INTERVAL * 1000);

    return true;
}

从上面的源码可知,其核心就是定义了几个handler, 并为每个handler创建了一个线程执行:
  • threadSocketHandler
    该线程会维护所有已经建立连接的节点信息,并等待所有网络事件(新网络连接,新发送网络数据,新接收网络数据),并将相关事件数据转给合适的处理逻辑,比如区块消息数据就转给threadMessageHandler线程处理
  • threadDNSAddressSeed
    该线程解释参数"-dnsseed"中指定的种子节点peer域名(一般是社区维护的节点,可信节点),然后主动连接节点,这个解决了鸡蛋问题,本地节点要加入到p2p网络,有两种途径,一种是本地节点主动连接网络中的节点,另一种是网络中的其他节点主动联系本地节点。本地节点是第一次加入网络,其他节点肯定不知道本地节点,所以只能靠本地节点主动联系其他节点了,因而就出现了一些种子节点,这些种子节点会公开自己的域,任何新节点都可以使用域名主动连接这些已经存在的种子节点。
  • threadOpenAddedConnections
    用户通过钱包或者RCP命令主动添加外部节点信息,这时threadOpenAddedConnections就会解释这些信息然后连接节点
  • threadOpenConnections
    该线程解释参数“-connect”中指定的外部节点地址并主动连接这些节点,比如我们自己部署了多台机器,我们就可以将彼此的地址添加到参数中;这个线程和threadOpenAddedConnections类似,只是该线程处理参数中的地址,而threadOpenAddedConnections处理运行时用户主动添加的地址
  • threadMessageHandler
     这个线程负责处理区块消息,前面源码情景分析的几篇博文已经多次提到过了

    threadDNSAddressSeed,threadOpenAddedConnections,threadOpenConnections都是解释地址并主动连接,相对比较简单,就不分析了,threadMessageHandler在前几篇博文也分析了很多,这里也没必要分析了,所以就剩下threadSocketHandler这个线程了,接下来我们就细细分析这个线程

threadSocketHandler

void CConnman::ThreadSocketHandler()
{
    unsigned int nPrevNodeCount = 0;
    while (!interruptNet)
    {
        //
        // Disconnect nodes
        //
        {
            LOCK(cs_vNodes);
            // Disconnect unused nodes
            // DNSSeed等其他网络线程解释地址主动连接节点成功后都会添加一个CNode到vNodes里
            // 已经建立连接的outbound节点都会保存在vNodes
            std::vector<CNode*> vNodesCopy = vNodes;
        }
        {
            // Delete disconnected nodes
            // 删除已经失去连接的节点
            std::list<CNode*> vNodesDisconnectedCopy = vNodesDisconnected;
            for (CNode* pnode : vNodesDisconnectedCopy)
            {
                // wait until threads are done using it
                if (pnode->GetRefCount() <= 0) {
                    bool fDelete = false;
                    {
                        TRY_LOCK(pnode->cs_inventory, lockInv);
                        if (lockInv) {
                            TRY_LOCK(pnode->cs_vSend, lockSend);
                            if (lockSend) {
                                fDelete = true;
                            }
                        }
                    }
                    if (fDelete) {
                        vNodesDisconnected.remove(pnode);
                        DeleteNode(pnode);
                    }
                }
            }
        }
        size_t vNodesSize;
        {
            LOCK(cs_vNodes);
            vNodesSize = vNodes.size();
        }

        //
        // Find which sockets have data to receive
        //
        struct timeval timeout;
        timeout.tv_sec  = 0;
        timeout.tv_usec = 50000; // frequency to poll pnode->vSend

        fd_set fdsetRecv;
        fd_set fdsetSend;
        fd_set fdsetError;
        FD_ZERO(&fdsetRecv);
        FD_ZERO(&fdsetSend);
        FD_ZERO(&fdsetError);
        SOCKET hSocketMax = 0;
        bool have_fds = false;

        for (const ListenSocket& hListenSocket : vhListenSocket) {
            FD_SET(hListenSocket.socket, &fdsetRecv);
            hSocketMax = std::max(hSocketMax, hListenSocket.socket);
            have_fds = true;
        }

        {
            LOCK(cs_vNodes);
            //将所有socket连接添加到FD_SET,为接下来的select准备数据
            for (CNode* pnode : vNodes)
            {
                // Implement the following logic:
                // * If there is data to send, select() for sending data. As this only
                //   happens when optimistic write failed, we choose to first drain the
                //   write buffer in this case before receiving more. This avoids
                //   needlessly queueing received data, if the remote peer is not themselves
                //   receiving data. This means properly utilizing TCP flow control signalling.
                // * Otherwise, if there is space left in the receive buffer, select() for
                //   receiving data.
                // * Hand off all complete messages to the processor, to be handled without
                //   blocking here.

                bool select_recv = !pnode->fPauseRecv;
                bool select_send;
                {
                    LOCK(pnode->cs_vSend);
                    select_send = !pnode->vSendMsg.empty();
                }

                LOCK(pnode->cs_hSocket);
                if (pnode->hSocket == INVALID_SOCKET)
                    continue;

                FD_SET(pnode->hSocket, &fdsetError);
                hSocketMax = std::max(hSocketMax, pnode->hSocket);
                have_fds = true;

                if (select_send) {
                    FD_SET(pnode->hSocket, &fdsetSend);
                    continue;
                }
                if (select_recv) {
                    FD_SET(pnode->hSocket, &fdsetRecv);
                }
            }
        }

        // select函数是阻塞函数,直到fdsetRecv,fdsetSend中文件句柄发生事件,比如有新数据,断开连接
        int nSelect = select(have_fds ? hSocketMax + 1 : 0,
                             &fdsetRecv, &fdsetSend, &fdsetError, &timeout);

        //
        // Accept new connections
        //
        //hListenSocket出现在fdsetRecv,说明有新连接
        for (const ListenSocket& hListenSocket : vhListenSocket)
        {
            if (hListenSocket.socket != INVALID_SOCKET && FD_ISSET(hListenSocket.socket, &fdsetRecv))
            {
                //有新的节点连接到本地
                AcceptConnection(hListenSocket);
            }
        }

        // select函数返回了,说明有事件发生,但是并不知道是哪个网络连接(节点)发生了事件,因此遍历所有连接(节点)
        for (CNode* pnode : vNodesCopy)
        {
            if (interruptNet)
                return;

            //
            // Receive
            //
            bool recvSet = false;
            bool sendSet = false;
            bool errorSet = false;
            {
                LOCK(pnode->cs_hSocket);
                if (pnode->hSocket == INVALID_SOCKET)
                    continue;
                recvSet = FD_ISSET(pnode->hSocket, &fdsetRecv);
                sendSet = FD_ISSET(pnode->hSocket, &fdsetSend);
                errorSet = FD_ISSET(pnode->hSocket, &fdsetError);
            }
            //该节点的socket出现在recvSet,说明是该节点发送数据到本地节点了
            if (recvSet || errorSet)
            {
                // typical socket buffer is 8K-64K
                char pchBuf[0x10000];
                int nBytes = 0;
                {
                    LOCK(pnode->cs_hSocket);
                    if (pnode->hSocket == INVALID_SOCKET)
                        continue;
                    //接收数据
                    nBytes = recv(pnode->hSocket, pchBuf, sizeof(pchBuf), MSG_DONTWAIT);
                }
                if (nBytes > 0)
                {
                    bool notify = false;
                    if (!pnode->ReceiveMsgBytes(pchBuf, nBytes, notify))
                        pnode->CloseSocketDisconnect();
                    RecordBytesRecv(nBytes);
                    if (notify) {
                        size_t nSizeAdded = 0;
                        auto it(pnode->vRecvMsg.begin());
                        for (; it != pnode->vRecvMsg.end(); ++it) {
                            if (!it->complete())
                                break;
                            nSizeAdded += it->vRecv.size() + CMessageHeader::HEADER_SIZE;
                        }
                        {
                            LOCK(pnode->cs_vProcessMsg);
                            pnode->vProcessMsg.splice(pnode->vProcessMsg.end(), pnode->vRecvMsg, pnode->vRecvMsg.begin(), it);
                            pnode->nProcessQueueSize += nSizeAdded;
                            pnode->fPauseRecv = pnode->nProcessQueueSize > nReceiveFloodSize;
                        }
                        //唤醒threadMessageHandler线程处理消息
                        WakeMessageHandler();
                    }
                }
            }

            //
            // Send
            //
            //该节点的socket出现在sendSet,说明有数据从本地节点发送到该节点
            if (sendSet)
            {
                LOCK(pnode->cs_vSend);
                size_t nBytes = SocketSendData(pnode);
                if (nBytes) {
                    RecordBytesSent(nBytes);
                }
            }

            //
            // Inactivity checking
            //
            // 连接状态变化也会唤醒select函数并返回,所以也要检测连接状态
            int64_t nTime = GetSystemTimeInSeconds();
            if (nTime - pnode->nTimeConnected > 60)
            {
                if (pnode->nLastRecv == 0 || pnode->nLastSend == 0)
                {
                    LogPrint(BCLog::NET, "socket no message in first 60 seconds, %d %d from %d\n", pnode->nLastRecv != 0, pnode->nLastSend != 0, pnode->GetId());
                    pnode->fDisconnect = true;
                }
                else if (nTime - pnode->nLastSend > TIMEOUT_INTERVAL)
                {
                    LogPrintf("socket sending timeout: %is\n", nTime - pnode->nLastSend);
                    pnode->fDisconnect = true;
                }
                else if (nTime - pnode->nLastRecv > (pnode->nVersion > BIP0031_VERSION ? TIMEOUT_INTERVAL : 90*60))
                {
                    LogPrintf("socket receive timeout: %is\n", nTime - pnode->nLastRecv);
                    pnode->fDisconnect = true;
                }
                else if (pnode->nPingNonceSent && pnode->nPingUsecStart + TIMEOUT_INTERVAL * 1000000 < GetTimeMicros())
                {
                    LogPrintf("ping timeout: %fs\n", 0.000001 * (GetTimeMicros() - pnode->nPingUsecStart));
                    pnode->fDisconnect = true;
                }
                else if (!pnode->fSuccessfullyConnected)
                {
                    LogPrint(BCLog::NET, "version handshake timeout from %d\n", pnode->GetId());
                    pnode->fDisconnect = true;
                }
            }
        }
    }
}

关联细节:

CNode新连接创建

void CConnman::AcceptConnection(const ListenSocket& hListenSocket) {
    struct sockaddr_storage sockaddr;
    socklen_t len = sizeof(sockaddr);
    SOCKET hSocket = accept(hListenSocket.socket, (struct sockaddr*)&sockaddr, &len);
    CAddress addr;
    int nInbound = 0;
    int nMaxInbound = nMaxConnections - (nMaxOutbound + nMaxFeeler);

    if (hSocket != INVALID_SOCKET) {
        if (!addr.SetSockAddr((const struct sockaddr*)&sockaddr)) {
            LogPrintf("Warning: Unknown socket family\n");
        }
    }

    bool whitelisted = hListenSocket.whitelisted || IsWhitelistedRange(addr);
    {
        LOCK(cs_vNodes);
        for (const CNode* pnode : vNodes) {
            if (pnode->fInbound) nInbound++;
        }
    }

    CNode* pnode = new CNode(id, nLocalServices, GetBestHeight(), hSocket, addr, CalculateKeyedNetGroup(addr), nonce, addr_bind, "", true);
    pnode->AddRef();
    pnode->fWhitelisted = whitelisted;
    m_msgproc->InitializeNode(pnode);

    LogPrint(BCLog::NET, "connection from %s accepted\n", addr.ToString());

    {
        LOCK(cs_vNodes);
        vNodes.push_back(pnode);
    }
}

 网络Listen, bind初始化

bool CConnman::InitBinds(const std::vector<CService>& binds, const std::vector<CService>& whiteBinds) {
    bool fBound = false;
    for (const auto& addrBind : binds) {
        fBound |= Bind(addrBind, (BF_EXPLICIT | BF_REPORT_ERROR));
    }
    for (const auto& addrBind : whiteBinds) {
}

bool CConnman::Bind(const CService &addr, unsigned int flags) {
    if (!(flags & BF_EXPLICIT) && IsLimited(addr))
        return false;
    std::string strError;
    if (!BindListenPort(addr, strError, (flags & BF_WHITELIST) != 0)) {
        return false;
    }
    return true;
}

bool CConnman::BindListenPort(const CService &addrBind, std::string& strError, bool fWhitelisted)
{
    vhListenSocket.push_back(ListenSocket(hListenSocket, fWhitelisted));

    if (addrBind.IsRoutable() && fDiscover && !fWhitelisted)
        AddLocal(addrBind, LOCAL_BIND);

    return true;
}


/********************************
* 本文来自CSDN博主"爱踢门"
* 转载请标明出处:http://blog.csdn.net/itleaks
******************************************/


阅读更多

扫码向博主提问

去开通我的Chat快问

itleaks

非学,无以致疑;非问,无以广识
  • 擅长领域:
  • Android系统
  • Linux内核
  • 区块链
  • AI人工智能
  • OpenGLES
个人分类: 区块链
所属专栏: 比特币源码分析
上一篇Await,ASync原理最暴力解读
下一篇比特币源码情景分析之源码编译及调试环境搭建
想对作者说点什么? 我来说一句

没有更多推荐了,返回首页

关闭
关闭
