前言
JPA是Java Persistence API的简称，中文名Java持久层API。JPA采用ORM对象关系映射，以Java面向对象的编程思想，在javax.persistence包下提供对实体对象的CRUD操作，将开发者从繁琐的JDBC和SQL代码中解脱出来。
在数据库的操作中，为了处理脏读、不可重复读、幻读等问题，需要通过事务来处理。本篇从源码的角度和大家一下分享一下Spring Data JPA中的Repository的事务注册原理。
Repository的事务注册
在Spring框架中，数据操作的事务是通过添加@Transaction注解来实现的。详见：
在Spring Data JPA中，实现事务也是只需要在对应的方法中添加@Transaction注解即可。下面从源码的角度来分析一下事务实现的原理。
在上面的博文中分享了Repository bean的创建。Respository的bean是一个通过ProxyFactory创建的动态代理对象。源码如下：
public abstract class RepositoryFactorySupport implements BeanClassLoaderAware, BeanFactoryAware {
/**
* 返回给定接口的存储库实例，该实例由为自定义逻辑提供实现逻辑的实例支持。
*/
@SuppressWarnings({ "unchecked" })
public <T> T getRepository(Class<T> repositoryInterface, RepositoryFragments fragments) {
if (logger.isDebugEnabled()) {
logger.debug(LogMessage.format("Initializing repository instance for %s…", repositoryInterface.getName()));
}
Assert.notNull(repositoryInterface, "Repository interface must not be null");
Assert.notNull(fragments, "RepositoryFragments must not be null");
ApplicationStartup applicationStartup = getStartup();
StartupStep repositoryInit = onEvent(applicationStartup, "spring.data.repository.init", repositoryInterface);
repositoryBaseClass.ifPresent(it -> repositoryInit.tag("baseClass", it.getName()));
StartupStep repositoryMetadataStep = onEvent(applicationStartup, "spring.data.repository.metadata",
repositoryInterface);
// 获取repository元数据，包括Repository<T, ID>中的T类型、ID类型、接口类型（如GoodsRepository）等
RepositoryMetadata metadata = getRepositoryMetadata(repositoryInterface);
repositoryMetadataStep.end();
StartupStep repositoryCompositionStep = onEvent(applicationStartup, "spring.data.repository.composition",
repositoryInterface);
repositoryCompositionStep.tag("fragment.count", String.valueOf(fragments.size()));
// 获取
RepositoryComposition composition = getRepositoryComposition(metadata, fragments);
// 获取Repository信息，getRepositoryInformation()返回一个RepositoryInformation对象。
// 如子类JpaRepositoryFactory，指定baseClass为SimpleJpaRepository.class
RepositoryInformation information = getRepositoryInformation(metadata, composition);
repositoryCompositionStep.tag("fragments", () -> {
StringBuilder fragmentsTag = new StringBuilder();
for (RepositoryFragment<?> fragment : composition.getFragments()) {
if (fragmentsTag.length() > 0) {
fragmentsTag.append(";");
}
fragmentsTag.append(fragment.getSignatureContributor().getName());
fragmentsTag.append(fragment.getImplementation().map(it -> ":" + it.getClass().getName()).orElse(""));
}
return fragmentsTag.toString();
});
repositoryCompositionStep.end();
StartupStep repositoryTargetStep = onEvent(applicationStartup, "spring.data.repository.target",
repositoryInterface);
// 获取目标Repository对象，SimpleJpaRepository对象
Object target = getTargetRepository(information);
repositoryTargetStep.tag("target", target.getClass().getName());
repositoryTargetStep.end();
RepositoryComposition compositionToUse = composition.append(RepositoryFragment.implemented(target));
validate(information, compositionToUse);
// Create proxy
// 创建代理对象
StartupStep repositoryProxyStep = onEvent(applicationStartup, "spring.data.repository.proxy", repositoryInterface);
ProxyFactory result = new ProxyFactory();
result.setTarget(target);
// 代理对象实现的接口
result.setInterfaces(repositoryInterface, Repository.class, TransactionalProxy.class);
if (MethodInvocationValidator.supports(repositoryInterface)) {
result.addAdvice(new MethodInvocationValidator());
}
// 添加界面
result.addAdvisor(ExposeInvocationInterceptor.ADVISOR);
if (!postProcessors.isEmpty()) {
StartupStep repositoryPostprocessorsStep = onEvent(applicationStartup, "spring.data.repository.postprocessors",
repositoryInterface);
// 执行后置处理
// CrudMethodMetadataPostProcessor
// TransactionalRepositoryProxyPostProcessor
// JpaRepositoryFactory构造方法中加入的内部处理器，
// 添加SurroundingTransactionDetectorMethodInterceptor，记录是否处理状态
// PersistenceExceptionTranslationRepositoryProxyPostProcessor
// EventPublishingRepositoryProxyPostProcessor
postProcessors.forEach(processor -> {
StartupStep singlePostProcessor = onEvent(applicationStartup, "spring.data.repository.postprocessor",
repositoryInterface);
singlePostProcessor.tag("type", processor.getClass().getName());
processor.postProcess(result, information);
singlePostProcessor.end();
});
repositoryPostprocessorsStep.end();
}
if (DefaultMethodInvokingMethodInterceptor.hasDefaultMethods(repositoryInterface)) {
// 添加DefaultMethodInvokingMethodInterceptor拦截器
result.addAdvice(new DefaultMethodInvokingMethodInterceptor());
}
Optional<QueryLookupStrategy> queryLookupStrategy = getQueryLookupStrategy(queryLookupStrategyKey,
evaluationContextProvider);
// 添加QueryExecutorMethodInterceptor拦截器
result.addAdvice(new QueryExecutorMethodInterceptor(information, getProjectionFactory(), queryLookupStrategy,
namedQueries, queryPostProcessors, methodInvocationListeners));
// 添加ImplementationMethodExecutionInterceptor拦截器
result.addAdvice(
new ImplementationMethodExecutionInterceptor(information, compositionToUse, methodInvocationListeners));
T repository = (T) result.getProxy(classLoader);
repositoryProxyStep.end();
repositoryInit.end();
if (logger.isDebugEnabled()) {
logger
.debug(LogMessage.format("Finished creation of repository instance for %s.",
repositoryInterface.getName()));
}
return repository;
}
}在生成代理对象之前，如果有后置处理器postProcessors，则执行后置处理器的postProcess()方法。在后置处理器中，有一个TransactionalRepositoryProxyPostProcessor。

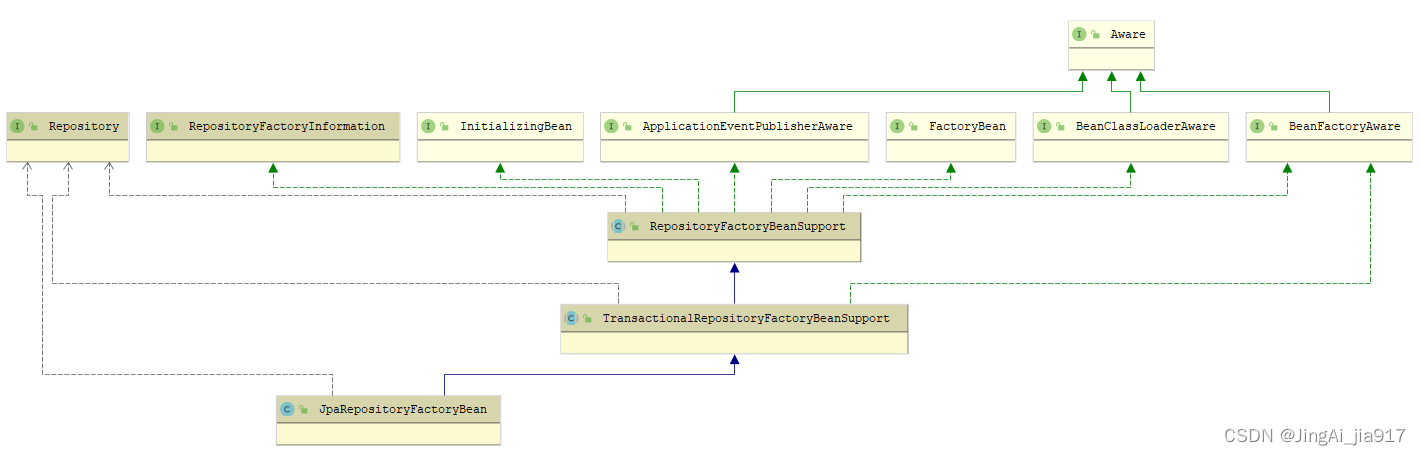

JpaRepositoryFactoryBean
在上面的博文中分享了JpaRepositoriesAutoConfiguration的源码，在Spring Data JPA自动注入时，会自动注入JpaRepositoryConfigExtension，在JpaRepositoryConfigExtension中getRepositoryFactoryBeanClassName()方法，返回JpaRepositoryFactoryBean.class.getName()，该类最终会被装载到Spring IOC容器中。
JpaRepositoryFactoryBean初始化时，执行父父类RepositoryFactoryBeanSupport的afterPropertiesSet()方法，在该方法中，主要执行如下：
3.1）调用抽象方法createRepositoryFactory()创建Repository工厂对象，在TransactionalRepositoryFactoryBeanSupport中实现了该方法；
在createRepositoryFactory()方法中，创建了Repository工厂之后，添加了两个后置处理器，其中一个为TransactionalRepositoryProxyPostProcessor。
3.2）为3.1）中的Repository工厂对象设置查询查找策略、NamedQueries、后置处理器等；
3.3）调用3.1）中的Repository工厂对象，调用getRepository()创建代理的Repository对象；
TransactionalRepositoryFactoryBeanSupport
TransactionalRepositoryFactoryBeanSupport的源码如下：
package org.springframework.data.repository.core.support;
public abstract class TransactionalRepositoryFactoryBeanSupport<T extends Repository<S, ID>, S, ID>
extends RepositoryFactoryBeanSupport<T, S, ID> implements BeanFactoryAware {
private String transactionManagerName = TxUtils.DEFAULT_TRANSACTION_MANAGER;
private @Nullable RepositoryProxyPostProcessor txPostProcessor;
private @Nullable RepositoryProxyPostProcessor exceptionPostProcessor;
private boolean enableDefaultTransactions = true;
// 忽略其他
@Override
protected final RepositoryFactorySupport createRepositoryFactory() {
// 调用抽象方法，创建一个RepositoryFactorySupport对象，JpaRepositoryFactory对象
RepositoryFactorySupport factory = doCreateRepositoryFactory();
// 添加两个后置处理器，分别为PersistenceExceptionTranslationRepositoryProxyPostProcessor
// 和TransactionalRepositoryProxyPostProcessor。在setBeanFactory()方法中初始化
RepositoryProxyPostProcessor exceptionPostProcessor = this.exceptionPostProcessor;
if (exceptionPostProcessor != null) {
factory.addRepositoryProxyPostProcessor(exceptionPostProcessor);
}
RepositoryProxyPostProcessor txPostProcessor = this.txPostProcessor;
if (txPostProcessor != null) {
factory.addRepositoryProxyPostProcessor(txPostProcessor);
}
return factory;
}
protected abstract RepositoryFactorySupport doCreateRepositoryFactory();
public void setBeanFactory(BeanFactory beanFactory) {
Assert.isInstanceOf(ListableBeanFactory.class, beanFactory);
super.setBeanFactory(beanFactory);
// 创建后置处理器
ListableBeanFactory listableBeanFactory = (ListableBeanFactory) beanFactory;
this.txPostProcessor = new TransactionalRepositoryProxyPostProcessor(listableBeanFactory, transactionManagerName,
enableDefaultTransactions);
this.exceptionPostProcessor = new PersistenceExceptionTranslationRepositoryProxyPostProcessor(listableBeanFactory);
}
}1）TransactionalRepositoryFactoryBeanSupport实现了BeanFactoryAware，在初始化前，会执行setBeanFactory()方法，在该方法中，创建了两个后置处理器，分别为PersistenceExceptionTranslationRepositoryProxyPostProcessor和TransactionalRepositoryProxyPostProcessor；
2）在createRepositoryFactory()方法中，执行子类JpaRepositoryFactoryBean的doCreateRepositoryFactory()方法，创建JpaRepositoryFactory对象。并添加了1）中创建的两个后置处理器，其中一个为TransactionalRepositoryProxyPostProcessor；
TransactionalRepositoryProxyPostProcessor
在TransactionalRepositoryProxyPostProcessor处理器中，会向代理工厂添加TransactionInterceptor拦截器。
TransactionalRepositoryProxyPostProcessor的代码如下：
package org.springframework.data.repository.core.support;
class TransactionalRepositoryProxyPostProcessor implements RepositoryProxyPostProcessor {
private final BeanFactory beanFactory;
private final String transactionManagerName;
private final boolean enableDefaultTransactions;
public TransactionalRepositoryProxyPostProcessor(ListableBeanFactory beanFactory, String transactionManagerName,
boolean enableDefaultTransaction) {
Assert.notNull(beanFactory, "BeanFactory must not be null");
Assert.notNull(transactionManagerName, "TransactionManagerName must not be null");
this.beanFactory = beanFactory;
this.transactionManagerName = transactionManagerName;
this.enableDefaultTransactions = enableDefaultTransaction;
}
public void postProcess(ProxyFactory factory, RepositoryInformation repositoryInformation) {
// 定义一个TransactionInterceptor对象
TransactionInterceptor transactionInterceptor = new TransactionInterceptor();
// 设置RepositoryAnnotationTransactionAttributeSource
transactionInterceptor.setTransactionAttributeSource(
new RepositoryAnnotationTransactionAttributeSource(repositoryInformation, enableDefaultTransactions));
transactionInterceptor.setTransactionManagerBeanName(transactionManagerName);
transactionInterceptor.setBeanFactory(beanFactory);
transactionInterceptor.afterPropertiesSet();
// 添加TransactionInterceptor拦截器
factory.addAdvice(transactionInterceptor);
}
static class RepositoryAnnotationTransactionAttributeSource extends AnnotationTransactionAttributeSource {
private static final long serialVersionUID = 7229616838812819438L;
private final RepositoryInformation repositoryInformation;
private final boolean enableDefaultTransactions;
public RepositoryAnnotationTransactionAttributeSource(RepositoryInformation repositoryInformation,
boolean enableDefaultTransactions) {
// 执行父类AnnotationTransactionAttributeSource，事务的分析器
// 为JtaTransactionAnnotationParser和SpringTransactionAnnotationParser。
// 即支持javax.transaction.Transactional的@Transactional注解和spring的@Transactional
super(true);
Assert.notNull(repositoryInformation, "RepositoryInformation must not be null");
// enableDefaultTransactions默认为true
this.enableDefaultTransactions = enableDefaultTransactions;
// DefaultRepositoryInformation对象
this.repositoryInformation = repositoryInformation;
}
@Override
@Nullable
protected TransactionAttribute computeTransactionAttribute(Method method, @Nullable Class<?> targetClass) {
// Don't allow no-public methods as required.
if (allowPublicMethodsOnly() && !Modifier.isPublic(method.getModifiers())) {
return null;
}
// Ignore CGLIB subclasses - introspect the actual user class.
Class<?> userClass = targetClass == null ? targetClass : ProxyUtils.getUserClass(targetClass);
// The method may be on an interface, but we need attributes from the target class.
// If the target class is null, the method will be unchanged.
Method specificMethod = ClassUtils.getMostSpecificMethod(method, userClass);
// If we are dealing with method with generic parameters, find the original method.
// 如果正在处理具有泛型参数的方法，请找到原始方法。
specificMethod = BridgeMethodResolver.findBridgedMethod(specificMethod);
TransactionAttribute txAtt = null;
if (specificMethod != method) {
// Fallback is to look at the original method.
txAtt = findTransactionAttribute(method);
if (txAtt != null) {
return txAtt;
}
// Last fallback is the class of the original method.
txAtt = findTransactionAttribute(method.getDeclaringClass());
if (txAtt != null || !enableDefaultTransactions) {
return txAtt;
}
}
// First try is the method in the target class.
txAtt = findTransactionAttribute(specificMethod);
if (txAtt != null) {
return txAtt;
}
// Second try is the transaction attribute on the target class.
txAtt = findTransactionAttribute(specificMethod.getDeclaringClass());
if (txAtt != null) {
return txAtt;
}
if (!enableDefaultTransactions) {
return null;
}
// Fallback to implementation class transaction settings of nothing found
// return findTransactionAttribute(method);
Method targetClassMethod = repositoryInformation.getTargetClassMethod(method);
if (targetClassMethod.equals(method)) {
return null;
}
txAtt = findTransactionAttribute(targetClassMethod);
if (txAtt != null) {
return txAtt;
}
txAtt = findTransactionAttribute(targetClassMethod.getDeclaringClass());
if (txAtt != null) {
return txAtt;
}
return null;
}
}
}5.1 在postProcess()方法中，执行如下：
1）声明一个TransactionInterceptor对象；
2）声明一个RepositoryAnnotationTransactionAttributeSource对象；
3）添加transactionManagerName和beanFactory；
4）在ProxyFactory添加TransactionInterceptor拦截器；
5.2 RepositoryAnnotationTransactionAttributeSource注解事务属性资源类为内部类，该类继承AnnotationTransactionAttributeSource。RepositoryAnnotationTransactionAttributeSource的构造方法中，执行父类的构造方法。
在AnnotationTransactionAttributeSource的构造方法中，会添加注解事务的解析器。添加了SpringTransactionAnnotationParser和JtaTransactionAnnotationParser。分别用于解析org.springframework.transaction.annotation包和javax.transaction包下的@Transactional注解。即在代码中使用两个包的@Transactional注解都可以实现事务。
在RepositoryAnnotationTransactionAttributeSource的computeTransactionAttribute()方法中，会调用父类AnnotationTransactionAttributeSource的findTransactionAttribute()，进而执行determineTransactionAttribute()方法，遍历解析器，解析对应的@Transactional注解。
结尾
限于篇幅，本篇先分享到这里。
关于本篇内容你有什么自己的想法或独到见解，欢迎在评论区一起交流探讨下吧。
1482
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
