Flink本地运行webUI无法访问显示{“errors“:[“Not found.“]} 解决办法

一、问题描述

在本地运行flink程序，希望可以通过webUI界面查看作业运行情况。

pom文件（局部）

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.ywwl.ywdc.test</groupId>
    <version>1.0-SNAPSHOT</version>
    <artifactId>flink-1.11-test</artifactId>

    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <flink.version>1.11.1</flink.version>
        <scala.binary.version>2.12</scala.binary.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-connector-kafka_${scala.binary.version}</artifactId>
            <version>${flink.version}</version>
        </dependency>

        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-scala_${scala.binary.version}</artifactId>
            <version>${flink.version}</version>
        </dependency>
        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-streaming-scala_${scala.binary.version}</artifactId>
            <version>${flink.version}</version>
        </dependency>
        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-clients_${scala.binary.version}</artifactId>
            <version>${flink.version}</version>
        </dependency>

        <!-- 本地运行web UI依赖 -->
        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-runtime-web_${scala.binary.version}</artifactId>
            <version>${flink.version}</version>
            <scope>provided</scope>
        </dependency>

        <dependency>
            <groupId>org.apache.hadoop</groupId>
            <artifactId>hadoop-common</artifactId>
            <version>2.7.2</version>
            <exclusions>
                <exclusion>
                    <artifactId>slf4j-log4j12</artifactId>
                    <groupId>org.slf4j</groupId>
                </exclusion>
                <exclusion>
                    <artifactId>log4j</artifactId>
                    <groupId>log4j</groupId>
                </exclusion>
            </exclusions>
        </dependency>

        <dependency>
            <groupId>org.apache.hadoop</groupId>
            <artifactId>hadoop-hdfs</artifactId>
            <version>2.7.2</version>
            <exclusions>
                <exclusion>
                    <artifactId>slf4j-log4j12</artifactId>
                    <groupId>org.slf4j</groupId>
                </exclusion>
                <exclusion>
                    <artifactId>log4j</artifactId>
                    <groupId>log4j</groupId>
                </exclusion>
            </exclusions>
        </dependency>

        <dependency>
            <groupId>commons-configuration</groupId>
            <artifactId>commons-configuration</artifactId>
            <version>1.7</version>
            <exclusions>
                <exclusion>
                    <artifactId>commons-beanutils</artifactId>
                    <groupId>commons-beanutils</groupId>
                </exclusion>
            </exclusions>
        </dependency>

        <!-- https://mvnrepository.com/artifact/com.alibaba/fastjson -->
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>fastjson</artifactId>
            <version>1.2.73</version>
        </dependency>

        <dependency>
            <groupId>ch.qos.logback</groupId>
            <artifactId>logback-core</artifactId>
            <version>1.1.7</version>
        </dependency>
        <dependency>
            <groupId>ch.qos.logback</groupId>
            <artifactId>logback-classic</artifactId>
            <version>1.1.7</version>
        </dependency>

    </dependencies>

    <build>
        <finalName>flink-1.11-test</finalName>
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <version>3.3</version>
                <configuration>
                    <source>1.8</source>
                    <target>1.8</target>
                </configuration>
            </plugin>

            <plugin>
                <artifactId>maven-assembly-plugin</artifactId>
                <configuration>
                    <descriptorRefs>
                        <descriptorRef>jar-with-dependencies</descriptorRef>
                    </descriptorRefs>
                    <archive>
                        <manifest>
                            <mainClass>com.ywwl.ywdc.test.kafka2hdfs.Kafka2Hdfs</mainClass>
                        </manifest>
                    </archive>
                </configuration>
                <executions>
                    <execution>
                        <id>make-assembly</id>
                        <phase>package</phase>
                        <goals>
                            <goal>single</goal>
                        </goals>
                    </execution>
                </executions>
            </plugin>
        </plugins>

        <resources>
            <resource>
                <directory>src/main/resources</directory>
                <excludes>
                    <exclude>environment/dev/*</exclude>
                    <exclude>environment/test/*</exclude>
                    <exclude>environment/pre/*</exclude>
                    <exclude>environment/online/*</exclude>
                    <exclude>application.properties</exclude>
                </excludes>
            </resource>
            <resource>
                <directory>src/main/resources/environment/${environment}</directory>
                <targetPath>.</targetPath>
            </resource>
        </resources>
    </build>

    <profiles>
        <profile>
            <!-- 开发环境 -->
            <id>dev</id>
            <properties>
                <environment>dev</environment>
            </properties>
            <activation>
                <activeByDefault>true</activeByDefault>
            </activation>
        </profile>
        <profile>
            <!-- 测试环境 -->
            <id>test</id>
            <properties>
                <environment>test</environment>
            </properties>
        </profile>
        <profile>
            <!-- 预演环境 -->
            <id>pre</id>
            <properties>
                <environment>pre</environment>
            </properties>
        </profile>
        <profile>
            <!-- 生产环境 -->
            <id>online</id>
            <properties>
                <environment>online</environment>
            </properties>
        </profile>
    </profiles>

</project>

主代码

        // 本地模式
        Configuration conf = new Configuration();
        // 指定端口
        conf.setString(RestOptions.BIND_PORT, "8082-8089");
        final StreamExecutionEnvironment env = StreamExecutionEnvironment.createLocalEnvironmentWithWebUI(conf);


        // 非本地模式
//        final StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();

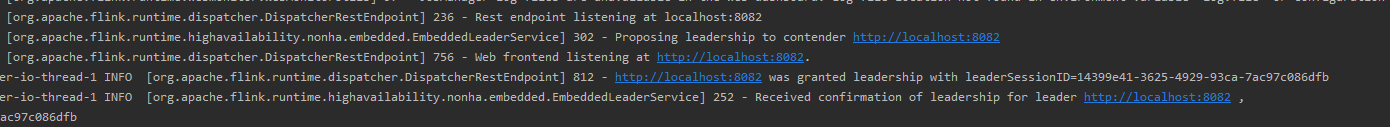

项目启动后，通过日志查看，端口为8082，如下：

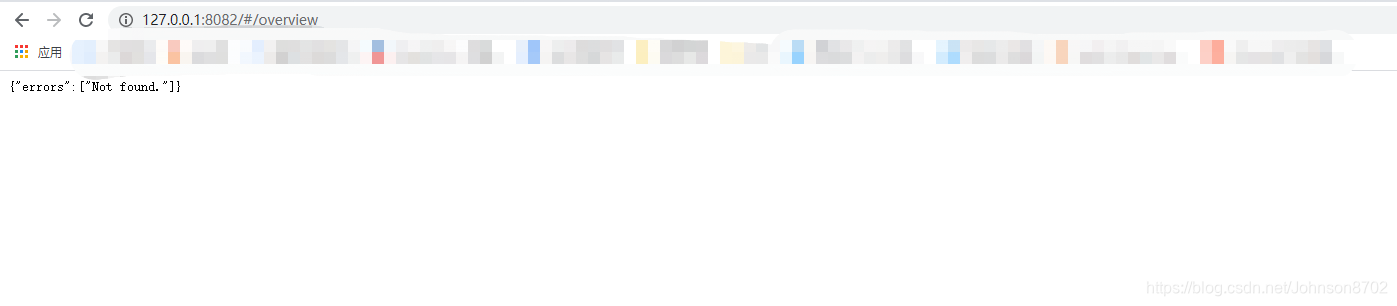

打开 http://localhost:8082，无法显示页面，显示如下

二、解决方法

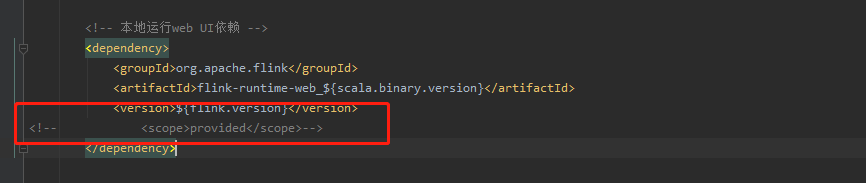

pom文件中，配置web的部分，去掉scope代码

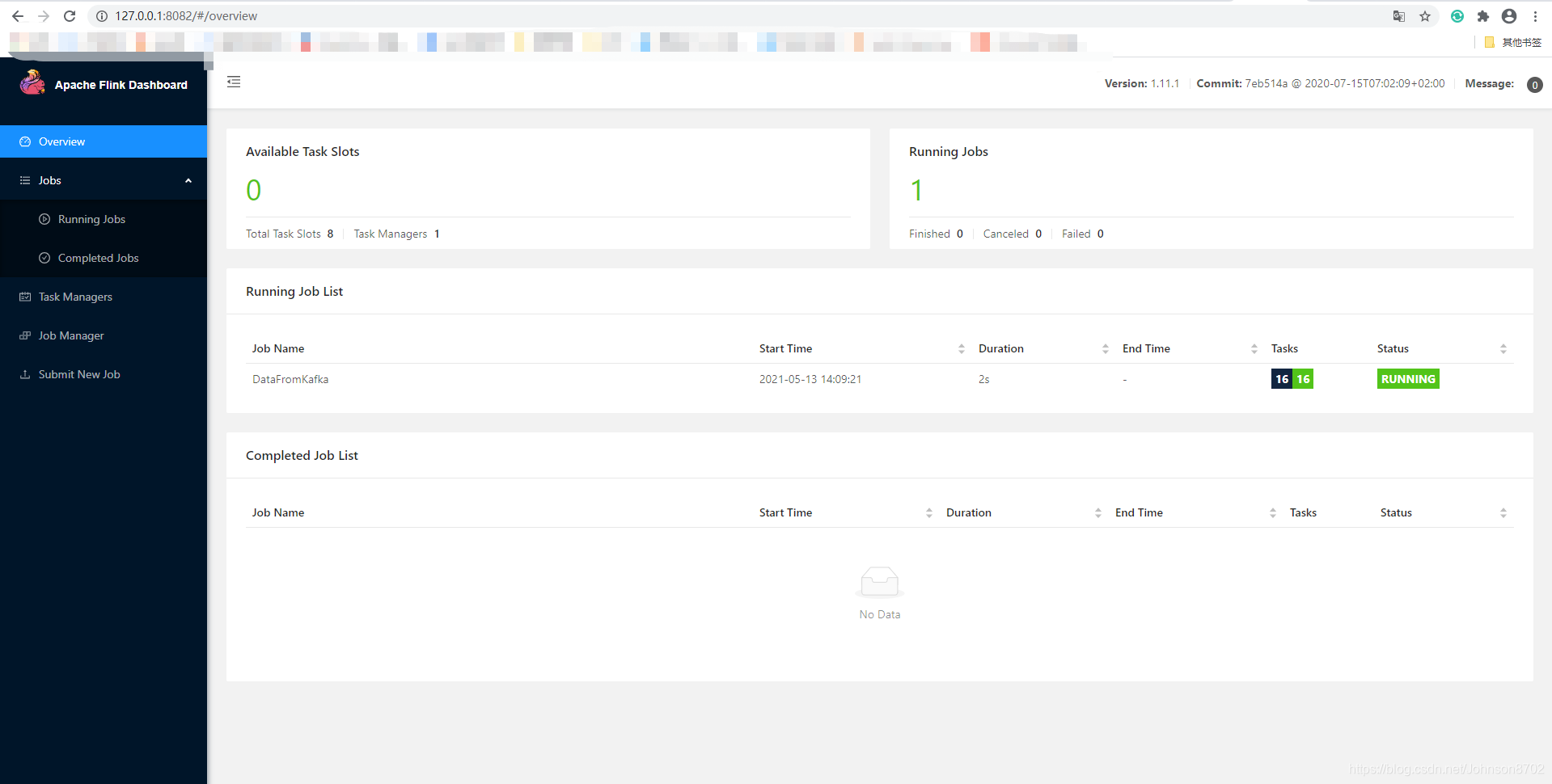

重新启动项目，查看web界面，显示正常
