DPDK技术详解：工作原理与环境搭建实践指南

一、DPDK环境搭建

工具准备：VMware、ubuntu16.04。

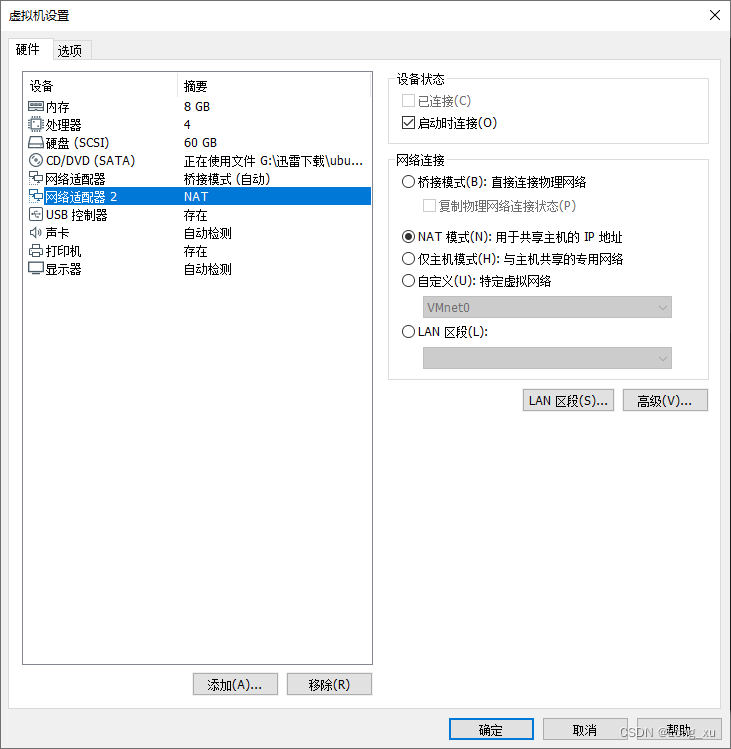

（1）VMware添加两个网卡。桥接网卡作为 DPDK 运行的网卡，NAT 网卡作为 ssh 连接的网卡。

（2）修改网卡配置信息。找到虚拟机安装目录下的.vmx文件，内容如下：

.encoding = "GBK"
config.version = "8"
virtualHW.version = "16"
mks.enable3d = "TRUE"
pciBridge0.present = "TRUE"
pciBridge4.present = "TRUE"
pciBridge4.virtualDev = "pcieRootPort"
pciBridge4.functions = "8"
pciBridge5.present = "TRUE"
pciBridge5.virtualDev = "pcieRootPort"
pciBridge5.functions = "8"
pciBridge6.present = "TRUE"
pciBridge6.virtualDev = "pcieRootPort"
pciBridge6.functions = "8"
pciBridge7.present = "TRUE"
pciBridge7.virtualDev = "pcieRootPort"
pciBridge7.functions = "8"
vmci0.present = "TRUE"
hpet0.present = "TRUE"
nvram = "Ubuntu64bit1604.nvram"
virtualHW.productCompatibility = "hosted"
powerType.powerOff = "soft"
powerType.powerOn = "soft"
powerType.suspend = "soft"
powerType.reset = "soft"
displayName = "Ubuntu64bit1604"
usb.vbluetooth.startConnected = "TRUE"
guestOS = "ubuntu-64"
tools.syncTime = "FALSE"
sound.autoDetect = "TRUE"
sound.fileName = "-1"
sound.present = "TRUE"
numvcpus = "4"
cpuid.coresPerSocket = "2"
vcpu.hotadd = "TRUE"
memsize = "8192"
mem.hotadd = "TRUE"
scsi0.virtualDev = "lsilogic"
scsi0.present = "TRUE"
sata0.present = "TRUE"
scsi0:0.fileName = "Ubuntu64bit1604.vmdk"
scsi0:0.present = "TRUE"
sata0:1.deviceType = "cdrom-image"
sata0:1.fileName = "G:\迅雷下载\ubuntu-16.04.7-desktop-amd64.iso"
sata0:1.present = "TRUE"
usb.present = "TRUE"
ehci.present = "TRUE"
svga.graphicsMemoryKB = "786432"
ethernet0.addressType = "generated"
ethernet0.virtualDev = "e1000"
serial0.fileType = "thinprint"
serial0.fileName = "thinprint"
ethernet0.present = "TRUE"
serial0.present = "TRUE"
extendedConfigFile = "Ubuntu64bit1604.vmxf"
floppy0.present = "FALSE"
uuid.bios = "56 4d fd 84 0c 40 c1 bb-af 47 c0 00 9f b9 71 74"
uuid.location = "56 4d fd 84 0c 40 c1 bb-af 47 c0 00 9f b9 71 74"
scsi0:0.redo = ""
pciBridge0.pciSlotNumber = "17"
pciBridge4.pciSlotNumber = "21"
pciBridge5.pciSlotNumber = "22"
pciBridge6.pciSlotNumber = "23"
pciBridge7.pciSlotNumber = "24"
scsi0.pciSlotNumber = "16"
usb.pciSlotNumber = "32"
ethernet0.pciSlotNumber = "33"
sound.pciSlotNumber = "34"
ehci.pciSlotNumber = "35"
vmci0.pciSlotNumber = "36"
sata0.pciSlotNumber = "37"
svga.vramSize = "268435456"
vmotion.checkpointFBSize = "4194304"
vmotion.checkpointSVGAPrimarySize = "268435456"
ethernet0.generatedAddress = "00:0C:29:B9:71:74"
ethernet0.generatedAddressOffset = "0"
vmci0.id = "-1615236748"
monitor.phys_bits_used = "43"
cleanShutdown = "TRUE"
softPowerOff = "FALSE"
usb:1.speed = "2"
usb:1.present = "TRUE"
usb:1.deviceType = "hub"
usb:1.port = "1"
usb:1.parent = "-1"
svga.guestBackedPrimaryAware = "TRUE"
tools.remindInstall = "FALSE"
gui.lastPoweredViewMode = "fullscreen"
toolsInstallManager.updateCounter = "2"
toolsInstallManager.lastInstallError = "0"
sata0:1.startConnected = "TRUE"
isolation.tools.hgfs.disable = "FALSE"
sharedFolder0.present = "TRUE"
sharedFolder0.enabled = "TRUE"
sharedFolder0.readAccess = "TRUE"
sharedFolder0.writeAccess = "TRUE"
sharedFolder0.hostPath = "G:\share"
sharedFolder0.guestName = "share"
sharedFolder0.expiration = "never"
sharedFolder.maxNum = "1"
usb:0.present = "TRUE"
usb:0.deviceType = "hid"
usb:0.port = "0"
usb:0.parent = "-1"
ethernet1.connectionType = "nat"
ethernet1.addressType = "generated"
ethernet1.virtualDev = "e1000"
ethernet1.present = "TRUE"

将 ethernet0.virtualDev 由 e1000 修改 vmxnet3，因为 vmware 的 vmxnet3 支持多队列网卡，同时添加一行ethernet0.wakeOnPcktRcv = “TRUE”：

ethernet0.virtualDev = "vmxnet3"
ethernet0.wakeOnPcktRcv = "TRUE"

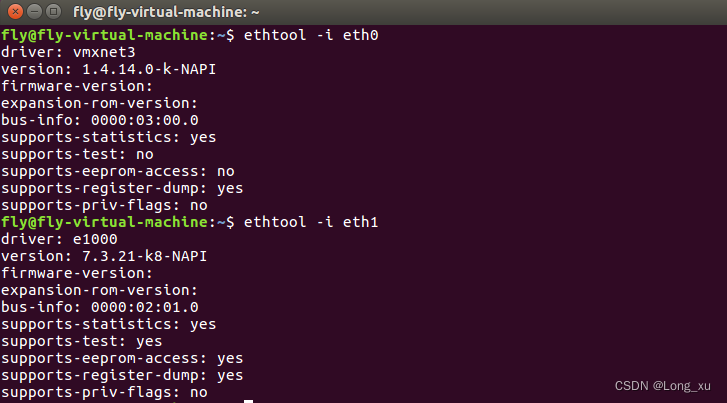

重启虚拟机， 查看网卡, 成功被被配置为vmxnet3：

ethtool -i eth0

（3）查看是否支持多队列网卡：

cat /proc/interrupts

...
  55:          0          0          0          0   PCI-MSI 407552-edge      PCIe PME, pciehp
  56:       1181          0          0      12784   PCI-MSI 1572864-edge      eth0-rxtx-0
  57:          0        193          0         22   PCI-MSI 1572865-edge      eth0-rxtx-1
  58:         41         36          0          0   PCI-MSI 1572866-edge      eth0-rxtx-2
  59:          0          5         13          0   PCI-MSI 1572867-edge      eth0-rxtx-3
  60:          0          0          0          0   PCI-MSI 1572868-edge      eth0-event-4
  61:          0        163        151          4   PCI-MSI 1130496-edge      ahci[0000:02:05.0]
...

这里虚拟机有多少个CPU就有多少个队列。

（4）修改 ubuntu 系统的启动参数。

sudo vim /etc/default/grub

主要是在GRUB_CMDLINE_LINUX添加如下内容：

default_hugepages=1G hugepagesz=2M hugepages=1024

如果是物理主机则添加的是如下内容：

# 物理机:
default_hugepages=1G hugepagesz=1G hugepages=20 isolcpus=0-7

示例：

# If you change this file, run 'update-grub' afterwards to update
# /boot/grub/grub.cfg.
# For full documentation of the options in this file, see:
#   info -f grub -n 'Simple configuration'

GRUB_DEFAULT=0
GRUB_HIDDEN_TIMEOUT=0
GRUB_HIDDEN_TIMEOUT_QUIET=true
GRUB_TIMEOUT=10
GRUB_DISTRIBUTOR=`lsb_release -i -s 2> /dev/null || echo Debian`
GRUB_CMDLINE_LINUX_DEFAULT="quiet splash"
GRUB_CMDLINE_LINUX="net.ifnames=0 biosdevname=0 default_hugepages=1G hugepagesz=2M hugepages=1024"

# Uncomment to enable BadRAM filtering, modify to suit your needs
# This works with Linux (no patch required) and with any kernel that obtains
# the memory map information from GRUB (GNU Mach, kernel of FreeBSD ...)
#GRUB_BADRAM="0x01234567,0xfefefefe,0x89abcdef,0xefefefef"

# Uncomment to disable graphical terminal (grub-pc only)
#GRUB_TERMINAL=console

# The resolution used on graphical terminal
# note that you can use only modes which your graphic card supports via VBE
# you can see them in real GRUB with the command `vbeinfo'
#GRUB_GFXMODE=640x480

# Uncomment if you don't want GRUB to pass "root=UUID=xxx" parameter to Linux
#GRUB_DISABLE_LINUX_UUID=true

# Uncomment to disable generation of recovery mode menu entries
#GRUB_DISABLE_RECOVERY="true"

# Uncomment to get a beep at grub start
#GRUB_INIT_TUNE="480 440 1"

修改完之后需要重启。

1.1、编译DPDK

（1）下载 dpdk，随便一个版本，不同版本直接子系统接口会有差异，这里下载的是19.08.2版本：

wget https://fast.dpdk.org/rel/dpdk-19.08.2.tar.xz

（2）解压源码：

tar -xvf dpdk-19.08.2.tar.xz
cd dpdk-19.08.2
ls

app  buildtools  config  devtools  doc  drivers  examples  GNUmakefile  kernel  lib  license
MAINTAINERS  Makefile  meson.build  meson_options.txt  mk  README  usertools  VERSION

（3）安装依赖库：

sudo apt-get install numactl
sudo apt-get install libnuma-dev
sudo apt-get install net-tools

（4）通过 usertools/dpdk-setup.sh，64 位系统选择 39，编译完会多出 x86_64-native-linux-gcc 的文件夹。

------------------------------------------------------------------------------
 RTE_SDK exported as /home/fly/workspace/dpdk-stable-19.08.2
------------------------------------------------------------------------------
----------------------------------------------------------
 Step 1: Select the DPDK environment to build
----------------------------------------------------------
[1] arm64-armada-linuxapp-gcc
[2] arm64-armada-linux-gcc
[3] arm64-armv8a-linuxapp-clang
[4] arm64-armv8a-linuxapp-gcc
[5] arm64-armv8a-linux-clang
[6] arm64-armv8a-linux-gcc
[7] arm64-bluefield-linuxapp-gcc
[8] arm64-bluefield-linux-gcc
[9] arm64-dpaa2-linuxapp-gcc
[10] arm64-dpaa2-linux-gcc
[11] arm64-dpaa-linuxapp-gcc
[12] arm64-dpaa-linux-gcc
[13] arm64-octeontx2-linuxapp-gcc
[14] arm64-octeontx2-linux-gcc
[15] arm64-stingray-linuxapp-gcc
[16] arm64-stingray-linux-gcc
[17] arm64-thunderx2-linuxapp-gcc
[18] arm64-thunderx2-linux-gcc
[19] arm64-thunderx-linuxapp-gcc
[20] arm64-thunderx-linux-gcc
[21] arm64-xgene1-linuxapp-gcc
[22] arm64-xgene1-linux-gcc
[23] arm-armv7a-linuxapp-gcc
[24] arm-armv7a-linux-gcc
[25] i686-native-linuxapp-gcc
[26] i686-native-linuxapp-icc
[27] i686-native-linux-gcc
[28] i686-native-linux-icc
[29] ppc_64-power8-linuxapp-gcc
[30] ppc_64-power8-linux-gcc
[31] x86_64-native-bsdapp-clang
[32] x86_64-native-bsdapp-gcc
[33] x86_64-native-freebsd-clang
[34] x86_64-native-freebsd-gcc
[35] x86_64-native-linuxapp-clang
[36] x86_64-native-linuxapp-gcc
[37] x86_64-native-linuxapp-icc
[38] x86_64-native-linux-clang
[39] x86_64-native-linux-gcc
[40] x86_64-native-linux-icc
[41] x86_x32-native-linuxapp-gcc
[42] x86_x32-native-linux-gcc

----------------------------------------------------------
 Step 2: Setup linux environment
----------------------------------------------------------
[43] Insert IGB UIO module
[44] Insert VFIO module
[45] Insert KNI module
[46] Setup hugepage mappings for non-NUMA systems
[47] Setup hugepage mappings for NUMA systems
[48] Display current Ethernet/Baseband/Crypto device settings
[49] Bind Ethernet/Baseband/Crypto device to IGB UIO module
[50] Bind Ethernet/Baseband/Crypto device to VFIO module
[51] Setup VFIO permissions

----------------------------------------------------------
 Step 3: Run test application for linux environment
----------------------------------------------------------
[52] Run test application ($RTE_TARGET/app/test)
[53] Run testpmd application in interactive mode ($RTE_TARGET/app/testpmd)

----------------------------------------------------------
 Step 4: Other tools
----------------------------------------------------------
[54] List hugepage info from /proc/meminfo

----------------------------------------------------------
 Step 5: Uninstall and system cleanup
----------------------------------------------------------
[55] Unbind devices from IGB UIO or VFIO driver
[56] Remove IGB UIO module
[57] Remove VFIO module
[58] Remove KNI module
[59] Remove hugepage mappings

[60] Exit Script

（5）导出dpdk环境变量。

cd dpdk路径
# 如 dpdk/dpdk-stable-19.08.2/
# 切换root权限
sudo su
export RTE_SDK=dpdk路径
export RTE_TARGET=x86_64-native-linux-gcc

（6）配置dpdk。

./usertools/dpdk-setup.sh

依次执行：
43（加载DPDK UIO 模块，即插入driver）
44（加载VFIO模块，也是一种driver）
45（加载KNI模块，将一些数据写回内核）
46（设置巨页，可以不需要频繁页交换，512）
47（设置巨页，可512）
49（执行之前需要eth0 down掉，执行sudo ifconfig eth0 down，使绑定dpdk）pci地址=对应eth0的（如0000:03:00.0）
60（退出）

二、DPDK工作原理

网络上所有的数据传输都要经过网卡，网卡将模拟信号转换为数字信号，也就是将物理层信号转换为数据链路层信号。

这个过程会进行两次拷贝，第一次是从网卡拷贝到NIC，用于组织sk_buffer；第二次是从内核空间拷贝到用户空间，应用程序处理数据。这些拷贝需要CPU的参与，会占用CPU资源。

DPDK的作用：

1. 是把网卡是数据映射到内存。
2. 而且DPDK提供巨页机制，将原来的4K每页提升到2M、1G的巨页。
3. 控制多队列网卡，提高性能；在启动线程时做了CPU亲缘性。
4. DPDK提高一种KNI（Kernel Network Interface）方式，将不关注的数据写回内核让内核处理。

DPDK能用来做一下应用：

1. 路由器。
2. 网络协议栈的基石部分。
3. 防火墙。
4. VPN。

DPDK的优势：

1. 有专门的公司维护，有保障。
2. 问题能有快速解决，迭代出新的版本。
3. 文档齐全。

三、DPDK实践之处理UDP数据

dpdk初始化失败的情况：内存不够（比如主机只有4G内存）、没有设置hugepage、没有bind pci。

mbuf类似内核的sk_buffer。

1. 参数初始化。
2. 创建内存池。
3. 配置网口。
4. 设置网口队列的使用，dkdp接收数据队列、dkdp发送数据队列。
5. 开始启动。
6. 混杂模式：disable–只接收目的IP地址是本机的；enable–网络的所有广播包都接收。
7. 开始接收数据。

示例代码（dpdk_udp.c）：

#include <rte_eal.h>
#include <rte_ethdev.h>
#include <rte_mbuf.h>

#define MBUF_NUM	1024
#define MBUF_SIZE	32

int gDpdkPortId=0;

int main(int argc,char **argv)
{
	//
	if(rte_eal_init(argc,argv)<0)
	{
		rte_exit(EXIT_FAILURE,"Init Error\n");
	}
	// per_lcore_socket_id
	struct rte_mempool *mbuf_pool=rte_pktmbuf_pool_create("mbufpool",MBUF_NUM,0,0,RTE_MBUF_DEFAULT_BUF_SIZE,rte_socket_id());

	if(!mbuf_pool)
	{
		rte_exit(EXIT_FAILURE,"mbuf_pool Error\n");
	}

	uint16_t nb_rx_queues = 1;
	uint16_t nb_tx_queues = 0;
	const struct rte_eth_conf port_conf_default = {
		.rxmode = {.max_rx_pkt_len = RTE_ETHER_MAX_LEN }
	};
	rte_eth_dev_configure(gDpdkPortId,nb_rx_queues,nb_tx_queues,&port_conf_default);

	rte_eth_rx_queue_setup(gDpdkPortId,0,128,rte_eth_dev_socket_id(gDpdkPortId),NULL,mbuf_pool);

	//rte_eth_tx_queue_setup(...)

	rte_eth_dev_start(gDpdkPortId);

	rte_eth_promiscuous_enable(gDpdkPortId);

	while(1)
	{
		struct rte_mbuf *mbuf[MBUF_SIZE];
		unsigned num_recvd = rte_eth_rx_burst(gDpdkPortId, 0, mbuf, MBUF_SIZE);
		if (num_recvd > MBUF_SIZE) {
			rte_exit(EXIT_FAILURE, "Error receiving from eth\n");
		}
		//printf("recv pkt\n");
		unsigned i = 0;
		for (i = 0;i < num_recvd;i ++) {
			// 将mbufs数据包中的以太网头提取出来
			struct rte_ether_hdr *ehdr = rte_pktmbuf_mtod(mbuf[i], struct rte_ether_hdr*);
			//将一个16位的值从CPU顺序转换为大端序
			if (ehdr->ether_type != rte_cpu_to_be_16(RTE_ETHER_TYPE_IPV4)) {
				continue;
			}
			// 将mbufs数据包中的ipv4头提取出来
			struct rte_ipv4_hdr *iphdr =  rte_pktmbuf_mtod_offset(mbuf[i], struct rte_ipv4_hdr *,
				sizeof(struct rte_ether_hdr));

			if (iphdr->next_proto_id == IPPROTO_UDP) {

				struct rte_udp_hdr *udphdr = (struct rte_udp_hdr *)(iphdr + 1);
				uint16_t length = ntohs(udphdr->dgram_len);
				*((char*)udphdr + length -1) = '\0';
				printf("udp:%s\n",(char *)(udphdr+1));
			}
		}
	}

	return 0;
}

可以通过 gcc 命令编译：

gcc -o dpdk_udp dpdk_udp.c -I /usr/local/include/dpdk/ -ldpdk -lpthread -lnuma -ldl

也可以写如下的makefile文件来编译（推荐）。
Makefle：

# binary name
APP = dpdk_udp

# all source are stored in SRCS-y
SRCS-y := dpdk_udp.c

# Build using pkg-config variables if possible
ifeq ($(shell pkg-config --exists libdpdk && echo 0),0)

all: shared
.PHONY: shared static
shared: build/$(APP)-shared
        ln -sf $(APP)-shared build/$(APP)
static: build/$(APP)-static
        ln -sf $(APP)-static build/$(APP)

PKGCONF=pkg-config --define-prefix

PC_FILE := $(shell $(PKGCONF) --path libdpdk)
CFLAGS += -O3 $(shell $(PKGCONF) --cflags libdpdk)
LDFLAGS_SHARED = $(shell $(PKGCONF) --libs libdpdk)
LDFLAGS_STATIC = -Wl,-Bstatic $(shell $(PKGCONF) --static --libs libdpdk)

build/$(APP)-shared: $(SRCS-y) Makefile $(PC_FILE) | build
        $(CC) $(CFLAGS) $(SRCS-y) -o $@ $(LDFLAGS) $(LDFLAGS_SHARED)

build/$(APP)-static: $(SRCS-y) Makefile $(PC_FILE) | build
        $(CC) $(CFLAGS) $(SRCS-y) -o $@ $(LDFLAGS) $(LDFLAGS_STATIC)

build:
        @mkdir -p $@

.PHONY: clean
clean:
        rm -f build/$(APP) build/$(APP)-static build/$(APP)-shared
        test -d build && rmdir -p build || true

else

ifeq ($(RTE_SDK),)
$(error "Please define RTE_SDK environment variable")
endif

# Default target, detect a build directory, by looking for a path with a .config
RTE_TARGET ?= $(notdir $(abspath $(dir $(firstword $(wildcard $(RTE_SDK)/*/.config)))))

include $(RTE_SDK)/mk/rte.vars.mk

总结

1. 多队列网卡只负责数据包的接收，不能做到逻辑控制。
2. dpdk不能保证udp的可靠，它只负责将数据转移到内存。
3. dpdk学习路线：核心是写代码，在dpdk环境搭建完成之后，实践写一个协议栈代码（比如eth、ip、arp、icmp、tcp、udp）；然后尝试实现一些posix api（比如epoll的实现）；最后再做一些应用（比如vpp、ovs、dpvs、pktgen等）。
