1、ingress + Jenkins 上传hpi文件（8MB）报错 413 Request Entity Too Large

处理方法：ingress文件加上annotations
ingress-nginx 实际上为nginx，所以在此调整。

apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  name: jenkins-ingress
  namespace: ops
  annotations:
    nginx.ingress.kubernetes.io/proxy-body-size: "100m" # 设置最大请求体大小为100MB
spec:
  ingressClassName: "nginx"

题外话：部署ingress-nginx

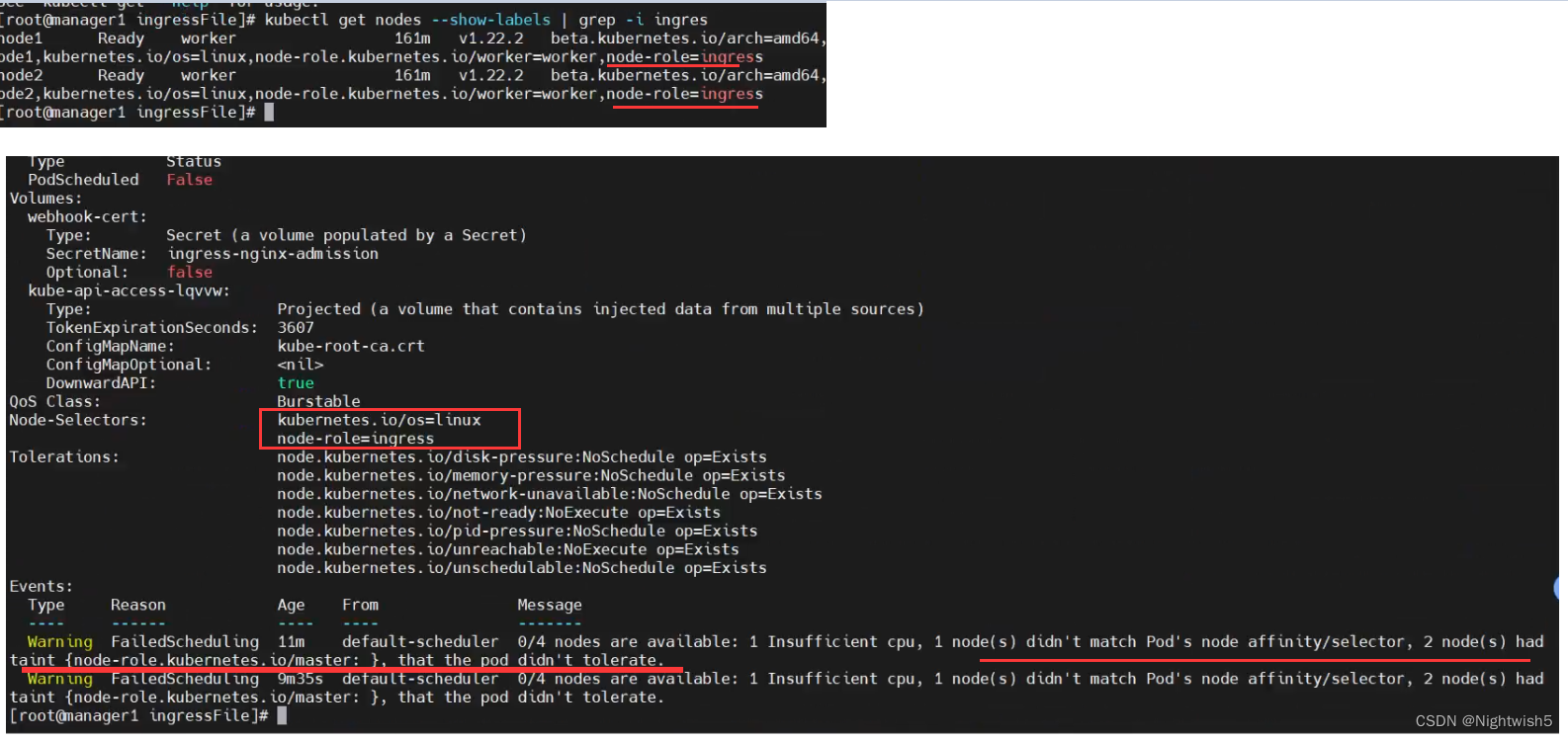

#在需要部署ingress-nginx的节点上打上node label标签。 (因为下方daemonSet做了 nodeSelector限制)
nodeSelector:                             # 节点选择器
        kubernetes.io/os: linux
        node-role: ingress

########
kubectl label nodes <node-name> node-role=ingress

ingress-deploy.yaml

apiVersion: v1
kind: Namespace
metadata:
  labels:
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
  name: ingress-nginx
---
apiVersion: v1
automountServiceAccountToken: true
kind: ServiceAccount
metadata:
  labels:
    app.kubernetes.io/component: controller
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/version: 1.2.0
  name: ingress-nginx
  namespace: ingress-nginx
---
apiVersion: v1
kind: ServiceAccount
metadata:
  labels:
    app.kubernetes.io/component: admission-webhook
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/version: 1.2.0
  name: ingress-nginx-admission
  namespace: ingress-nginx
---
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
  labels:
    app.kubernetes.io/component: controller
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/version: 1.2.0
  name: ingress-nginx
  namespace: ingress-nginx
rules:
- apiGroups:
  - ""
  resources:
  - namespaces
  verbs:
  - get
- apiGroups:
  - ""
  resources:
  - configmaps
  - pods
  - secrets
  - endpoints
  verbs:
  - get
  - list
  - watch
- apiGroups:
  - ""
  resources:
  - services
  verbs:
  - get
  - list
  - watch
- apiGroups:
  - networking.k8s.io
  resources:
  - ingresses
  verbs:
  - get
  - list
  - watch
- apiGroups:
  - networking.k8s.io
  resources:
  - ingresses/status
  verbs:
  - update
- apiGroups:
  - networking.k8s.io
  resources:
  - ingressclasses
  verbs:
  - get
  - list
  - watch
- apiGroups:
  - ""
  resourceNames:
  - ingress-controller-leader
  resources:
  - configmaps
  verbs:
  - get
  - update
- apiGroups:
  - ""
  resources:
  - configmaps
  verbs:
  - create
- apiGroups:
  - ""
  resources:
  - events
  verbs:
  - create
  - patch
---
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
  labels:
    app.kubernetes.io/component: admission-webhook
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/version: 1.2.0
  name: ingress-nginx-admission
  namespace: ingress-nginx
rules:
- apiGroups:
  - ""
  resources:
  - secrets
  verbs:
  - get
  - create
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  labels:
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/version: 1.2.0
  name: ingress-nginx
rules:
- apiGroups:
  - ""
  resources:
  - configmaps
  - endpoints
  - nodes
  - pods
  - secrets
  - namespaces
  verbs:
  - list
  - watch
- apiGroups:
  - ""
  resources:
  - nodes
  verbs:
  - get
- apiGroups:
  - ""
  resources:
  - services
  verbs:
  - get
  - list
  - watch
- apiGroups:
  - networking.k8s.io
  resources:
  - ingresses
  verbs:
  - get
  - list
  - watch
- apiGroups:
  - ""
  resources:
  - events
  verbs:
  - create
  - patch
- apiGroups:
  - networking.k8s.io
  resources:
  - ingresses/status
  verbs:
  - update
- apiGroups:
  - networking.k8s.io
  resources:
  - ingressclasses
  verbs:
  - get
  - list
  - watch
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  labels:
    app.kubernetes.io/component: admission-webhook
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/version: 1.2.0
  name: ingress-nginx-admission
rules:
- apiGroups:
  - admissionregistration.k8s.io
  resources:
  - validatingwebhookconfigurations
  verbs:
  - get
  - update
---
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  labels:
    app.kubernetes.io/component: controller
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/version: 1.2.0
  name: ingress-nginx
  namespace: ingress-nginx
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: Role
  name: ingress-nginx
subjects:
- kind: ServiceAccount
  name: ingress-nginx
  namespace: ingress-nginx
---
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  labels:
    app.kubernetes.io/component: admission-webhook
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/version: 1.2.0
  name: ingress-nginx-admission
  namespace: ingress-nginx
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: Role
  name: ingress-nginx-admission
subjects:
- kind: ServiceAccount
  name: ingress-nginx-admission
  namespace: ingress-nginx
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  labels:
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/version: 1.2.0
  name: ingress-nginx
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: ingress-nginx
subjects:
- kind: ServiceAccount
  name: ingress-nginx
  namespace: ingress-nginx
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  labels:
    app.kubernetes.io/component: admission-webhook
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/version: 1.2.0
  name: ingress-nginx-admission
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: ingress-nginx-admission
subjects:
- kind: ServiceAccount
  name: ingress-nginx-admission
  namespace: ingress-nginx
---
apiVersion: v1
data:
  allow-snippet-annotations: "true"
kind: ConfigMap
metadata:
  labels:
    app.kubernetes.io/component: controller
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/version: 1.2.0
  name: ingress-nginx-controller
  namespace: ingress-nginx
---
apiVersion: v1
kind: Service
metadata:
  labels:
    app.kubernetes.io/component: controller
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/version: 1.2.0
  name: ingress-nginx-controller
  namespace: ingress-nginx
spec:
  ports:
  - appProtocol: http
    name: http
    port: 80
    protocol: TCP
    targetPort: http
  - appProtocol: https
    name: https
    port: 443
    protocol: TCP
    targetPort: https
  selector:
    app.kubernetes.io/component: controller
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
  #type: NodePort
  type: ClusterIP
---
apiVersion: v1
kind: Service
metadata:
  labels:
    app.kubernetes.io/component: controller
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/version: 1.2.0
  name: ingress-nginx-controller-admission
  namespace: ingress-nginx
spec:
  ports:
  - appProtocol: https
    name: https-webhook
    port: 443
    targetPort: webhook
  selector:
    app.kubernetes.io/component: controller
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
  type: ClusterIP
---
apiVersion: apps/v1
kind: DaemonSet
metadata:
  labels:
    app.kubernetes.io/component: controller
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/version: 1.2.0
  name: ingress-nginx-controller
  namespace: ingress-nginx
spec:
  minReadySeconds: 0
  revisionHistoryLimit: 10
  selector:
    matchLabels:
      app.kubernetes.io/component: controller
      app.kubernetes.io/instance: ingress-nginx
      app.kubernetes.io/name: ingress-nginx
  template:
    metadata:
      labels:
        app.kubernetes.io/component: controller
        app.kubernetes.io/instance: ingress-nginx
        app.kubernetes.io/name: ingress-nginx
    spec:
      containers:
      - args:
        - /nginx-ingress-controller
        - --election-id=ingress-controller-leader
        - --controller-class=k8s.io/ingress-nginx
        - --ingress-class=nginx
        - --configmap=$(POD_NAMESPACE)/ingress-nginx-controller
        - --validating-webhook=:8443
        - --validating-webhook-certificate=/usr/local/certificates/cert
        - --validating-webhook-key=/usr/local/certificates/key
        env:
        - name: POD_NAME
          valueFrom:
            fieldRef:
              fieldPath: metadata.name
        - name: POD_NAMESPACE
          valueFrom:
            fieldRef:
              fieldPath: metadata.namespace
        - name: LD_PRELOAD
          value: /usr/local/lib/libmimalloc.so
        image: oldxu3957/nginx-ingress-controller:1.2.0
        imagePullPolicy: IfNotPresent
        lifecycle:
          preStop:
            exec:
              command:
              - /wait-shutdown
        livenessProbe:
          failureThreshold: 5
          httpGet:
            path: /healthz
            port: 10254
            scheme: HTTP
          initialDelaySeconds: 10
          periodSeconds: 10
          successThreshold: 1
          timeoutSeconds: 1
        name: controller
        ports:
        - containerPort: 80
          name: http
          protocol: TCP
        - containerPort: 443
          name: https
          protocol: TCP
        - containerPort: 8443
          name: webhook
          protocol: TCP
        readinessProbe:
          failureThreshold: 3
          httpGet:
            path: /healthz
            port: 10254
            scheme: HTTP
          initialDelaySeconds: 10
          periodSeconds: 10
          successThreshold: 1
          timeoutSeconds: 1
        resources:
          requests:
            cpu: 100m
            memory: 90Mi
        securityContext:
          allowPrivilegeEscalation: true
          capabilities:
            add:
            - NET_BIND_SERVICE
            drop:
            - ALL
          runAsUser: 101
        volumeMounts:
        - mountPath: /usr/local/certificates/
          name: webhook-cert
          readOnly: true
      hostNetwork: true                         # 与节点共享网络名称空间
      dnsPolicy: ClusterFirstWithHostNet        # dns 策略
      nodeSelector:                             # 节点选择器
        kubernetes.io/os: linux
        node-role: ingress
      serviceAccountName: ingress-nginx
      terminationGracePeriodSeconds: 300
      volumes:
      - name: webhook-cert
        secret:
          secretName: ingress-nginx-admission
---
apiVersion: batch/v1
kind: Job
metadata:
  labels:
    app.kubernetes.io/component: admission-webhook
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/version: 1.2.0
  name: ingress-nginx-admission-create
  namespace: ingress-nginx
spec:
  template:
    metadata:
      labels:
        app.kubernetes.io/component: admission-webhook
        app.kubernetes.io/instance: ingress-nginx
        app.kubernetes.io/name: ingress-nginx
        app.kubernetes.io/part-of: ingress-nginx
        app.kubernetes.io/version: 1.2.0
      name: ingress-nginx-admission-create
    spec:
      containers:
      - args:
        - create
        - --host=ingress-nginx-controller-admission,ingress-nginx-controller-admission.$(POD_NAMESPACE).svc
        - --namespace=$(POD_NAMESPACE)
        - --secret-name=ingress-nginx-admission
        env:
        - name: POD_NAMESPACE
          valueFrom:
            fieldRef:
              fieldPath: metadata.namespace
        image: oldxu3957/kube-webhook-certgen:v1.1.1
        imagePullPolicy: IfNotPresent
        name: create
        securityContext:
          allowPrivilegeEscalation: false
      nodeSelector:
        kubernetes.io/os: linux
      restartPolicy: OnFailure
      securityContext:
        fsGroup: 2000
        runAsNonRoot: true
        runAsUser: 2000
      serviceAccountName: ingress-nginx-admission
---
apiVersion: batch/v1
kind: Job
metadata:
  labels:
    app.kubernetes.io/component: admission-webhook
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/version: 1.2.0
  name: ingress-nginx-admission-patch
  namespace: ingress-nginx
spec:
  template:
    metadata:
      labels:
        app.kubernetes.io/component: admission-webhook
        app.kubernetes.io/instance: ingress-nginx
        app.kubernetes.io/name: ingress-nginx
        app.kubernetes.io/part-of: ingress-nginx
        app.kubernetes.io/version: 1.2.0
      name: ingress-nginx-admission-patch
    spec:
      containers:
      - args:
        - patch
        - --webhook-name=ingress-nginx-admission
        - --namespace=$(POD_NAMESPACE)
        - --patch-mutating=false
        - --secret-name=ingress-nginx-admission
        - --patch-failure-policy=Fail
        env:
        - name: POD_NAMESPACE
          valueFrom:
            fieldRef:
              fieldPath: metadata.namespace
        image: oldxu3957/kube-webhook-certgen:v1.1.1
        imagePullPolicy: IfNotPresent
        name: patch
        securityContext:
          allowPrivilegeEscalation: false
      nodeSelector:
        kubernetes.io/os: linux
      restartPolicy: OnFailure
      securityContext:
        fsGroup: 2000
        runAsNonRoot: true
        runAsUser: 2000
      serviceAccountName: ingress-nginx-admission
---
apiVersion: networking.k8s.io/v1
kind: IngressClass
metadata:
  labels:
    app.kubernetes.io/component: controller
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/version: 1.2.0
  name: nginx
spec:
  controller: k8s.io/ingress-nginx
---
apiVersion: admissionregistration.k8s.io/v1
kind: ValidatingWebhookConfiguration
metadata:
  labels:
    app.kubernetes.io/component: admission-webhook
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/version: 1.2.0
  name: ingress-nginx-admission
webhooks:
- admissionReviewVersions:
  - v1
  clientConfig:
    service:
      name: ingress-nginx-controller-admission
      namespace: ingress-nginx
      path: /networking/v1/ingresses
  failurePolicy: Fail
  matchPolicy: Equivalent
  name: validate.nginx.ingress.kubernetes.io
  rules:
  - apiGroups:
    - networking.k8s.io
    apiVersions:
    - v1
    operations:
    - CREATE
    - UPDATE
    resources:
    - ingresses
  sideEffects: None

2、部署ingress，节点node2报错。关机调大CPU核数。

情况描述：node1和node2都打上了标签node-role=ingress 。但部署在node2的ingress出现pending状态。
在这里插入图片描述

又说api调度出问题的。CPU不足的。<font color=red>后面关机node2，将CPU调大。然后就正常调度了 </font>
（一个初始化的环境，df -mh ，free -mh ， top都是正常的）

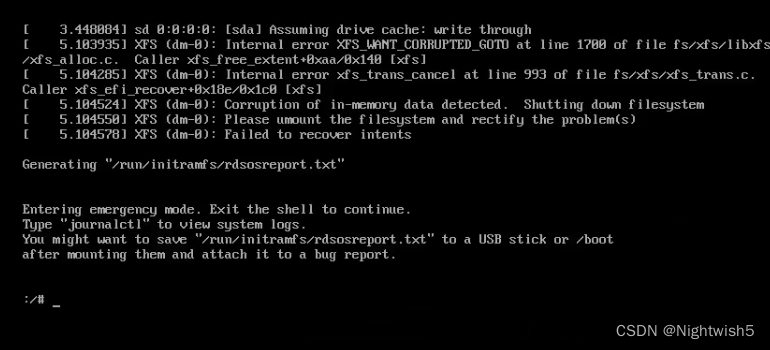

3、虚拟机寄了，使用xfs_repair -L修复

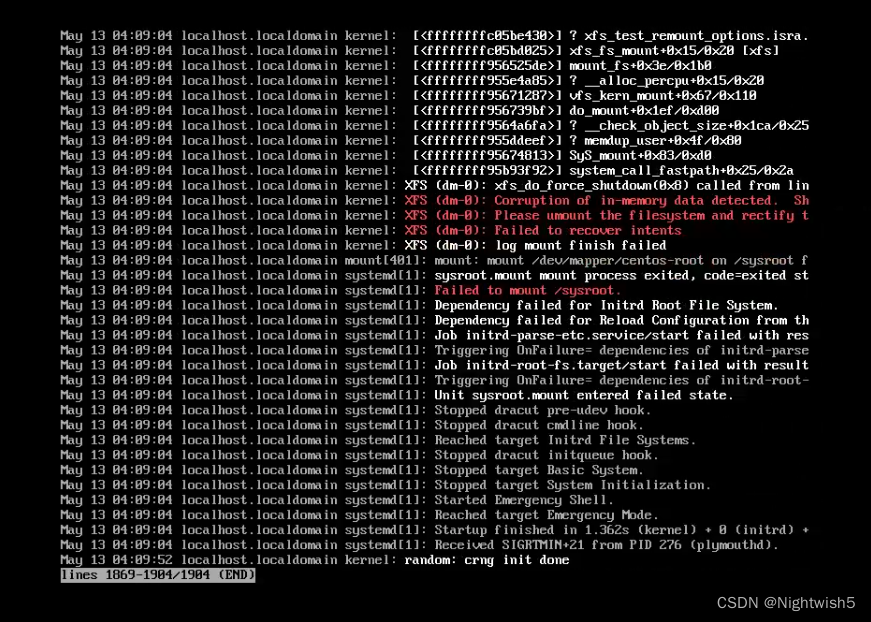

XFS (dm-0) failed to recover intens
failed to mount /sysroot

在这里插入图片描述

处理方法

#救援模式
xfs_repair -L /dev/mapper/centos-root

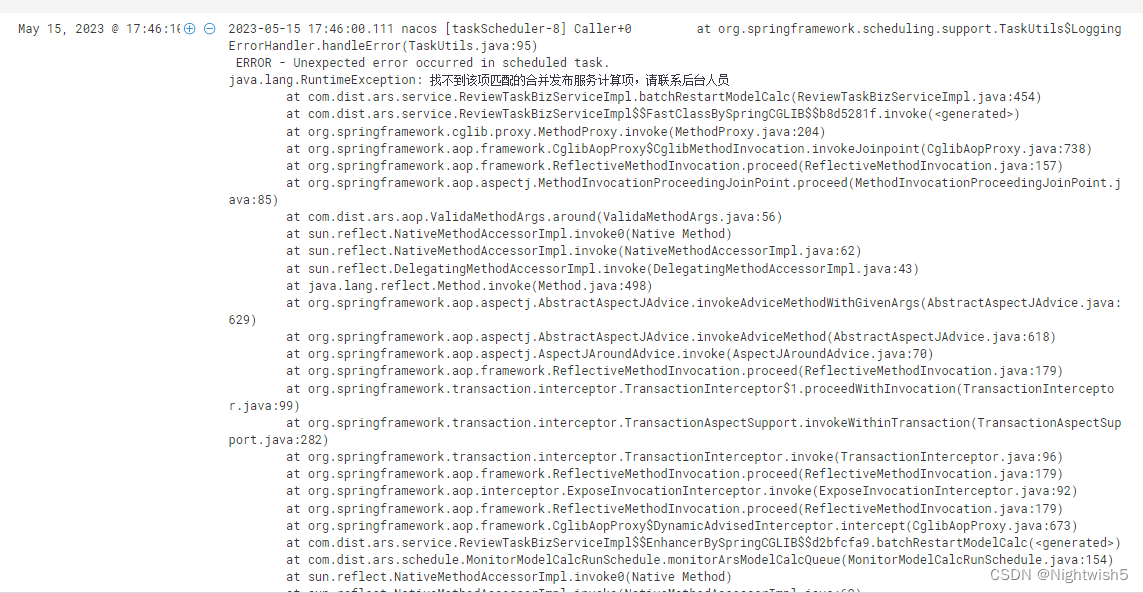

4、kibana无法显示很长的java报错日志

处理方法：

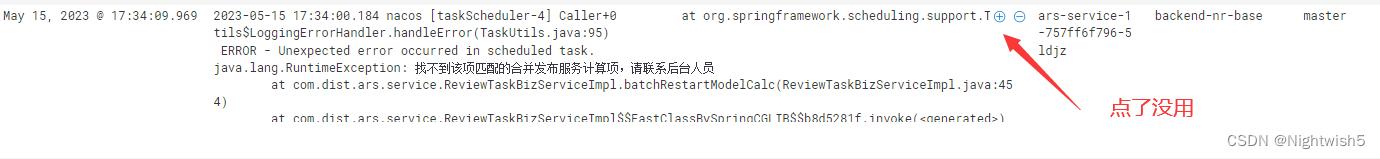

点击+号没用，要去设置kibana的单元高度

在这里插入图片描述
设置单元高度后，能完整显示了：

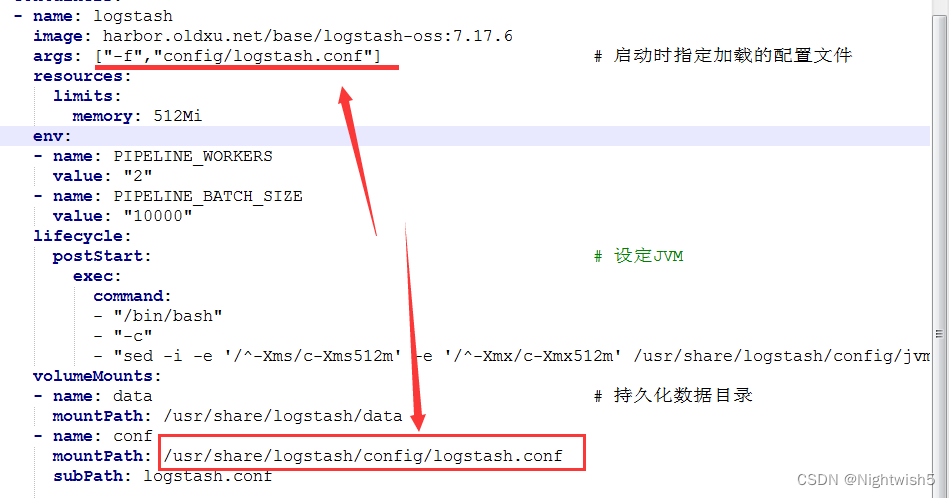

5、解惑镜像logstash-oss:7.17.6为何能写相对路径args: [“-f”,“config/logstash.conf”]

在这里插入图片描述

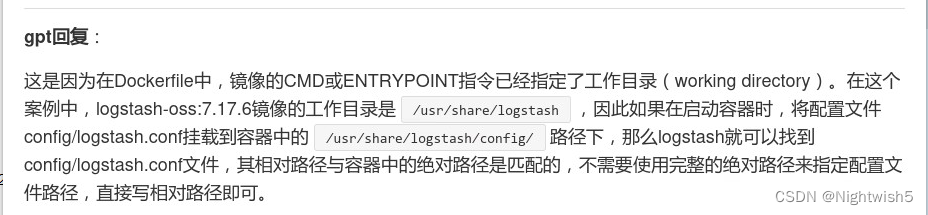

答：因为这个镜像构建的时候 WORKDIR是WORKDIR /usr/share/logstash
#把它层级剖出来
docker history --no-trunc -H  xxxxx/base/logstash-oss:7.17.6 > /tmp/1.txt

在这里插入图片描述

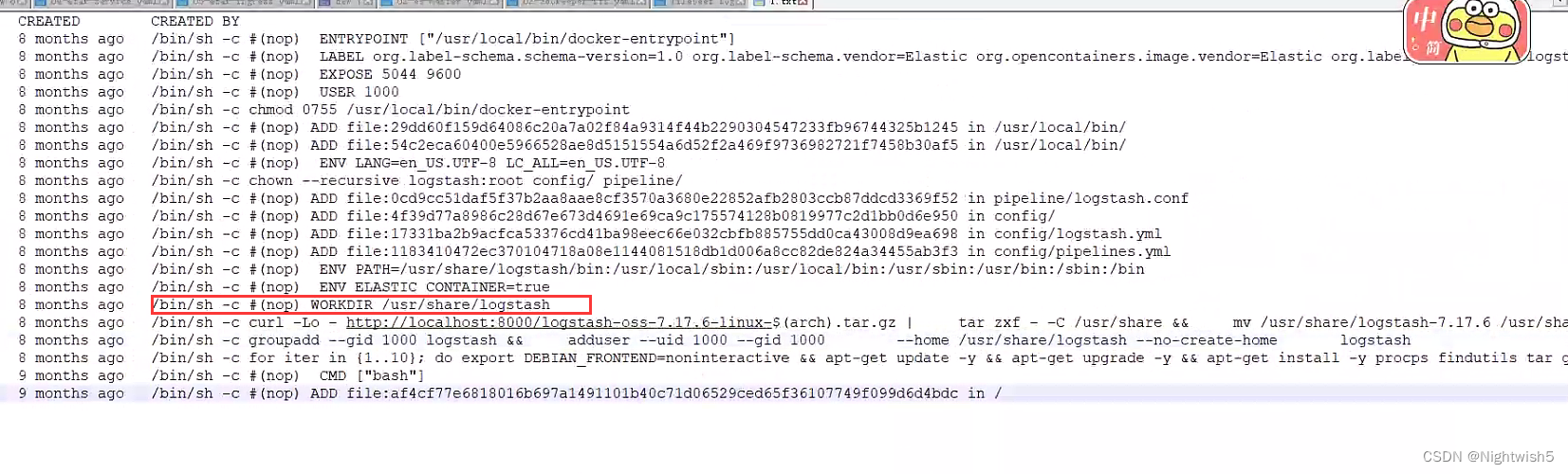

下面是docker history的内容

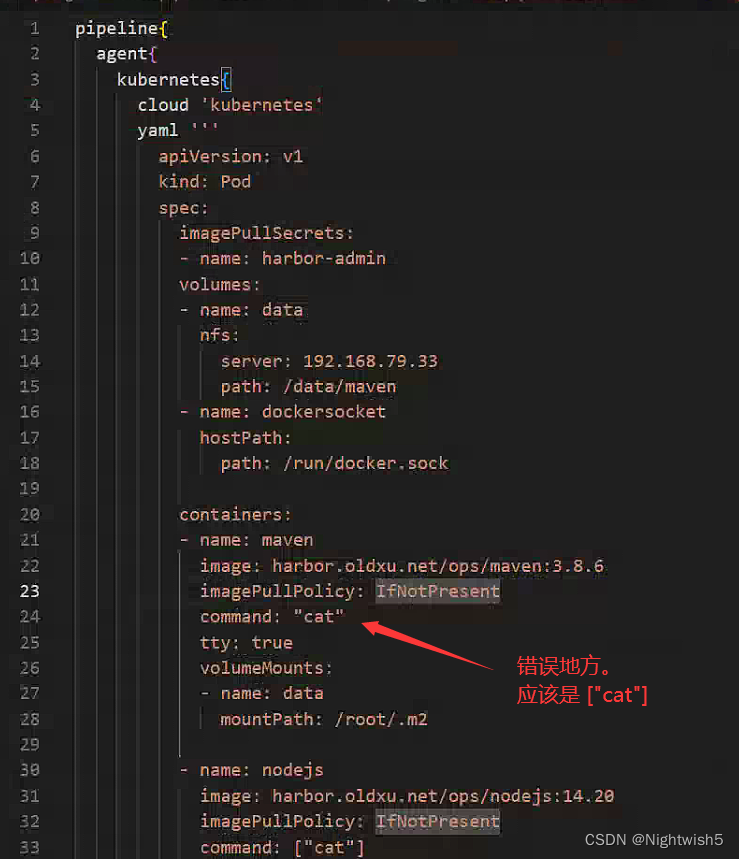

6、pipeline构建报错

报错信息：

[Pipeline] Start of Pipeline
[Pipeline] podTemplate
[Pipeline] // podTemplate
[Pipeline] End of Pipeline

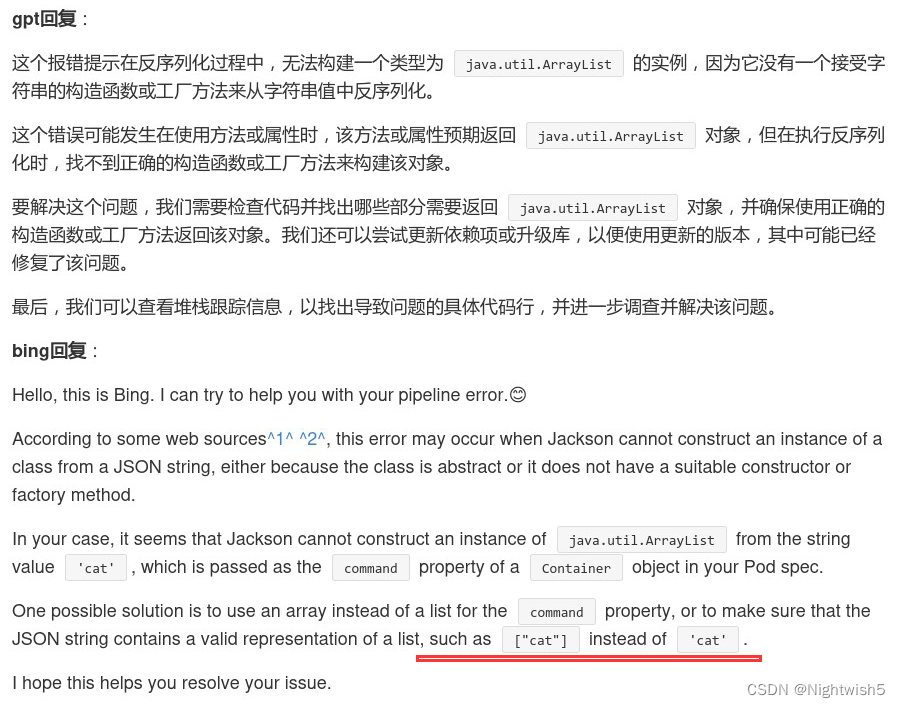

hudson.remoting.ProxyException: com.fasterxml.jackson.databind.exc.MismatchedInputException: Cannot construct instance of `java.util.ArrayList` (although at least one Creator exists): no String-argument constructor/factory method to deserialize from String value ('cat')
 at [Source: UNKNOWN; byte offset: #UNKNOWN] (through reference chain: io.fabric8.kubernetes.api.model.Pod["spec"]->io.fabric8.kubernetes.api.model.PodSpec["containers"]->java.util.ArrayList[0]->io.fabric8.kubernetes.api.model.Container["command"])

	at com.fasterxml.jackson.databind.exc.MismatchedInputException.from(MismatchedInputException.java:63)

在这里插入图片描述
参考：

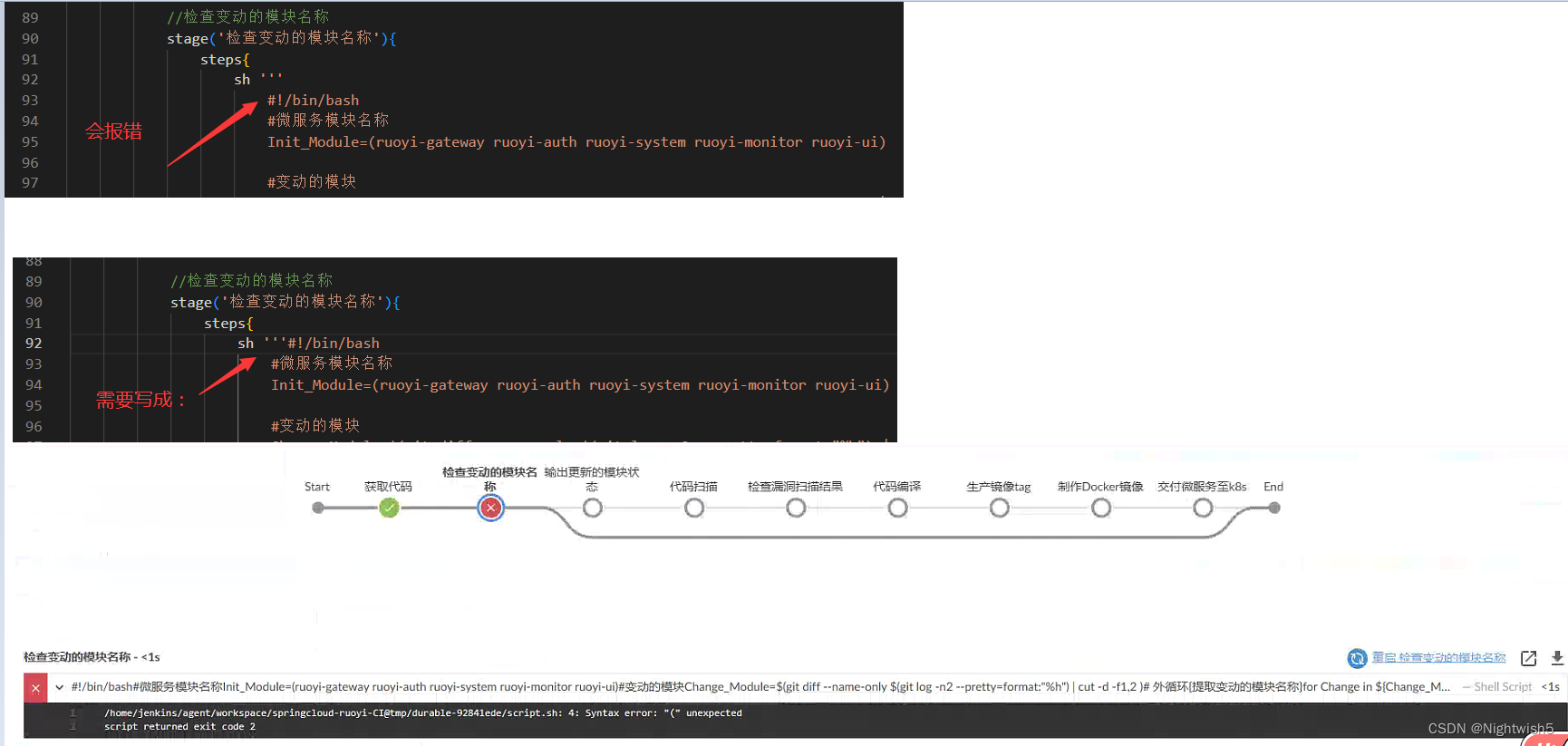

7、pipeline构建报错（script.sh: 4: Syntax error: “(” unexpected）

报错信息：

/home/jenkins/agent/workspace/springcloud-ruoyi-CI@tmp/durable-92841ede/script.sh: 4: Syntax error: "(" unexpected

script returned exit code 2

处理方式：

需要写成 （原理未知？！）
sh '''#!/bin/bash

在这里插入图片描述

Nightwish5

关注

0
点赞
踩
0

收藏

觉得还不错? 一键收藏
0
评论
【故障排查】【杂项】ingress + Jenkins 上传hpi文件（8MB）报错413

处理方法：ingress文件加上annotations。
复制链接

扫一扫

专栏目录
