python五子棋全代码

前言

自2020年10月14日我首次公开完整的Java五子棋代码以来，时光已悄然流逝了近五个春秋。这期间，我从一名青涩的大学生蜕变成为拥有三年工作经验的全栈开发者，编程思维与技术水平均实现一定的提升。当我再次审视昔日亲手编写的Java五子棋代码时，不禁发现了诸多“屎山代码”，这些陈旧的代码宛如难以下咽的磐石，重写的难度无异于自我设障。于是，我一拍大腿，决定另起炉灶，这也正是本文诞生的契机。

近期，我的笔触多聚焦于Python编程领域，尽管我的职业生涯主要围绕Java与Vue等技术栈展开。长期使用Java后，我在业余时间渴望寻求一种更为轻松愉悦的编程体验，Python便自然而然地成为了我的兴趣之选。其简洁高效的特点，让我能够迅速将创意转化为现实，无需过多繁琐的编码过程。

接下来，就让我们一同见证我用Python重新打造的五子棋游戏吧。

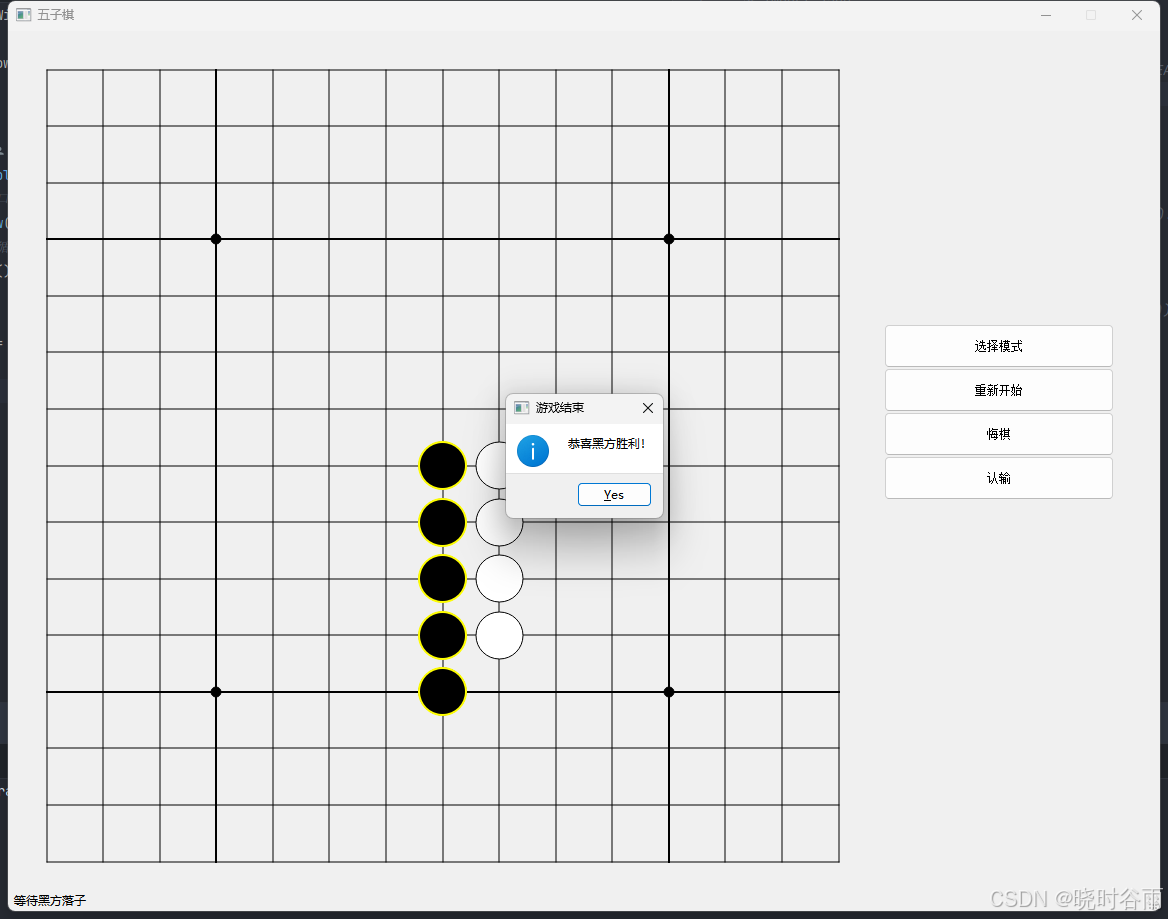

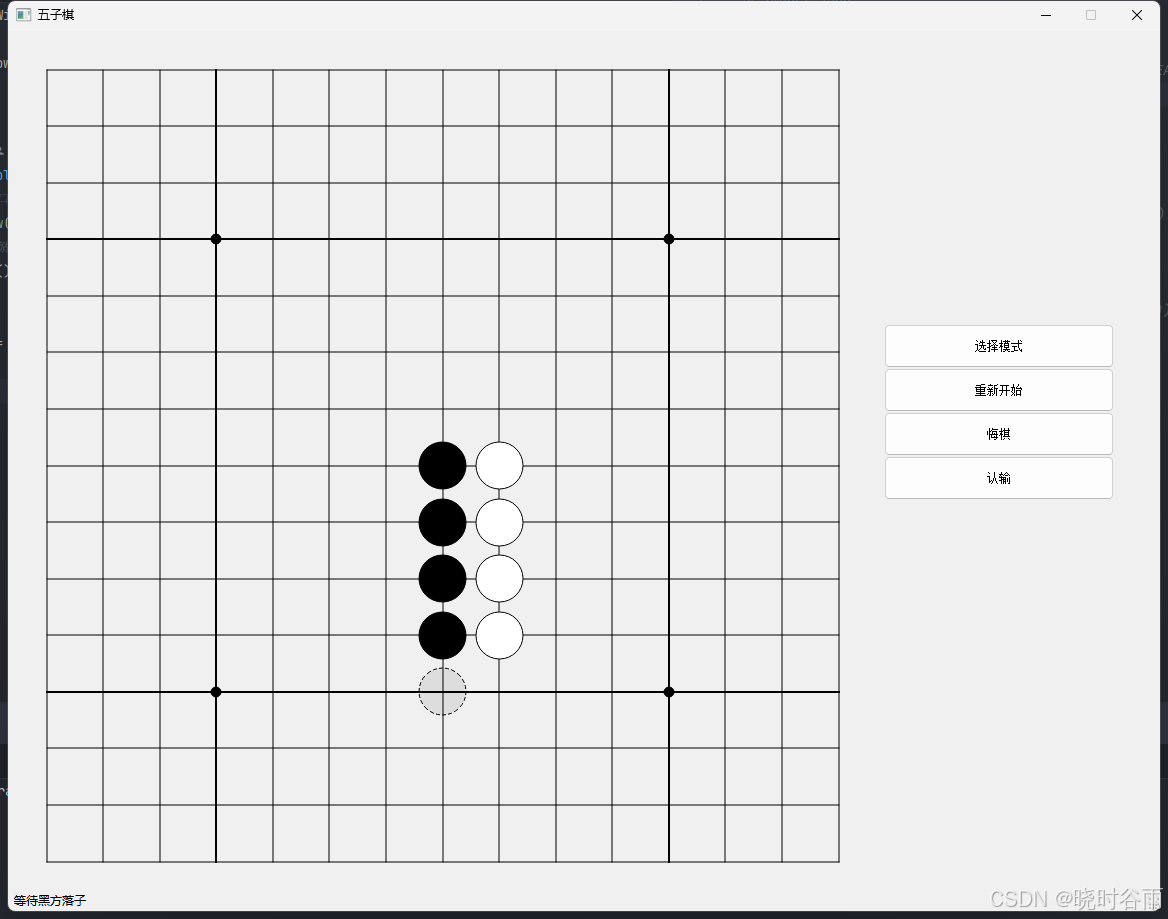

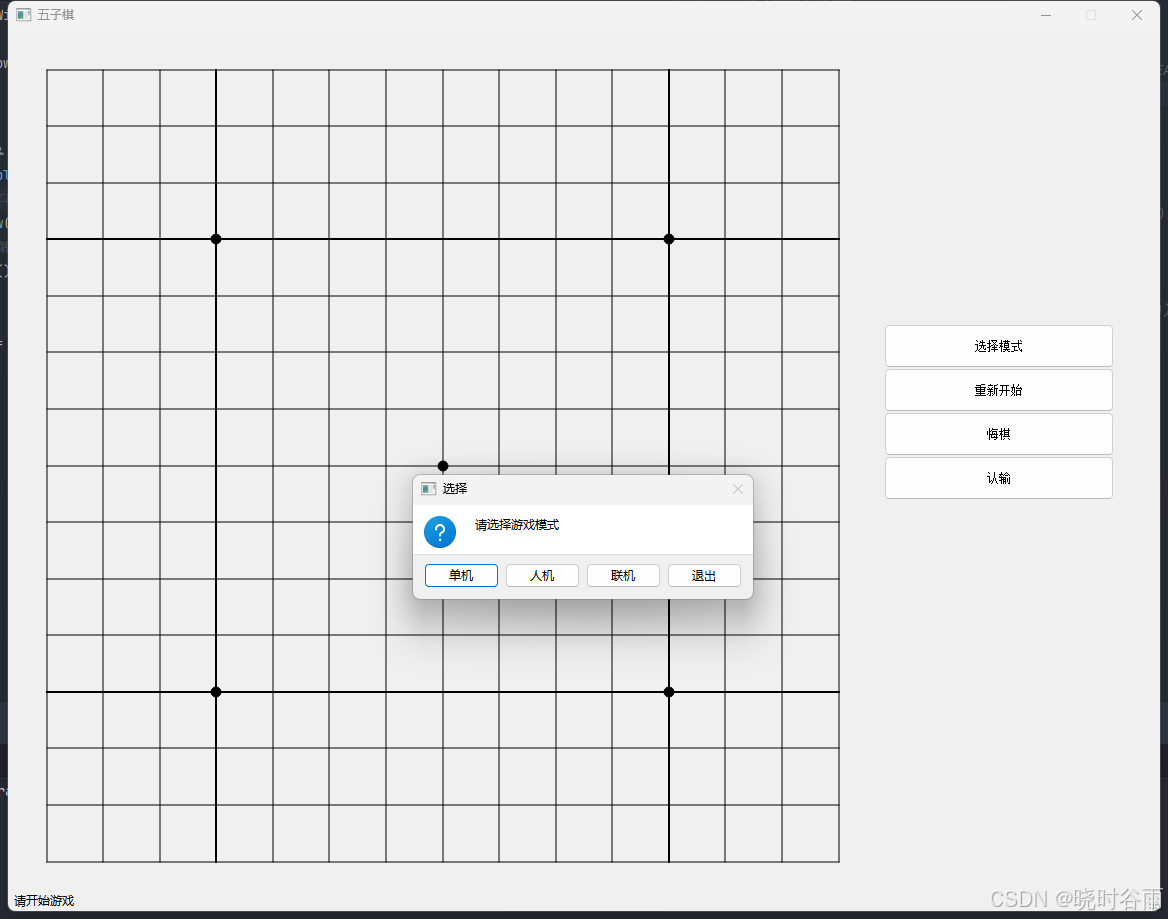

效果图和功能

部分效果图，其余功能大家自行探索。

在这里插入图片描述

单机模式：两人面对面游玩。
人机模式：挑战若智人机。
联机模式：局域网联机。
重开、悔棋、认输等基础操作。

项目结构

main.py —— 启动程序
MainWindow.py —— 主窗口
UserInterface.py —— 用户界面绘制
ButtonFunction.py —— 按钮相关函数
MouseFunction.py —— 鼠标相关函数
ProduceResult.py —— 判断对局结果
AIAlgorithm.py —— 人机对战
OnlineFunction.py —— 联机对战

源代码

main.py —— 启动程序

from PyQt5.QtWidgets import QApplication

from MainWindow import MainWindow


def main():
    app = QApplication([])
    # 创建主窗口
    MainWindow()
    # 进入事件循环
    app.exec_()


if __name__ == "__main__":
    main()

MainWindow.py —— 主窗口

import socket

from PyQt5.QtWidgets import QMainWindow, QWidget, QApplication

from ButtonFunction import initButton, selectMode
from MouseFunction import containerMouseClicked, containerMouseMove
from UserInterface import initUI, drawChessboard


# 主窗口
class MainWindow(QMainWindow):
    def __init__(self, parent=None):
        super(MainWindow, self).__init__(parent)
        # 获取桌面尺寸
        self.desktop = QApplication.desktop()
        self.screen_rect = self.desktop.screenGeometry()
        # 设置主窗口比例
        self.main_width = int(self.screen_rect.width() * 0.45)
        self.main_height = int(self.screen_rect.height() * 0.55)
        # 设置主窗口位置
        self.main_move_x = (self.screen_rect.width() - self.main_width) // 2
        self.main_move_y = (self.screen_rect.height() - self.main_width) // 2
        # 状态栏
        self.status = self.statusBar()

        # 整体容器
        self.container = QWidget(self)
        # 重写鼠标点击事件
        self.container.mousePressEvent = self.containerMousePressEvent
        # 开启鼠标跟踪
        self.container.setMouseTracking(True)
        # 重新鼠标移入事件
        self.container.mouseMoveEvent = self.containerMouseMoveEvent

        # 正方形棋盘位置大小
        self.chessboard = 15
        self.chessboard_size = int(self.main_height * 0.9)
        self.chessboard_move = int(self.chessboard_size - self.chessboard_size * 0.95)
        self.chessboard_size_move = self.chessboard_size + self.chessboard_move
        # 正方形网格间距
        self.grid_size = self.chessboard_size / (self.chessboard - 1)

        # 按钮大小
        self.button_width = int(self.main_width * 0.2)
        self.button_height = int(self.main_height * 0.05)
        # 按钮位置
        self.button_x = self.chessboard_size_move + (
                (self.main_width - self.chessboard_size_move) / 2 - self.button_width / 2)
        self.button_y = self.main_height / 3

        # 棋子坐标
        self.chess_coord = []
        # 棋子颜色
        self.chess_color = True
        # 棋子大小
        self.chess_size = self.grid_size / 1.2
        # 预要落子的坐标
        self.advance_chess_coord = {}

        # 游戏模式 0：单机 1：人机 2：联机
        self.game_mode = 0

        # 服务端IP
        self.server_ip = ''
        # 服务端口
        self.server_port = 8080
        # TCP/IP服务器
        self.tcp_server = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
        # TCP/IP的socket
        self.tcp_socket = None

        # 在线对战 棋手 颜色
        self.chess_color_online = None
        self.player_ready = False

        # 初始化UI
        initUI(self)
        # 初始化按钮
        initButton(self)
        self.show()
        # 选择游戏模式
        selectMode(self)

    # 重写绘图事件
    def paintEvent(self, event):
        drawChessboard(self)

    # 重写container的鼠标点击事件
    def containerMousePressEvent(self, event):
        containerMouseClicked(self, event)

    # 重写container的鼠标移入事件
    def containerMouseMoveEvent(self, event):
        containerMouseMove(self, event)

UserInterface.py —— 用户界面绘制

from PyQt5.QtCore import Qt
from PyQt5.QtGui import QPen, QColor, QBrush, QPainter


# 初始化UI
def initUI(self):
    # 主窗口大小
    self.resize(self.main_width, self.main_height)
    # 固定主窗口大小
    self.setFixedSize(self.width(), self.height())
    # 主窗口居中
    self.move(self.main_move_x, self.main_move_y)
    # 状态栏和标题
    self.status.showMessage('请开始游戏')
    self.setWindowTitle('五子棋')
    # 创建容器
    self.setCentralWidget(self.container)


# 绘制棋盘
def drawChessboard(self):
    painter = QPainter(self)
    # 使用抗锯齿
    painter.setRenderHint(QPainter.Antialiasing)
    painter.setRenderHint(QPainter.HighQualityAntialiasing)
    # 设置画笔
    painter.setPen(QPen(QColor("black")))
    # 设置画刷
    painter.setBrush(QBrush(QColor("black")))

    # 绘制方格线
    for i in range(15):
        # 设置线的粗细
        pen = QPen(QColor("black"), 2) if i == 3 or i == 11 else QPen(QColor("black"), 1)
        painter.setPen(pen)
        # 纵向线
        painter.drawLine(self.grid_size * i + self.chessboard_move,
                         self.chessboard_move,
                         self.grid_size * i + self.chessboard_move,
                         self.chessboard_size_move)
        # 横向线
        painter.drawLine(self.chessboard_move,
                         self.grid_size * i + self.chessboard_move,
                         self.chessboard_size_move,
                         self.grid_size * i + self.chessboard_move)

    # 绘制四个点
    dot_move1 = self.grid_size * 3
    dot_move2 = self.grid_size * 11
    dot_move3 = self.grid_size * 7
    dot_size = 10
    points = [(dot_move1, dot_move1),
              (dot_move2, dot_move1),
              (dot_move2, dot_move2),
              (dot_move1, dot_move2),
              (dot_move3, dot_move3)]
    for x, y in points:
        x += self.chessboard_move - dot_size / 2
        y += self.chessboard_move - dot_size / 2
        painter.drawEllipse(x, y, dot_size, dot_size)

    # 绘制预落子
    if self.advance_chess_coord:
        drawChess(self, painter, self.advance_chess_coord)

    # 绘制棋子
    for coord in self.chess_coord:
        drawChess(self, painter, coord)


# 绘制棋子
def drawChess(self, painter, coord):
    # 普通棋子
    brush = QBrush(QColor("black")) if coord.get('color', True) else QBrush(QColor("white"))
    # 胜利后棋子
    pen = QPen(QColor("yellow"), 2) if coord.get('outline', False) else QPen(QColor("black"), 1)
    # 预落下棋子
    if coord.get('calculate', False):
        brush = QBrush(QColor(0, 0, 0, 20))
        pen.setStyle(Qt.DashLine)

    painter.setBrush(brush)
    painter.setPen(pen)

    painter.drawEllipse(coord['x'] * self.grid_size + self.chessboard_move - self.chess_size / 2,
                        coord['y'] * self.grid_size + self.chessboard_move - self.chess_size / 2,
                        self.chess_size,
                        self.chess_size)

ButtonFunction.py —— 按钮相关函数

from functools import partial

from PyQt5.QtWidgets import QPushButton, QMessageBox

from AIAlgorithm import selectSquads
from OnlineFunction import selectSide


# 初始化按钮
def initButton(self):
    buttons = [
        {
            'text': '选择模式',
            'clicked': partial(selectMode, self)
        },
        {
            'text': '重新开始',
            'clicked': partial(startGame, self)
        },
        {
            'text': '悔棋',
            'clicked': partial(regret, self)
        },
        {
            'text': '认输',
            'clicked': partial(giveUp, self)
        }]

    for i, info in enumerate(buttons):
        button = QPushButton(self.container)
        button.setText(info['text'])
        button.setGeometry(self.button_x, self.button_y + self.button_height * i, self.button_width,
                           self.button_height)
        button.clicked.connect(partial(info['clicked']))


# 选择模式
def selectMode(self):
    msg = QMessageBox(QMessageBox.Question, "选择", "请选择游戏模式")
    msg.addButton(self.tr("单机"), QMessageBox.AcceptRole)
    msg.addButton(self.tr("人机"), QMessageBox.AcceptRole)
    msg.addButton(self.tr("联机"), QMessageBox.AcceptRole)
    exit_button = msg.addButton(self.tr("退出"), QMessageBox.AcceptRole)
    self.game_mode = msg.exec_()
    if msg.clickedButton() == exit_button:
        exit()
    startGame(self)
    if self.game_mode == 2:
        selectSide(self)


# 开始游戏
def startGame(self):
    self.chess_coord = []
    self.chess_color = True
    self.status.showMessage("等待黑方落子")
    self.update()
    if self.game_mode == 1:
        selectSquads(self)


# 悔棋
def regret(self):
    if len(self.chess_coord) > 0:
        self.chess_coord.pop()
        if self.game_mode == 1 and len(self.chess_coord) > 0:
            self.chess_coord.pop()
        self.update()


# 认输
def giveUp(self):
    QMessageBox.information(self, "游戏结束",
                            f"{'黑方' if self.chess_color else '白方'}认输，恭喜{'黑方' if not self.chess_color else '白方'}胜利！",
                            QMessageBox.Yes, QMessageBox.Yes)
    startGame(self)

MouseFunction.py —— 鼠标相关函数

import json

import numpy as np

from AIAlgorithm import aiGame
from ProduceResult import checkWin


# 计算棋子坐标
def calculateCoord(self, event):
    x = event.pos().x()
    y = event.pos().y()
    # 限制点击区域
    if x < self.chessboard_move - 10 or \
            x > self.chessboard_size_move + 10 or \
            y < self.chessboard_move - 10 \
            or y > self.chessboard_size_move + 10:
        return False
    # 计算落子位置
    x = np.round((x - self.chessboard_move) / self.grid_size)
    y = np.round((y - self.chessboard_move) / self.grid_size)

    # 判断位置上是否已有棋子
    if any(coord['x'] == x and coord['y'] == y for coord in self.chess_coord):
        return False

    return {'x': x, 'y': y, 'color': self.chess_color}


# 重写后的container鼠标点击事件
def containerMouseClicked(self, event):
    if self.game_mode == 2 and not self.player_ready:
        return
    if self.chess_color != self.chess_color_online and self.chess_color_online is not None:
        return
    coord = calculateCoord(self, event)
    if coord:
        # 将棋子坐标添加到列表中
        self.chess_coord.append(coord)
        if self.game_mode == 2:
            self.tcp_socket.sendall(json.dumps(coord).encode('utf-8'))
        render(self)


# 渲染当前棋子布局
def render(self):
    # 重绘
    self.update()
    # 判断是否胜利
    if checkWin(self):
        return
    # 切换颜色
    self.chess_color = not self.chess_color
    self.status.showMessage(f"等待{'黑方' if self.chess_color else '白方'}落子")
    # 判断是否是人机模式
    if self.game_mode == 1:
        # AI行动
        aiGame(self)
        # 判断是否胜利
        if checkWin(self):
            return
    # 重绘
    self.update()


# 重写后的container鼠标移动事件
def containerMouseMove(self, event):
    if self.game_mode == 2 and not self.player_ready:
        return
    if self.chess_color != self.chess_color_online and self.chess_color_online is not None:
        self.advance_chess_coord = None
        self.update()
        return
    coord = calculateCoord(self, event)
    if coord:
        coord['calculate'] = True
        # 将棋子坐标添加到列表中
        self.advance_chess_coord = coord
        self.update()

ProduceResult.py —— 判断对局结果

from itertools import product
from PyQt5.QtWidgets import QMessageBox

from ButtonFunction import startGame


# 判断是否胜利
def checkWin(self):
    # 判断是否五子连珠
    linking_coords = checkLink(self)
    if linking_coords:
        color = linking_coords[-1]['color']
        QMessageBox.information(self, "游戏结束", f"恭喜{'黑方' if color else '白方'}胜利！",
                                QMessageBox.Yes, QMessageBox.Yes)
        startGame(self)
        return True
    # 判断棋盘空间是否已满
    if len(self.chess_coord) == 225:
        QMessageBox.information(self, "游戏结束", f"棋盘已满，平局结束！",
                                QMessageBox.Yes, QMessageBox.Yes)
        startGame(self)
        return True
    return False


# 计算连接数
def checkLink(self):
    if not self.chess_coord:
        return False
    last_coord = self.chess_coord[-1]
    directions = [
        (1, 0),  # 垂直方向
        (0, 1),  # 水平方向
        (1, 1),  # 右对角线
        (-1, 1)  # 左对角线
    ]

    for direction, method in product(directions, range(5)):
        linking_coords = []
        for i in range(5):
            new_coord = {
                'x': last_coord['x'] + direction[0] * (i - method),
                'y': last_coord['y'] + direction[1] * (i - method),
                'color': last_coord['color']
            }
            if new_coord in self.chess_coord:
                new_coord['outline'] = True
                linking_coords.append(new_coord)

        if len(linking_coords) == 5:
            self.chess_coord.extend(linking_coords)
            self.update()
            return linking_coords

    return False

AIAlgorithm.py —— 人机对战

from random import choice

import numpy as np
from PyQt5.QtWidgets import QMessageBox


# 选择阵容
def selectSquads(self):
    msg_squads = QMessageBox(QMessageBox.Question, "选择", "请选择您的阵容")
    msg_squads.addButton(self.tr("黑子"), QMessageBox.AcceptRole)
    white = msg_squads.addButton(self.tr("白子"), QMessageBox.AcceptRole)
    msg_squads.exec_()
    # 玩家选择白方，则人机执黑先行
    if msg_squads.clickedButton() == white:
        aiGame(self)


# 人机对战AI算法
def aiGame(self):
    ai_coord = strategy(self)
    self.chess_coord.append({'x': ai_coord[0], 'y': ai_coord[1], 'color': self.chess_color})
    # 切换颜色
    self.chess_color = not self.chess_color
    self.status.showMessage(f"等待{'黑方' if self.chess_color else '白方'}落子")


# 开始计算
def strategy(self):
    # 将黑白坐标拆分 ([白方坐标],[黑方坐标])
    board = ([], [])
    for coord in self.chess_coord:
        if coord['color']:
            board[0].append((coord['x'], coord['y']))
        else:
            board[1].append((coord['x'], coord['y']))

    # 将坐标转换成二维数组 1: 我方 -1: 敌方 0: 空位
    table = np.zeros([self.chessboard, self.chessboard])
    for i in range(self.chessboard):
        for j in range(self.chessboard):
            if self.chess_color:
                if (i, j) in board[0]:
                    table[i, j] = -1
                elif (i, j) in board[1]:
                    table[i, j] = 1
            else:
                if (i, j) in board[0]:
                    table[i, j] = 1
                elif (i, j) in board[1]:
                    table[i, j] = -1

    # 判断自己是否先手
    if len(board[0]) == 0 and len(board[1]) == 0:
        return 7, 7
    else:
        score_table = {}
        for i in range(self.chessboard):
            for j in range(self.chessboard):
                if table[i, j] == 0:
                    table[i, j] = 1
                    score_table[(i, j)] = heuristic(self, table)
                    table[i, j] = 0
        self_position = randomChoose(score_table)
        return self_position[0], self_position[1]


# 计分规则
def score(five_tuple):
    if len(five_tuple) != 5:
        print("ERROR")
        return None
    if 1 in five_tuple and -1 in five_tuple:
        return 0
    elif sum(five_tuple) == 0:
        return 7
    elif sum(five_tuple) == -1:
        return -35
    elif sum(five_tuple) == -2:
        return -800
    elif sum(five_tuple) == -3:
        return -15000
    elif sum(five_tuple) == -4:
        return -800000
    elif sum(five_tuple) == -5:
        return -10000000
    elif sum(five_tuple) == 5:
        return 10000000
    elif sum(five_tuple) == 1:
        return 15
    elif sum(five_tuple) == 2:
        return 400
    elif sum(five_tuple) == 3:
        return 1800
    elif sum(five_tuple) == 4:
        return 100000


# 计分
def heuristic(self, table):
    sum_score = 0
    for i in range(self.chessboard):
        for j in range(self.chessboard):
            if j + 4 < self.chessboard:
                sum_score += score(tuple(table[i, j:j + 5]))
            if i + 4 < self.chessboard:
                sum_score += score(tuple(table[i:i + 5, j]))
            if i + 4 < self.chessboard and j + 4 < self.chessboard:
                five_tuple = []
                for k in range(5):
                    five_tuple.append(table[i + k, j + k])
                sum_score += score(tuple(five_tuple))
            if i + 4 < self.chessboard and j - 4 >= 0:
                five_tuple = []
                for k in range(5):
                    five_tuple.append(table[i + k, j - k])
                sum_score += score(tuple(five_tuple))
    return sum_score


# 选择最高分位置
def randomChoose(score_table):
    max_value = max(score_table.items(), key=lambda x: x[1])[1]
    positions = []
    for item in score_table.items():
        if item[1] == max_value:
            positions.append(item[0])
    return choice(positions)

OnlineFunction.py —— 联机对战

import json
import socket
import threading
from functools import partial

import pyperclip
from PyQt5.QtWidgets import QMessageBox, QInputDialog


# 选择服务端或客户端
def selectSide(self):
    msg_side = QMessageBox(QMessageBox.Question, "选择", "请选择创建或进入房间")
    server_button = msg_side.addButton(self.tr("创建房间"), QMessageBox.AcceptRole)
    client_button = msg_side.addButton(self.tr("进入房间"), QMessageBox.AcceptRole)
    msg_side.exec_()
    if msg_side.clickedButton() == server_button:
        checkNetwork(self)
        extractIp(self)
        server(self)
    elif msg_side.clickedButton() == client_button:
        checkNetwork(self)
        client(self)


# 检查网络连接
def checkNetwork(self):
    try:
        # 超时时间
        socket.socket(socket.AF_INET, socket.SOCK_STREAM).connect(('www.baidu.com', 80))
    except socket.error as ex:
        QMessageBox.critical(self, "网络连接异常", "当前网络不可用，请检查您的网络状态\n" + str(ex))
        selectSide(self)


# 获取IP地址
def extractIp(self):
    st = socket.socket(socket.AF_INET, socket.SOCK_DGRAM)
    st.connect(('10.255.255.255', 1))
    self.server_ip = st.getsockname()[0]
    pyperclip.copy(self.server_ip)
    QMessageBox.information(self, "房间信息", "IP：" + self.server_ip + "，已复制到剪贴板")


# 服务端
def server(self):
    # 绑定IP端口
    self.tcp_server.bind((self.server_ip, self.server_port))
    # 可设置最大连接数
    self.tcp_server.listen()
    threading.Thread(target=partial(startServerListen, self)).start()


# 服务端监听线程
def startServerListen(self):
    while True:
        try:
            self.status.showMessage('房间创建成功, 等待对方加入...')
            self.tcp_socket, address = self.tcp_server.accept()
            threading.Thread(target=partial(receiveData, self)).start()
            self.player_ready = True
            self.chess_color_online = True
            self.status.showMessage('对方已加入, 可以开始游戏')
        except:
            break


# 客户端
def client(self):
    self.tcp_socket = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
    text, ok = QInputDialog.getText(None, "输入框", "请输入房间IP：")
    if ok and text != '':
        print("你输入的内容是：", text)
        self.server_ip = text
    else:
        print("用户取消了输入或没有输入内容")
        return selectSide(self)

    try:
        self.tcp_socket.connect((self.server_ip, self.server_port))
    except socket.error as e:
        QMessageBox.critical(self, "网络连接异常", "无法连接到服务器，请检查IP地址是否正确\n" + str(e))
        selectSide(self)

    threading.Thread(target=partial(receiveData, self)).start()
    self.player_ready = True
    self.chess_color_online = False
    self.status.showMessage('您已经加入房间, 请等待房主开始游戏')


# 接收数据
def receiveData(self):
    from MouseFunction import render
    while True:
        try:
            data = self.tcp_socket.recv(1024)
            if data:
                self.chess_coord.append(json.loads(data.decode('utf-8')))
            else:
                break
        except socket.timeout:
            print("接收数据超时，正在重试...")
            continue
        except Exception as e:
            print(f"接收数据时发生错误：{e}")
            break
        render(self)

结束语

随着这篇文章的收尾，我的Python版五子棋项目也暂告一段落。虽然项目不大，但它不仅是对我编程技能的一次小小挑战，更是对过往编程经历的一次深刻反思与成长。从Java到Python，不仅是编程语言的转换，更是编程思维与习惯的革新。未来，我将继续在这条编程之路上探索前行，不断学习新知识，挑战新高度，用代码编织出更加丰富多彩的数字世界。感谢每一位读者的陪伴与支持，期待与你们在编程的海洋里再次相遇，共同书写属于我们的精彩篇章。

同学们按照目录复制到对应的文件中，运行main即可启动，如果不想复制，或复制后无法运行，可以私聊我获取项目仓库地址，以拉取完整项目。

联机模式目前只完成了棋子的同步，后续功能将更新在仓库中。
