flink 学习（十四）Process Function

---

前言

process function是flink中的低阶流处理算子，它的几个概念：

event：数据流中数据
state：容错和一致性状态
timers：基于事件时间或处理时间的定时器

示例

统计每秒钟key出现的次数，打印出每秒的key和count。

1.数据

 public class CountWithTimestamp {

        public String key;
        public long count;
        public long lastModified;
    }

2.示例方法

    @Test
    public void KeyedProcessFunctionTest() throws Exception {
        final StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        env.setRuntimeMode(RuntimeExecutionMode.STREAMING)
                .setParallelism(1);

        env.socketTextStream("172.16.10.159", 8888)
                .map(new MapFunction<String, Tuple2<String, Integer>>() {
                    @Override
                    public Tuple2<String, Integer> map(String value) throws Exception {
                        String[] s = value.split(",");
                        return new Tuple2<>(s[0], Integer.parseInt(s[1]));
                    }
                })
                .assignTimestampsAndWatermarks(WatermarkStrategy.<Tuple2<String, Integer>>forMonotonousTimestamps().withTimestampAssigner((element, recordTimestamp) -> element.f1))
                .keyBy(new KeySelector<Tuple2<String, Integer>, String>() {
                    @Override
                    public String getKey(Tuple2<String, Integer> value) throws Exception {
                        return value.f0;
                    }
                })
                .process(new KeyedProcessFunction<String, Tuple2<String, Integer>, Tuple2<String, Long>>() {
                    private ValueState<CountWithTimestamp> state;

                    @Override
                    public void open(Configuration parameters) throws Exception {
                        state = getRuntimeContext().getState(new ValueStateDescriptor<>("state", CountWithTimestamp.class));
                    }

                    @Override
                    public void processElement(Tuple2<String, Integer> value, Context ctx, Collector<Tuple2<String, Long>> out) throws Exception {
                        CountWithTimestamp current = state.value();
                        if (current == null) {
                            current = new CountWithTimestamp();
                            current.key = value.f0;

                        }
                        //统计key出现的次数
                        current.count++;
                        //更新时间戳
                        current.lastModified = ctx.timestamp();
                        //更新窗口状态
                        state.update(current);
                        //注册定时器，每秒统计一次次数
                        ctx.timerService().registerEventTimeTimer(current.lastModified / 1000 * 1000 + 1000);
                    }

                    @Override
                    public void onTimer(long timestamp, OnTimerContext ctx, Collector<Tuple2<String, Long>> out) throws Exception {
                        CountWithTimestamp result = state.value();
                        if (result.lastModified > timestamp) {
                            out.collect(new Tuple2<String, Long>(result.key, result.count - 1));
                            //重置计数为1
                            result.count = 1;
                        } else {
                            out.collect(new Tuple2<String, Long>(result.key, result.count));
                            //重置计数为1
                            result.count = 0;
                        }
                        state.update(result);
                    }
                })
                .print("KeyedProcessFunction");
        env.execute("KeyedProcessFunctionTest");
    }

3.测试

开启nc

 nc -lp 8888

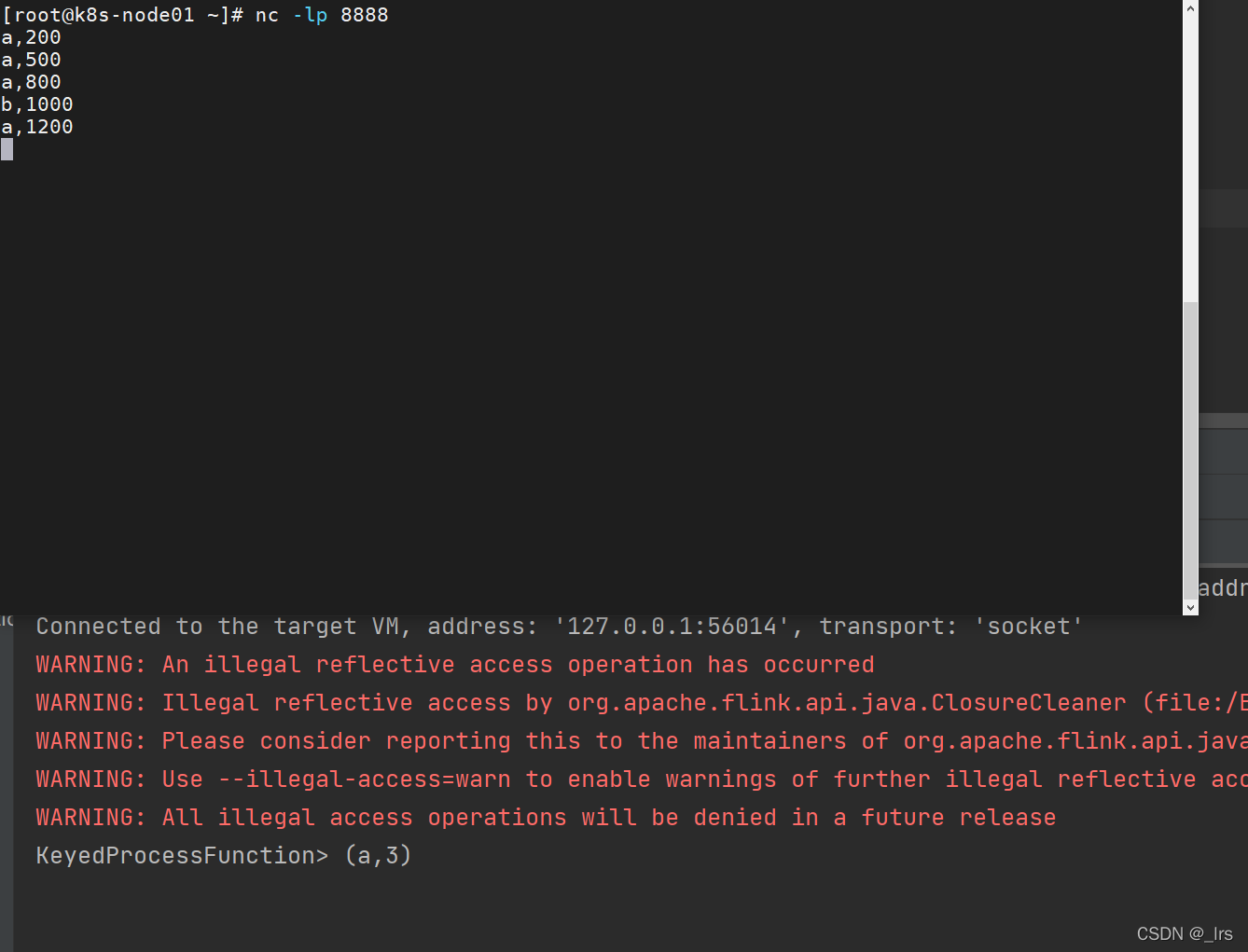

输入数据，在第一个1s窗口内，a出现了三次

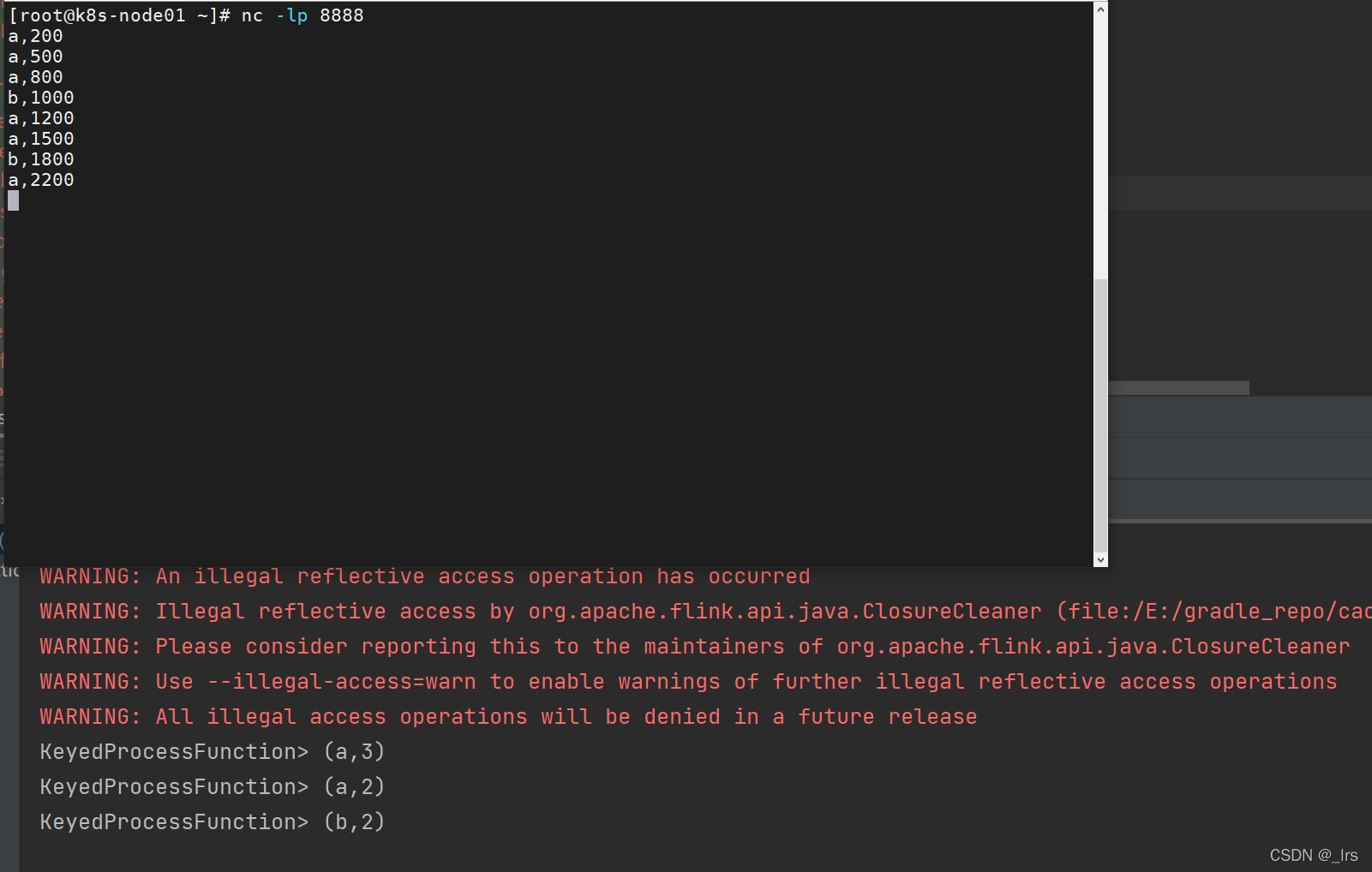

在第2s内，a出现了2次，b出现了2次
