在Kubernetes上最小化安装KubeSphere

前言：本文案例：安装KubeSphere v3.1.1

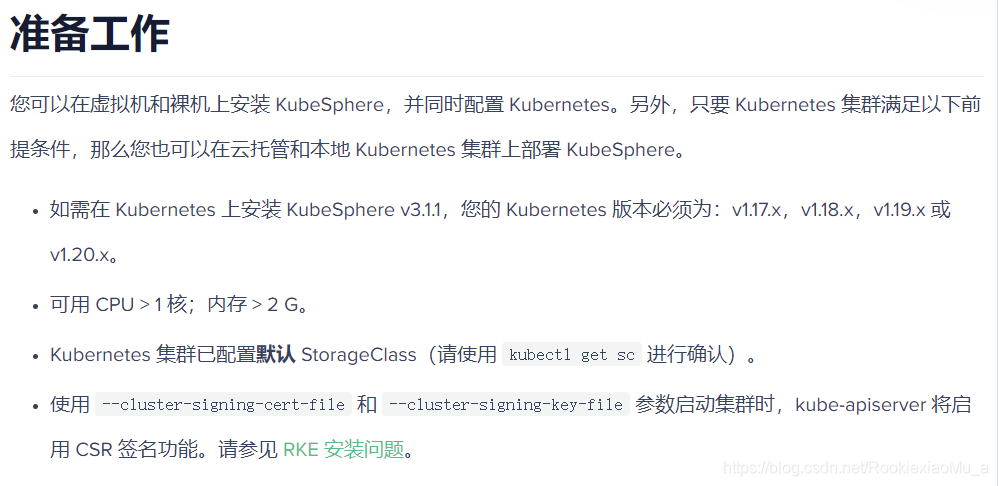

首先，安装KubeSphere是有先决条件的:

1. kubernetes集群版本若是不满足，那只能安装其他版本的KubeSphere了，或者升级k8sjiqun版本
2. 机器可用CPU > 1核；内存 > 2G
3. Kubernetes 集群已配置默认 StorageClass（请使用 kubectl get sc 进行确认）
4. 不用理会

这里主要说一下第三点：Kubernetes 集群已配置默认 StorageClass

在master节点输入命令：

--
kubectl get sc

若是出现，则表示已经配置了，若是没有配置，请接着往下看。

1. 确认 master 节点是否有 Taint，如下看到 master 节点有 Taint。

$ kubectl describe node k8s-master | grep Taint
Taints:             node-role.kubernetes.io/master:NoSchedule

2. 去掉 master 节点的 Taint：

$ kubectl taint nodes k8s-master node-role.kubernetes.io/master:NoSchedule-

k8s-master：master节点主机名

3. 安装 OpenEBS

创建 OpenEBS 的 namespace，OpenEBS 相关资源将创建在这个 namespace 下：

$ kubectl create ns openebs

安装OpenEBS官网文档（v2.1X）给定两种方案：
A. 若集群已安装了 Helm，可通过 Helm 命令来安装 OpenEBS：

helm init

helm install --namespace openebs --name openebs stable/openebs --version 1.5.0

B. 除此之外 还可以通过 kubectl 命令安装：

$ kubectl apply -f https://openebs.github.io/charts/openebs-operator-1.5.0.yaml

因为我的k8s集群已经安装了kubectl，所以我们使用第二种方法。

但是在输入上面的命令却并不会安装成功，因为https://openebs.github.io/charts/openebs-operator-1.5.0.yaml这个链接已经无效了。

编辑文件：openebs-operator.yaml

vi openebs-operator.yaml

将以下内容复制进去并保存：

#
#                             DEPRECATION NOTICE
#    This operator file is deprecated in 2.11.0 in favour of individual operators
#       for each storage engine and the file will be removed in version 3.0.0
#
# Further specific components can be deploy using there individual operator yamls
#
# To deploy cStor:
# https://github.com/openebs/charts/blob/gh-pages/cstor-operator.yaml
#
# To deploy Jiva:
# https://github.com/openebs/charts/blob/gh-pages/jiva-operator.yaml
#
# To deploy Dynamic hostpath localpv provisioner:
# https://github.com/openebs/charts/blob/gh-pages/hostpath-operator.yaml
#
#
# This manifest deploys the OpenEBS control plane components, with associated CRs & RBAC rules
# NOTE: On GKE, deploy the openebs-operator.yaml in admin context

# Create the OpenEBS namespace
apiVersion: v1
kind: Namespace
metadata:
  name: openebs
---
# Create Maya Service Account
apiVersion: v1
kind: ServiceAccount
metadata:
  name: openebs-maya-operator
  namespace: openebs
---
# Define Role that allows operations on K8s pods/deployments
kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: openebs-maya-operator
rules:
- apiGroups: ["*"]
  resources: ["nodes", "nodes/proxy"]
  verbs: ["*"]
- apiGroups: ["*"]
  resources: ["namespaces", "services", "pods", "pods/exec", "deployments", "deployments/finalizers", "replicationcontrollers", "replicasets", "events", "endpoints", "configmaps", "secrets", "jobs", "cronjobs"]
  verbs: ["*"]
- apiGroups: ["*"]
  resources: ["statefulsets", "daemonsets"]
  verbs: ["*"]
- apiGroups: ["*"]
  resources: ["resourcequotas", "limitranges"]
  verbs: ["list", "watch"]
- apiGroups: ["*"]
  resources: ["ingresses", "horizontalpodautoscalers", "verticalpodautoscalers", "certificatesigningrequests"]
  verbs: ["list", "watch"]
- apiGroups: ["*"]
  resources: ["storageclasses", "persistentvolumeclaims", "persistentvolumes"]
  verbs: ["*"]
- apiGroups: ["volumesnapshot.external-storage.k8s.io"]
  resources: ["volumesnapshots", "volumesnapshotdatas"]
  verbs: ["get", "list", "watch", "create", "update", "patch", "delete"]
- apiGroups: ["apiextensions.k8s.io"]
  resources: ["customresourcedefinitions"]
  verbs: [ "get", "list", "create", "update", "delete", "patch"]
- apiGroups: ["openebs.io"]
  resources: [ "*"]
  verbs: ["*" ]
- apiGroups: ["cstor.openebs.io"]
  resources: [ "*"]
  verbs: ["*" ]
- apiGroups: ["coordination.k8s.io"]
  resources: ["leases"]
  verbs: ["get", "watch", "list", "delete", "update", "create"]
- apiGroups: ["admissionregistration.k8s.io"]
  resources: ["validatingwebhookconfigurations", "mutatingwebhookconfigurations"]
  verbs: ["get", "create", "list", "delete", "update", "patch"]
- nonResourceURLs: ["/metrics"]
  verbs: ["get"]
- apiGroups: ["*"]
  resources: ["poddisruptionbudgets"]
  verbs: ["get", "list", "create", "delete", "watch"]
---
# Bind the Service Account with the Role Privileges.
# TODO: Check if default account also needs to be there
kind: ClusterRoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: openebs-maya-operator
subjects:
- kind: ServiceAccount
  name: openebs-maya-operator
  namespace: openebs
roleRef:
  kind: ClusterRole
  name: openebs-maya-operator
  apiGroup: rbac.authorization.k8s.io
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: maya-apiserver
  namespace: openebs
  labels:
    name: maya-apiserver
    openebs.io/component-name: maya-apiserver
    openebs.io/version: 2.12.0
spec:
  selector:
    matchLabels:
      name: maya-apiserver
      openebs.io/component-name: maya-apiserver
  replicas: 1
  strategy:
    type: Recreate
    rollingUpdate: null
  template:
    metadata:
      labels:
        name: maya-apiserver
        openebs.io/component-name: maya-apiserver
        openebs.io/version: 2.12.0
    spec:
      serviceAccountName: openebs-maya-operator
      containers:
      - name: maya-apiserver
        imagePullPolicy: IfNotPresent
        image: openebs/m-apiserver:2.12.0
        ports:
        - containerPort: 5656
        env:
        # OPENEBS_IO_KUBE_CONFIG enables maya api service to connect to K8s
        # based on this config. This is ignored if empty.
        # This is supported for maya api server version 0.5.2 onwards
        #- name: OPENEBS_IO_KUBE_CONFIG
        #  value: "/home/ubuntu/.kube/config"
        # OPENEBS_IO_K8S_MASTER enables maya api service to connect to K8s
        # based on this address. This is ignored if empty.
        # This is supported for maya api server version 0.5.2 onwards
        #- name: OPENEBS_IO_K8S_MASTER
        #  value: "http://172.28.128.3:8080"
        # OPENEBS_NAMESPACE provides the namespace of this deployment as an
        # environment variable
        - name: OPENEBS_NAMESPACE
          valueFrom:
            fieldRef:
              fieldPath: metadata.namespace
        # OPENEBS_SERVICE_ACCOUNT provides the service account of this pod as
        # environment variable
        - name: OPENEBS_SERVICE_ACCOUNT
          valueFrom:
            fieldRef:
              fieldPath: spec.serviceAccountName
        # OPENEBS_MAYA_POD_NAME provides the name of this pod as
        # environment variable
        - name: OPENEBS_MAYA_POD_NAME
          valueFrom:
            fieldRef:
              fieldPath: metadata.name
        # If OPENEBS_IO_CREATE_DEFAULT_STORAGE_CONFIG is false then OpenEBS default
        # storageclass and storagepool will not be created.
        - name: OPENEBS_IO_CREATE_DEFAULT_STORAGE_CONFIG
          value: "true"
        # OPENEBS_IO_INSTALL_DEFAULT_CSTOR_SPARSE_POOL decides whether default cstor sparse pool should be
        # configured as a part of openebs installation.
        # If "true" a default cstor sparse pool will be configured, if "false" it will not be configured.
        # This value takes effect only if OPENEBS_IO_CREATE_DEFAULT_STORAGE_CONFIG
        # is set to true
        - name: OPENEBS_IO_INSTALL_DEFAULT_CSTOR_SPARSE_POOL
          value: "false"
        # OPENEBS_IO_INSTALL_CRD environment variable is used to enable/disable CRD installation
        # from Maya API server. By default the CRDs will be installed
        # - name: OPENEBS_IO_INSTALL_CRD
        #   value: "true"
        # OPENEBS_IO_BASE_DIR is used to configure base directory for openebs on host path.
        # Where OpenEBS can store required files. Default base path will be /var/openebs
        # - name: OPENEBS_IO_BASE_DIR
        #   value: "/var/openebs"
        # OPENEBS_IO_CSTOR_TARGET_DIR can be used to specify the hostpath
        # to be used for saving the shared content between the side cars
        # of cstor volume pod.
        # The default path used is /var/openebs/sparse
        #- name: OPENEBS_IO_CSTOR_TARGET_DIR
        #  value: "/var/openebs/sparse"
        # OPENEBS_IO_CSTOR_POOL_SPARSE_DIR can be used to specify the hostpath
        # to be used for saving the shared content between the side cars
        # of cstor pool pod. This ENV is also used to indicate the location
        # of the sparse devices.
        # The default path used is /var/openebs/sparse
        #- name: OPENEBS_IO_CSTOR_POOL_SPARSE_DIR
        #  value: "/var/openebs/sparse"
        # OPENEBS_IO_JIVA_POOL_DIR can be used to specify the hostpath
        # to be used for default Jiva StoragePool loaded by OpenEBS
        # The default path used is /var/openebs
        # This value takes effect only if OPENEBS_IO_CREATE_DEFAULT_STORAGE_CONFIG
        # is set to true
        #- name: OPENEBS_IO_JIVA_POOL_DIR
        #  value: "/var/openebs"
        # OPENEBS_IO_LOCALPV_HOSTPATH_DIR can be used to specify the hostpath
        # to be used for default openebs-hostpath storageclass loaded by OpenEBS
        # The default path used is /var/openebs/local
        # This value takes effect only if OPENEBS_IO_CREATE_DEFAULT_STORAGE_CONFIG
        # is set to true
        #- name: OPENEBS_IO_LOCALPV_HOSTPATH_DIR
        #  value: "/var/openebs/local"
        - name: OPENEBS_IO_JIVA_CONTROLLER_IMAGE
          value: "openebs/jiva:2.12.1"
        - name: OPENEBS_IO_JIVA_REPLICA_IMAGE
          value: "openebs/jiva:2.12.1"
        - name: OPENEBS_IO_JIVA_REPLICA_COUNT
          value: "3"
        - name: OPENEBS_IO_CSTOR_TARGET_IMAGE
          value: "openebs/cstor-istgt:2.12.0"
        - name: OPENEBS_IO_CSTOR_POOL_IMAGE
          value: "openebs/cstor-pool:2.12.0"
        - name: OPENEBS_IO_CSTOR_POOL_MGMT_IMAGE
          value: "openebs/cstor-pool-mgmt:2.12.0"
        - name: OPENEBS_IO_CSTOR_VOLUME_MGMT_IMAGE
          value: "openebs/cstor-volume-mgmt:2.12.0"
        - name: OPENEBS_IO_VOLUME_MONITOR_IMAGE
          value: "openebs/m-exporter:2.12.0"
        - name: OPENEBS_IO_CSTOR_POOL_EXPORTER_IMAGE
          value: "openebs/m-exporter:2.12.0"
        - name: OPENEBS_IO_HELPER_IMAGE
          value: "openebs/linux-utils:2.12.0"
        # OPENEBS_IO_ENABLE_ANALYTICS if set to true sends anonymous usage
        # events to Google Analytics
        - name: OPENEBS_IO_ENABLE_ANALYTICS
          value: "true"
        - name: OPENEBS_IO_INSTALLER_TYPE
          value: "openebs-operator"
        # OPENEBS_IO_ANALYTICS_PING_INTERVAL can be used to specify the duration (in hours)
        # for periodic ping events sent to Google Analytics.
        # Default is 24h.
        # Minimum is 1h. You can convert this to weekly by setting 168h
        #- name: OPENEBS_IO_ANALYTICS_PING_INTERVAL
        #  value: "24h"
        livenessProbe:
          exec:
            command:
            - sh
            - -c
            - /usr/local/bin/mayactl
            - version
          initialDelaySeconds: 30
          periodSeconds: 60
        readinessProbe:
          exec:
            command:
            - sh
            - -c
            - /usr/local/bin/mayactl
            - version
          initialDelaySeconds: 30
          periodSeconds: 60
---
apiVersion: v1
kind: Service
metadata:
  name: maya-apiserver-service
  namespace: openebs
  labels:
    openebs.io/component-name: maya-apiserver-svc
spec:
  ports:
  - name: api
    port: 5656
    protocol: TCP
    targetPort: 5656
  selector:
    name: maya-apiserver
  sessionAffinity: None
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: openebs-provisioner
  namespace: openebs
  labels:
    name: openebs-provisioner
    openebs.io/component-name: openebs-provisioner
    openebs.io/version: 2.12.0
spec:
  selector:
    matchLabels:
      name: openebs-provisioner
      openebs.io/component-name: openebs-provisioner
  replicas: 1
  strategy:
    type: Recreate
    rollingUpdate: null
  template:
    metadata:
      labels:
        name: openebs-provisioner
        openebs.io/component-name: openebs-provisioner
        openebs.io/version: 2.12.0
    spec:
      serviceAccountName: openebs-maya-operator
      containers:
      - name: openebs-provisioner
        imagePullPolicy: IfNotPresent
        image: openebs/openebs-k8s-provisioner:2.12.0
        env:
        # OPENEBS_IO_K8S_MASTER enables openebs provisioner to connect to K8s
        # based on this address. This is ignored if empty.
        # This is supported for openebs provisioner version 0.5.2 onwards
        #- name: OPENEBS_IO_K8S_MASTER
        #  value: "http://10.128.0.12:8080"
        # OPENEBS_I
