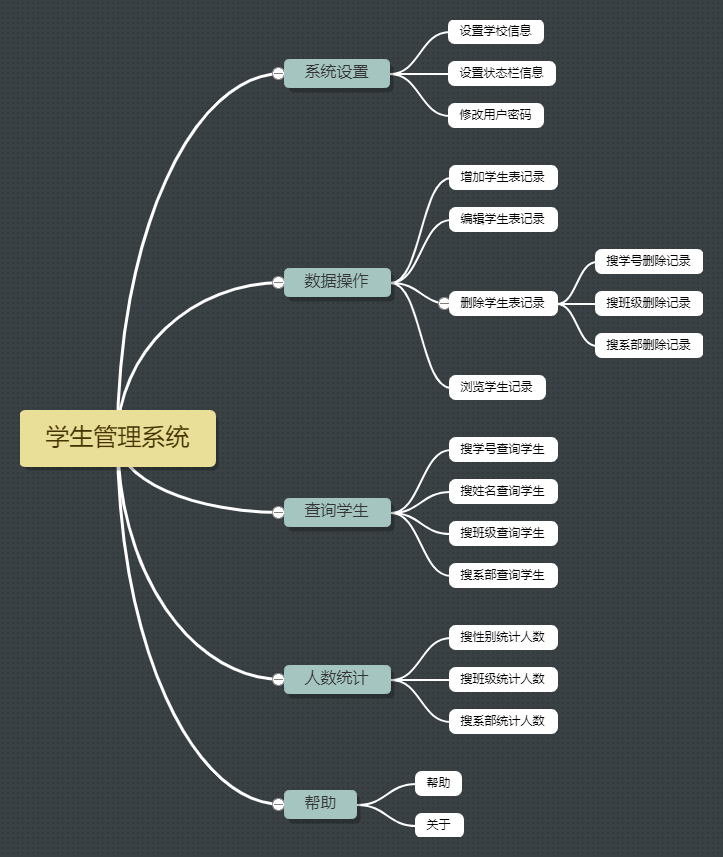

JAVA实训项目:GUI学生信息管理系统功能结构图(百度脑图)
实训项目之创建数据库与表
第一步,打开Navicat工具创建Mysql数据库
第二步,分别创建student,user,college,status4张表
第三步,在把各表输入数据记录
第四步,打开IntelliJ IDEA软件创建一个“学生管理系统”项目,在项目里创建这几个文件夹
第五步,开始创建实体类,分别是College,Status,Student,User。
**学校实体**
/**
- 包名:kwt.student.bean
- 类名:College
- 描述:学校实体
- 作者:匡文涛
- 日期:2019年6月17日
*/
package kwt.student.bean;
import java.util.Date;
public class College {
/**
* 学校标识符
/
private int id;
/*
* 学校名称
/
private String name;
/*
* 校长
/
private String president;
/*
* 建校时间
/
private Date startTime;
/*
* 联系电话
/
private String telephone;
/*
* 电子邮箱
/
private String email;
/*
* 通信地址
/
private String address;
/*
* 学校简介
*/
private String profile;
public int getId() {
return id;
}
public void setId(int id) {
this.id = id;
}
public String getName() {
return name;
}
public void setName(String name) {
this.name = name;
}
public String getPresident() {
return president;
}
public void setPresident(String president) {
this.president = president;
}
public Date getStartTime() {
return startTime;
}
public void setStarttime(Date startTime) {
this.startTime = startTime;
}
public String getTelephone() {
return telephone;
}
public void setTelephone(String telephone) {
this.telephone = telephone;
}
public String getEmail() {
return email;
}
public void setEmail(String email) {
this.email = email;
}
public String getAddress() {
return address;
}
public void setAddress(String address) {
this.address = address;
}
public String getProfile() {
return profile;
}
public void setProfile(String profile) {
this.profile = profile;
}
@Override
public String toString() {
return "College{" +
"id=" + id +
", name='" + name + '\'' +
", president='" + president + '\'' +
", starttime=" + startTime +
", telephone='" + telephone + '\'' +
", email='" + email + '\'' +
", address='" + address + '\'' +
", profile='" + profile + '\'' +
'}';
}
}
**状态实体**
/**
- 包名:kwt.student.bean
- 类名:Status
- 描述:状态实体
- 作者:匡文涛
- 日期:2019年6月17日
*/
package kwt.student.bean;
public class Status {
/**
* 标识符
/
private int id;
/*
* 校名
/
private String college;
/*
* 版本
/
private String version;
/*
* 作者
/
private String author;
/*
* 联系电话
/
private String telephone;
/*
* 通信地址
/
private String adrress;
/*
* 电子邮箱
*/
private String emaill;
public int getId() {
return id;
}
public void setId(int id) {
this.id = id;
}
public String getCollege() {
return college;
}
public void setCollege(String college) {
this.college = college;
}
public String getVersion() {
return version;
}
public void setVersion(String version) {
this.version = version;
}
public String getAuthor() {
return author;
}
public void setAuthor(String author) {
this.author = author;
}
public String getTelephone() {
return telephone;
}
public void setTelephone(String telephone) {
this.telephone = telephone;
}
public String getAdrress() {
return adrress;
}
public void setAdrress(String adrress) {
this.adrress = adrress;
}
public String getEmaill() {
return emaill;
}
public void setEmaill(String emaill) {
this.emaill = emaill;
}
@Override
public String toString() {
return "Status{" +
"id=" + id +
", college='" + college + '\'' +
", version='" + version + '\'' +
", author='" + author + '\'' +
", telephone='" + telephone + '\'' +
", adrress='" + adrress + '\'' +
", emaill='" + emaill + '\'' +
'}';
}
}
**学生实体**
/**
- 包名:kwt.student.bean
- 类名:Student
- 描述:学生实体
- 作者:匡文涛
- 日期:2019年6月17日
*/
package kwt.student.bean;
public class Student {
/**
* 学号
/
private String id;
/*
姓名
/
private String name;
/
性别
/
private String sex;
/
年龄
/
private int age;
/
系部
/
private String departTment;
/
班级
/
private String clazz;
/
*联系电话
*/
private String telephone;
public String getId() {
return id;
}
public void setId(String id) {
this.id = id;
}
public String getName() {
return name;
}
public void setName(String name) {
this.name = name;
}
public String getSex() {
return sex;
}
public void setSex(String sex) {
this.sex = sex;
}
public int getAge() {
return age;
}
public void setAge(int age) {
this.age = age;
}
public String getDepartTment() {
return departTment;
}
public void setDepartTment(String departTment) {
this.departTment = departTment;
}
public String getClazz() {
return clazz;
}
public void setClazz(String clazz) {
this.clazz = clazz;
}
public String getTelephone() {
return telephone;
}
public void setTelephone(String telephone) {
this.telephone = telephone;
}
@Override
public String toString() {
return "Student{" +
"id='" + id + '\'' +
", name='" + name + '\'' +
", sex='" + sex + '\'' +
", age=" + age +
", departtment='" + departTment + '\'' +
", clazz='" + clazz + '\'' +
", telephone='" + telephone + '\'' +
'}';
}
}
**用户实体**
/**
- 包名:kwt.student.bean
- 类名:User
- 描述:用户实体
- 作者:匡文涛
- 日期:2019年6月17日
*/
package kwt.student.bean;
import java.util.Date;
public class User {
/**
* 用户标识符
/
private int id;
/*
用户名
/
private String username;
/
密码
/
private String password;
/
*联系电话
*/
private String telephone;
public int getId() {
return id;
}
public void setId(int id) {
this.id = id;
}
public String getUsername() {
return username;
}
public void setUsername(String username) {
this.username = username;
}
public String getPassword() {
return password;
}
public void setPassword(String password) {
this.password = password;
}
public String getTelephone() {
return telephone;
}
public void setTelephone(String telephone) {
this.telephone = telephone;
}
public Date getRegisterTime() {
return registerTime;
}
public void setRegisterTime(Date registerTime) {
this.registerTime = registerTime;
}
/**
*注册时间
*/
private Date registerTime;
@Override
public String toString() {
return "User{" +
"id=" + id +
", username='" + username + '\'' +
", password='" + password + '\'' +
", telephone='" + telephone + '\'' +
", registerTime=" + registerTime +
'}';
}
}
第六步,实施数据库连接管理
/**
- 包名:kwt.student.dbutil
- 类名:ConnectionManager
- 描述:数据库连接管理类
- 作者:匡文涛
- 日期:2019年6月17日
*/
package kwt.student.dbutil;
import java.sql.Connection;
import java.sql.DriverManager;
import java.sql.SQLException;
import javax.swing.JOptionPane;
public class ConnectionManager {
/**
* 数据库驱动程序
/
private static final String DRIVER = “com.mysql.jdbc.Driver”;
/*
* 数据库统一资源标识符
/
private static final String URL = “jdbc:mysql://localhost:3306/student”;
/*
* 数据库用户名
/
private static final String USERNAME = “root”;
/*
* 数据库密码
*/
private static final String PASSWORD = “1”;
/**
* 私有化构造方法,拒绝实例化
*/
private ConnectionManager() {
}
/**
* 获得数据库连接
*
* @return 数据库连接对象
*/
public static Connection getConnection() {
//定义数据库连接
Connection conn = null;
try {
//安装数据库驱动程序
Class.forName(DRIVER);
//获得数据库连接
conn = DriverManager.getConnection(URL
+ "?useUnicode=true&charcterEncoding=UTF8", USERNAME, PASSWORD);
}catch (ClassNotFoundException e) { e.printStackTrace();
}catch (SQLException e){
e.printStackTrace();
}
//返回数据库连接
return conn;
}
/**
* 关闭数据库连接
* @param conn
*/
public static void closeConnection(Connection conn){
//判断数据库连接是否为空
if(conn !=null){
//判断数据库连接是否关闭
try{
if (!conn.isClosed()){
//关闭数据库连接
conn.close();
}
}catch (SQLException e){
e.printStackTrace();
}
}
}
/**
* 测试数据库连接是否成功
* @param args
*/
public static void main(String[] args){
//获得数据库连接
Connection conn = getConnection();
//判断是否连接成功
if (conn != null){
JOptionPane.showMessageDialog(null,"恭喜,数据库连接成功!");
} else {
JOptionPane.showMessageDialog(null,"遗憾,数据库连接失败!");
}
//关闭数据库连接
closeConnection(conn);
}
}
运行后会显示连接成功
第七步,创建Dao文件并编写数据访问接口
CollegeDao
/**
- 包名:kwt.student.dao
- 类名:CollegeDao
- 描述:学校数据访问接口
- 作者:匡文涛
- 日期:2019年6月17日
*/
package kwt.student.dao;
import kwt.student.bean.College;
public interface CollegeDao {
College findById(int id);
int update(College college);
}
StatusDao
/**
- 包名:kwt.student.dao
- 类名:StatusDao
- 描述:状态数据访问接口
- 作者:匡文涛
- 日期:2019年6月17日
*/
package kwt.student.dao;
import kwt.student.bean.Status;
public interface StatusDao {
Status findById(int id);
int update(Status status);
}
StudentDao
/**
- 包名:kwt.student.dao
- 类名:StudentDao
- 描述:学生数据访问接口
- 作者:匡文涛
- 日期:2019年6月17日
*/
package kwt.student.dao;
import kwt.student.bean.Student;
import java.util.List;
import java.util.Vector;
public interface StudentDao {
int insert(Student student);
int deleteById(String id);
int deleteByClass(String clazz);
int deleteByDepartment(String department);
int update(Student student);
Student findById(String id);
List findByName(String name);
List findByClass(String clazz);
List findByDepartment(String department);
List findAll();
Vector findRowsBySex();
Vector findRosByClass();
Vector findRowsByDepartment();
}
UserDao
/**
- 包名:kwt.student.dao
- 类名:UserDao
- 描述:用户数据访问接口
- 作者:匡文涛
- 日期:2019年6月17日
*/
package kwt.student.dao;
import kwt.student.bean.User;
import java.util.List;
public interface UserDao {
int insert(User user);
int deleteById(int id);
int update(User user);
User findById(int id);
List findAll();
User login(String username,String password);
}
第八步,创建Impl文件实现数据访问接口实现类
