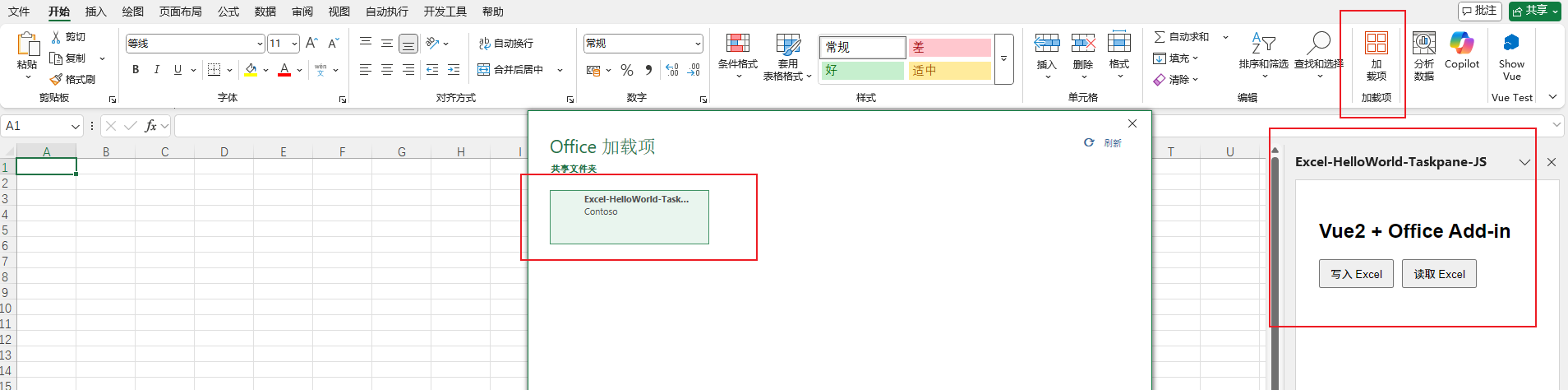

最终实现功能
git代码地址：https://github.com/Shi-haoD/vue-office-addin
主要步骤：写好vue代码>生成密钥>启动代码>在window下创建一个共享文件夹>放入manifest.xml文件>打开excel的加载项>找到共享文件夹>点击加载
环境：
系统是win10
开发使用步骤
1.新建vue2结构
public
index.html
注：这里用cdn的包，不用npm下载的包，那个我下载没成功
<!DOCTYPE html>
<html lang="zh">
<head>
<meta charset="UTF-8" />
<title>Vue2 Office Add-in</title>
<script src="https://appsforoffice.microsoft.com/lib/1/hosted/office.js"></script>
</head>
<body>
<div id="app"></div>
</body>
</html>
src
components
HelloExcel.vue
主页代码代码
<template>
<div class="hello-excel">
<h2>Vue2 + Office Add-in</h2>
<button @click="writeData">写入 Excel</button>
<button @click="readData">读取 Excel</button>
<p v-if="cellValue">A1 内容：{{ cellValue }}</p>
</div>
</template>
<script>
import { writeCell, readCell } from '../office';
export default {
data() {
return { cellValue: '' };
},
methods: {
async writeData() {
await writeCell('Hello from Vue!');
},
async readData() {
this.cellValue = await readCell();
},
},
};
</script>
<style scoped>
.hello-excel {
padding: 20px;
font-family: Arial;
}
button {
margin-right: 10px;
padding: 6px 12px;
cursor: pointer;
}
</style>
App.vue
vue入口
<template>
<div id="app">
<HelloExcel />
</div>
</template>
<script>
import HelloExcel from './components/HelloExcel.vue';
export default {
components: { HelloExcel },
};
</script>
main.js
import Vue from 'vue';
import App from './App.vue';
Vue.config.productionTip = false;
// Office.js 加载完成后再挂载 Vue
Office.onReady(() => {
new Vue({
render: (h) => h(App),
}).$mount('#app');
});
入口
office.js
这个是调用excel的单元格代码
/* src/office.js */
export async function writeCell(value = 'Hello Vue!') {
await Excel.run(async (context) => {
const sheet = context.workbook.worksheets.getActiveWorksheet();
sheet.getRange('A1').values = [[value]];
await context.sync();
});
}
export async function readCell() {
return await Excel.run(async (context) => {
const sheet = context.workbook.worksheets.getActiveWorksheet();
const range = sheet.getRange('A1');
range.load('values');
await context.sync();
return range.values[0][0];
});
}
localhost+1-key.pem
这个是生成的密钥，需要https才能访问到页面
localhost+1.pem
这个是生成的密钥，需要https才能访问到页面
manifest.xml
这个是要放在共享文件夹中的主要代码，DefaultValue="https://localhost:8080"这里是页面的地址，千万注意要是https的，否则excel那边打不开
2025-10-20增加了任务窗格的图标
<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<OfficeApp xmlns="http://schemas.microsoft.com/office/appforoffice/1.1" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:bt="http://schemas.microsoft.com/office/officeappbasictypes/1.0" xmlns:ov="http://schemas.microsoft.com/office/taskpaneappversionoverrides" xsi:type="TaskPaneApp">
<Id>c49de0c7-98e1-420f-8e3f-cb6fb40fc047</Id>
<Version>1.0.0.0</Version>
<ProviderName>Contoso</ProviderName>
<DefaultLocale>en-US</DefaultLocale>
<DisplayName DefaultValue="Excel-HelloWorld-Taskpane-JS"/>
<Description DefaultValue="A template to get started."/>
<IconUrl DefaultValue="https://localhost:8080/assets/icon-32.png"/>
<HighResolutionIconUrl DefaultValue="https://localhost:8080/assets/icon-64.png"/>
<SupportUrl DefaultValue="https://www.contoso.com/help"/>
<AppDomains>
<AppDomain>https://www.contoso.com</AppDomain>
</AppDomains>
<Hosts>
<Host Name="Workbook"/>
</Hosts>
<DefaultSettings>
<SourceLocation DefaultValue="https://localhost:8080"/>
</DefaultSettings>
<Permissions>ReadWriteDocument</Permissions>
<VersionOverrides xmlns="http://schemas.microsoft.com/office/taskpaneappversionoverrides" xsi:type="VersionOverridesV1_0">
<Hosts>
<Host xsi:type="Workbook">
<DesktopFormFactor>
<GetStarted>
<Title resid="GetStarted.Title"/>
<Description resid="GetStarted.Description"/>
<LearnMoreUrl resid="GetStarted.LearnMoreUrl"/>
</GetStarted>
<ExtensionPoint xsi:type="PrimaryCommandSurface">
<OfficeTab id="TabHome">
<Group id="CommandsGroup">
<Label resid="CommandsGroup.Label"/>
<Icon>
<bt:Image size="16" resid="Icon.16x16"/>
<bt:Image size="32" resid="Icon.32x32"/>
<bt:Image size="80" resid="Icon.80x80"/>
</Icon>
<Control xsi:type="Button" id="TaskpaneButton">
<Label resid="TaskpaneButton.Label"/>
<Supertip>
<Title resid="TaskpaneButton.Label"/>
<Description resid="TaskpaneButton.Tooltip"/>
</Supertip>
<Icon>
<bt:Image size="16" resid="Icon.16x16"/>
<bt:Image size="32" resid="Icon.32x32"/>
<bt:Image size="80" resid="Icon.80x80"/>
</Icon>
<Action xsi:type="ShowTaskpane">
<TaskpaneId>ButtonId1</TaskpaneId>
<SourceLocation resid="Taskpane.Url"/>
</Action>
</Control>
</Group>
</OfficeTab>
</ExtensionPoint>
</DesktopFormFactor>
</Host>
</Hosts>
<Resources>
<bt:Images>
<bt:Image id="Icon.16x16" DefaultValue="https://localhost:8080/assets/icon-16.png"/>
<bt:Image id="Icon.32x32" DefaultValue="https://localhost:8080/assets/icon-32.png"/>
<bt:Image id="Icon.80x80" DefaultValue="https://localhost:8080/assets/icon-80.png"/>
</bt:Images>
<bt:Urls>
<bt:Url id="GetStarted.LearnMoreUrl" DefaultValue="https://go.microsoft.com/fwlink/?LinkId=276812"/>
<bt:Url id="Taskpane.Url" DefaultValue="https://localhost:8080"/>
</bt:Urls>
<bt:ShortStrings>
<bt:String id="GetStarted.Title" DefaultValue="Get started with your sample add-in!"/>
<bt:String id="CommandsGroup.Label" DefaultValue="Vue Test"/>
<bt:String id="TaskpaneButton.Label" DefaultValue="Show Vue"/>
</bt:ShortStrings>
<bt:LongStrings>
<bt:String id="GetStarted.Description" DefaultValue="Your sample add-in loaded successfully. Go to the HOME tab and click the 'Show Taskpane' button to get started."/>
<bt:String id="TaskpaneButton.Tooltip" DefaultValue="Click to Show a Taskpane"/>
</bt:LongStrings>
</Resources>
</VersionOverrides>
</OfficeApp>
mkcert.exe这个是下载的生成密钥的工具
package-lock.json这个不用管
package.json这个也没啥
{
"name": "vue-office-addin",
"version": "1.0.0",
"private": true,
"scripts": {
"serve": "vue-cli-service serve",
"build": "vue-cli-service build"
},
"dependencies": {
"core-js": "^3.8.3",
"vue": "^2.7.14"
},
"devDependencies": {
"@vue/cli-service": "^5.0.0",
"vue-template-compiler": "^2.7.14"
}
}
vue.config.js
key: fs.readFileSync(path.join(__dirname, 'localhost+1-key.pem')), cert: fs.readFileSync(path.join(__dirname, 'localhost+1.pem')), 注意这两个 这两个是生成的密钥地址
const fs = require('fs');
const path = require('path');
module.exports = {
devServer: {
https: {
key: fs.readFileSync(path.join(__dirname, 'localhost+1-key.pem')),
cert: fs.readFileSync(path.join(__dirname, 'localhost+1.pem')),
},
port: 8080,
},
};
2.生成密钥
https://github.com/FiloSottile/mkcert/releases
- 去这个地址下载mkcert的windwos64位版本
- 下载后把它改名为 mkcert.exe
- 下载之后放到项目根目录下
- 在右键文件夹中打开cmd控制台输入命令mkcert -install
- 应该会出现
Created a new local CA
The local CA is now installed in the system trust store! - 之后输入命令 mkcert localhost 127.0.0.1
会生成
这两个文件，名字可能和我的不一样，记得在配置文件中改
3.npm下载
npm install
npm run serve
项目启动成功之后访问 https://localhost:8080/index.html
这样vue端的就完成了
4.excel部分
- 新建一个文件夹，名字随意，位置随意
- 创建一个共享文件夹
按着图片的流程右键文件夹属性>共享>共享，之后复制地址
- 打开excel
找到excel的选项设置页，打开信任中心
输入刚才的共享文件地址，勾选显示在菜单中
- 这样再重启excel之后再点开加载项就有了
5.
5.制作安装包，给客户直接一键安装好
制作中，预计使用.exe安装，然后拿注册表写到系统里
exe打包工具
https://jrsoftware.org/isdl.php#stable
创建iss文件

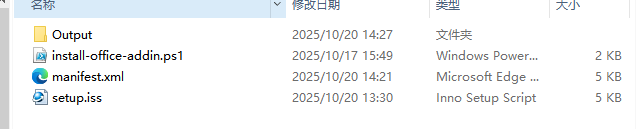

在setup文件中编辑，并把manifest.xml放在当前目录
注意这个文件中的注册表和共享文件目录位置，我用的是office365，其他版本的适配还没测试
; ----------------------------
; Inno Setup 完整安装器脚本（自带 GUID 生成）
; ----------------------------
[Setup]
AppName=Vue Office Addin
AppVersion=1.0.0
DefaultDirName={commonappdata}\VueOfficeAddin
OutputBaseFilename=VueOfficeAddinInstaller
Compression=lzma
SolidCompression=yes
PrivilegesRequired=admin
Uninstallable=yes
WizardStyle=modern
[Files]
Source: "manifest.xml"; DestDir: "{app}"; Flags: ignoreversion
[Code]
var
UserChoice: Integer;
function GetComputerNameStr(): String;
begin
Result := GetEnv('COMPUTERNAME');
if Result = '' then
Result := 'localhost';
end;
procedure CreateNetworkShare(ShareName, FolderPath: String);
var
ResultCode: Integer;
begin
if not DirExists(FolderPath) then
CreateDir(FolderPath);
{ 使用 PowerShell 强制创建共享 }
Exec('powershell',
'-Command "New-SmbShare -Name ' + ShareName + ' -Path ''' + FolderPath + ''' -FullAccess Everyone"',
'', SW_HIDE, ewWaitUntilTerminated, ResultCode);
if ResultCode = 0 then
MsgBox('✅ 共享文件夹已创建: \\'+GetComputerNameStr()+'\' + ShareName, mbInformation, MB_OK)
else
MsgBox('❌ 创建共享失败，请检查权限', mbCriticalError, MB_OK);
end;
function GenerateGUIDString(): String;
var
i: Integer;
HexDigits: String;
begin
HexDigits := '0123456789ABCDEF';
Result := '{';
for i := 1 to 8 do Result := Result + HexDigits[Random(16)+1];
Result := Result + '-';
for i := 1 to 4 do Result := Result + HexDigits[Random(16)+1];
Result := Result + '-';
for i := 1 to 4 do Result := Result + HexDigits[Random(16)+1];
Result := Result + '-';
for i := 1 to 4 do Result := Result + HexDigits[Random(16)+1];
Result := Result + '-';
for i := 1 to 12 do Result := Result + HexDigits[Random(16)+1];
Result := Result + '}';
end;
procedure RegisterExcelSharedFolder(ShareName: String);
var
UNCPath, GUIDStr, RegPath: String;
ResultCode: Integer;
begin
UNCPath := '\\' + GetComputerNameStr() + '\' + ShareName;
GUIDStr := GenerateGUIDString();
RegPath := 'HKCU\Software\Microsoft\Office\16.0\WEF\TrustedCatalogs\' + GUIDStr;
{ 写 Flags }
Exec(ExpandConstant('{sys}\reg.exe'),
'add "' + RegPath + '" /v "Flags" /t REG_DWORD /d 1 /f',
'', SW_HIDE, ewWaitUntilTerminated, ResultCode);
{ 写 Id }
Exec(ExpandConstant('{sys}\reg.exe'),
'add "' + RegPath + '" /v "Id" /t REG_SZ /d "' + GUIDStr + '" /f',
'', SW_HIDE, ewWaitUntilTerminated, ResultCode);
{ 写 Url }
Exec(ExpandConstant('{sys}\reg.exe'),
'add "' + RegPath + '" /v "Url" /t REG_SZ /d "' + UNCPath + '" /f',
'', SW_HIDE, ewWaitUntilTerminated, ResultCode);
MsgBox('✅ Excel 共享目录已注册成功:'#13#10 +
'路径: ' + UNCPath, mbInformation, MB_OK);
end;
procedure ForceRemoveNetworkShare(ShareName: String);
var
ResultCode: Integer;
begin
Exec('powershell',
'-Command "Get-SmbShare -Name ' + ShareName + ' | Remove-SmbShare -Force"',
'', SW_HIDE, ewWaitUntilTerminated, ResultCode);
if ResultCode = 0 then
MsgBox('✅ 网络共享已删除: ' + ShareName, mbInformation, MB_OK)
else
MsgBox('⚠ 网络共享删除失败或不存在: ' + ShareName, mbInformation, MB_OK);
end;
procedure DeleteExcelRegistry();
var
ResultCode: Integer;
begin
Exec(ExpandConstant('{sys}\reg.exe'),
'delete "HKCU\Software\Microsoft\Office\16.0\WEF\TrustedCatalogs" /f',
'', SW_HIDE, ewWaitUntilTerminated, ResultCode);
end;
procedure DeleteSharedFolder(FolderPath: String);
begin
if DirExists(FolderPath) then
begin
if DelTree(FolderPath, True, True, True) then
MsgBox('✅ 文件夹已删除: ' + FolderPath, mbInformation, MB_OK)
else
MsgBox('❌ 无法删除文件夹: ' + FolderPath + '，请确保没有程序占用', mbCriticalError, MB_OK);
end;
end;
procedure InitializeWizard();
begin
UserChoice := MsgBox('请选择操作:'#13#10+
'Yes = 安装（创建共享 + 拷贝 manifest + 注册 Excel）'#13#10+
'No = 卸载（删除共享 + 删除注册表 + 删除文件夹）',
mbConfirmation, MB_YESNO);
end;
procedure CurStepChanged(CurStep: TSetupStep);
var
AppFolder: String;
begin
AppFolder := ExpandConstant('{app}');
if CurStep = ssPostInstall then
begin
if UserChoice = idYes then
begin
CreateNetworkShare('VueOfficeAddin', AppFolder);
RegisterExcelSharedFolder('VueOfficeAddin');
MsgBox('✅ 安装完成！', mbInformation, MB_OK);
end
else if UserChoice = idNo then
begin
ForceRemoveNetworkShare('VueOfficeAddin');
DeleteExcelRegistry();
DeleteSharedFolder(AppFolder);
MsgBox('✅ 卸载完成！', mbInformation, MB_OK);
end;
end;
end;
6.完成上面的安装后，直接打开加载项就可以使用了，之后每次打开都会默认加载
这里第一次打开需要双击
