ROS总结（python）
- 推荐使用ubuntu20.04 安装运行ROS1 noetic 更加稳定
- 修改python代码可执行权限
chmod +x your_script.py - 鱼香ROS一键安装：
wget ``http://fishros.com/install`` -O fishros && . fishros
初始化工作区
mkdir catkin_ws
cd ./catkin_ws
mkdir src
catkin_init_workspace
进行编译
//根目录下
catkin_make //产生build,dev
catkin_make install//产生install
创建功能包
//src目录下
catkin_create_pkg <pkg name> [depend1][depend2][depend3]
//catkin_create_pkg test_pkg roscpp rospy ros std_msgs
- src/pkg/src功能包的源代码 src/pkg/include头文件
//根目录
catkin_make//编译
source /catkin_ws/devel/setup.bash//设置功能包的环境变量
或者直接将source /catkin_ws/devel/setup.bash添加到./bashrc
topic
publiser实现
//创建功能包
catkin_create_pkg learning_topic roscpp rospy std_msgs geometry_msgs turtlesim
/src/learning_topic/src创建cpp代码文件
/src/learning_topic/scripts 创建py代码
实现Publisher的方法：
- 初始化ROS节点
- 向ROS Master注册节点信息，包括发布的话题名和话题中的消息类型
- 创建消息数据
- 按照一定的频率循环发布消息
以python代码为例
- 创建代码
-
#! /usr/bin/env /usr/local/bin/python3.10 # -*- coding: utf-8 -*- # 该例程将发布turtle1/cmd_vel话题，消息类型geometry_msgs::Twist import rospy from geometry_msgs.msg import Twist def velocity_publisher(): # ROS节点初始化 rospy.init_node('velocity_publisher', anonymous=True) # 创建一个Publisher，发布名为/turtle1/cmd_vel的topic，消息类型为geometry_msgs::Twist，队列长度10 turtle_vel_pub = rospy.Publisher('/turtle1/cmd_vel', Twist, queue_size=10) #设置循环的频率 rate = rospy.Rate(10) while not rospy.is_shutdown(): # 初始化geometry_msgs::Twist类型的消息 vel_msg = Twist() vel_msg.linear.x = 0.5 vel_msg.angular.z = 0.2 # 发布消息 turtle_vel_pub.publish(vel_msg) rospy.loginfo("Publsh turtle velocity command[%0.2f m/s, %0.2f rad/s]", vel_msg.linear.x, vel_msg.angular.z) # 按照循环频率延时 rate.sleep() if __name__ == '__main__': try: velocity_publisher() except rospy.ROSInterruptException: pass
-
- 编译代码
-
配置
cmakelist.txt

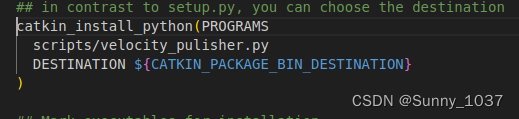

将这一段取消注释，scripts/后面加自己的文件名称
-
编译
catkin_make
-
- 运行代码
-
rosrun learning_topic velocity_publisher.py
-
Subscriber
创建代码同上
#! /usr/bin/env /usr/local/bin/python3.10
# -*- coding: utf-8 -*-
# 该例程将订阅/turtle1/pose话题，消息类型turtlesim::Pose
import rospy
from turtlesim.msg import Pose
def poseCallback(msg):
rospy.loginfo("Turtle pose: x:%0.6f, y:%0.6f", msg.x, msg.y)
def pose_subscriber():
# ROS节点初始化
rospy.init_node('pose_subscriber', anonymous=True)
# 创建一个Subscriber，订阅名为/turtle1/pose的topic，注册回调函数poseCallback
rospy.Subscriber("/turtle1/pose", Pose, poseCallback)
# 循环等待回调函数
rospy.spin()
if __name__ == '__main__':
pose_subscriber()
如何实现一个Subscriber：
- 初始化ROS节点
- 订阅需要的话题
- 循环等待话题消息，接收到消息后进入回调函数
- 在回调函数中完成消息处理

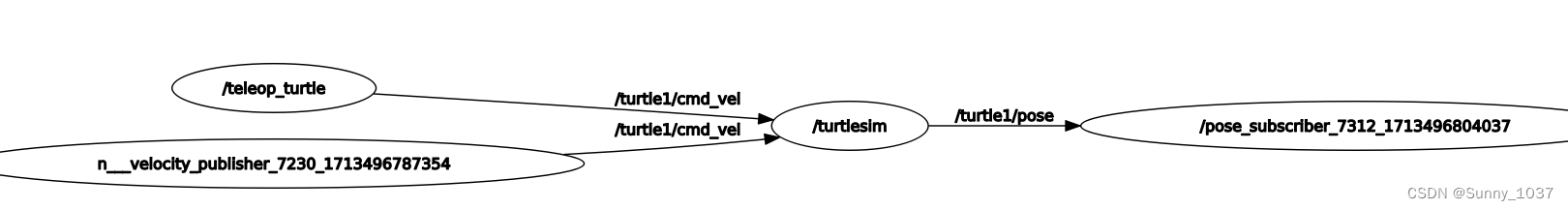

rqt_graph查看图示
massage的定义与使用
消息的定义
自定义一个消息类型person，并完成发布订阅整个过程
-
learning_topic新建msg目录，创建自定义消息文件
-
写入person消息信息,定义msg数据接口
string name
uint8 sex
uint8 age
uint8 unknown = 0
uint8 male = 1
uint8 female = 2
- 在package.xml中添加功能包依赖

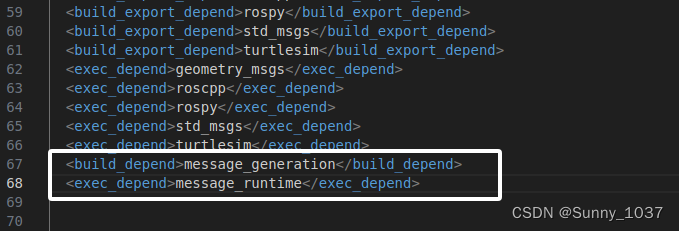

添加动态生成程序的功能包依赖。 打开package.xml文件，将下面代码拷到文件指定位置：
<build_depend>message_generation</build_depend>

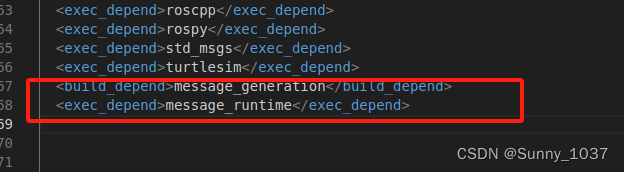

<exec_depend>message_runtime</exec_depend>
build_depend为编译依赖，这里依赖的是一个会动态产生message的功能包 exer_depend为执行依赖，这里依赖的是一个动态runtime运行的功能包
-
配置cmakelist.txt（与第三部相对应）
-

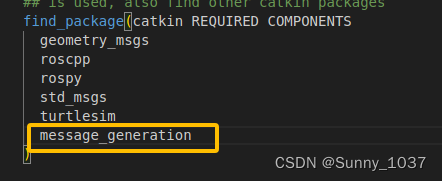

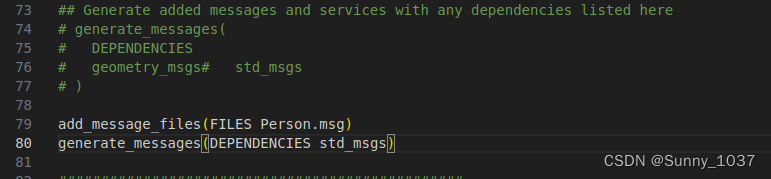

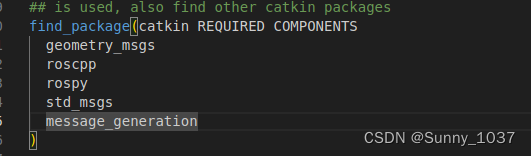

在package.xml添加了功能包编译依赖，在CMakeList.txt里的find_package中也要加上对应的部分:
-
message_generation
-
需要将定义的Person.msg作为消息接口，针对它做编译；需要指明编译这个消息接口需要哪些ROS已有的包；
-

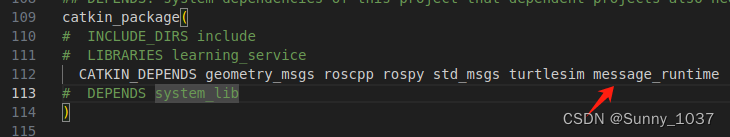

因为在package.xml添加了功能包执行依赖，在CMakeList.txt里的catkin_package中也要加上对应的部分 7.
message_runtime
-
-
编译生成对应的python库

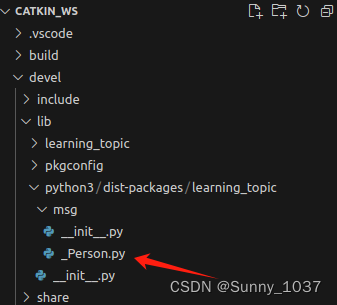

catkin_makedevel/lib/python3/dist-packages/learning_topic/msg 下找到编译之后的Python的包：
使用自定义的消息进行发布与订阅
- 创建
person_publisher.py和person_subscriber.py
#! /usr/bin/env /usr/local/bin/python3.10
# -*- coding: utf-8 -*-
# 该例程将发布/person_info话题，自定义消息类型learning_topic::Person
import rospy
from learning_topic.msg import Person
def velocity_publisher():
# ROS节点初始化
rospy.init_node('person_publisher', anonymous=True)
# 创建一个Publisher，发布名为/person_info的topic，消息类型为learning_topic::Person，队列长度10
person_info_pub = rospy.Publisher('/person_info', Person, queue_size=10)
#设置循环的频率
rate = rospy.Rate(10)
while not rospy.is_shutdown():
# 初始化learning_topic::Person类型的消息
person_msg = Person()
person_msg.name = "Tom";
person_msg.age = 18;
person_msg.sex = Person.male;
# 发布消息
person_info_pub.publish(person_msg)
rospy.loginfo("Publsh person message[%s, %d, %d]",
person_msg.name, person_msg.age, person_msg.sex)
# 按照循环频率延时
rate.sleep()
if __name__ == '__main__':
try:
velocity_publisher()
except rospy.ROSInterruptException:
pass
#! /usr/bin/env /usr/local/bin/python3.10
# -*- coding: utf-8 -*-
# 该例程将订阅/person_info话题，自定义消息类型learning_topic::Person
import rospy
from learning_topic.msg import Person
def personInfoCallback(msg):
rospy.loginfo("Subcribe Person Info: name:%s age:%d sex:%d",
msg.name, msg.age, msg.sex)
def person_subscriber():
# ROS节点初始化
rospy.init_node('person_subscriber', anonymous=True)
# 创建一个Subscriber，订阅名为/person_info的topic，注册回调函数personInfoCallback
rospy.Subscriber("/person_info", Person, personInfoCallback)
# 循环等待回调函数
rospy.spin()
if __name__ == '__main__':
person_subscriber()
- 编译运行(记得先添加为可执行文件)
catkin_make
roscore
rosrun learning_topic person_subscriber.py
rosrun learning_topic person_publisher.py
rqt_graph
Service
//创建功能包
~/catkin_ws/src$ catkin_create_pkg learning_service roscpp rospy std_msgs geometry_msgs turtlesim
client
如何实现一个客户端Client
- 初始化ROS
- 创建一个Client实例
- 发布服务请求数据
- 等待Server处理之后的应答结果
#! /usr/bin/env /usr/local/bin/python3.10
# -*- coding: utf-8 -*-
# 该例程将请求/spawn服务，服务数据类型turtlesim::Spawn
import sys
import rospy
from turtlesim.srv import Spawn
def turtle_spawn():
# ROS节点初始化
rospy.init_node('turtle_spawn')
# 发现/spawn服务后，创建一个服务客户端，连接名为/spawn的service
rospy.wait_for_service('/spawn')
try:
add_turtle = rospy.ServiceProxy('/spawn', Spawn)
# 请求服务调用，输入请求数据
response = add_turtle(2.0, 2.0, 0.0, "turtle2")
return response.name
except rospy.ServiceException as e:
print ("Service call failed: %s"%e)
if __name__ == "__main__":
#服务调用并显示调用结果
print ("Spwan turtle successfully [name:%s]" %(turtle_spawn()))
Server
如何实现一个服务器端Server
- 初始化ROS
- 创建一个Server实例
- 循环等待服务请求，进入回调函数
- 在回调函数中完成服务功能的处理，并反馈应答数据
#! /usr/bin/env /usr/local/bin/python3.10
# -*- coding: utf-8 -*-
# 该例程将执行/turtle_command服务，服务数据类型std_srvs/Trigger
import rospy
import _thread,time
from geometry_msgs.msg import Twist
from std_srvs.srv import Trigger, TriggerResponse
pubCommand = False
turtle_vel_pub = rospy.Publisher('/turtle1/cmd_vel', Twist, queue_size=10)
def command_thread():
while True:
if pubCommand:
vel_msg = Twist()
vel_msg.linear.x = 0.5
vel_msg.angular.z = 0.2
turtle_vel_pub.publish(vel_msg)
time.sleep(0.1)
def commandCallback(req):
global pubCommand
pubCommand = bool(1-pubCommand)
# 显示请求数据
rospy.loginfo("Publish turtle velocity command![%d]", pubCommand)
# 反馈数据
return TriggerResponse(1, "Change turtle command state!")
def turtle_command_server():
# ROS节点初始化
rospy.init_node('turtle_command_server')
# 创建一个名为/turtle_command的server，注册回调函数commandCallback
s = rospy.Service('/turtle_command', Trigger, commandCallback)
# 循环等待回调函数
print ("Ready to receive turtle command.")
_thread.start_new_thread(command_thread, ())
rospy.spin()
if __name__ == "__main__":
turtle_command_server()
配置cmake
编译运行
cd ~/catkin_ws
catkin_make
roscore
rosrun turtlesim turtlesim_node
rosrun learning_service turtle_spawn.py
roscore
rosrun turtlesim turtlesim_node
rosrun learning_service turtle_command_server

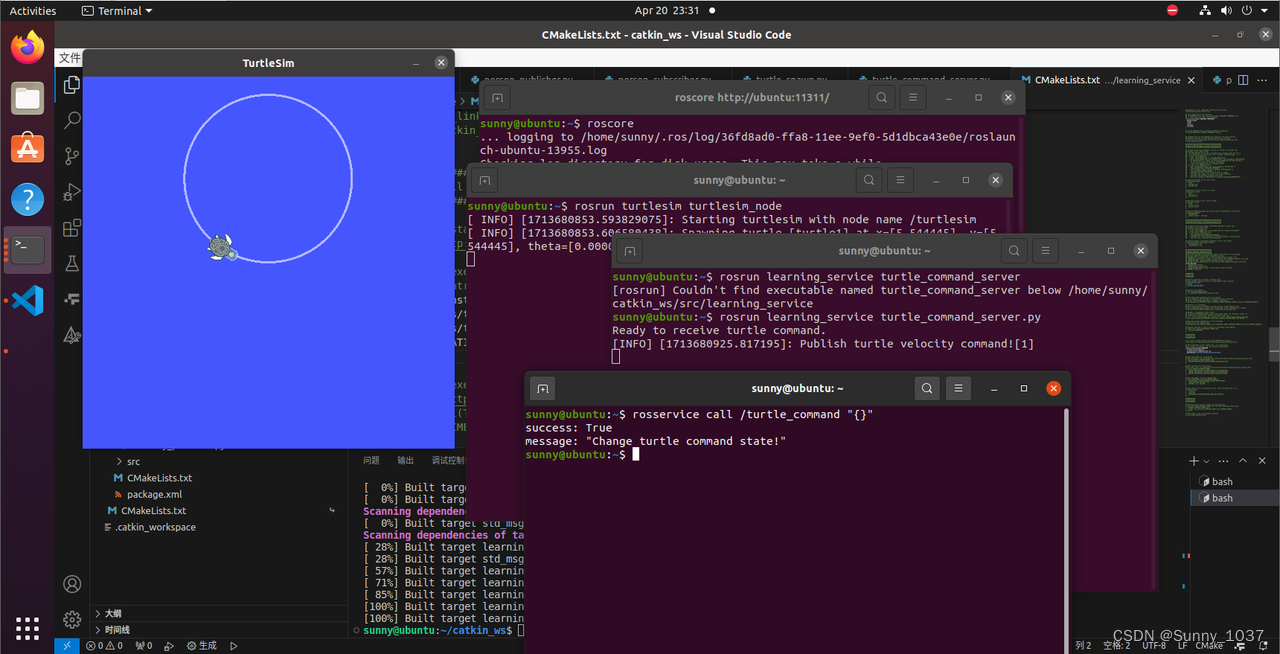

#让海龟动起来
rosservice call /turtle_command "{}"
服务数据SRV的定义与使用
服务数据的定义

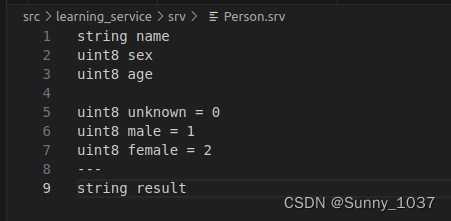

- 创建srv
- 在package.xml中添加功能包依赖
添加编译依赖和执行依赖
build_depend为编译依赖，这里依赖的是一个会动态产生message的功能包 exer_depend为执行依赖，这里依赖的是一个动态runtime运行的功能包
<build_depend>message_generation</build_depend>
<exec_depend>message_runtime</exec_depend>
-

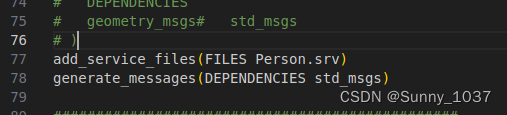

配置cmake（和上一步对应）
-
编译
catkin_make
使用自定义数据进行发布
- 创建代码
person_client.py
#! /usr/bin/env /usr/local/bin/python3.10
# -*- coding: utf-8 -*-
# 该例程将请求/show_person服务，服务数据类型learning_service::Person
import sys
import rospy
from learning_service.srv import Person, PersonRequest
def person_client():
# ROS节点初始化
rospy.init_node('person_client')
# 发现/spawn服务后，创建一个服务客户端，连接名为/spawn的service
rospy.wait_for_service('/show_person')
try:
person_client = rospy.ServiceProxy('/show_person', Person)
# 请求服务调用，输入请求数据
response = person_client("Tom", 20, PersonRequest.male)
return response.result
except rospy.ServiceException as e:
print ("Service call failed: %s"%e)
if __name__ == "__main__":
#服务调用并显示调用结果
print ("Show person result : %s" %(person_client()))
person_server.py
#! /usr/bin/env /usr/local/bin/python3.10
# -*- coding: utf-8 -*-
# 该例程将执行/show_person服务，服务数据类型learning_service::Person
import rospy
from learning_service.srv import Person, PersonResponse
def personCallback(req):
# 显示请求数据
rospy.loginfo("Person: name:%s age:%d sex:%d", req.name, req.age, req.sex)
# 反馈数据
return PersonResponse("OK")
def person_server():
# ROS节点初始化
rospy.init_node('person_server')
# 创建一个名为/show_person的server，注册回调函数personCallback
s = rospy.Service('/show_person', Person, personCallback)
# 循环等待回调函数
print ("Ready to show person informtion.")
rospy.spin()
if __name__ == "__main__":
person_server()
-
配置cmake
-

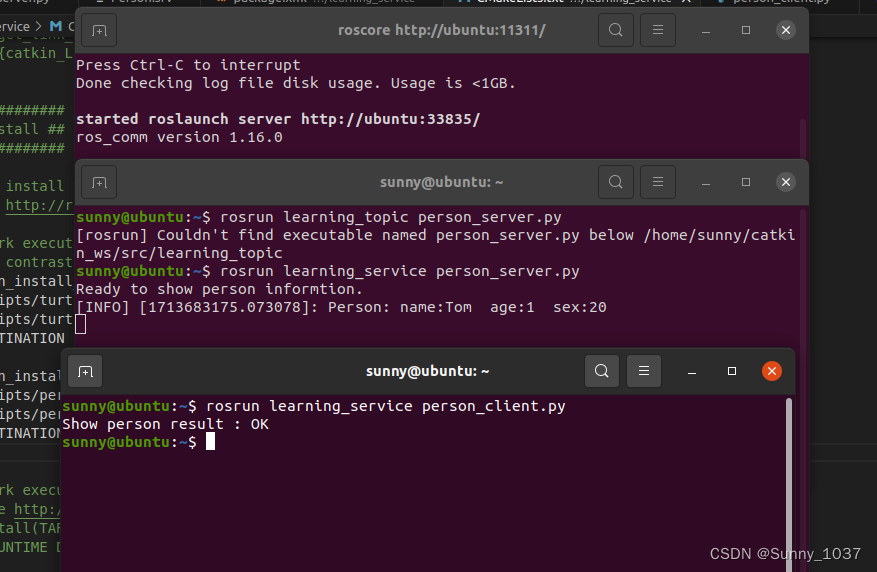

运行
roscore
rosrun learning_service person_server.py
rosrun learning_service person_client.py
Parameter

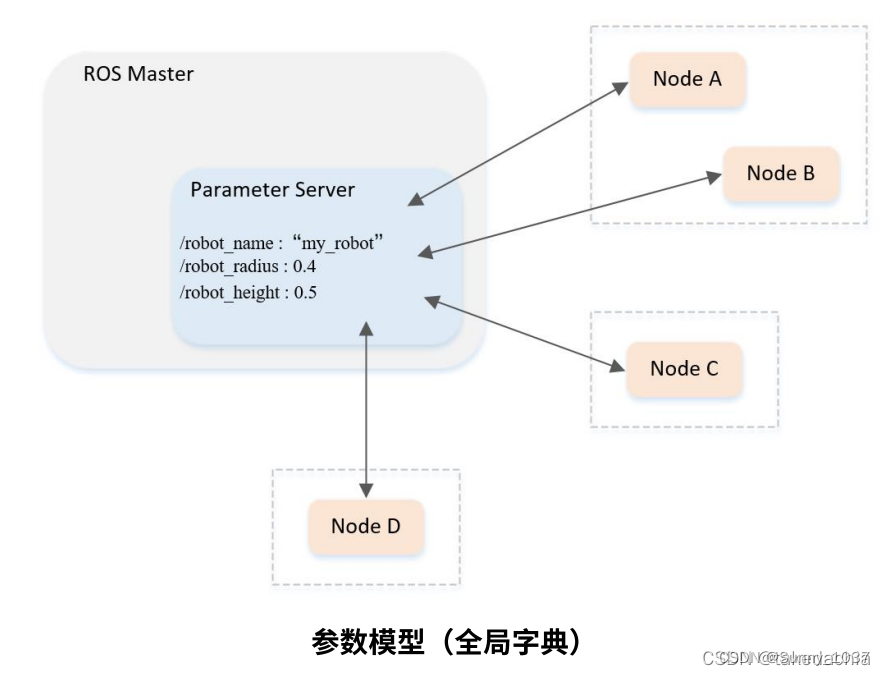

在ROS Master中，存在一个参数服务器（Parameter Server），它是一个全局字典，即一个全局变量的存储空间，用来保存各个节点的配置参数。各个节点都可以对参数进行全局访问。
参数命令行的使用
#列出当前多有参数
$ rosparam list
#显示某个参数值
$ rosparam get param_key
#设置某个参数值
$ rosparam set param_key param_value
#保存参数到某个文件
$ rosparam dump file_name
#从文件读取参数
$ rosparam load file_name
#删除参数
$ rosparam delete param_key
通过程序来使用参数
- 创建功能包
cd ~/catkin_ws/src
catkin_create_pkg learning_parameter roscpp rospy std_srvs
- py代码
#! /usr/bin/env /usr/local/bin/python3.10
# -*- coding: utf-8 -*-
# 该例程设置/读取海龟例程中的参数
import sys
import rospy
from std_srvs.srv import Empty
def parameter_config():
# ROS节点初始化
rospy.init_node('parameter_config', anonymous=True)
# 读取背景颜色参数
red = rospy.get_param('/turtlesim/background_r')
green = rospy.get_param('/turtlesim/background_g')
blue = rospy.get_param('/turtlesim/background_b')
rospy.loginfo("Get Backgroud Color[%d, %d, %d]", red, green, blue)
# 设置背景颜色参数
rospy.set_param("/turtlesim/background_r", 255);
rospy.set_param("/turtlesim/background_g", 255);
rospy.set_param("/turtlesim/background_b", 255);
rospy.loginfo("Set Backgroud Color[255, 255, 255]");
# 读取背景颜色参数
red = rospy.get_param('/turtlesim/background_r')
green = rospy.get_param('/turtlesim/background_g')
blue = rospy.get_param('/turtlesim/background_b')
rospy.loginfo("Get Backgroud Color[%d, %d, %d]", red, green, blue)
# 发现/spawn服务后，创建一个服务客户端，连接名为/spawn的service
rospy.wait_for_service('/clear')
try:
clear_background = rospy.ServiceProxy('/clear', Empty)
# 请求服务调用，输入请求数据
response = clear_background()
return response
except rospy.ServiceException as e:
print ("Service call failed: %s"%e)
if __name__ == "__main__":
parameter_config()

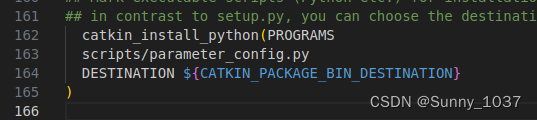

- 配置camke

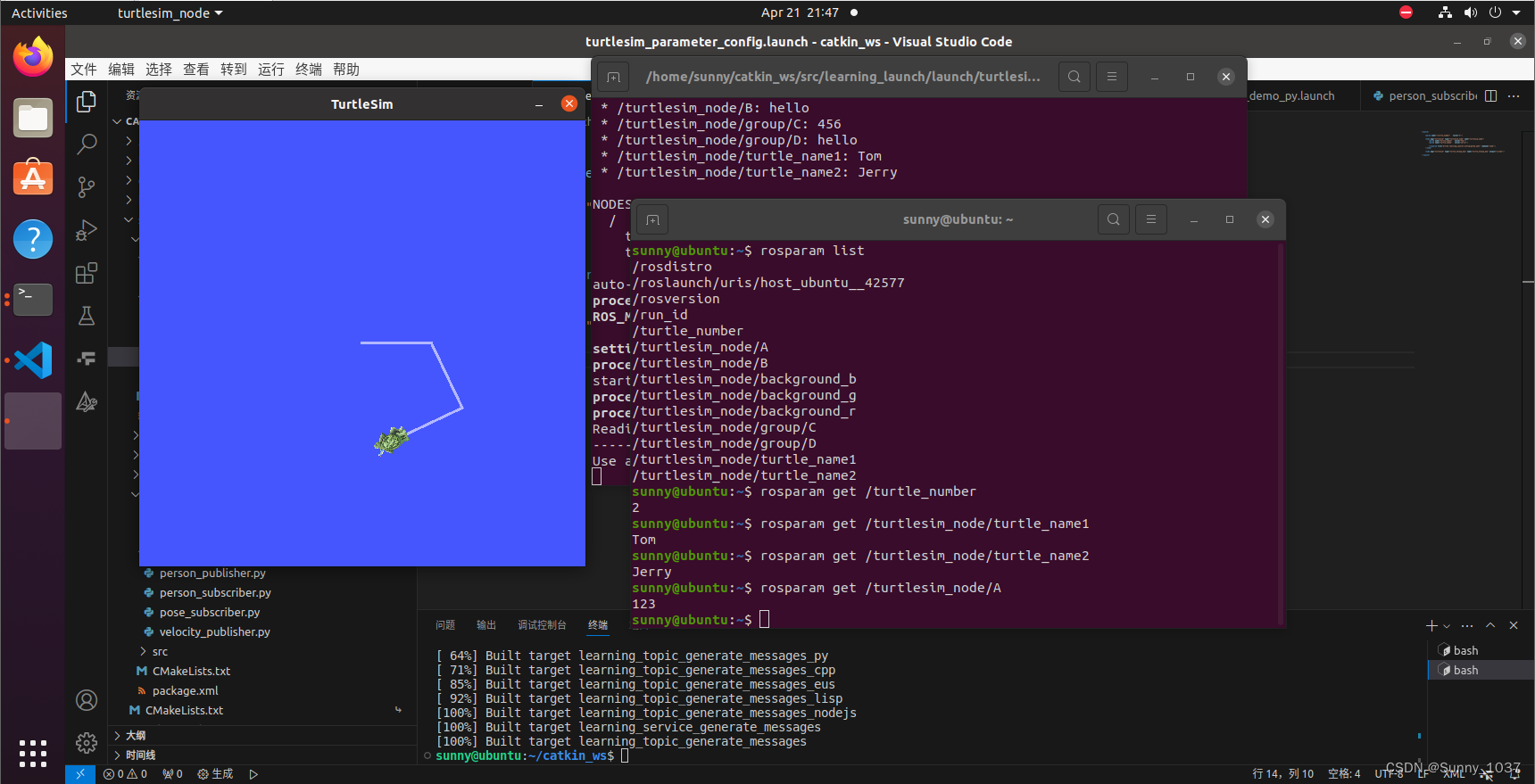

- 编译运行(可以看到小乌龟背景颜色变化)
cd ~/catkin_ws
catkin_make
roscore
rosrun turtlesim turtlesim_node
rosrun learning_parameter parameter_config.py
ROS中的坐标管理系统
TF功能包
一个机器人中，可以有很多坐标系，我们需要去描述任意两个坐标系之间的关系，涉及到大量的矩阵运算。我们可以用ROS中的TF(Transform)功能包来解决问题。
可以看看这一篇文章：https://blog.csdn.net/takedachia/article/details/122602199 or 参考古月居第17讲
- 查看当前
TF tree，查看坐标之间的关系
rosrun tf view_frames
- 坐标的相对位置关系
rosrun tf tf_echo turtle1 turtle2
- 坐标关系可视化
rviz
rosrun rviz rviz -d `rospack find turtle_tf` /rviz/turtle_rviz.rviz

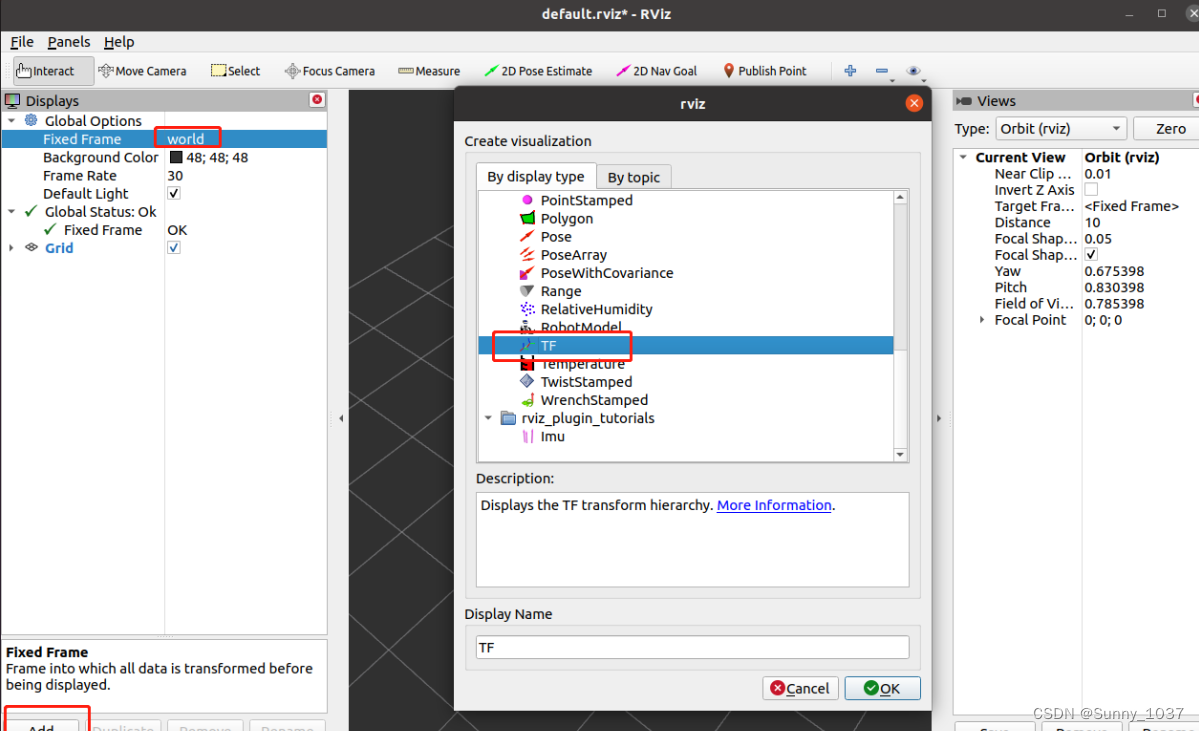

Fixed Frame选 world。Add选添加TF
TF坐标系的广播与监听的编程实现
- 创建功能包
cd ~/catkin_ws/src
catkin_create_pkg learning_tf roscpp rospy tf turtlesim
- 实现广播与监听
如何实现一个TF广播器：
定义TF广播器（TransformBroadcaster）
创建坐标变换值
发布坐标变换（sendTransform）
如何实现一个TF监听器：
定义TF监听器（TransformListener）
查找坐标变换（waitForTransform、lookupTransform）
turtle_tf_broadcaster.py
#! /usr/bin/env /usr/local/bin/python3.10
# -*- coding: utf-8 -*-
# 该例程将请求/show_person服务，服务数据类型learning_service::Person
import roslib
roslib.load_manifest('learning_tf')
import rospy
import tf
import turtlesim.msg
def handle_turtle_pose(msg, turtlename):
br = tf.TransformBroadcaster()
br.sendTransform((msg.x, msg.y, 0),
tf.transformations.quaternion_from_euler(0, 0, msg.theta),
rospy.Time.now(),
turtlename,
"world")
if __name__ == '__main__':
rospy.init_node('turtle_tf_broadcaster')
turtlename = rospy.get_param('~turtle')
rospy.Subscriber('/%s/pose' % turtlename,
turtlesim.msg.Pose,
handle_turtle_pose,
turtlename)
rospy.spin()
turtle_tf_listener.py
#! /usr/bin/env /usr/local/bin/python3.10
# -*- coding: utf-8 -*-
# 该例程将请求/show_person服务，服务数据类型learning_service::Person
import roslib
roslib.load_manifest('learning_tf')
import rospy
import math
import tf
import geometry_msgs.msg
import turtlesim.srv
if __name__ == '__main__':
rospy.init_node('turtle_tf_listener')
listener = tf.TransformListener()
rospy.wait_for_service('spawn')
spawner = rospy.ServiceProxy('spawn', turtlesim.srv.Spawn)
spawner(4, 2, 0, 'turtle2')
turtle_vel = rospy.Publisher('turtle2/cmd_vel', geometry_msgs.msg.Twist,queue_size=1)
rate = rospy.Rate(10.0)
while not rospy.is_shutdown():
try:
(trans,rot) = listener.lookupTransform('/turtle2', '/turtle1', rospy.Time(0))
except (tf.LookupException, tf.ConnectivityException, tf.ExtrapolationException):
continue
angular = 4 * math.atan2(trans[1], trans[0])
linear = 0.5 * math.sqrt(trans[0] ** 2 + trans[1] ** 2)
cmd = geometry_msgs.msg.Twist()
cmd.linear.x = linear
cmd.angular.z = angular
turtle_vel.publish(cmd)
rate.sleep()

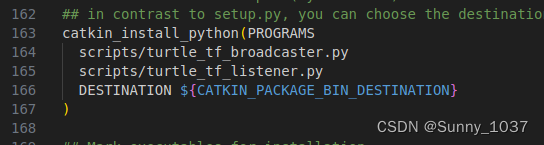

- 配置cmake
- 编译运行
roscore
rosrun turtlesim turtlesim_node
#启动两只海龟广播节点
rosrun learning_tf turtle_tf_broadcaster.py __name:=turtle1_tf_broadcaster _turtle:=turtle1
rosrun learning_tf turtle_tf_broadcaster.py __name:=turtle2_tf_broadcaster _turtle:=turtle2
#启动监听
rosrun learning_tf turtle_tf_listener.py
#键盘控制
rosrun turtlesim turtle_teleop_key
launch文件的使用
#launch文件可以自动运行roscore
cd ~/catkin_ws/src
catkin_create_pkg learning_launch
#写好launch文件之后，launch
roslaunch <pkg_name> <launch file name>
- learning_launch 功能包下直接创建launch文件夹，直接创建launch文件
- 启动节点
#simple.launch
<launch>
<node pkg="learning_topic" type="person_subscriber.py" name="talker" output="screen" />
<node pkg="learning_topic" type="person_publisher.py" name="listener" output="screen" />
</launch>
python文件的启动，type后应写上文件名后缀
.py
- launch文件控制参数
<launch>
<param name="/turtle_number" value="2"/>
<node pkg="turtlesim" type="turtlesim_node" name="turtlesim_node">
<param name="turtle_name1" value="Tom"/>
<param name="turtle_name2" value="Jerry"/>
<rosparam file="$(find learning_launch)/config/param.yaml" command="load"/>
</node>
<node pkg="turtlesim" type="turtle_teleop_key" name="turtle_teleop_key" output="screen"/>
</launch>
启动两个海龟，加载参数文件，最后启动键盘控制节点
查看参数可以看到参数被修改，参数文件成功被加载
- 启动广播与监听
<launch>
<!-- Turtlesim Node-->
<node pkg="turtlesim" type="turtlesim_node" name="sim"/>
<node pkg="turtlesim" type="turtle_teleop_key" name="teleop" output="screen"/>
<node name="turtle1_tf_broadcaster" pkg="learning_tf" type="turtle_tf_broadcaster.py">
<param name="turtle" type="string" value="turtle1" />
</node>
<node name="turtle2_tf_broadcaster" pkg="learning_tf" type="turtle_tf_broadcaster.py">
<param name="turtle" type="string" value="turtle2" />
</node>
<node pkg="learning_tf" type="turtle_tf_listener.py" name="listener" />
</launch>
- Remap 重命名
<launch>
<include file="$(find learning_launch)/launch/simple.launch" />
<node pkg="turtlesim" type="turtlesim_node" name="turtlesim_node">
<remap from="/turtle1/cmd_vel" to="/cmd_vel"/>
</node>
</launch>
remap标签 将话题名称进行改变 重命名
常用的可视化工具
- 日志输出工具
rqt_console
- 绘制数据曲线
rqt_plot
- 图像渲染工具
rqt_image_view
- 所有工具集合
rqt
- Rviz机器人可视化平台
rosrun rviz rviz
- Gazebo仿真
roslaunch gazebo_ros <launch file name>
扫一扫
1596
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
