CAD net Dimension Style

 This chapter shows detailed example, how to manage of each option of "Modify Dimension Style" dialog box, on all its tabs:

/* DimStyleSample.cs
 * © Andrey Bushman, 2012
 * The sample of dimsion style creating.
 */
using System;

using cad = Autodesk.AutoCAD.ApplicationServices
.Application;
using Ap = Autodesk.AutoCAD.ApplicationServices;
using Db = Autodesk.AutoCAD.DatabaseServices;
using Ed = Autodesk.AutoCAD.EditorInput;
using Rt = Autodesk.AutoCAD.Runtime;
using Clr = Autodesk.AutoCAD.Colors;
//************************************

[assembly: Rt.CommandClass(typeof(Bushman.CAD
  .Samples.Styles.DimStyleSample))]

namespace Bushman.CAD.Samples.Styles {

  public class DimStyleSample {

    [Rt.CommandMethod("CreateDimStyle",
      Rt.CommandFlags.Modal)]
    public void CreateDimStyle() {
      Ap.Document doc = cad.DocumentManager
        .MdiActiveDocument;
      Ed.Editor ed = doc.Editor;
      Db.Database db = doc.Database;

      using(Db.Transaction tr =
        db.TransactionManager.StartTransaction())
        {

        // Create new Text Style for using in the
        // our new Dimension Styles
        Db.TextStyleTable tst =
          (Db.TextStyleTable)tr.GetObject(
          db.TextStyleTableId,
          Db.OpenMode.ForWrite);
        Db.TextStyleTableRecord textStyle =
          new Db.TextStyleTableRecord();
        textStyle.Name = "My TextStyle";
        textStyle.FileName = "MipGost.shx";
        tst.Add(textStyle);
        tr.AddNewlyCreatedDBObject(textStyle,
          true);

        // Create new Dimension Style...
        Db.DimStyleTable dst =
          (Db.DimStyleTable)tr.GetObject(
          db.DimStyleTableId,
          Db.OpenMode.ForWrite);
        Db.DimStyleTableRecord dimStyle =
          new Db.DimStyleTableRecord();
        dimStyle.Name = "My DimStyle";

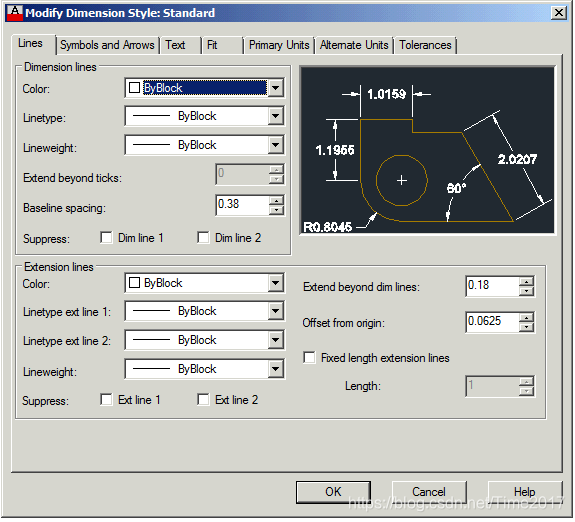

        // Please, open the "Modify Dimension
        // Style" dialog box (through _DIMSTYLE
        // command, and press "Modify.." button)
        // - below I will modify these settings.

        // *** LINES tab ***

        // "Dimension lines" group:

        Db.ObjectId lineTypeId =
          db.ContinuousLinetype;

        dimStyle.Dimclrd = Clr.Color
          .FromColorIndex(Clr.ColorMethod.None,
          10); // Color
        // Linetype
        dimStyle.Dimltype = lineTypeId;
        dimStyle.Dimlwd = Db.LineWeight
          .LineWeight013; // Lineweight
        // Extend Beyond Ticks
        dimStyle.Dimdle = 1;
        dimStyle.Dimdli = 7; // Baseline Spacing
        // Suppress dim line 1
        dimStyle.Dimsd1 = false;
        // Suppress dim line 2
        dimStyle.Dimsd2 = false;

        // "Extension Lines" group:
        dimStyle.Dimclre = Clr.Color
          .FromColorIndex(Clr.ColorMethod.None,
          84); // Color
        // Linetype Ext 1
        dimStyle.Dimltex1 = lineTypeId;
        // Linetype Ext 2
        dimStyle.Dimltex2 = lineTypeId;
        dimStyle.Dimlwe = Db.LineWeight
          .LineWeight013; // Lineweight
        // Suppress Ext line 1
        dimStyle.Dimse1 = false;
        // Suppress Ext line 2
        dimStyle.Dimse2 = false;
        // Extend Beyond Dim Lines
        dimStyle.Dimexe = 2.5;
        // Offset From Origin
        dimStyle.Dimexo = 2.5;
        // Fixed Length Extension Lines
        dimStyle.DimfxlenOn = false;
        dimStyle.Dimfxlen = 1; // Length

        // *** SYMBOL AND ARROWS tab ***

        // "Arrowheads" group:
        // Note: Annotative blocks cannot be used
        // as custom arrowheads for dimensions or
        // leaders.
        Db.BlockTable bt = (Db.BlockTable)tr
          .GetObject(db.BlockTableId,
          Db.OpenMode.ForRead);

        Db.ObjectId id1 = GetArrowObjectId_dim(
          "DIMBLK1", "_DOT");
        Db.ObjectId id2 = GetArrowObjectId_dim(
          "DIMBLK2", "_CLOSED");
        Db.ObjectId id3 = GetArrowObjectId_dim(
          "DIMBLK2", "_Oblique");

        // Make sure you set the "Dimsah" to
        // true, if you need individually modify
        // the 'Dimblk1', and 'Dimblk2'!
        // You can set Db.ObjectId.Null as value
        // for default marker.
        dimStyle.Dimsah = true;
        // The "First" option on the "Symbols and
        // Arrows" tab
        dimStyle.Dimblk1 = id1;
        // The "Second" option on the "Symbols
        // and Arrows" tab
        dimStyle.Dimblk2 = id2;

        // Or as variant, you can to change the
        // both parameters simultaneously:
        // the "First", and the "Second" through
        // 'Dimblk', but then you must to comment
        // the code rows of setting values for
        // 'Dimblk1', and 'Dimblk2'.
        // dimStyle.Dimblk = id3;

        // Leader ('Closed filled' value)
        dimStyle.Dimldrblk = Db.ObjectId.Null;
        dimStyle.Dimasz = 3; // Arrow Size

        // "Center marks" group:

        // 'Dimcen' property's allowed values:
        //  0 - None;
        //  1 - Mark;
        // -1 - Line
        Int32 centerMarks = -1;
        Double centerMarksSize = 3.52;
        // The size of the center mark or
        // centerline
        dimStyle.Dimcen = centerMarks *
          centerMarksSize;

        // The "Dimension Break" value is stored
        // in XData of Dimension Style item...
        // Get the registered application names
        // table
        Db.RegAppTable regTable =
          (Db.RegAppTable)tr.GetObject(
          db.RegAppTableId, Db.OpenMode.ForRead);
        String xName = "cad_DSTYLE_DIMBREAK";
        if(!regTable.Has(xName)) {
          regTable.UpgradeOpen();

          // Add the application names that would
          // be used to add Xdata
          Db.RegAppTableRecord app =
            new Db.RegAppTableRecord();
          app.Name = xName;
          regTable.Add(app);
          tr.AddNewlyCreatedDBObject(app, true);
        }

        Db.ResultBuffer rb = new Db.ResultBuffer(
            new Db.TypedValue((Int32)Db.DxfCode
              .ExtendedDataRegAppName, xName),
            new Db.TypedValue((Int32)Db.DxfCode
              .ExtendedDataInteger16, 391),
            new Db.TypedValue((Int32)Db.DxfCode
              .ExtendedDataReal, 19.7
          /* our value for "Dimension Break"
           * property */));

        dimStyle.XData = rb;

        // The "Arc Length Symbol" group:

        // 'Dimarcsym' property's allowed values:
        // 0 - Places arc length symbols before
        //    the dimension text
        // 1 - Places arc length symbols above
        //    the dimension text
        // 2 - Suppresses the display of arc
        //    length symbols

        // Arc Length Symbol
        dimStyle.Dimarcsym = 1;

        // The "Radius Jog Dimensions" group:
        dimStyle.Dimjogang = 90; // Jog Angle

        // "Linear Jog Dimensions" group:
        // The "Linear Jog Size" value is stored
        // in XData of Dimension Style item...
        xName = "cad_DSTYLE_DIMJAG";
        if(!regTable.Has(xName)) {
          regTable.UpgradeOpen();

          // Add the application names that would
          // be used to add Xdata
          Db.RegAppTableRecord app =
            new Db.RegAppTableRecord();
          app.Name = xName;
          regTable.Add(app);
          tr.AddNewlyCreatedDBObject(app, true);
        }
        rb = new Db.ResultBuffer(
            new Db.TypedValue((Int32)Db.DxfCode
              .ExtendedDataRegAppName, xName),
            new Db.TypedValue((Int32)Db.DxfCode
              .ExtendedDataInteger16, 388),
            new Db.TypedValue((Int32)Db.DxfCode
              .ExtendedDataReal, 5.56
          /* our value for "Linear Jog Size"
           * property */));
        dimStyle.XData = rb;

        // *** TEXT tab ***

        // "Text Appearance" group:

        // Text Style
        dimStyle.Dimtxsty = textStyle.ObjectId;
        dimStyle.Dimclrt = Clr.Color
          .FromColorIndex(Clr.ColorMethod.None,
          150); // Text Color
        // 'Dimtfill' property's allowed values:
        // 0 - No background
        // 1 - The background color of the
        //    drawing
        // 2 - The background specified by
        //    Dimtfillclr property
        dimStyle.Dimtfill = 2;
        dimStyle.Dimtfillclr = Clr.Color
          .FromColorIndex(Clr.ColorMethod.None,
          210); // Fill Color
        dimStyle.Dimtxt = 3.5; // Text Height
        // Fraction Height Scale
        dimStyle.Dimfrac = 2;
        // check/unchek the "Draw Frame Around
        // Text"
        Boolean drawFrameAroundText = true;
        // parameter on the "Text" tab. Look
        // 'Dimgap' below...

        // "Text Placement" group:

        // 'Dimtad' property's allowed values:
        // 0 - Centers the dimension text between
        //    the extension lines.
        // 1 - Places the dimension text above
        //    the dimension line except when the
        //    dimension line is not horizontal
        //    and text inside the extension lines
        //    is forced horizontal (DIMTIH = 1).
        //     The distance from the dimension
        //    line to the baseline of the lowest
        //    line of text is the current DIMGAP
        //    value.
        // 2 - Places the dimension text on the
        //    side of the dimension line farthest
        //    away from the defining points.
        // 3 - Places the dimension text to
        //    conform to Japanese Industrial
        //    Standards (JIS).
        dimStyle.Dimtad = 1; // Vertical

        // 'Dimjust' property's allowed values:
        // 0 - Positions the text above the
        //    dimension line and center-justifies
        //    it between the extension lines
        // 1 - Positions the text next to the
        //    first extension line
        // 2 - Positions the text next to the
        //    second extension line
        // 3 - Positions the text above and
        //    aligned with the first extension
        //    line
        // 4 - Positions the text above and
        //    aligned with the second extension
        //    line
        dimStyle.Dimjust = 1; // Horizontal
        // Offset from Dim Line
        dimStyle.Dimgap = 7.777 *
          (drawFrameAroundText ? -1 : 1);

        // "Text Alignment" group:

        // Dimtih = true, Dimtoh = true -
        //    Horizontal.
        // Dimtih = false, Dimtoh = true -
        //    ISO Standard.
        // Dimtih = true, Dimtoh = false -
        //    ISO Standard.
        // Dimtih = false, Dimtoh = false -
        //    Aligned with Dimension Line

        // 'Dimtih' property's allowed values:
        // false - Aligns text with the dimension
        //    line
        // true - Draws text horizontally
        dimStyle.Dimtih = true; // Text Alignment

        // 'Dimtoh' property's allowed values:
        // false - Aligns text with the dimension
        //    line
        // true - Draws text horizontally
        dimStyle.Dimtoh = false;

        // *** FIT tab ***

        // "Fit Options" group:

        // 'Dimjust' property's allowed values:
        // 0 - Places both text and arrows
        //    outside extension lines
        // 1 - Moves arrows first, then text
        // 2 - Moves text first, then arrows
        // 3 - Moves either text or arrows,
        //    whichever fits best

        // The 'Dimtix' property must be false
        dimStyle.Dimatfit = 1;
        // Always Keep Text Between Ext Lines
        dimStyle.Dimtix = false;
        // Suppress Arrows If They Don't Fit
        // Inside Extension Lines
        dimStyle.Dimsoxd = true;

        // "Text placement" group:
        // 0 - Moves the dimension line with
        //    dimension text
        // 1 - Adds a leader when dimension text
        //    is moved
        // 2 - Allows text to be moved freely
        //    without a leader
        dimStyle.Dimtmove = 1;

        // "Scale for Dimension Features" group:
        dimStyle.Annotative =
          Db.AnnotativeStates.True; // Annotative
        dimStyle.Dimscale = 1.23; // Dimscale

        // If you need to set "Scale Dimensions
        // To Layout" than set .Dimscale = 0:
        // dimStyle.Dimscale = 0;

        // "Fine Tuning" group:

        // Place Text Manually
        dimStyle.Dimupt = true;
        // Draw Dim Line Between Ext Lines
        dimStyle.Dimtofl = true;

        // *** PRIMARY UNITS tab ***

        // 'Dimlunit' property's allowed values:
        // 1 - Scientific
        // 2 - Decimal
        // 3 - Engineering
        // 4 - Architectural (always displayed
        //    stacked)
        // 5 - Fractional (always displayed
        //    stacked)
        // 6 - Microsoft Windows Desktop (decimal
        //    format using Control Panel
        //     settings for decimal separator and
        //    number grouping symbols)

        // Linear Dimensions
        dimStyle.Dimlunit = 2;
        // The relative sizes of numbers in
        // stacked fractions are based on the
        // DIMTFAC system variable (in the same
        // way that tolerance values use this
        // system variable).
        dimStyle.Dimtfac = 1.0;
        dimStyle.Dimdec = 2; // Precision

        // 'Dimfrac' property's allowed values:
        // 0 - Horizontal stacking
        // 1 - Diagonal stacking
        // 2 - Not stacked (for example, 1/2)
        dimStyle.Dimfrac = 0; // Fraction Format

        // If dimension units is set to
        // 'Decimal', the 'Dimdsep' property is
        // used instead of the default decimal
        // point. If 'Dimdsep' is set to NULL
        // (default value, reset by entering a
        // period), the decimal point is used as
        // the dimension separator.

        // 'Dimdsep' property's allowed values:
        // '.' - Period
        // ',' - Comma
        // ' ' - Space

        // Decimal Separator
        dimStyle.Dimdsep = ',';
        dimStyle.Dimrnd = 2.5; // Round Off

        // Prefix, and Suffix
        // For example:
        // "www<>ddd"
        // www - prefix
        // <> - value
        // ddd - suffix

        // Without prefix and suffix
        dimStyle.Dimpost = "<>";

        // "Measurement Scale" group:

        dimStyle.Dimlfac = 2.5; // Scale Factor
        // Check/uncheck the "Apply to Layout
        // Dimensions Only" option on the
        // "Primary Units" tab:
        Boolean applyToLayoutDimensionsOnly =
          true;
        // negative value of 'Dimfrac' for
        // checking
        dimStyle.Dimlfac =
          applyToLayoutDimensionsOnly ? -1 *
          Math.Abs(dimStyle.Dimlfac) :
            Math.Abs(dimStyle.Dimlfac);

        // "Zero Suppression" group:

        // 'Dimzin' property's allowed values:
        // 0 - Suppresses zero feet and precisely
        //    zero inches
        // 1 - Includes zero feet and precisely
        //    zero inches
        // 2 - Includes zero feet and suppresses
        //    zero inches
        // 3 - Includes zero inches and
        //    suppresses zero feet
        // 4 - Suppresses leading zeros in
        //    decimal dimensions (for example,
        //    0.5000 becomes .5000)
        // 8 - Suppresses trailing zeros in
        //    decimal dimensions (for example,
        //    12.5000 becomes 12.5)
        // 12 - Suppresses both leading and
        //    trailing zeros (for example, 0.5000
        //    becomes .5)
        dimStyle.Dimzin = 0;

        // "Angular Dimensions" group:

        // 'Dimaunit' property's allowed values:
        // 0 - Decimal degrees
        // 1 - Degrees/minutes/seconds
        // 2 - Gradians
        // 3 - Radians
        dimStyle.Dimaunit = 0; // Units Format

        // 'Dimadec' property's allowed values:
        // -1 - Angular dimensions display the
        //    number of decimal places specified
        //    by 'Dimdec' property.
        // 0-8 - Specifies the number of decimal
        //    places displayed in angular
        //    dimensions
        // (independent of 'Dimdec' property)
        dimStyle.Dimadec = 0; // Precision

        // "Zero Suppression" group:

        // 'Dimazin' property's allowed values:
        // 0 - Displays all leading and trailing
        //    zeros
        // 1 - Suppresses leading zeros in
        //    decimal dimensions (for example,
        //    0.5000 becomes .5000)
        // 2 - Suppresses trailing zeros in
        //    decimal dimensions (for example,
        //    12.5000 becomes 12.5)
        // 3 - Suppresses leading and trailing
        //    zeros (for example, 0.5000 becomes
        //    .5)
        dimStyle.Dimazin = 0;

        // *** ALTERNATIVE UNITS tab ***

        // Display Alternate Units
        dimStyle.Dimalt = true;

        // "Alternate Units" group:

        // 'Dimaltu' property's allowed values:
        // 1 - Scientific
        // 2 - Decimal
        // 3 - Engineering
        // 4 - Architectural (stacked)
        // 5 - Fractional (stacked)
        // 6 - Architectural
        // 7 - Fractional
        // 8 - Microsoft Windows Desktop (decimal
        //    format using Control Panel settings
        //    for decimal separator and number
        //    grouping symbols)
        dimStyle.Dimaltu = 1; // Unit Format
        dimStyle.Dimaltd = 1; // Precision
        // Multiplier for Alternate Units
        dimStyle.Dimaltf = 1;
        // Round Distances To
        dimStyle.Dimaltrnd = 0;

        // Prefix, and Suffix
        // For example:
        // "www<>ddd"
        // www - prefix
        // <> - value
        // ddd - suffix

        // Without prefix and suffix
        dimStyle.Dimapost = "<>";

        // "Zero Suppression" group:

        // 'Dimaltz' property's allowed values:
        // 0 - Suppresses zero feet and precisely
        //    zero inches
        // 1 - Includes zero feet and precisely
        //    zero inches
        // 2 - Includes zero feet and suppresses
        //    zero inches
        // 3 - Includes zero inches and
        //    suppresses zero feet
        // 4 - Suppresses leading zeros in
        //    decimal dimensions (for example,
        //    0.5000 becomes .5000)
        // 8 - Suppresses trailing zeros in
        //    decimal dimensions (for example,
        //    12.5000 becomes 12.5)
        // 12 - Suppresses both leading and
        //    trailing zeros (for example,
        //    0.5000 becomes .5)
        dimStyle.Dimaltz = 1; // Zero Suppression

        // "Placement" group:
        // I don't know how to set a necessary
        //    value for "Placement" on "Alternate
        //    Units" tab.

        // *** TOLERANCES tab ***

        // "Tolerance Format" group:

        // Dimtol = true,  Dimlim = true  -
        //    'Limits', but don't set this
        //    combinations(!!!), or you will get
        //    "Style Overrides" for Dimension
        //    Style name. For getting the
        //    'Limits' value, look below.
        // Dimtol = true,  Dimlim = false -
        //    'Symmetrical'
        // Dimtol = false, Dimlim = true  -
        //    'Limits'
        // Dimtol = false, Dimlim = false -
        //    'None'
        // I don't know how to set values
        // 'Basic', or 'Deviation' value for a
        //  "Method" option in the "Tolerance
        // Format" group, on the "Tolerances" tab
        dimStyle.Dimtol = false;
        dimStyle.Dimlim = true;

        dimStyle.Dimtdec = 1; // Precision
        dimStyle.Dimtp = 0; // Upper Value
        dimStyle.Dimtm = 0; // Lower Value
        // Scaling for Height
        dimStyle.Dimtfac = 1;

        // 'Dimtolj' property's allowed values:
        // 0 - Bottom
        // 1 - Middle
        // 2 - Top

        // Vertical Position
        dimStyle.Dimtolj = 0;

        // "Tolerance Alignment" group:
        // I don't know how to set an "Align
        // Decimal Separators", or an "Align
        // Operational Symbols" value for the
        // "Align Decimal Separators" option in
        // the "Tolerance Alignment" group on
        // the "Tolerances" tab.

        // "Dimalttd" group:

        // 'Dimtolj' property's allowed values:
        // 0 - Suppresses zero feet and precisely
        //    zero inches
        // 1 - Includes zero feet and precisely
        //    zero inches
        // 2 - Includes zero feet and suppresses
        //    zero inches
        // 3 - Includes zero inches and
        //    suppresses zero feet
        // 4 - Suppresses leading zeros in
        //    decimal dimensions (for example,
        //    0.5000 becomes .5000)
        // 8 - Suppresses trailing zeros in
        //    decimal dimensions (for example,
        //    12.5000 becomes 12.5)
        // 12 - Suppresses both leading and
        //    trailing zeros (for example,
        //    0.5000 becomes .5)
        dimStyle.Dimtzin = 1; // Zero Suppression

        // "Alternate Unit Tolerance" group:

        dimStyle.Dimalttd = 1; // Precision

        // "Zero Suppression" group:

        // 'Dimalttz' property's allowed values:
        // 0 - Suppresses zero feet and precisely
        //    zero inches
        // 1 - Includes zero feet and precisely
        //    zero inches
        // 2 - Includes zero feet and suppresses
        //    zero inches
        // 3 - Includes zero inches and
        //    suppresses zero feet
        // 4 - Suppresses leading zeros
        // 8 - Suppresses trailing zeros

        // Zero Suppression
        dimStyle.Dimalttz = 1;

        // ***
        // save changes
        dst.Add(dimStyle);
        tr.AddNewlyCreatedDBObject(dimStyle,
          true);

        // Solving a "Style Overrides" problem:

        // Set as current dimension style
        db.Dimstyle = dimStyle.ObjectId;
        db.SetDimstyleData(dimStyle);

        // Now create child dimensions, based on
        // our dimension style. Read the
        // ObjectARX Reference Guide > Additional
        // Information > Dimension Styles >
        // Dimension Style Families
        String[] names = new String[] {
                      "$0", //  Linear child
                      // style (both rotated and
                      // aligned types)
                      "$2", //  Angular child of
                      // style (both 2-line and
                      // 3-point types)
                      "$3", //  Diameter child of
                      // style
                      "$4", //  Radius child of
                      // style
                      "$6", //  Ordinate child of
                      // style
                      "$7" //  Leader child of
        // style (used for tolerance entities
        //(DbFcf) also)
                  };
        foreach(String item in names) {
          Db.DimStyleTableRecord childStyle;
          String childName = dimStyle.Name +
            item;
          if(dst.Has(childName)) {
            childStyle =
              (Db.DimStyleTableRecord)tr
              .GetObject(dst[childName],
              Db.OpenMode.ForWrite);
          }
          else {
            childStyle =
              (Db.DimStyleTableRecord)dimStyle
              .Clone();
            childStyle.Name = childName;
            dst.Add(childStyle);
            tr.AddNewlyCreatedDBObject(
              childStyle, true);
          }
        }
        tr.Commit();
      }
    }

    static Db.ObjectId GetArrowObjectId_dim(
      string arrow, string newArrName) {
      Db.ObjectId arrObjId = Db.ObjectId.Null;
      Ap.Document doc = cad.DocumentManager
        .MdiActiveDocument;
      Db.Database db = doc.Database;

      // Get the current value of DIMBLK1
      string oldArrName = cad.GetSystemVariable(
        arrow) as string;

      // Set DIMBLK to the new style
      // (this action may create a new block)
      cad.SetSystemVariable(arrow, newArrName);

      // Reset the previous value of DIMBLK
      if(oldArrName.Length != 0)
        cad.SetSystemVariable(arrow, oldArrName);

      // Now get the objectId of the block
      Db.Transaction tr = db.TransactionManager
        .StartTransaction();
      using(tr) {
        Db.BlockTable bt = (Db.BlockTable)tr
          .GetObject(db.BlockTableId, Db.OpenMode
          .ForRead);
        arrObjId = bt[newArrName];
        tr.Commit();
      }
      return arrObjId;
    }
  }
}
