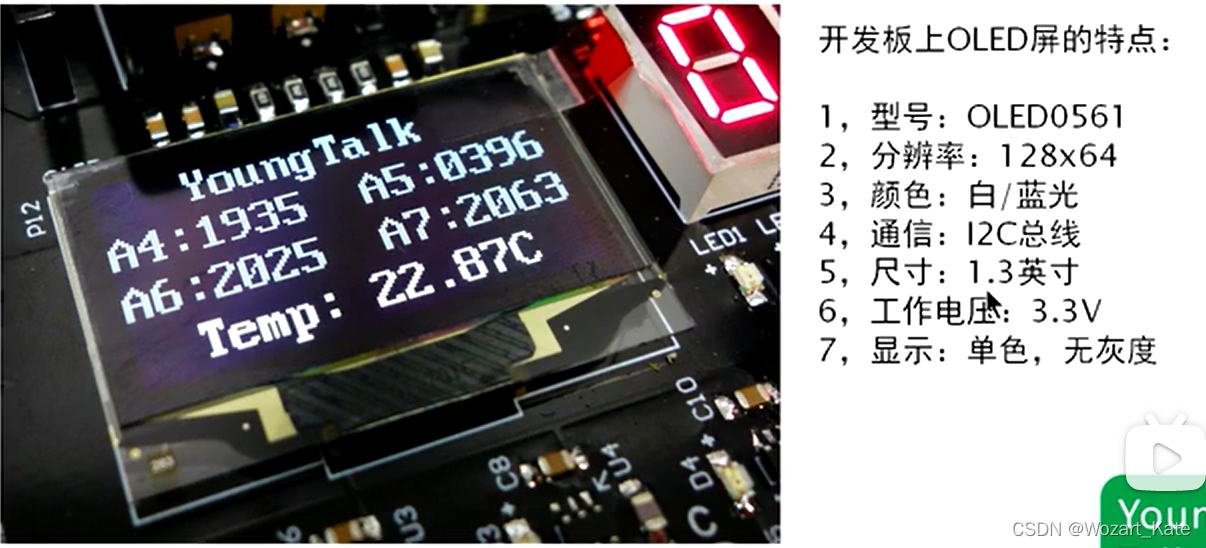

一号开发板OLED显示屏

规格

Ps
屏幕所有的单个像素点没有灰度
但整体亮度可以调节

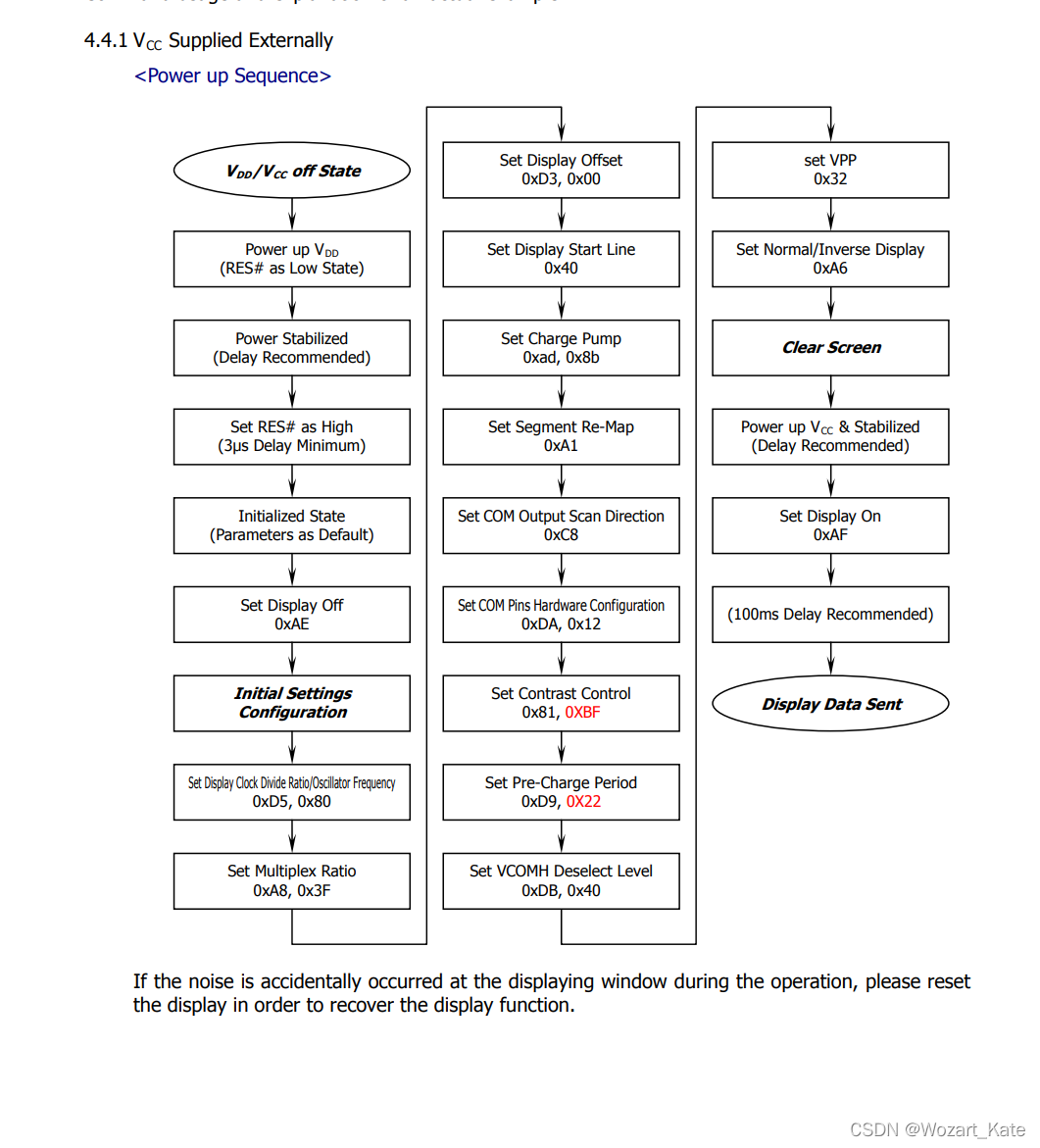

通过如上的流程图
用汇编语言的对应指令写入

void OLED_DISPLAY_ON (void)
{
	u8 buf[28] = {
		0xae,//0xae is on, while 0xaf is off
		0x00,0x10,//initial settings configuration(in double byte)
		0xd5,0x80,//set the refresh rate Hz(display clock divide ratio that's set by setting oscillator frequency)
		0xa8,0x3f,//set multiplex ratio,复用率？
		0xd3,0x00,//set display offset,偏移？
		0xb0,//写入行的位置（本显示器上对应的1到8行分别是0xb0 to 0xb7）
		0x40,//在64*128的128中的哪一行开始
		0xad,0x8b,//set charge pump,设置VCC电源
		0xa1,//segment re-map
		0xc8,//set command output scan direction
		0xda,0x12,//set command pin hardware configuration
		0x81,0xff,//set contrast ratio(对比度)
		0xd9,0xf1,//set pre-charge period
		0xdb,0x30,//设置VCC电压输出
		//for some reason,VPP is neglect
		0x20,0x00,//水平寻址
		0xa4,//a4正常显示，a5全部点亮
		0xa6,//a6正常显示，a7反色显示
		//on this step, the chip will automatically clear the device
		0xaf//directly turn the screen on or off, af is on ae is off};
		I2C_SEND_BUFFER(OLED0561_ADD,COM,buf,28);//发送指令集
		}
	}
