Netty快速入门RPC项目

---

1 Netty所需背景知识

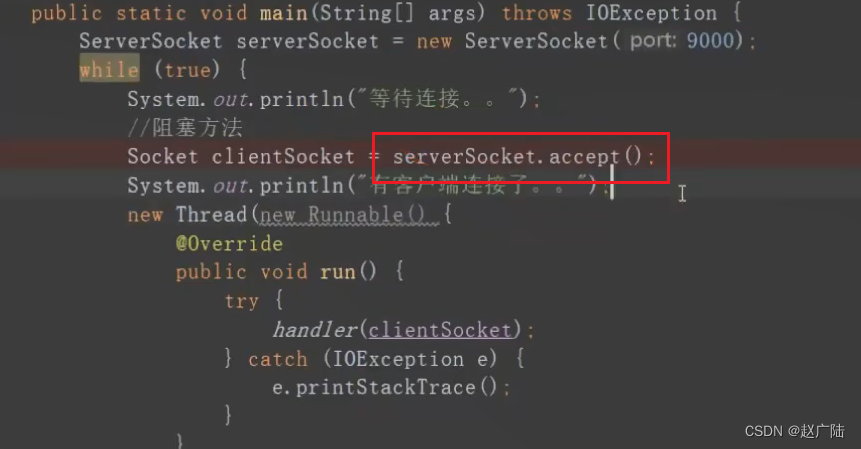

前言：如果你还对jdk的socket还有印象，下面的例子很简单理解的，不过后续我的文章会详细Netty模型各个组件。

Netty快速入门

阻塞IO（BIO）并发不高的原因就是有阻塞的方法，去等待服务方或者等待客户端方发送数据之后进行处理，就是加异步线程也无法解决高并发问题

2 创建MyRPC项目

pom.xml⽂件：

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0
http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <groupId>cn.oldlu.myrpc</groupId>
    <artifactId>oldlu-MyRPC</artifactId>
    <version>1.0-SNAPSHOT</version>
    <dependencies>
        <dependency>
            <groupId>io.netty</groupId>
            <artifactId>netty-all</artifactId>
            <version>4.1.50.Final</version>
        </dependency>
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>4.12</version>
        </dependency>
    </dependencies>
    <build>
        <plugins>
            <!-- java编译插件 -->
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <version>3.2</version>
                <configuration>
                    <source>1.8</source>
                    <target>1.8</target>
                    <encoding>UTF-8</encoding>
                </configuration>
            </plugin>
        </plugins>
    </build>
</project>

3 服务端

3.1 MyRPCServer

package cn.oldlu.myrpc.server;
import cn.oldlu.myrpc.server.handler.MyChannelInitializer;
import io.netty.bootstrap.ServerBootstrap;
import io.netty.channel.ChannelFuture;
import io.netty.channel.EventLoopGroup;
import io.netty.channel.nio.NioEventLoopGroup;
import io.netty.channel.socket.nio.NioServerSocketChannel;
public class MyRPCServer {
    public void start(int port) throws Exception {
// 主线程，不处理任何业务逻辑，只是接收客户的连接请求
        EventLoopGroup boss = new NioEventLoopGroup(1);
// ⼯作线程，线程数默认是：cpu*2
        EventLoopGroup worker = new NioEventLoopGroup();
        try {
// 服务器启动类
            ServerBootstrap serverBootstrap = new ServerBootstrap();
            serverBootstrap.group(boss, worker) //设置线程组
                    .channel(NioServerSocketChannel.class) //配置server通道
                    .childHandler(new MyChannelInitializer()); //worker线程的处理器
            ChannelFuture future = serverBootstrap.bind(port).sync();
            System.out.println("服务器启动完成，端⼝为：" + port);
//等待服务端监听端⼝关闭
            future.channel().closeFuture().sync();
        } finally {
//优雅关闭
            boss.shutdownGracefully();
            worker.shutdownGracefully();
        }
    }
}

3.2 MyChannelInitializer

package cn.oldlu.myrpc.server.handler;
import io.netty.channel.ChannelInitializer;
import io.netty.channel.socket.SocketChannel;
/**
 * ChannelHandler的初始化
 */
public class MyChannelInitializer extends ChannelInitializer<SocketChannel> {
    @Override
    protected void initChannel(SocketChannel ch) throws Exception {
//将业务处理器加⼊到列表中
        ch.pipeline().addLast(new MyChannelHandler());
    }
}

3.3 MyChannelHandler

package cn.oldlu.myrpc.server.handler;
import io.netty.buffer.ByteBuf;
import io.netty.buffer.Unpooled;
import io.netty.channel.ChannelHandlerContext;
import io.netty.channel.ChannelInboundHandlerAdapter;
import io.netty.util.CharsetUtil;
public class MyChannelHandler extends ChannelInboundHandlerAdapter {
    /**
     * 获取客户端发来的数据
     *
     * @param ctx
     * @param msg
     * @throws Exception
     */
    @Override
    public void channelRead(ChannelHandlerContext ctx, Object msg) throws
            Exception {
        ByteBuf byteBuf = (ByteBuf) msg;
        String msgStr = byteBuf.toString(CharsetUtil.UTF_8);
        System.out.println("客户端发来数据：" + msgStr);
//向客户端发送数据
        ctx.writeAndFlush(Unpooled.copiedBuffer("ok", CharsetUtil.UTF_8));
    }
    /**
     * 异常处理
     *
     * @param ctx
     * @param cause
     * @throws Exception
     */
    @Override
    public void exceptionCaught(ChannelHandlerContext ctx, Throwable cause)
            throws Exception {
        cause.printStackTrace();
        ctx.close();
    }
}

3.4 测试用例

package cn.oldlu.myrpc;
import cn.oldlu.myrpc.server.MyRPCServer;
import org.junit.Test;
public class TestServer {
    @Test
    public void testServer() throws Exception{
        MyRPCServer myRPCServer = new MyRPCServer();
        myRPCServer.start(5566);
    }
}

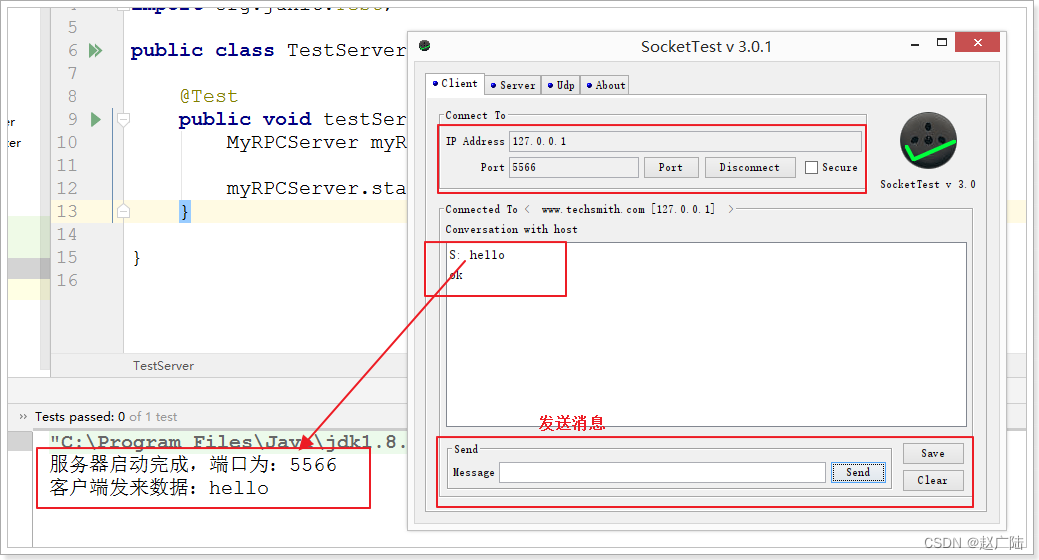

3.5 测试

这里会有人疑问你netty为什么会去拿socket测试，可能你没有细看我最开始的文章，socket偏向于底层，而netty是对socket的封装。一般很少直接使用socket来编程，使用框架比较多，而netty就是其中一种框架，广泛应用在各个互联网中间件，大数据，游戏，IM中。

可以看到，客户端发送数据到服务端。

3 客户端

3.1 MyRPCClient

package cn.oldlu.myrpc.client;
import cn.oldlu.myrpc.client.handler.MyClientHandler;
import io.netty.bootstrap.Bootstrap;
import io.netty.channel.ChannelFuture;
import io.netty.channel.EventLoopGroup;
import io.netty.channel.nio.NioEventLoopGroup;
import io.netty.channel.socket.nio.NioSocketChannel;
public class MyRPCClient {
    public void start(String host, int port) throws Exception {
//定义⼯作线程组
        EventLoopGroup worker = new NioEventLoopGroup();
        try {
//注意：client使⽤的是Bootstrap
            Bootstrap bootstrap = new Bootstrap();
            bootstrap.group(worker)
                    .channel(NioSocketChannel.class) //注意：client使⽤的是
            NioSocketChannel
                    .handler(new MyClientHandler());
//连接到远程服务
            ChannelFuture future = bootstrap.connect(host, port).sync();
            future.channel().closeFuture().sync();
        } finally {
            worker.shutdownGracefully();
        }
    }
}

3.2 MyClientHandler

package cn.oldlu.myrpc.client.handler;
import io.netty.buffer.ByteBuf;
import io.netty.buffer.Unpooled;
import io.netty.channel.ChannelHandlerContext;
import io.netty.channel.SimpleChannelInboundHandler;
import io.netty.util.CharsetUtil;
public class MyClientHandler extends SimpleChannelInboundHandler<ByteBuf> {
    @Override
    protected void channelRead0(ChannelHandlerContext ctx, ByteBuf msg) throws
            Exception {
        System.out.println("接收到服务端的消息：" +
                msg.toString(CharsetUtil.UTF_8));
    }
    @Override
    public void channelActive(ChannelHandlerContext ctx) throws Exception {
// 向服务端发送数据
        String msg = "hello";
        ctx.writeAndFlush(Unpooled.copiedBuffer(msg, CharsetUtil.UTF_8));
    }
    @Override
    public void exceptionCaught(ChannelHandlerContext ctx, Throwable cause)
            throws Exception {
        cause.printStackTrace();
        ctx.close();
    }

3.3 测试用例

package cn.oldlu.myrpc;
import cn.oldlu.myrpc.client.MyRPCClient;
import org.junit.Test;
public class TestClient {
    @Test
    public void testClient() throws Exception{
        new MyRPCClient().start("127.0.0.1", 5566);
    }
}

3.3.4 测试

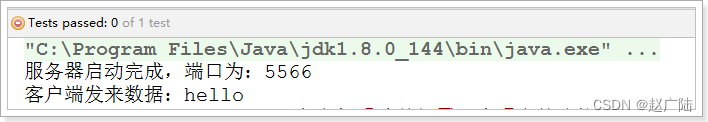

客户端：

服务端：
