flume +kafka+SparkStreaming日志监控平台

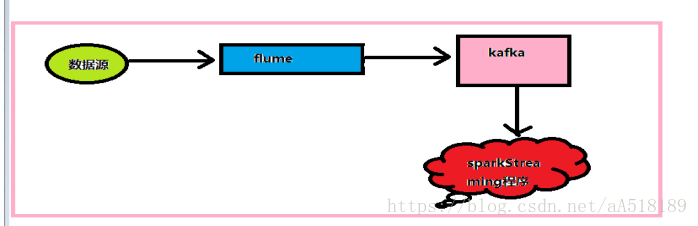

流程图



采集方案

#agentsection producer.sources= s1 producer.channels= c1 producer.sinks= k1 #配置数据源 producer.sources.s1.type=exec #配置需要监控的日志输出文件或目录 producer.sources.s1.command=tail -F -n+1 /root/a.log   #配置数据通道 producer.channels.c1.type=memory producer.channels.c1.capacity=10000 producer.channels.c1.transactionCapacity=100   #配置数据源输出 #设置Kafka接收器,此处最坑,注意版本,此处为Flume 1.6.0的输出槽类型 producer.sinks.k1.type= org.apache.flume.sink.kafka.KafkaSink #设置Kafka的broker地址和端口号 producer.sinks.k1.brokerList=192.168.204.10:9092 #设置Kafka的Topic producer.sinks.k1.topic=test #设置序列化方式 producer.sinks.k1.serializer.class=kafka.serializer.StringEncoder #将三者级联 producer.sources.s1.channels=c1

启动kafka和zk和flume

创建消费者

bin/kafka-console-consumer.sh --zookeeper localhost:2181 --topic test --from-beginning

启动flume

bin/flume-ng agent -n producer -c conf -f conf/myconf.conf -Dflume.root.logger=INFO,console

向flume采集的目标文件发送数据:

While true；do echo "我爱你" >> a.log ；sleep 0.5 done；

sparkstreaming消费数据:



package spark_kafka
import org.apache.spark.streaming._
import org.apache.spark.SparkConf
import org.apache.spark.streaming.dstream.{DStream, InputDStream}
import org.apache.spark.streaming.kafka010.KafkaUtils
import org.apache.kafka.clients.consumer.ConsumerRecord
import org.apache.kafka.common.serialization.StringDeserializer
import org.apache.spark.streaming.kafka010.LocationStrategies.PreferConsistent
import org.apache.spark.streaming.kafka010.ConsumerStrategies.Subscribe

object  Kafka_consumer {
  def main(args: Array[String]): Unit = {
    val conf = new SparkConf().setAppName("kafka_wordcount").setMaster("local[*]")
    val ssc = new  StreamingContext(conf,Seconds(2))
    val kafkaParams = Map[String, Object](
    "bootstrap.servers" -> "wangzhihua1:9092,wangzhihua2:9092,wangzhua3:9092",
    "key.deserializer" -> classOf[StringDeserializer],
    "value.deserializer" -> classOf[StringDeserializer],
    "group.id" -> "use_a_separate_group_id_for_each_stream",
    "auto.offset.reset" -> "latest",
    "enable.auto.commit" -> (false: java.lang.Boolean)
  )
    val messages: InputDStream[ConsumerRecord[String, String]] = KafkaUtils.createDirectStream[String, String](
      ssc,
      PreferConsistent,
      Subscribe[String, String](Array("test"), kafkaParams)
    )
    val rs: DStream[(String, Int)] = messages.map(t => {
      (t.value(), 1)
    })
    val fianlRs= rs.reduceByKey(_+_)
    fianlRs.print()
    ssc.start()
    ssc.awaitTermination()
  }
}
