ViewPager2与TabLayout

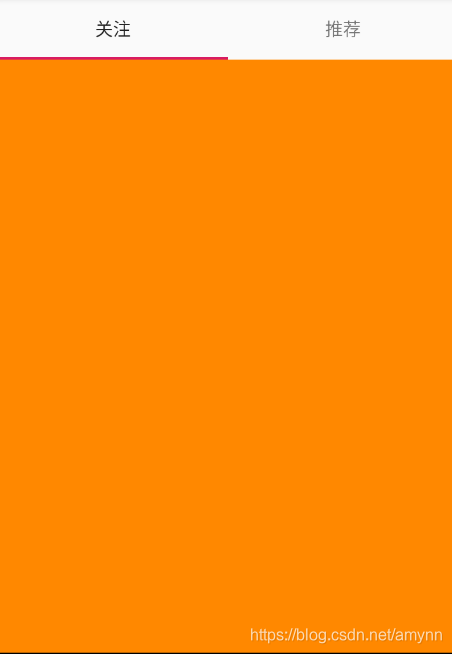

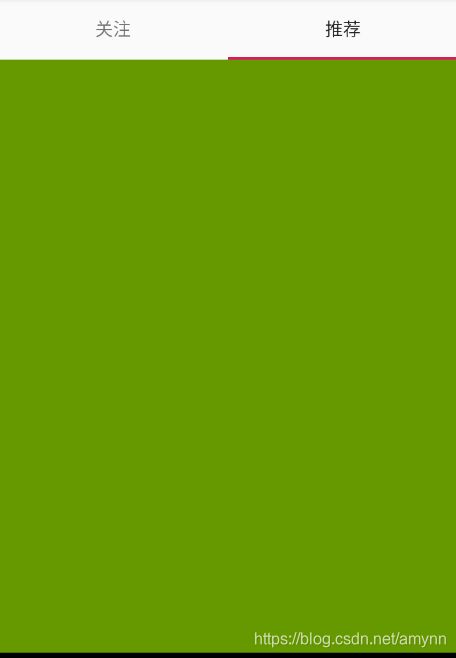

展示效果

说明：项目必须运行在Androidx环境下使用

依赖

implementation ‘androidx.viewpager2:viewpager2:1.0.0-alpha01’
//tablayout
implementation ‘com.google.android.material:material:1.2.0-alpha01’

一.Activity布局

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
   xmlns:app="http://schemas.android.com/apk/res-auto"
   xmlns:tools="http://schemas.android.com/tools"
   android:layout_width="match_parent"
   android:layout_height="match_parent"
   tools:context=".MainActivity"
   android:orientation="vertical">

   <com.google.android.material.tabs.TabLayout
       android:id="@+id/tablayout1"
       android:layout_width="match_parent"
       android:layout_height="wrap_content">

   </com.google.android.material.tabs.TabLayout>

   <androidx.viewpager2.widget.ViewPager2
       android:id="@+id/v2"
       android:layout_width="match_parent"
       android:layout_height="match_parent">
   </androidx.viewpager2.widget.ViewPager2>

</LinearLayout>

二.Activity代码

public class MainActivity extends AppCompatActivity {

   private ViewPager2 viewPager2;
   private ArrayList<Fragment> fragments;
   private ArrayList<String> titles;
   private Fragment1 fragment1;
   private Fragment2 fragment2;
   private TabLayout tabLayout;

   @Override
   protected void onCreate(Bundle savedInstanceState) {
       super.onCreate(savedInstanceState);
       setContentView(R.layout.activity_main);

       init();

       //设置滑动方向
       viewPager2.setOrientation(ViewPager2.ORIENTATION_VERTICAL);

       //添加适配器
       MyFragmentStateAdapter myFragmentStateAdapter =
               new MyFragmentStateAdapter(this,fragments);
       viewPager2.setAdapter(myFragmentStateAdapter);

       //关联TabLayout 添加attach()
       new TabLayoutMediator(tabLayout, viewPager2, new TabLayoutMediator.TabConfigurationStrategy() {
           @Override
           public void onConfigureTab(@NonNull TabLayout.Tab tab, int position) {
               tab.setText(titles.get(position));
           }
       }).attach();

       viewPager2.registerOnPageChangeCallback(new ViewPager2.OnPageChangeCallback() {
           @Override
           public void onPageScrolled(int position, float positionOffset, int positionOffsetPixels) {
               super.onPageScrolled(position, positionOffset, positionOffsetPixels);
           }

           @Override
           public void onPageSelected(int position) {
               super.onPageSelected(position);
               Log.d("amy",position+"");
           }

           @Override
           public void onPageScrollStateChanged(int state) {
               super.onPageScrollStateChanged(state);
           }
       });
   }

   public void init(){
       viewPager2 = findViewById(R.id.v2);
       tabLayout = findViewById(R.id.tablayout1);

       fragments = new ArrayList<>();
       fragment1 = new Fragment1();
       fragment2 = new Fragment2();
       fragments.add(fragment1);
       fragments.add(fragment2);//绿

       titles = new ArrayList<>();
       titles.add("关注");
       titles.add("推荐");
   }
}

三.适配器

public class MyFragmentStateAdapter extends FragmentStateAdapter {

   private ArrayList<Fragment> fragments;

   public MyFragmentStateAdapter(@NonNull FragmentActivity fragmentActivity,ArrayList<Fragment> fragments) {
       super(fragmentActivity);
       this.fragments = fragments;
   }
   @Override
   public int getItemCount() {
       return fragments.size();
   }
   @NonNull
   @Override
   public Fragment createFragment(int position) {
       return fragments.get(position);
   }
}

四.Fragment自定义
