Visual Studio 2015 插件开发 从入门到放弃(一)

古银有了个人博客了:小古银的官方网站

必需知识:C#和Visual Studio

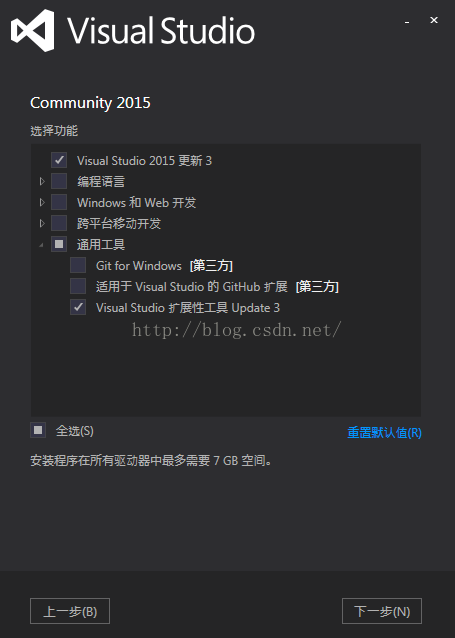

(1)安装 Visual Studio 2015 的时候选择 Visual Studio 扩展性工具Visual Studio Extensibility Tools)。对于已经安装好 Visual Studio 2015 的小伙伴,可以找VS2015的安装包,或者在程序与功能中找VS2015双击,在VS2015界面中选择修改,再选择Visual Studio 扩展性工具

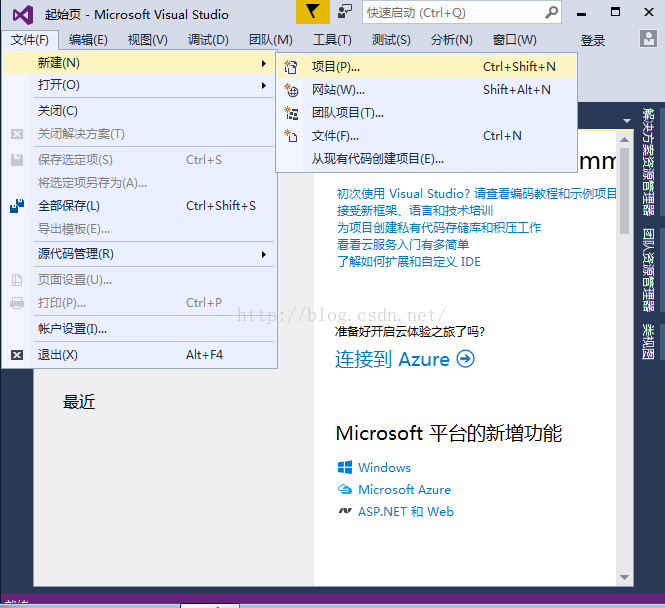

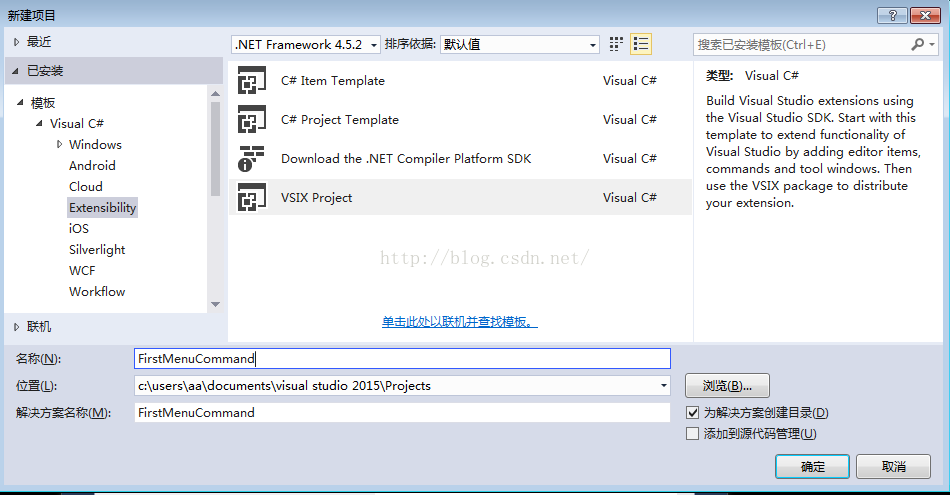

(2)安装完成后打开 VS2015,创建一个名为 FirstMenuCommand 的 VSIX Project:文件(File)->新建(New)->项目(Project)->Visual C#->Extensibility->VSIX Project,名称改为 FirstMenuCommand



(3)工程打开后,添加一个名为 FirstCommand 的 custom command 模板:在 解决方案资源管理器(Solution Explorer)中,右键工程节点,选择添加(Add)->新建项(New Item)->Visual C# 项->Exitensibility->Custom Command,在 名称 中填入FirstCommand.cs



(4)编译工程并且运行调试,将会出现一个调试用的 Visual Studio 出现。

(5)在用于调试的 Visual Studio 中,点击 工具(Tools)->扩展和更新(Extensions and Updates),在打开的窗口中就会找到FirstMenuCommand 插件。



(6)关闭扩展和更新窗口,在 工具(Tools)中会看到 Invoke FirstCommand 菜单命令。点击将会出现消息框,显示“FirstCommandPackage Inside FirstMenuCommand.FirstCommand.MenuItemCallback()”。



(7)停止调试。在原来的VS上打开 FirstCommand.cs 文件。添加  using 语句:

using System.Diagnostics;
(8)找到 FirstCommand 的私有构造方法,改成如下:

private FirstCommand(Package package)
{
    if (package == null)
    {
        throw new ArgumentNullException("package");
    }

    this.package = package;

    OleMenuCommandService commandService = this.ServiceProvider.GetService(typeof(IMenuCommandService)) as OleMenuCommandService;
    if (commandService != null)
    {
        var menuCommandID = new CommandID(CommandSet, CommandId);

        // 修改成StartNotepad句柄
        MenuCommand menuItem = new MenuCommand(this.StartNotepad, menuCommandID);
        commandService.AddCommand(menuItem);
    }
}
(9)添加方法 StartNotepad :

private void StartNotepad(object sender, EventArgs e)
{
    Process process = new Process();
    process.StartInfo.FileName = "notepad.exe";
    process.Start();
}

(10)开始运行调试,点击 工具->Invoke FirstCommand ,将会弹出记事本程序。

FirstCommand.cs的全部代码:

using System;
using System.ComponentModel.Design;
using System.Globalization;
using Microsoft.VisualStudio.Shell;
using Microsoft.VisualStudio.Shell.Interop;
using System.Diagnostics; // 新增using语句

namespace FirstMenuCommand
{
    /// <summary>
    /// Command handler
    /// </summary>
    internal sealed class FirstCommand
    {
        /// <summary>
        /// Command ID.
        /// </summary>
        public const int CommandId = 0x0100;

        /// <summary>
        /// Command menu group (command set GUID).
        /// </summary>
        public static readonly Guid CommandSet = new Guid("8bacb01b-5991-43cc-9acf-538bab2ca16e");

        /// <summary>
        /// VS Package that provides this command, not null.
        /// </summary>
        private readonly Package package;

        /// <summary>
        /// Initializes a new instance of the <see cref="FirstCommand"/> class.
        /// Adds our command handlers for menu (commands must exist in the command table file)
        /// </summary>
        /// <param name="package">Owner package, not null.</param>
        private FirstCommand(Package package)
        {
            if (package == null)
            {
                throw new ArgumentNullException("package");
            }

            this.package = package;

            OleMenuCommandService commandService = this.ServiceProvider.GetService(typeof(IMenuCommandService)) as OleMenuCommandService;
            if (commandService != null)
            {
                var menuCommandID = new CommandID(CommandSet, CommandId);

                // 修改成StartNotepad句柄
                MenuCommand menuItem = new MenuCommand(this.StartNotepad, menuCommandID);
                commandService.AddCommand(menuItem);
            }
        }

        /// <summary>
        /// Gets the instance of the command.
        /// </summary>
        public static FirstCommand Instance
        {
            get;
            private set;
        }

        /// <summary>
        /// Gets the service provider from the owner package.
        /// </summary>
        private IServiceProvider ServiceProvider
        {
            get
            {
                return this.package;
            }
        }

        /// <summary>
        /// Initializes the singleton instance of the command.
        /// </summary>
        /// <param name="package">Owner package, not null.</param>
        public static void Initialize(Package package)
        {
            Instance = new FirstCommand(package);
        }

        /// <summary>
        /// This function is the callback used to execute the command when the menu item is clicked.
        /// See the constructor to see how the menu item is associated with this function using
        /// OleMenuCommandService service and MenuCommand class.
        /// </summary>
        /// <param name="sender">Event sender.</param>
        /// <param name="e">Event args.</param>
        private void MenuItemCallback(object sender, EventArgs e)
        {
            string message = string.Format(CultureInfo.CurrentCulture, "Inside {0}.MenuItemCallback()", this.GetType().FullName);
            string title = "FirstCommand";

            // Show a message box to prove we were here
            VsShellUtilities.ShowMessageBox(
                this.ServiceProvider,
                message,
                title,
                OLEMSGICON.OLEMSGICON_INFO,
                OLEMSGBUTTON.OLEMSGBUTTON_OK,
                OLEMSGDEFBUTTON.OLEMSGDEFBUTTON_FIRST);
        }

        // 新增StartNotepad方法用来打开记事本
        private void StartNotepad(object sender, EventArgs e)
        {
            Process process = new Process();
            process.StartInfo.FileName = "notepad.exe";
            process.Start();
        }
    }
}
