DELPHI FireMonkey下Grid用法笔记

以前在VCL模式，使用cxGrid做什么都方便，后面使用FireMonkey的时候发现，有些简单的东西实现起来，还挺麻烦，下面就针对Grid网格的使用做一些笔记

笔记一：给网格Grid根据条件设置背景颜色与字体颜色
实现方式为，在ColumnCell事件中增加如下代码：

procedure TFrmWorkTask.GridBindSourceDB1DrawColumnCell(Sender: TObject;
  const Canvas: TCanvas; const Column: TColumn; const Bounds: TRectF;
  const Row: Integer; const Value: TValue; const State: TGridDrawStates);
var bgBrush: TBrush;
begin
   bgBrush:=TBrush.Create(TBrushKind.Solid,TAlphaColors.White);//定义缺省颜色
   try
   if Column.Index=9 then  //针对第9列进行操作
   begin
     if trim(Value.ToString)='超期' then  //判断条件为内容是否为“超期”
       begin
        //设置背影颜色
         bgBrush.Color := TAlphaColors.Yellow;  //背景颜色为黄色
         Canvas.FillRect(Bounds,0,0,[],1,bgBrush);
         //设置字体颜色
         Canvas.Fill.Color := TAlphaColors.Black;  //字体颜色为黑色
         Canvas.FillText(Bounds,Value.AsString,false,1,[],TTextAlign.Leading,TTextAlign.Center);
       end
     else
       begin
         bgBrush.Color := TAlphaColors.White;
         Canvas.FillRect(Bounds,0,0,[],1,bgBrush);
         Canvas.Fill.Color := TAlphaColors.Black;
         Canvas.FillText(Bounds,Value.AsString,false,1,[],TTextAlign.Leading,TTextAlign.Center);
       end;
   end;
   finally
     bgBrush.free;
   end;
end;

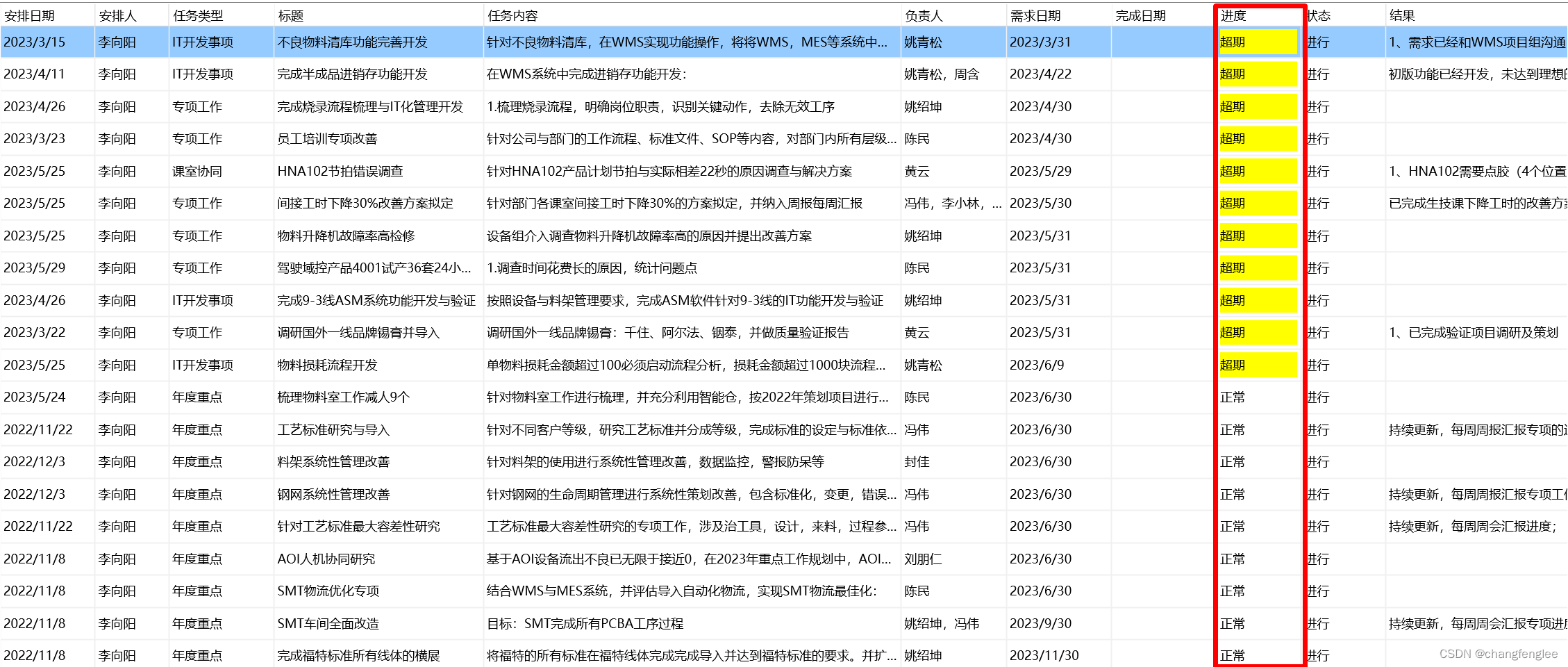

实际效果如下图

【笔记二】Grid网格里面的数据格式化
我将格式化数据放在了DrawColumnCell事件中，当然也可以放在其它事件

procedure TFrmSmtOEE.Grid1DrawColumnCell(Sender: TObject; const Canvas: TCanvas;
  const Column: TColumn; const Bounds: TRectF; const Row: Integer;
  const Value: TValue; const State: TGridDrawStates);
var
  i:Integer;
begin
    for i:= 0 to Grid1.ColumnCount - 1 do
    begin
      if (Grid1.Columns[i] is TCurrencyColumn) or {假如是整型数据 }
        (Grid1.Columns[i] is TIntegerColumn) then
      begin
          TCurrencyColumn(Grid1.Columns[i]).DecimalDigits:= 3; {三位数进行分隔 }
          TCurrencyColumn(Grid1.Columns[i]).ShowThousandSeparator := true;
      end;

      if (Grid1.Columns[i] is TFloatColumn) then  {假如是浮点数据 }
      begin
          TCurrencyColumn(Grid1.Columns[i]).DecimalDigits:= 2; {保留两位小数点 }
          TCurrencyColumn(Grid1.Columns[i]).ShowThousandSeparator := true;
      end;
    end;
end;

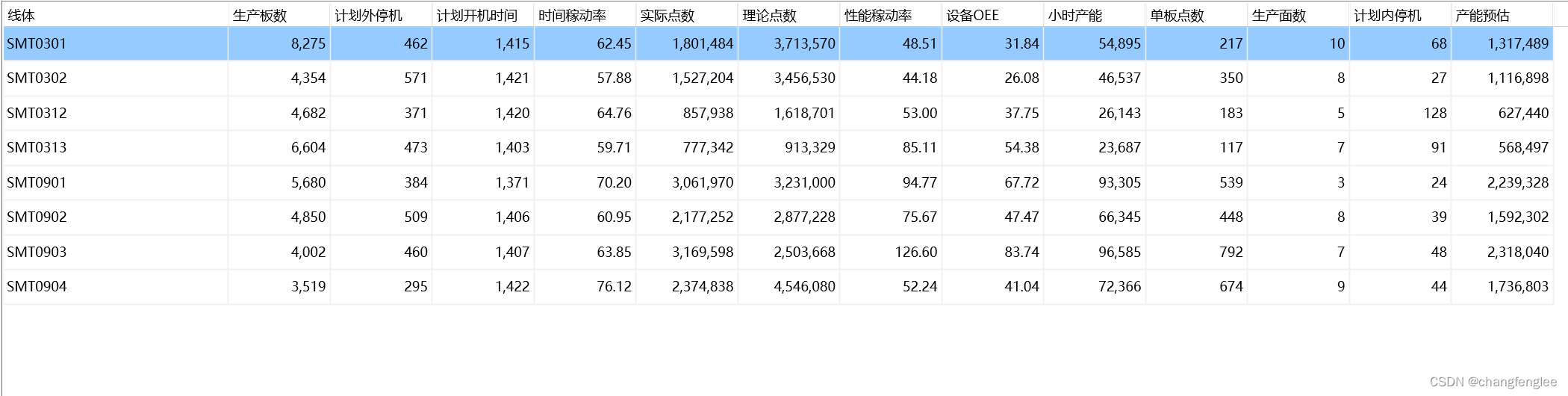

显示的数据结果如下图：
