Spring Cloud Gateway 微服务系统使用swagger-bootstrap-ui生成接口文档

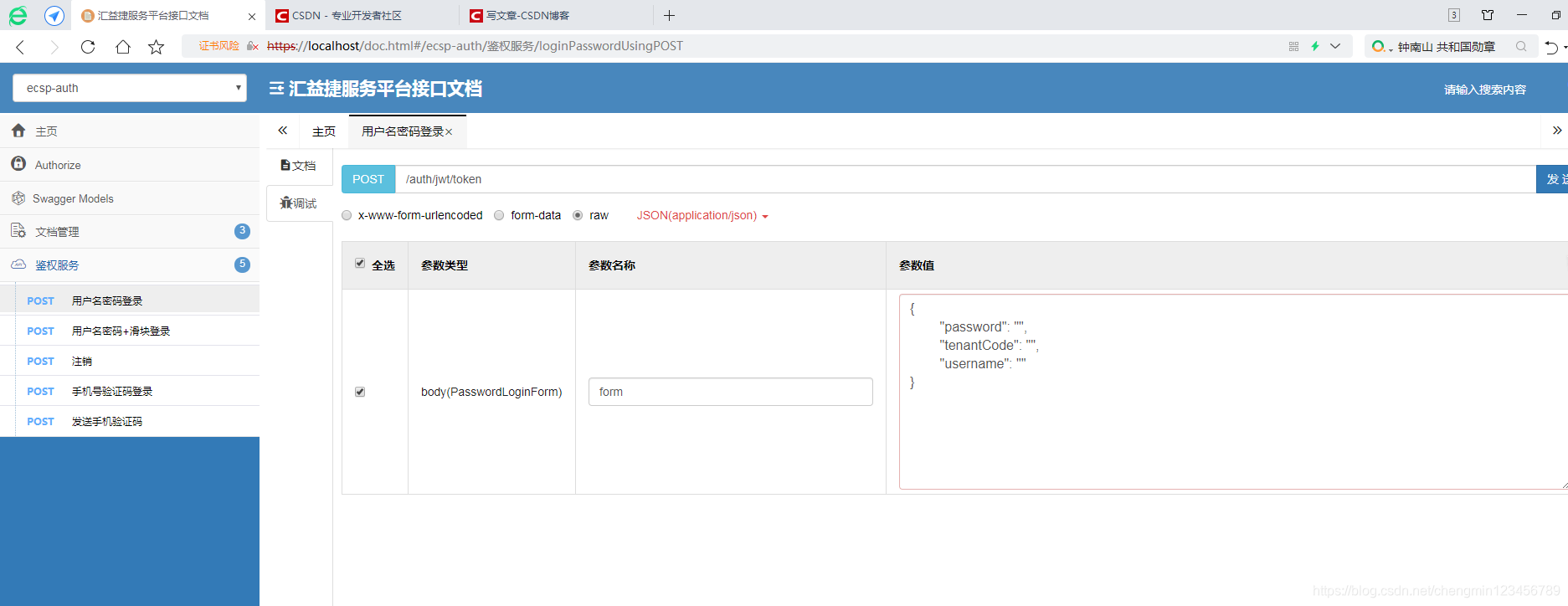

1、先展示下效果



2、实现过程

   1> 引入依赖：



<properties>
        <knife4j.version>2.0.5</knife4j.version>
        <swagger.version>2.9.2</swagger.version>
</properties>

<dependencies>
           <dependency>
                <groupId>com.github.xiaoymin</groupId>
                <artifactId>knife4j-spring-boot-starter</artifactId>
                <!--在引用时请在maven中央仓库搜索最新版本号-->
                <version>${knife4j.version}</version>
            </dependency>

            <dependency>
                <groupId>io.springfox</groupId>
                <artifactId>springfox-swagger2</artifactId>
                <version>${swagger.version}</version>
            </dependency>

            <dependency>
                <groupId>io.springfox</groupId>
                <artifactId>springfox-bean-validators</artifactId>
                <version>${swagger.version}</version>
            </dependency>
    </dependencies>

 2> 公共模块书写配置文件



@Configuration
@EnableSwagger2
@EnableKnife4j
@Import(BeanValidatorPluginsConfiguration.class)
public class SwaggerConfig {

    @Bean(value = "XXXApi")
    @Order(value = 1)
    public Docket groupRestApi() {
        return new Docket(DocumentationType.SWAGGER_2)
                .apiInfo(apiInfo())
                .select()
                .apis(RequestHandlerSelectors.withMethodAnnotation(ApiOperation.class))
                .paths(PathSelectors.any())
                .build()
                .securityContexts(Lists.newArrayList(securityContext()))
                .securitySchemes(Lists.<SecurityScheme>newArrayList(apiKey()));
    }

    private ApiInfo apiInfo() {
        return new ApiInfoBuilder().title("XXXXX接口文档").description("")
                .contact(new Contact("Minco", "", "")).version("1.0-FAST").build();
    }

    private ApiKey apiKey() {
        return new ApiKey("TOKEN", "token", "header");
    }

    private SecurityContext securityContext() {
        return SecurityContext.builder().securityReferences(defaultAuth()).forPaths(PathSelectors.regex("/.*")).build();
    }

    List<SecurityReference> defaultAuth() {
        AuthorizationScope authorizationScope = new AuthorizationScope("global", "accessEverything");
        AuthorizationScope[] authorizationScopes = new AuthorizationScope[1];
        authorizationScopes[0] = authorizationScope;
        return Lists.newArrayList(new SecurityReference("BearerToken", authorizationScopes));
    }
}

3> gateway模块

@Component
@Primary
@AllArgsConstructor
public class SwaggerProvider implements SwaggerResourcesProvider {

    public static final String API_URI = "/v2/api-docs";

    private final RouteLocator routeLocator;

    private final GatewayProperties gatewayProperties;

    @Override
    public List<SwaggerResource> get() {
        List<SwaggerResource> resources = new ArrayList<>();
        List<String> routes = new ArrayList<>();

        // 取出gateway的route
        routeLocator.getRoutes().subscribe(route -> routes.add(route.getId()));
        // 结合配置的route-路径(Path)，和route过滤，只获取有效的route节点
        // 打开下面注释可以自动扫描接入gateway的服务，为了演示，只扫描system
        gatewayProperties.getRoutes().stream().filter(routeDefinition ->  routes.contains(routeDefinition.getId()))
                .forEach(routeDefinition ->
                         routeDefinition.getPredicates().stream()
                        .filter(predicateDefinition -> ("Path").equalsIgnoreCase(predicateDefinition.getName()))
                        .forEach(predicateDefinition -> resources
                                .add(swaggerResource(routeDefinition.getId(), predicateDefinition.getArgs()
                                        .get(NameUtils.GENERATED_NAME_PREFIX + "0").replace("/**", API_URI)))));
        return resources;
    }

    private SwaggerResource swaggerResource(String name, String location) {
        SwaggerResource swaggerResource = new SwaggerResource();
        swaggerResource.setName(name);
        swaggerResource.setLocation(location);
        swaggerResource.setSwaggerVersion("2.0");
        return swaggerResource;
    }




}

@RestController
@RequestMapping("/swagger-resources")
public class SwaggerHandler {

    @Autowired(required = false)
    private SecurityConfiguration securityConfiguration;

    @Autowired(required = false)
    private UiConfiguration uiConfiguration;

    private final SwaggerResourcesProvider swaggerResources;

    @Autowired
    public SwaggerHandler(SwaggerResourcesProvider swaggerResources) {
        this.swaggerResources = swaggerResources;
    }

    @GetMapping("/configuration/security")
    public Mono<ResponseEntity<SecurityConfiguration>> securityConfiguration() {

        return Mono.just(new ResponseEntity<>(
                Optional.ofNullable(securityConfiguration).orElse(SecurityConfigurationBuilder.builder().build()),
                HttpStatus.OK));
    }

    @GetMapping("/configuration/ui")
    public Mono<ResponseEntity<UiConfiguration>> uiConfiguration() {
        return Mono.just(new ResponseEntity<>(
                Optional.ofNullable(uiConfiguration).orElse(UiConfigurationBuilder.builder().build()), HttpStatus.OK));
    }

    @SuppressWarnings("rawtypes")
    @GetMapping("")
    public Mono<ResponseEntity> swaggerResources() {
        return Mono.just((new ResponseEntity<>(swaggerResources.get(), HttpStatus.OK)));
    }
}

@RestController
@Api(tags = "扫呗测试")
public class TestCtrl  extends BaseController {

    @GetMapping("test")
    @ApiOperation(value = "测试接收消息", notes = "")
    public R loginSilde( String msg) {
      return R.ok("接收消息："+msg);
    }

}
