Table & SQL API 是一种关系型 API，用户可以像操作 mysql 数据库表一样的操作数据，而不需要写java 代码完成 Flink Function，更不需要手工的优化 java 代码调优。

BatchTableEnvironment (离线批处理Table API)

ExecutionEnvironment env = ExecutionEnvironment.getExecutionEnvironment();
BatchTableEnvironment tEnv = BatchTableEnvironment.create(env);

StreamTableEnvironment (实时流处理Table API)

StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
StreamTableEnvironment tEnv = StreamTableEnvironment.create(env);

一、flink-sql基本使用

1、导入flink-sql依赖

<dependency>
	<groupId>org.apache.flink</groupId>
	<artifactId>flink-table-planner_2.12</artifactId>
	<version>${flink.version}</version>
</dependency>

<dependency>
	<groupId>org.apache.flink</groupId>
	<artifactId>flink-table-planner-blink_2.12</artifactId>
	<version>${flink.version}</version>
</dependency>

<dependency>
	<groupId>org.apache.flink</groupId>
	<artifactId>flink-table-api-java-bridge_2.12</artifactId>
	<version>${flink.version}</version>
</dependency>

2、Table Sql案例

package cn._51doit.flink.day11.stream;

import org.apache.flink.api.common.functions.FlatMapFunction;
import org.apache.flink.api.java.tuple.Tuple2;
import org.apache.flink.streaming.api.datastream.DataStream;
import org.apache.flink.streaming.api.datastream.DataStreamSource;
import org.apache.flink.streaming.api.datastream.SingleOutputStreamOperator;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.table.api.Table;
import org.apache.flink.table.api.bridge.java.StreamTableEnvironment;
import org.apache.flink.types.Row;
import org.apache.flink.util.Collector;

import static org.apache.flink.table.api.Expressions.$;

public class SQLWordCount {

    public static void main(String[] args) throws Exception {

        //env -> DataStream
        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        //将StreamExecutionEnvironment进行增强，才能写SQL
        StreamTableEnvironment tEnv = StreamTableEnvironment.create(env);

        //spark,hadoop,flink,hive
        //spark,flink,flink
        //flink,flink
        DataStreamSource<String> lines = env.socketTextStream("localhost", 8888);
        //将DataStream变成结构化数据
        SingleOutputStreamOperator<Tuple2<String, Integer>> wordAndOne = lines.flatMap(new FlatMapFunction<String, Tuple2<String, Integer>>() {
            @Override
            public void flatMap(String line, Collector<Tuple2<String, Integer>> out) throws Exception {
                String[] words = line.split(",");
                for (String word : words) {
                    out.collect(Tuple2.of(word, 1));
                }
            }
        });

        tEnv.createTemporaryView("v_word_count", wordAndOne, $("word"), $("counts"));

        Table table = tEnv.sqlQuery("SELECT word, sum(counts) counts FROM v_word_count GROUP BY word");

        //table.printSchema();
        //可更新的数据流
        DataStream<Tuple2<Boolean, Row>> dataStream = tEnv.toRetractStream(table, Row.class);

        dataStream.print();

        env.execute("SQLWordCount");

    }

}

3、Table API 案例

package cn._51doit.flink.day11.stream;

import org.apache.flink.api.common.functions.FlatMapFunction;
import org.apache.flink.api.java.tuple.Tuple2;
import org.apache.flink.streaming.api.datastream.DataStream;
import org.apache.flink.streaming.api.datastream.DataStreamSource;
import org.apache.flink.streaming.api.datastream.SingleOutputStreamOperator;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.table.api.Table;
import org.apache.flink.table.api.bridge.java.StreamTableEnvironment;
import org.apache.flink.types.Row;
import org.apache.flink.util.Collector;

import static org.apache.flink.table.api.Expressions.$;

public class TableWordCount {

    public static void main(String[] args) throws Exception {

        //env -> DataStream
        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        //将StreamExecutionEnvironment进行增强，才能写SQL
        StreamTableEnvironment tEnv = StreamTableEnvironment.create(env);

        //spark,hadoop,flink,hive
        //spark,flink,flink
        //flink,flink
        DataStreamSource<String> lines = env.socketTextStream("localhost", 8888);
        //将DataStream变成结构化数据
        SingleOutputStreamOperator<Tuple2<String, Integer>> wordAndOne = lines.flatMap(new FlatMapFunction<String, Tuple2<String, Integer>>() {
            @Override
            public void flatMap(String line, Collector<Tuple2<String, Integer>> out) throws Exception {
                String[] words = line.split(",");
                for (String word : words) {
                    out.collect(Tuple2.of(word, 1));
                }
            }
        });

        Table table = tEnv.fromDataStream(wordAndOne, $("word"), $("one"));

        //调用Table API（DSL）
        Table res = table.groupBy($("word"))
                .select($("word"), $("one").sum().as("counts"));


        DataStream<Tuple2<Boolean, Row>> retractStream = tEnv.toRetractStream(res, Row.class);

        retractStream.print();

        env.execute("TableWordCount");

    }

}

package cn._51doit.flink.day11.stream;

import org.apache.flink.api.common.functions.FlatMapFunction;
import org.apache.flink.api.java.tuple.Tuple2;
import org.apache.flink.streaming.api.datastream.DataStream;
import org.apache.flink.streaming.api.datastream.DataStreamSource;
import org.apache.flink.streaming.api.datastream.SingleOutputStreamOperator;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.table.api.Table;
import org.apache.flink.table.api.bridge.java.StreamTableEnvironment;
import org.apache.flink.types.Row;
import org.apache.flink.util.Collector;

import static org.apache.flink.table.api.Expressions.$;

public class AppendStreanDemo {

    public static void main(String[] args) throws Exception {

        //env -> DataStream
        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        //将StreamExecutionEnvironment进行增强，才能写SQL
        StreamTableEnvironment tEnv = StreamTableEnvironment.create(env);

        //spark,hadoop,flink,hive
        //spark,flink,flink
        //flink,flink
        DataStreamSource<String> lines = env.socketTextStream("localhost", 8888);
        //将DataStream变成结构化数据
        SingleOutputStreamOperator<Tuple2<String, Integer>> wordAndOne = lines.flatMap(new FlatMapFunction<String, Tuple2<String, Integer>>() {
            @Override
            public void flatMap(String line, Collector<Tuple2<String, Integer>> out) throws Exception {
                String[] words = line.split(",");
                for (String word : words) {
                    out.collect(Tuple2.of(word, 1));
                }
            }
        });

        Table table = tEnv.fromDataStream(wordAndOne, $("word"), $("one"));

        Table res = table.select($("word").upperCase(), $("one"));

        DataStream<Row> rowDataStream = tEnv.toAppendStream(res, Row.class); //可追加的数据流

        rowDataStream.print();

        env.execute("TableWordCount");

    }

}

4、按照EventTime划分滚动窗口聚合

package cn._51doit.flink.day11.stream;

import org.apache.flink.api.common.functions.MapFunction;
import org.apache.flink.api.common.typeinfo.Types;
import org.apache.flink.streaming.api.TimeCharacteristic;
import org.apache.flink.streaming.api.datastream.DataStream;
import org.apache.flink.streaming.api.datastream.DataStreamSource;
import org.apache.flink.streaming.api.datastream.SingleOutputStreamOperator;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.api.functions.timestamps.BoundedOutOfOrdernessTimestampExtractor;
import org.apache.flink.streaming.api.windowing.time.Time;
import org.apache.flink.table.api.Table;
import org.apache.flink.table.api.bridge.java.StreamTableEnvironment;
import org.apache.flink.types.Row;

import static org.apache.flink.table.api.Expressions.$;

public class SqlTumblingEventTimeWindow {

    public static void main(String[] args) throws Exception {

        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();

        env.setParallelism(1);

        //env.setStreamTimeCharacteristic(TimeCharacteristic.EventTime);

        StreamTableEnvironment tableEnv = StreamTableEnvironment.create(env);

        //1000,u1,p1,5
        //2000,u1,p1,5
        //2000,u2,p1,3
        //3000,u1,p1,5
        //9999,u2,p1,3
        DataStreamSource<String> socketTextStream = env.socketTextStream("localhost", 8888);

        SingleOutputStreamOperator<Row> rowDataStream = socketTextStream.map(
                new MapFunction<String, Row>() {
                    @Override
                    public Row map(String line) throws Exception {
                        String[] fields = line.split(",");
                        Long time = Long.parseLong(fields[0]);
                        String uid = fields[1];
                        String pid = fields[2];
                        Double money = Double.parseDouble(fields[3]);
                        return Row.of(time, uid, pid, money);

                    }
                }).returns(Types.ROW(Types.LONG, Types.STRING, Types.STRING, Types.DOUBLE));

        //提取数据中的EventTime并生成WaterMark
        DataStream<Row> waterMarksRow = rowDataStream.assignTimestampsAndWatermarks(
                new BoundedOutOfOrdernessTimestampExtractor<Row>(Time.seconds(0)) {
                    @Override
                    public long extractTimestamp(Row row) {
                        return (long) row.getField(0);
                    }
                });
        //将DataStream注册成表并指定schema信息
        tableEnv.createTemporaryView("t_orders", waterMarksRow, $("time"), $("uid"), $("pid"), $("money"), $("aaa").rowtime());
        //tableEnv.registerDataStream("t_orders", waterMarksRow, "time, uid, pid, money, rowtime.rowtime");
        //使用SQL实现按照EventTime划分滚动窗口聚合
        String sql = "SELECT uid, SUM(money) total_money, TUMBLE_START(aaa, INTERVAL '10' SECOND) as win_start, " +
                "TUMBLE_END(aaa, INTERVAL '10' SECOND) as win_end " +
                "FROM t_orders GROUP BY TUMBLE(aaa, INTERVAL '10' SECOND), uid";
        Table table = tableEnv.sqlQuery(sql);
        //使用TableEnv将table转成AppendStream
        DataStream<Row> result = tableEnv.toAppendStream(table, Row.class);
        result.print();
        env.execute();
    }

}

5、按照EventTime划分滑动窗口聚合

package cn._51doit.flink.day11.stream;

import org.apache.flink.api.common.functions.MapFunction;
import org.apache.flink.api.common.typeinfo.Types;
import org.apache.flink.streaming.api.TimeCharacteristic;
import org.apache.flink.streaming.api.datastream.DataStream;
import org.apache.flink.streaming.api.datastream.DataStreamSource;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.api.functions.timestamps.BoundedOutOfOrdernessTimestampExtractor;
import org.apache.flink.streaming.api.windowing.time.Time;
import org.apache.flink.table.api.Table;
import org.apache.flink.table.api.bridge.java.StreamTableEnvironment;
import org.apache.flink.types.Row;

import static org.apache.flink.table.api.Expressions.$;

public class SqlSlidingEventTimeWindows {

    public static void main(String[] args) throws Exception {

        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();

        env.setParallelism(1);

        //env.setStreamTimeCharacteristic(TimeCharacteristic.EventTime);

        StreamTableEnvironment tableEnv = StreamTableEnvironment.create(env);

        //1000,u1,p1,5
        //2000,u1,p1,5
        //2000,u2,p1,3
        //3000,u1,p1,5
        //9999,u2,p1,3
        DataStreamSource<String> lines = env.socketTextStream("localhost", 8888);

        DataStream<Row> rowDataStream = lines.map(new MapFunction<String, Row>() {
            @Override
            public Row map(String line) throws Exception {
                String[] fields = line.split(",");
                Long time = Long.parseLong(fields[0]);
                String uid = fields[1];
                String pid = fields[2];
                Double money = Double.parseDouble(fields[3]);
                return Row.of(time, uid, pid, money);

            }
        }).returns(Types.ROW(Types.LONG, Types.STRING, Types.STRING, Types.DOUBLE));

        //提取数据中的EventTime并生成WaterMark
        DataStream<Row> waterMarksRow = rowDataStream.assignTimestampsAndWatermarks(
                new BoundedOutOfOrdernessTimestampExtractor<Row>(Time.seconds(0)) {
                    @Override
                    public long extractTimestamp(Row row) {
                        return (long) row.getField(0);
                    }
                });
        //将DataStream注册成表并指定schema信息
        //tableEnv.registerDataStream("t_orders", waterMarksRow, "time, uid, pid, money, rowtime.rowtime");
        tableEnv.createTemporaryView("t_orders", waterMarksRow, $("time"), $("uid"), $("pid"), $("money"), $("rowtime").rowtime());
        //使用SQL实现按照EventTime划分滑动窗口聚合
        String sql = "SELECT uid, SUM(money) total_money, HOP_END(rowtime, INTERVAL '2' SECOND, INTERVAL '10' SECOND) as widEnd" +
                " FROM t_orders GROUP BY HOP(rowtime, INTERVAL '2' SECOND, INTERVAL '10' SECOND), uid";
        Table table = tableEnv.sqlQuery(sql);
        //使用TableEnv将table转成AppendStream
        DataStream<Row> result = tableEnv.toAppendStream(table, Row.class);
        result.print();
        env.execute();
    }

}

6、自定义函数

package cn._51doit.flink.day11.stream;

import org.apache.flink.streaming.api.datastream.DataStreamSource;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.table.api.Table;
import org.apache.flink.table.api.bridge.java.StreamTableEnvironment;
import org.apache.flink.types.Row;

import static org.apache.flink.table.api.Expressions.$;

public class UDFSQLDemo {

    public static void main(String[] args) throws Exception {

        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();

        //注册一个可以Cache的文件,通过网络发送给TaskManager
        env.registerCachedFile("/Users/xing/Desktop/ip.txt", "ip-rules");

        StreamTableEnvironment tableEnv = StreamTableEnvironment.create(env);

        //106.121.4.252
        //42.57.88.186
        DataStreamSource<String> socketTextStream = env.socketTextStream("localhost", 8888);

        tableEnv.createTemporaryView("t_lines", socketTextStream, $("ip"));

        //注册自定义函数，是一个UDF,输入一个IP地址，返回Row<省、市>
        tableEnv.createTemporarySystemFunction("ip2Location", IpLocation.class);

        //tableEnv.registerFunction("split", new Split("\\W+"));

        Table table = tableEnv.sqlQuery(
                "SELECT ip, ip2Location(ip) location FROM t_lines");

        tableEnv.toAppendStream(table, Row.class).print();

        env.execute();

    }

}

7、从kafka里读数据

package cn._51doit.flink.day11.stream;

import org.apache.flink.streaming.api.datastream.DataStream;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.table.api.Table;
import org.apache.flink.table.api.TableResult;
import org.apache.flink.table.api.bridge.java.StreamTableEnvironment;
import org.apache.flink.types.Row;

public class SQLKafkaTable {

    public static void main(String[] args) throws Exception{

        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        StreamTableEnvironment tEnv = StreamTableEnvironment.create(env);

        tEnv.executeSql(
                "CREATE TABLE KafkaTable (\n" +
                        "  `user_id` BIGINT,\n" +
                        "  `item_id` BIGINT,\n" +
                        "  `behavior` STRING,\n" +
                        "  `ts` TIMESTAMP(3) METADATA FROM 'timestamp'\n" +
                        ") WITH (\n" +
                        "  'connector' = 'kafka',\n" +
                        "  'topic' = 'kafka-csv',\n" +
                        "  'properties.bootstrap.servers' = 'node-1.51doit.cn:9092,node-2.51doit.cn:9092,node-3.51doit.cn:9092',\n" +
                        "  'properties.group.id' = 'testGroup',\n" +
                        "  'scan.startup.mode' = 'earliest-offset',\n" +
                        "  'format' = 'csv'\n" +
                        ")"
        );

        Table table = tEnv.sqlQuery("SELECT * FROM KafkaTable");

        DataStream<Row> appendStream = tEnv.toAppendStream(table, Row.class);

        appendStream.print();

        env.execute();

    }
}

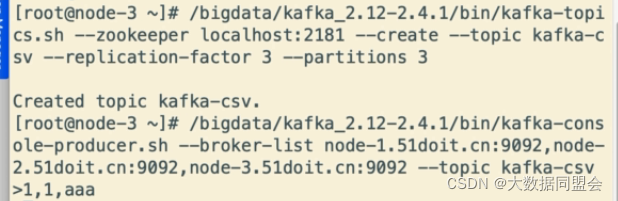

在这里插入图片描述

8、读取json格式数据

导入依赖

<dependency>
	<groupId>org.apache.flink</groupId>
	<artifactId>flink-json</artifactId>
	<version>${flink.version}</version>
</dependency>

package cn._51doit.flink.day11.stream;

import org.apache.flink.streaming.api.datastream.DataStream;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.table.api.Table;
import org.apache.flink.table.api.bridge.java.StreamTableEnvironment;
import org.apache.flink.types.Row;

public class SQLKafkaTableJSON {

    public static void main(String[] args) throws Exception{

        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        StreamTableEnvironment tEnv = StreamTableEnvironment.create(env);

        tEnv.executeSql(
                "CREATE TABLE KafkaTable2 (\n" +
                        "  `ts` TIMESTAMP(3) METADATA FROM 'timestamp',\n" +
                        "  `user_id` BIGINT,\n" +
                        "  `item_id` BIGINT,\n" +
                        "  `behavior` STRING\n" +
                        ") WITH (\n" +
                        "  'connector' = 'kafka',\n" +
                        "  'topic' = 'kafka-json',\n" +
                        "  'properties.bootstrap.servers' = 'node-1.51doit.cn:9092,node-2.51doit.cn:9092,node-3.51doit.cn:9092',\n" +
                        "  'properties.group.id' = 'testGroup2',\n" +
                        "  'scan.startup.mode' = 'earliest-offset',\n" +
                        "  'format' = 'json',\n" +
                        "  'json.ignore-parse-errors' = 'true'\n" +
                        ")"
        );

        Table table = tEnv.sqlQuery("SELECT * FROM KafkaTable2");

        DataStream<Row> appendStream = tEnv.toAppendStream(table, Row.class);

        appendStream.print();

        env.execute();


    }
}

二、flink-sql 复杂使用

package cn._51doit.flink.sql;

import org.apache.flink.api.java.tuple.Tuple2;
import org.apache.flink.configuration.Configuration;
import org.apache.flink.streaming.api.datastream.DataStream;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.table.api.Table;
import org.apache.flink.table.api.TableResult;
import org.apache.flink.table.api.bridge.java.StreamTableEnvironment;
import org.apache.flink.types.Row;

public class MysqlDimDemo {

    public static void main(String[] args) throws Exception {

        StreamExecutionEnvironment env = StreamExecutionEnvironment.createLocalEnvironmentWithWebUI(new Configuration());

        StreamTableEnvironment tEnv = StreamTableEnvironment.create(env);

        tEnv.executeSql(
                "CREATE TABLE kafka_item (\n" +
                        "  `user_id` BIGINT,\n" +
                        "  `item_id` BIGINT,\n" +
                        "  `category_id` BIGINT,\n" +
                        "  `action` STRING,\n" +
                        "  `ts` TIMESTAMP(3) METADATA FROM 'timestamp',\n" +
                        "  proctime as PROCTIME(), --通过计算列产生一个处理时间列\n" +
                        "  eventTime as ts, -- 事件时间\n" +
                        "  WATERMARK FOR eventTime as eventTime - INTERVAL '5' SECOND  -- 在eventTime上定义watermark\n" +
                        ") WITH (\n" +
                        "  'connector' = 'kafka',\n" +
                        "  'topic' = 'kafka-csv2',\n" +
                        "  'properties.bootstrap.servers' = 'node-1.51doit.cn:9092,node-2.51doit.cn:9092,node-3.51doit.cn:9092',\n" +
                        "  'properties.group.id' = 'test456',\n" +
                        "  'scan.startup.mode' = 'earliest-offset',\n" +
                        "  'format' = 'csv'\n" +
                        ")"
        );

		//mysql里的分类表
        tEnv.executeSql(
                "CREATE TABLE mysql_category_dim (\n" +
                        "    id BIGINT,\n" +
                        "    name VARCHAR\n" +
                        ") WITH (\n" +
                        "    'connector.type' = 'jdbc',\n" +
                        "    'connector.url' = 'jdbc:mysql://node-3.51doit.cn:3306/aaa?characterEncoding=utf-8',\n" +
                        "    'connector.table' = 'tb_category',\n" +
                        "    'connector.driver' = 'com.mysql.jdbc.Driver',\n" +
                        "    'connector.username' = 'root',\n" +
                        "    'connector.password' = '123456',\n" +
                        "    'connector.lookup.cache.max-rows' = '5000',\n" +
                        "    'connector.lookup.cache.ttl' = '10min'\n" +
                        ")"

        );

		//将kafka里数据和mysql进行关联
        tEnv.executeSql(
                "CREATE VIEW v_item_categroy AS\n" +
                        "SELECT\n" +
                        "  i.user_id, \n" +
                        "  i.item_id, \n" +
                        "  i.category_id, \n" +
                        "  i.action, \n" +
                         "  c.name \n" +
                        "FROM kafka_item AS i LEFT JOIN mysql_category_dim FOR SYSTEM_TIME AS OF i.proctime AS c \n" +
                        "ON i.category_id = c.id"
        );

        //创建一张表，数据存储在MySQL中
        tEnv.executeSql(
                "CREATE TABLE result_sink (\n" +
                        "  user_id BIGINT,\n" +
                        "  item_id BIGINT,\n" +
                        "  category_id BIGINT,\n" +
                        "  action VARCHAR,\n" +
                        "  name VARCHAR,\n" +
                        "  PRIMARY KEY (user_id) NOT ENFORCED\n" +
                        ") WITH (\n" +
                        "   'connector' = 'jdbc',\n" +
                        "   'url' = 'jdbc:mysql://node-3.51doit.cn:3306/aaa?characterEncoding=utf-8',\n" +
                        "   'table-name' = 'tb_out2',\n" +
                        "   'username' = 'root',\n" +
                        "   'password' = '123456'\n" +
                        ")"
        );



       TableResult tableResult = tEnv.executeSql(
               "INSERT INTO result_sink \n" +
                        "SELECT \n" +
                        "  user_id, item_id, category_id, action, name \n" +
                        "FROM v_item_categroy"
        );


        Table t = tEnv.sqlQuery("select * from v_item_categroy");

        DataStream<Tuple2<Boolean, Row>> tuple2DataStream = tEnv.toRetractStream(t, Row.class);

        //使用JDBC SINk将数据写入到ClickHouse
        //tuple2DataStream.addSink()


        tEnv.execute("aaa");

    }
}

三、动态规则引擎

Drools安装使用参考 Drools安装使用

1、浏览分类的商品次数大于2就触发一次事件

package cn.doitedu;

import cn.doitedu.pojo.Event;
import org.apache.commons.io.FileUtils;
import org.apache.flink.api.common.functions.MapFunction;
import org.apache.flink.api.common.state.MapState;
import org.apache.flink.api.common.state.MapStateDescriptor;
import org.apache.flink.api.common.typeinfo.TypeHint;
import org.apache.flink.api.common.typeinfo.TypeInformation;
import org.apache.flink.api.java.tuple.Tuple2;
import org.apache.flink.api.java.tuple.Tuple3;
import org.apache.flink.configuration.Configuration;
import org.apache.flink.streaming.api.datastream.DataStreamSource;
import org.apache.flink.streaming.api.datastream.KeyedStream;
import org.apache.flink.streaming.api.datastream.SingleOutputStreamOperator;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.api.functions.KeyedProcessFunction;
import org.apache.flink.util.Collector;
import org.kie.api.io.ResourceType;
import org.kie.api.runtime.KieSession;
import org.kie.internal.utils.KieHelper;

import java.io.File;
import java.nio.charset.StandardCharsets;

public class FlinkDroolsDemo {

    public static void main(String[] args) throws Exception {

        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();

        //用户，商品分类ID，事件类型
        //u1001,c201,view
        //一个用户，在一天之内，浏览了某个分类的商品次数大于2就触发一次事件
        DataStreamSource<String> lines = env.socketTextStream("localhost", 8888);

        SingleOutputStreamOperator<Tuple3<String, String, String>> tpStream = lines.map(new MapFunction<String, Tuple3<String, String, String>>() {
            @Override
            public Tuple3<String, String, String> map(String value) throws Exception {
                String[] fields = value.split(",");
                return Tuple3.of(fields[0], fields[1], fields[2]);
            }
        });

        //将同一用户的行为数据搞到一起
        KeyedStream<Tuple3<String, String, String>, String> keyed = tpStream.keyBy(t -> t.f0);

        keyed.process(new KeyedProcessFunction<String, Tuple3<String, String, String>, Tuple3<String, String, String>>() {

            private transient MapState<Tuple2<String, String>, Integer> mapState;

            private transient KieSession kieSession;

            @Override
            public void open(Configuration parameters) throws Exception {
                //定义一个状态描述器
                //((c201,view), 3)
                MapStateDescriptor<Tuple2<String, String>, Integer> stateDescriptor = new MapStateDescriptor<>("category-event-count", TypeInformation.of(new TypeHint<Tuple2<String, String>>() {
                }), TypeInformation.of(new TypeHint<Integer>() {}));

                mapState = getRuntimeContext().getMapState(stateDescriptor);

                KieHelper kieHelper = new KieHelper();
                //将drools的规则文件转成字符串
                String droolsStr = FileUtils.readFileToString(new File("rules/first-demo.drl"), StandardCharsets.UTF_8);

                //添加规则
                kieHelper.addContent(droolsStr, ResourceType.DRL);

                //创建规则匹配的会话(将用户传入的数据和事先添加的规则进行匹配)
                kieSession = kieHelper.build().newKieSession();

            }

            @Override
            public void processElement(Tuple3<String, String, String> value, Context ctx, Collector<Tuple3<String, String, String>> out) throws Exception {

                String uid = value.f0; //u1001
                String cid = value.f1; //c201
                String type = value.f2; //view

                Tuple2<String, String> key = Tuple2.of(cid, type);
                Integer count = mapState.get(key);
                if(count == null) {
                    count = 0;
                }
                count++;
                mapState.put(key, count);

                Event event = new Event(type, count, false);

                kieSession.insert(event);
                kieSession.fireAllRules();

                if (event.isHit()) {
                    //System.out.println("事件满足了！");
                    out.collect(Tuple3.of(uid, "发优惠卷", "满30减5"));
                }
            }
        }).print();

        env.execute();
    }
}

2、Drools规则代码保存到MySQL中

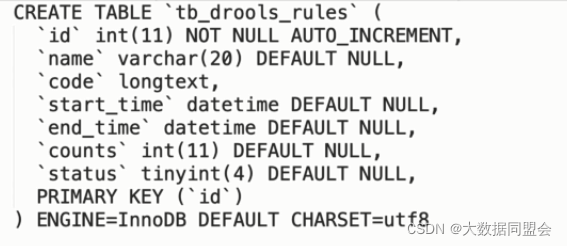

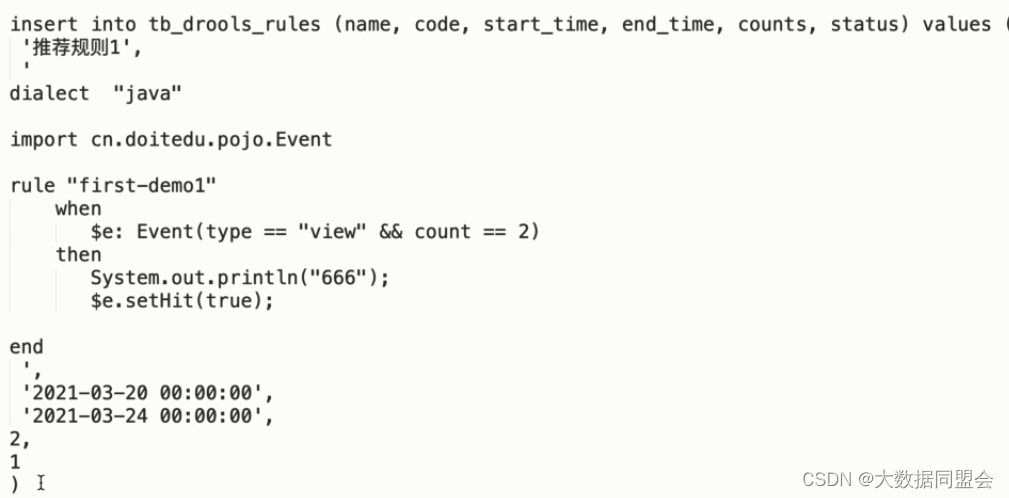

建表，写入规则在这里插入图片描述

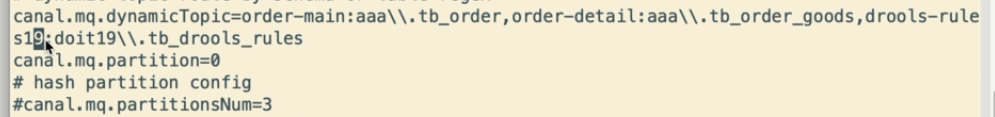

修改canal

创建topic

消费者
在这里插入图片描述

2、广播State实时获取Drools规则数据

把mysql里数据通过canal采集过来，到kakfa里

package cn.doitedu;

import cn.doitedu.pojo.DroolsRulesBean;
import cn.doitedu.pojo.Event;
import cn.doitedu.pojo.RulesStateBean;
import com.alibaba.fastjson.JSON;
import com.alibaba.fastjson.JSONArray;
import com.alibaba.fastjson.JSONObject;
import org.apache.commons.io.FileUtils;
import org.apache.flink.api.common.functions.MapFunction;
import org.apache.flink.api.common.state.BroadcastState;
import org.apache.flink.api.common.state.MapState;
import org.apache.flink.api.common.state.MapStateDescriptor;
import org.apache.flink.api.common.typeinfo.TypeHint;
import org.apache.flink.api.common.typeinfo.TypeInformation;
import org.apache.flink.api.java.tuple.Tuple2;
import org.apache.flink.api.java.tuple.Tuple3;
import org.apache.flink.configuration.Configuration;
import org.apache.flink.streaming.api.datastream.BroadcastStream;
import org.apache.flink.streaming.api.datastream.DataStreamSource;
import org.apache.flink.streaming.api.datastream.KeyedStream;
import org.apache.flink.streaming.api.datastream.SingleOutputStreamOperator;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.api.functions.KeyedProcessFunction;
import org.apache.flink.streaming.api.functions.ProcessFunction;
import org.apache.flink.streaming.api.functions.co.KeyedBroadcastProcessFunction;
import org.apache.flink.streaming.connectors.kafka.FlinkKafkaConsumer;
import org.apache.flink.util.Collector;
import org.kie.api.io.ResourceType;
import org.kie.api.runtime.KieSession;
import org.kie.internal.utils.KieHelper;

import java.io.File;
import java.nio.charset.StandardCharsets;
import java.util.Map;

public class FlinkDroolsDemo2 {

    public static void main(String[] args) throws Exception {

        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();

        String servers = "node-1.51doit.cn:9092,node-2.51doit.cn:9092,node-3.51doit.cn:9092";
        FlinkKafkaConsumer<String> rulesSource = KafkaSourceUtil.getKafkaSource(servers, "earliest", "drools-rules19");
        FlinkKafkaConsumer<String> eventsSource = KafkaSourceUtil.getKafkaSource(servers, "earliest", "event19");

        DataStreamSource<String> rulesStream = env.addSource(rulesSource);

        DataStreamSource<String> eventsStream = env.addSource(eventsSource);

        SingleOutputStreamOperator<DroolsRulesBean> rulesBeanStream = rulesStream.process(new ProcessFunction<String, DroolsRulesBean>() {

            @Override
            public void processElement(String line, Context ctx, Collector<DroolsRulesBean> out) throws Exception {

                try {
                    JSONObject jsonObject = JSON.parseObject(line);
                    String type = jsonObject.getString("type");
                    if ("INSERT".equals(type) || "UPDATE".equals(type)) {
                        JSONArray jsonArray = jsonObject.getJSONArray("data");
                        for (int i = 0; i < jsonArray.size(); i++) {
                            DroolsRulesBean bean = jsonArray.getObject(i, DroolsRulesBean.class);
                            out.collect(bean);
                        }
                    }
                } catch (Exception e) {
                    //e.printStackTrace();
                }
            }
        });


        MapStateDescriptor<Integer, RulesStateBean> stateDescriptor = new MapStateDescriptor<>("rule-state", Integer.class, RulesStateBean.class);

        BroadcastStream<DroolsRulesBean> broadcastStream = rulesBeanStream.broadcast(stateDescriptor);

        u1001,c201,view
        SingleOutputStreamOperator<Tuple3<String, String, String>> tpStream = eventsStream.map(new MapFunction<String, Tuple3<String, String, String>>() {
            @Override
            public Tuple3<String, String, String> map(String value) throws Exception {
                String[] fields = value.split(",");
                return Tuple3.of(fields[0], fields[1], fields[2]);
            }
        });

        //进行KeyBy
        tpStream.keyBy(t -> t.f0).connect(broadcastStream).process(new KeyedBroadcastProcessFunction<String, Tuple3<String, String, String>, DroolsRulesBean, Tuple3<String, String, String>>() {

            private transient MapState<Tuple2<String, String>, Integer> mapState;


            @Override
            public void open(Configuration parameters) throws Exception {
                //定义一个状态描述器
                //((c201,view), 3)
                MapStateDescriptor<Tuple2<String, String>, Integer> stateDescriptor = new MapStateDescriptor<>("category-event-count", TypeInformation.of(new TypeHint<Tuple2<String, String>>() {
                }), TypeInformation.of(new TypeHint<Integer>() {
                }));

                mapState = getRuntimeContext().getMapState(stateDescriptor);
            }

            @Override
            public void processElement(Tuple3<String, String, String> value, ReadOnlyContext ctx, Collector<Tuple3<String, String, String>> out) throws Exception {

                String uid = value.f0; //u1001
                String cid = value.f1; //c201
                String type = value.f2; //view

                Tuple2<String, String> key = Tuple2.of(cid, type);
                Integer count = mapState.get(key);
                if (count == null) {
                    count = 0;
                }
                count++;
                mapState.put(key, count);

                Event event = new Event(type, count, false);

                Iterable<Map.Entry<Integer, RulesStateBean>> entries = ctx.getBroadcastState(stateDescriptor).immutableEntries();

                for (Map.Entry<Integer, RulesStateBean> entry : entries) {
                    Integer rulesId = entry.getKey();
                    //KieSession
                    //SQL
                    //Params
                    RulesStateBean rulesStateBean = entry.getValue();

                    KieSession kieSession = rulesStateBean.getKieSession();
                    kieSession.insert(event);
                    //应用所有的规则
                    kieSession.fireAllRules();

                    if (event.isHit()) {
                        out.collect(Tuple3.of(uid, "发优惠卷", "满30减5"));
                    }
                }
            }

            @Override
            public void processBroadcastElement(DroolsRulesBean bean, Context ctx, Collector<Tuple3<String, String, String>> out) throws Exception {

                BroadcastState<Integer, RulesStateBean> broadcastState = ctx.getBroadcastState(stateDescriptor);

                short status = bean.getStatus();
                Integer rulesId = bean.getId();
                if (status == 1 || status == 2) {
                    //添加或更新
                    KieHelper kieHelper = new KieHelper();
                    kieHelper.addContent(bean.getCode(), ResourceType.DRL);
                    KieSession kieSession = kieHelper.build().newKieSession();
                    RulesStateBean stateBean = new RulesStateBean(rulesId, kieSession, null, bean.getStart_time(), bean.getEnd_time(), bean.getCounts());
                    broadcastState.put(rulesId, stateBean);
                } else if (status == 3) {
                    //删除
                    broadcastState.remove(rulesId);
                }
            }
        }).print();


        env.execute();
    }
}

DroolsRulesBean

package cn.doitedu.pojo;

import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;

@Data
@AllArgsConstructor
@NoArgsConstructor
public class DroolsRulesBean {

    private Integer id;

    private String name;

    private String code;

    private String sql;

    private Long start_time;

    private Long end_time;

    private Integer counts;

    private short status;

}

RulesStateBean

package cn.doitedu.pojo;

import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;
import org.kie.api.runtime.KieSession;

@Data
@NoArgsConstructor
@AllArgsConstructor
public class RulesStateBean {

    private Integer id;

    private KieSession kieSession;

    private String sql;

    private Long start_time;

    private Long end_time;

    private Integer counts;

}

3、Drools动态调用查询Service、ClickHouse服务

package cn.doitedu;

import cn.doitedu.pojo.*;
import cn.doitedu.service.ClickHouseQueryServiceImpl;
import cn.doitedu.service.QueryService;
import com.alibaba.fastjson.JSON;
import com.alibaba.fastjson.JSONArray;
import com.alibaba.fastjson.JSONObject;
import org.apache.flink.api.common.functions.MapFunction;
import org.apache.flink.api.common.state.BroadcastState;
import org.apache.flink.api.common.state.MapState;
import org.apache.flink.api.common.state.MapStateDescriptor;
import org.apache.flink.api.common.typeinfo.TypeHint;
import org.apache.flink.api.common.typeinfo.TypeInformation;
import org.apache.flink.api.java.tuple.Tuple2;
import org.apache.flink.api.java.tuple.Tuple3;
import org.apache.flink.configuration.Configuration;
import org.apache.flink.streaming.api.datastream.BroadcastStream;
import org.apache.flink.streaming.api.datastream.DataStreamSource;
import org.apache.flink.streaming.api.datastream.SingleOutputStreamOperator;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.api.functions.ProcessFunction;
import org.apache.flink.streaming.api.functions.co.KeyedBroadcastProcessFunction;
import org.apache.flink.streaming.connectors.kafka.FlinkKafkaConsumer;
import org.apache.flink.util.Collector;
import org.kie.api.io.ResourceType;
import org.kie.api.runtime.KieSession;
import org.kie.internal.utils.KieHelper;

import java.util.Map;

public class FlinkDroolsDemo3 {

    public static void main(String[] args) throws Exception {

        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();

        String servers = "node-1.51doit.cn:9092,node-2.51doit.cn:9092,node-3.51doit.cn:9092";
        FlinkKafkaConsumer<String> rulesSource = KafkaSourceUtil.getKafkaSource(servers, "latest", "drools-rules19");
        FlinkKafkaConsumer<String> eventsSource = KafkaSourceUtil.getKafkaSource(servers, "latest", "event19");

        DataStreamSource<String> rulesStream = env.addSource(rulesSource);

        DataStreamSource<String> eventsStream = env.addSource(eventsSource);

        SingleOutputStreamOperator<DroolsRulesBean> rulesBeanStream = rulesStream.process(new ProcessFunction<String, DroolsRulesBean>() {

            @Override
            public void processElement(String line, Context ctx, Collector<DroolsRulesBean> out) throws Exception {

                try {
                    JSONObject jsonObject = JSON.parseObject(line);
                    String type = jsonObject.getString("type");
                    if ("INSERT".equals(type) || "UPDATE".equals(type)) {
                        JSONArray jsonArray = jsonObject.getJSONArray("data");
                        for (int i = 0; i < jsonArray.size(); i++) {
                            DroolsRulesBean bean = jsonArray.getObject(i, DroolsRulesBean.class);
                            out.collect(bean);
                        }
                    }
                } catch (Exception e) {
                    //e.printStackTrace();
                }
            }
        });


        MapStateDescriptor<Integer, RulesStateBean> stateDescriptor = new MapStateDescriptor<>("rule-state", Integer.class, RulesStateBean.class);

        BroadcastStream<DroolsRulesBean> broadcastStream = rulesBeanStream.broadcast(stateDescriptor);

        u1001,c201,view
        SingleOutputStreamOperator<Tuple3<String, String, String>> tpStream = eventsStream.map(new MapFunction<String, Tuple3<String, String, String>>() {
            @Override
            public Tuple3<String, String, String> map(String value) throws Exception {
                String[] fields = value.split(",");
                return Tuple3.of(fields[0], fields[1], fields[2]);
            }
        });

        //进行KeyBy
        tpStream.keyBy(t -> t.f0).connect(broadcastStream).process(new KeyedBroadcastProcessFunction<String, Tuple3<String, String, String>, DroolsRulesBean, Tuple3<String, String, String>>() {

            private transient MapState<Tuple2<String, String>, Integer> mapState;

            private transient QueryService queryService;

            @Override
            public void open(Configuration parameters) throws Exception {
                //定义一个状态描述器
                //((c201,view), 3)
                MapStateDescriptor<Tuple2<String, String>, Integer> stateDescriptor = new MapStateDescriptor<>("category-event-count", TypeInformation.of(new TypeHint<Tuple2<String, String>>() {
                }), TypeInformation.of(new TypeHint<Integer>() {
                }));

                mapState = getRuntimeContext().getMapState(stateDescriptor);

                //可以将实现类通过配置传入（类名），通过反射创建其实例

                //queryService = (QueryService) Class.forName("cn.doitedu.service.ClickHouseQueryServiceImpl").newInstance();
                queryService = new ClickHouseQueryServiceImpl();
            }

            @Override
            public void processElement(Tuple3<String, String, String> value, ReadOnlyContext ctx, Collector<Tuple3<String, String, String>> out) throws Exception {

                String uid = value.f0; //u1001
                String cid = value.f1; //c201
                String type = value.f2; //view

                Tuple2<String, String> key = Tuple2.of(cid, type);
                Integer count = mapState.get(key);
                if (count == null) {
                    count = 0;
                }
                count++;
                mapState.put(key, count);

                Event event = new Event(type, count, false);


                Iterable<Map.Entry<Integer, RulesStateBean>> entries = ctx.getBroadcastState(stateDescriptor).immutableEntries();

                for (Map.Entry<Integer, RulesStateBean> entry : entries) {
                    Integer rulesId = entry.getKey();
                    //KieSession
                    //SQL
                    //Params
                    RulesStateBean rulesStateBean = entry.getValue();

                    KieSession kieSession = rulesStateBean.getKieSession();
                    QueryParams queryParams = new QueryParams(rulesStateBean.getSql(), uid, rulesStateBean.getStart_time(), rulesStateBean.getEnd_time(), count, cid);
                    DroolRuleParam droolRuleParam = new DroolRuleParam(event, queryService, queryParams, false);
                    //将droolRuleParam(sql, 查询条件)添加到kieSession
                    kieSession.insert(droolRuleParam);
                    //应用所有的规则
                    kieSession.fireAllRules();

                    if (droolRuleParam.isHit()) {
                        out.collect(Tuple3.of(uid, "发优惠卷", "满30减5"));
                    }
                }
            }

            @Override
            public void processBroadcastElement(DroolsRulesBean bean, Context ctx, Collector<Tuple3<String, String, String>> out) throws Exception {

                BroadcastState<Integer, RulesStateBean> broadcastState = ctx.getBroadcastState(stateDescriptor);

                short status = bean.getStatus();
                Integer rulesId = bean.getId();
                if (status == 1 || status == 2) {
                    //添加或更新
                    KieHelper kieHelper = new KieHelper();
                    kieHelper.addContent(bean.getCode(), ResourceType.DRL);
                    KieSession kieSession = kieHelper.build().newKieSession();
                    RulesStateBean stateBean = new RulesStateBean(rulesId, kieSession, bean.getSql(), bean.getStart_time(), bean.getEnd_time(), bean.getCounts());
                    broadcastState.put(rulesId, stateBean);
                } else if (status == 3) {
                    //删除
                    broadcastState.remove(rulesId);
                }
            }
        }).print();


        env.execute();
    }
}

ClickHouseQueryServiceImpl

package cn.doitedu.service;

import cn.doitedu.utils.ClickHouseUtil;

import java.sql.Connection;
import java.sql.PreparedStatement;
import java.sql.ResultSet;

public class ClickHouseQueryServiceImpl implements QueryService {

    @Override
    public boolean queryEventCountByRangeTime(String sql, String uid,  String cid, String type, long startTime, long endTime, int counts) throws Exception {
        Connection connection = ClickHouseUtil.getClickHouseConnection();
        PreparedStatement preparedStatement = connection.prepareStatement(sql);
        preparedStatement.setString(1, uid);
        preparedStatement.setString(2, cid);
        preparedStatement.setString(3, type);
        preparedStatement.setLong(4, startTime);
        preparedStatement.setLong(5, endTime);
        int result = 0;
        ResultSet rs = preparedStatement.executeQuery();
        if(rs.next()) {
            result = rs.getInt("counts");
        }
        System.out.println(result);
        return result >= counts;
    }
}

DroolRuleParam类

package cn.doitedu.pojo;

import cn.doitedu.service.QueryService;
import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;

@Data
@NoArgsConstructor
@AllArgsConstructor
public class DroolRuleParam {

    private Event event;

    private QueryService queryService;

    private QueryParams queryParams;

    private boolean hit;

}

QueryParams类

package cn.doitedu.pojo;

import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;

@Data
@AllArgsConstructor
@NoArgsConstructor
public class QueryParams {

    private String sql;

    private String uid;

    private Long start_time;

    private Long end_time;

    private Integer counts;

    private String category_id;

}

first-demo2.drl 文件

dialect  "java"
import cn.doitedu.pojo.Event
import cn.doitedu.pojo.DroolRuleParam
import cn.doitedu.pojo.QueryParams
import cn.doitedu.service.QueryService

rule "rules1"
    when
       $dr: DroolRuleParam(event != null)
       $event: Event(type == "view" && count >= 2) from $dr.event
    then
       QueryService queryService = $dr.getQueryService();
       QueryParams queryParams = $dr.getQueryParams();
       String type = $dr.getEvent().getType();
       boolean flag = queryService.queryEventCountByRangeTime(queryParams.getSql(), queryParams.getUid(), queryParams.getCategory_id(), type, queryParams.getStart_time(), queryParams.getEnd_time(), queryParams.getCounts());
       $dr.setHit(flag);
end

ClickHouseUtil工具类

package cn.doitedu.utils;

import java.sql.Connection;
import java.sql.DriverManager;

/***
 * @author hunter.d
 * @qq 657270652
 * @wx haitao-duan
 * @date 2021/3/19
 **/
public class ClickHouseUtil {

    private static Connection conn = null;
    private static final String ckDriver = "ru.yandex.clickhouse.ClickHouseDriver";
    private static final String ckUrl = "jdbc:clickhouse://node-3.51doit.cn:8123/default";


    public static Connection getClickHouseConnection() throws Exception {
        Class.forName(ckDriver);
        Connection conn = DriverManager.getConnection(ckUrl);
        return conn;
    }

}
