openstack各个节点的服务分布

1. 物理硬件配置
   openstack集群环境最简单的集群需要包括2个节点:控制节点和计算节点。


2. 节点服务


openstack各种网络作用及网卡对应

管理/存储/互联网网络为：192.168.128.0/24——NAT
数据网络：172.16.0/24 ##vxlan隧道网络
本地网络：br-exteral

openstack基础环境安装

1 . 准备3台虚拟机,并配置网络IP
controller
compute
block1
各网卡配置文件

ens38为隧道网络，只需 在控制节点和计算节点上配置即可
ens37使用桥接模式。
ens33是管理网-NAT模式

2 . 将3台虚拟机全部执行以下操作

关闭firewalld服务
# systemctl  stop firewalld
# systemctl   disable firewalld


关闭NetworkManager服务
systemctl  stop  NetworkManager
systemctl  disable   NetworkManager

vi  /etc/sysconfig/selinux
将selinux=enforcing改为disable

vi  /etc.hosts加入如下内容
192.168.142.xxx  controller
192.168.142.xxx  compute
192.168.142.xxx  block

执行完成后重启3台服务器

安装NTP服务
（1）所有节点都执行安装chrony

yum install -y  chrony

（2）修改控制节点NTP服务的配置文件

vim   /etc/chrony.conf   //使controller服务器作为时间同步服务器

添加标记那行，使这个网段中的所有服务器都以此为时间同步服务器

重启此服务并设置为开机启动

systemctl enable chronyd.service  && systemctl start chronyd.service

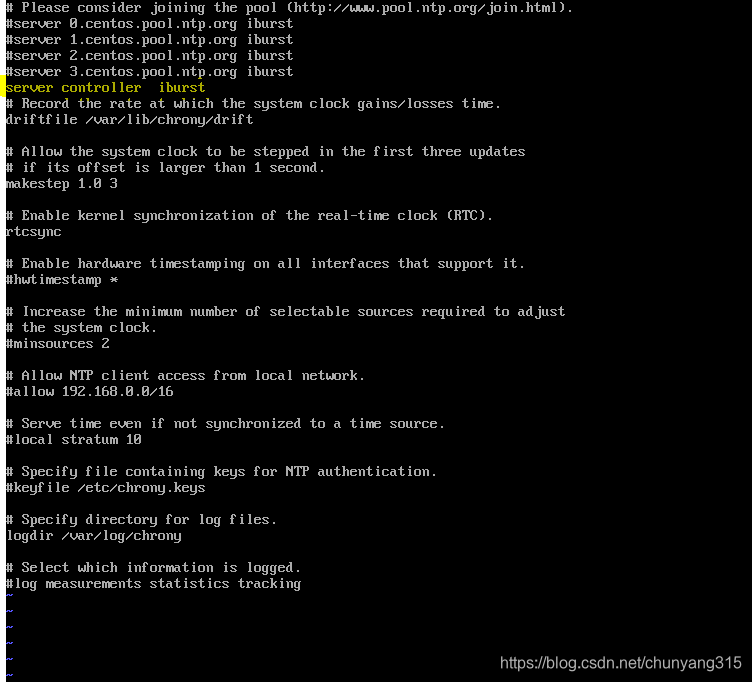

（3）其他节点上面也修改此配置文件，修改内容如下

配置此行的目的在于指定controller为时间同步服务器

设置为开机启动，并启动该服务

systemctl enable chronyd.service  && systemctl start chronyd.service

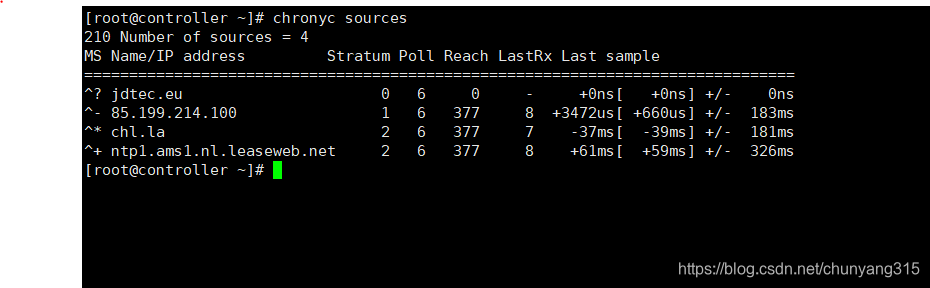

（4）控制节点验证

#  chronyc   sources   //执行完成后得到如下输出

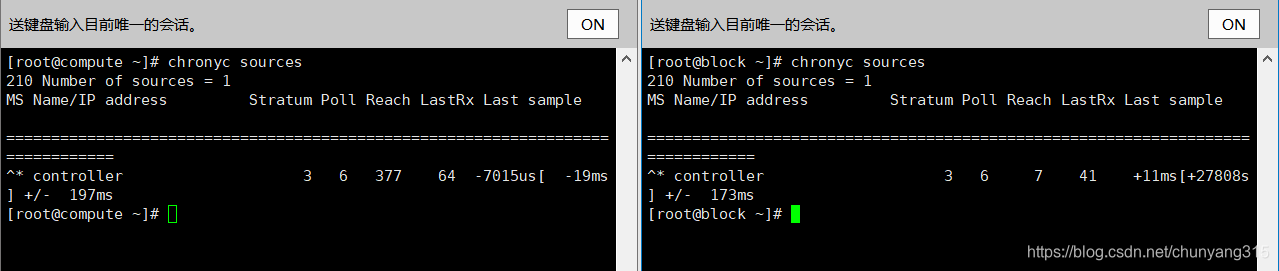

（5）其他节点执行显示如下则表明配置正确

配置openstack源

yum install   -y   epel-release    centos-release-openstack-queens
yum    -y    upgrade
yum install -y openstack-selinux
yum install -y python-openstackclient

（1）将yum源文件备份并替换为清华源-所有机器

mv /etc/yum.repos.d/CentOS-Base.repo    /etc/yum.repos.d/CentOS-Base.repo.bak

以下内容写入/etc/yum.repos.d/CentOS-Base.repo

# CentOS-Base.repo
#
# The mirror system uses the connecting IP address of the client and the
# update status of each mirror to pick mirrors that are updated to and
# geographically close to the client.  You should use this for CentOS updates
# unless you are manually picking other mirrors.
#
# If the mirrorlist= does not work for you, as a fall back you can try the
# remarked out baseurl= line instead.
#
#

[base]
name=CentOS-$releasever - Base
baseurl=https://mirrors.tuna.tsinghua.edu.cn/centos/$releasever/os/$basearch/
#mirrorlist=http://mirrorlist.centos.org/?release=$releasever&arch=$basearch&repo=os
gpgcheck=1
gpgkey=file:///etc/pki/rpm-gpg/RPM-GPG-KEY-CentOS-7

#released updates
[updates]
name=CentOS-$releasever - Updates
baseurl=https://mirrors.tuna.tsinghua.edu.cn/centos/$releasever/updates/$basearch/
#mirrorlist=http://mirrorlist.centos.org/?release=$releasever&arch=$basearch&repo=updates
gpgcheck=1
gpgkey=file:///etc/pki/rpm-gpg/RPM-GPG-KEY-CentOS-7

#additional packages that may be useful
[extras]
name=CentOS-$releasever - Extras
baseurl=https://mirrors.tuna.tsinghua.edu.cn/centos/$releasever/extras/$basearch/
#mirrorlist=http://mirrorlist.centos.org/?release=$releasever&arch=$basearch&repo=extras
gpgcheck=1
gpgkey=file:///etc/pki/rpm-gpg/RPM-GPG-KEY-CentOS-7

#additional packages that extend functionality of existing packages
[centosplus]
name=CentOS-$releasever - Plus
baseurl=https://mirrors.tuna.tsinghua.edu.cn/centos/$releasever/centosplus/$basearch/
#mirrorlist=http://mirrorlist.centos.org/?release=$releasever&arch=$basearch&repo=centosplus
gpgcheck=1
enabled=0
gpgkey=file:///etc/pki/rpm-gpg/RPM-GPG-KEY-CentOS-7

更新软件包缓存 ： yum makecache

（2）所有机器上执行以下安装

yum  install   -y     epel-release
yum install     -y     centos-release-openstack-queens

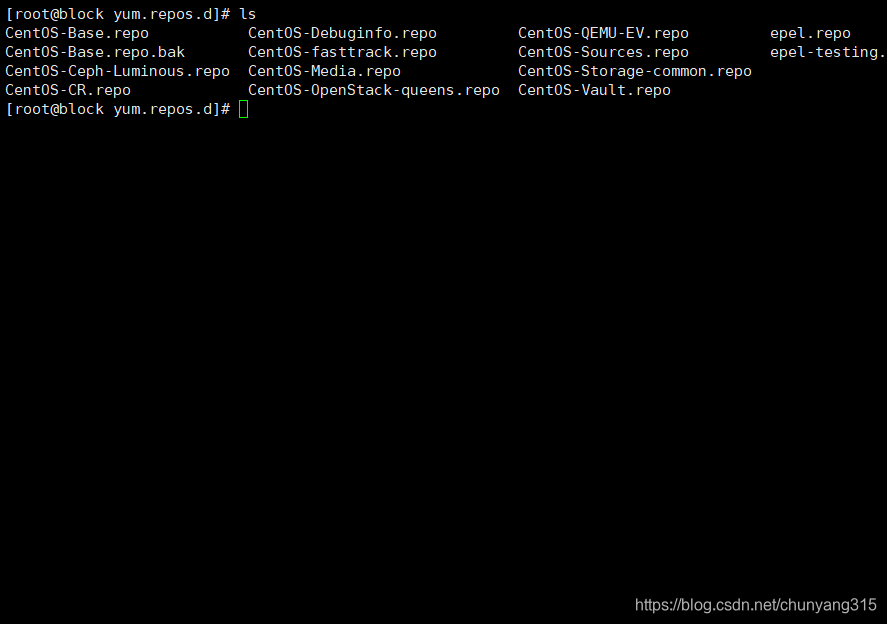

出现以下几个源

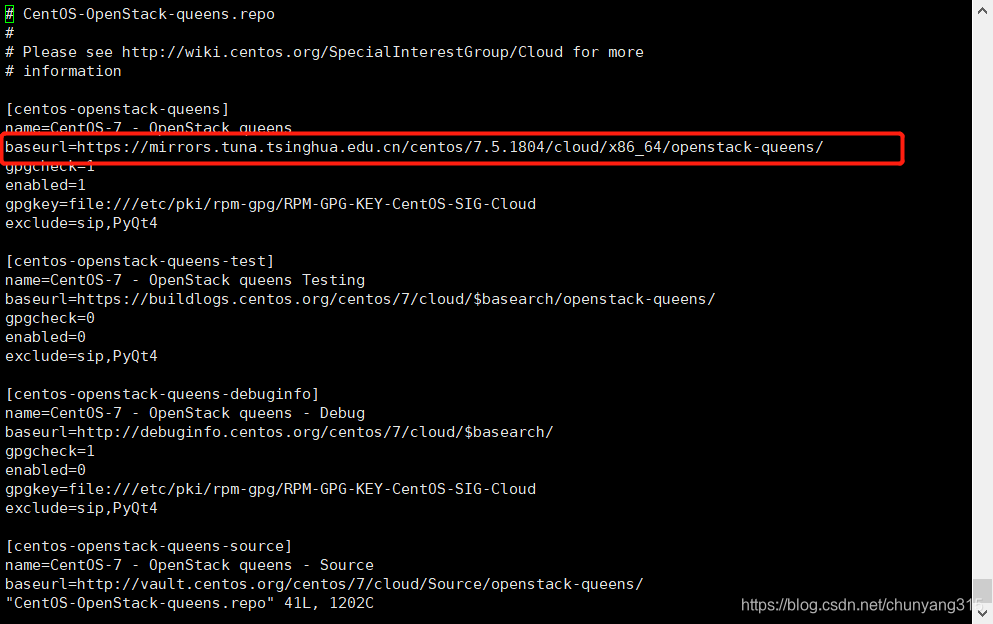

将CentOS-OpenStack-queens.repo换成清华源

将CentOS-Ceph-Luminous.repo也进行替换

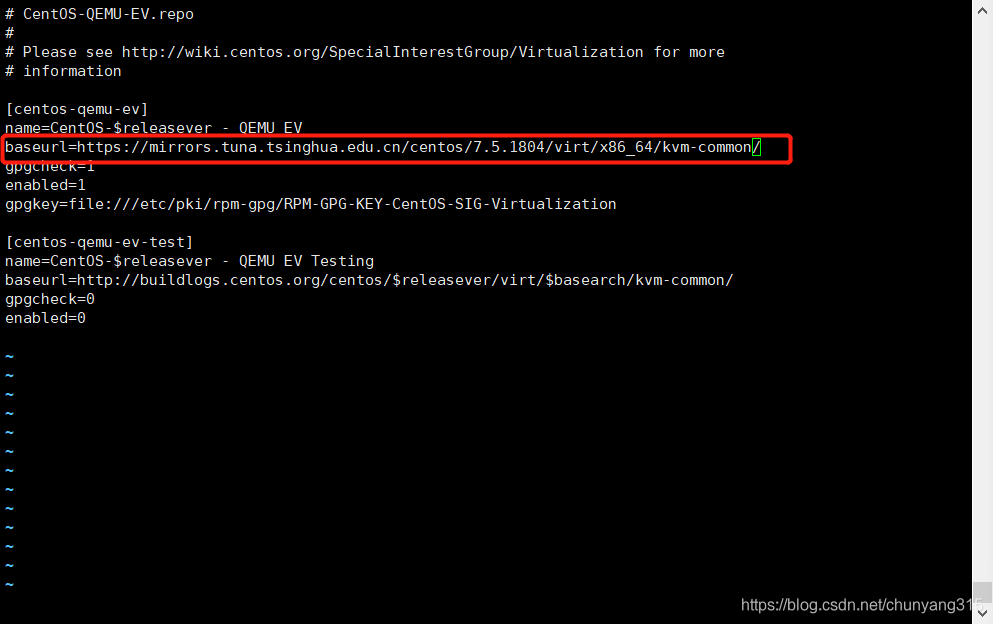

将CentOS-QEMU-EV.repo 进行替换

将epel.repo进行替换

[epel]
name=Extra Packages for Enterprise Linux 7 - $basearch
baseurl=https://mirrors.tuna.tsinghua.edu.cn/epel/7/$basearch
#mirrorlist=https://mirrors.fedoraproject.org/metalink?repo=epel-7&arch=$basearch
failovermethod=priority
enabled=1
gpgcheck=1
gpgkey=file:///etc/pki/rpm-gpg/RPM-GPG-KEY-EPEL-7

[epel-debuginfo]
name=Extra Packages for Enterprise Linux 7 - $basearch - Debug
baseurl=https://mirrors.tuna.tsinghua.edu.cn/epel/7/$basearch/debug
#mirrorlist=https://mirrors.fedoraproject.org/metalink?repo=epel-debug-7&arch=$basearch
failovermethod=priority
enabled=0
gpgkey=file:///etc/pki/rpm-gpg/RPM-GPG-KEY-EPEL-7
gpgcheck=1

[epel-source]
name=Extra Packages for Enterprise Linux 7 - $basearch - Source
baseurl=https://mirrors.tuna.tsinghua.edu.cn/epel/7/SRPMS
#mirrorlist=https://mirrors.fedoraproject.org/metalink?repo=epel-source-7&arch=$basearch
failovermethod=priority
enabled=0
gpgkey=file:///etc/pki/rpm-gpg/RPM-GPG-KEY-EPEL-7
gpgcheck=1

运行 yum update 测试一下

（3）所有机器安装以下2个包

yum install    -y    openstack-selinux
yum install    -y  python-openstackclient

安装SQL database

1. 控制节点（controller）上进行安装

yum install –y mariadb mariadb-server  python2-PyMySQL

2. 创建/etc/my.cnf.d/openstack.cnf文件并写入以下内容（controller）

bind-address = 192.168.142.135  # 控制节点的管理IP
default-storage-engine = innodb
innodb_file_per_table = on
max_connections = 4096
collation-server = utf8_general_ci
character-set-server = utf8

3. 将mariadb服务加入开机启动项并启动股服务

systemctl enable mariadb.service    &&     systemctl  start    mariadb.service

4. 服务启动后使用ps 或是status 查看服务是否已启动，如果正常启动则进行“初始化mysql的设置”

mysql_secure_installation

执行后会有一些交互

Enter current password for root (enter for none):   #点击回车

Set root password ？[Y/n] y   #设置密码

Remove anonymous users? [Y/n] y  #移除匿名用户

Disallow root login remotely? [Y/n] n  # 不允许远程登录


 Remove test database and access to it? [Y/n] y  #删除测试数据并访问它


Reload privilege tables now? [Y/n] y  #重新加载

5. 设置完成登录进行验证openstack


安装消息队列

1. 控制节点（controller ）进行安装

 yum install -y rabbitmq-server

2. 安装完成后加入开机启动项并启动服务

systemctl enable rabbitmq-server.service   &&  systemctl   start  rabbitmq-server.service

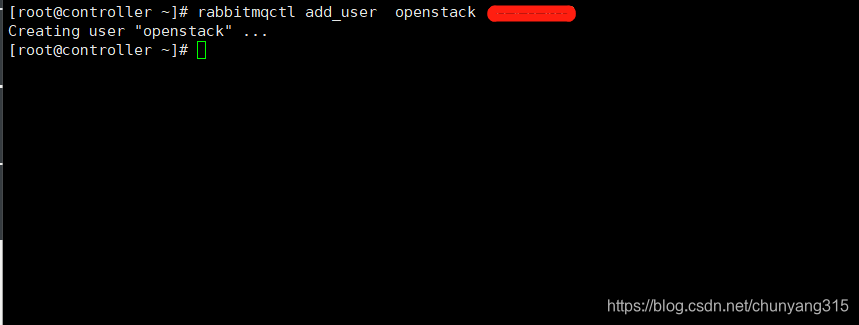

3. 添加openstack用户进入消息队列中

rabbitmqctl  add_user  openstack  openstack   //用户  密码

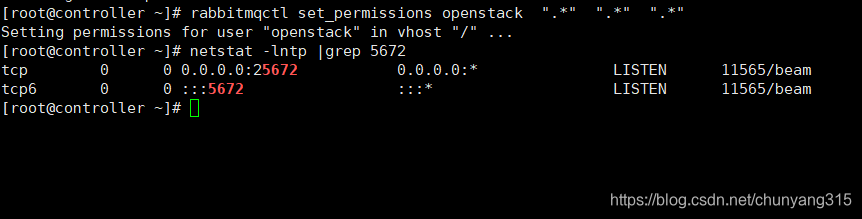

4. 为openstack用户添加读写权限

rabbitmqctl set_permissions openstack  ".*"  ".*"  ".*"

安装memcached

1. 控制节点（controller）进入安装

yum install    -y   memcached python-memcached

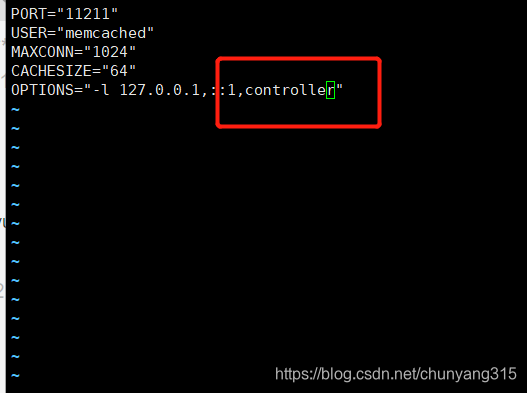

2. 编辑配置文件修改内容如下
   vi /etc/sysconfig/memcached

   3. 服务设置为开机启动项并开启服务

systemctl enable memcached.service  && systemctl start memcached.service

安装etcd服务
etcd服务主要存储一些服务的基础信息

1. 控制节点（controller）进行安装

yum -y install etcd

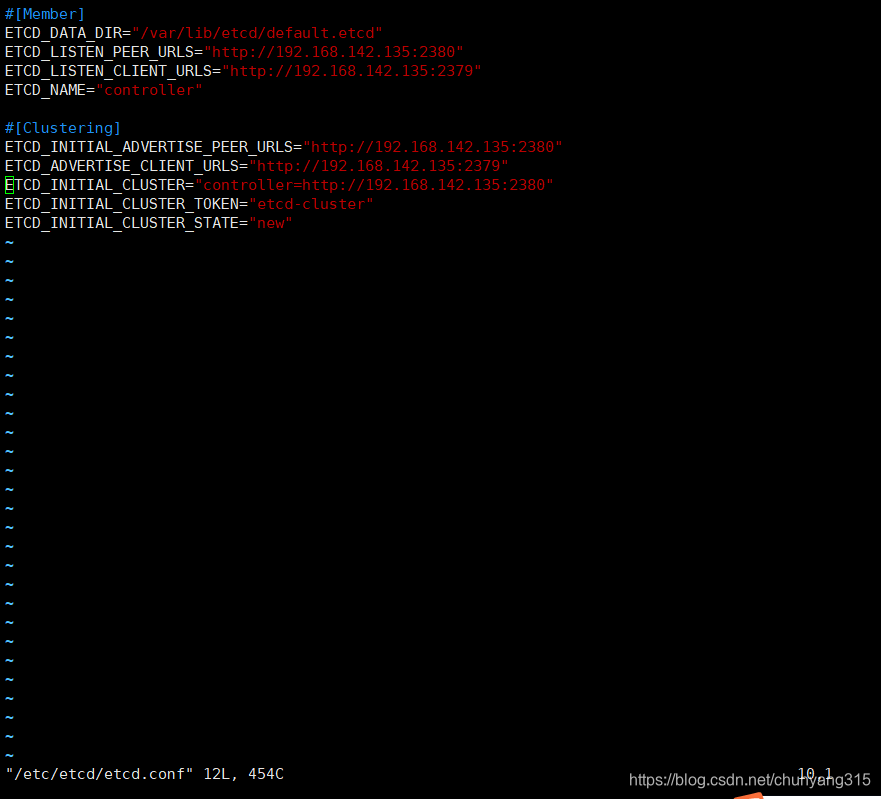

2. 修改配置文件如下

vim /etc/etcd/etcd.conf

3. 设置开机启动项并启动服务

systemctl enable etcd && systemctl start etcd
