MHA搭建实战

操作系统 :
debian5.0.2

数据库版本:
mysql5.0.51a

结构:
manager : 192.168.1.136(M1)

master : 192.168.1.20:3306(N1)
slave1 :  192.168.1.20:3307(N2)
slave2 :  192.168.1.20:3308(N3)
slave3 :  192.168.1.20:3309(N4)

软件包准备:
mha4mysql-manager_0.55-1_all.deb(还有对应的二进制包,源码包)
mha4mysql-node_0.54-1_all.deb

准备就绪:
①安装依赖包
apt-get install libdbd-mysql-perl
apt-get install libconfig-tiny-perl
apt-get install liblog-dispatch-perl
apt-get install libparallel-forkmanager-perl
centos版(yum install perl-DBD-MySQL perl-Config-Tiny perl-Log-Dispatch perl-Parallel-ForkManager)

②安装mha manager包和node包
M1:dpkg -i  mha4mysql-manager_0.55-1_all.deb
N1:dpkg -i mha4mysql-node_0.54-1_all.deb
N2:dpkg -i mha4mysql-node_0.54-1_all.deb
N3:dpkg -i mha4mysql-node_0.54-1_all.deb
N4:dpkg -i mha4mysql-node_0.54-1_all.deb

③主机信任(由于公司环境的原因,这里使用的是mysql用户)
M1:
#su mysql
#ssh-keygen -t rsa
#cat ~/.ssh/id_rsa.pub
将公钥内容添加到N1,N2,N3,N4的对应用户(这里是mysql用户)下的./ssh/authorized_keys下即可实现M1到N1,N2,N3,N4的免密登录。
另外,这里踩了个坑,就是免密登录的server端(N1,N2,N3,N4)即/etc/ssh/sshd_config文件必须开启公钥登录

免密登录的client端(M1)即/etc/ssh/ssh_config文件不能关闭公钥登录(这个参数设置之后在公司环境下貌似还是不能免密登录,最后用了默认配置就可以了)

N1,N2,N3,N4节点之间也互相信任

2016-12-4 22:44:12 ADD
ssh客户端得注释以下参数 才能免密登录
PreferredAuthentications password

③新建mysql mha管理账户,mysql repl复制用户



④新建mha工作目录
M1 :mkdir -p /opt/mha_manager/log  chown -R mysql /opt/mha_manager
N1~N4:mkdir -p /opt/mha_node        chown -R mysql /opt/mha_node

⑤配置manager
M1:
#mkdir  -p /etc/mha
#cat /etc/mha/app1.conf

点击(此处)折叠或打开

  1. manager_workdir=/opt/mha_manager_work
  2. manager_log=/opt/mha_manager_work/log/app1.log
  3. remote_workdir=/opt/mha_node
  4. user=mha
  5. password=pwd@mha
  6. ping_interval=2
  7. repl_user=repl
  8. repl_password=repl
  9. ssh_user=mysql
  10. ssh_port=56000

  11. #master_ip_failover_script=/usr/bin/masterha_ip_failover

  12. [server1]
  13. hostname=192.168.1.20
  14. port=3306
  15. master_binlog_dir=/opt/3306
  16.
  17. [server2]
  18. hostname=192.168.1.20
  19. port=3307
  20. master_binlog_dir=/opt/3307
  21.
  22. [server3]
  23. hostname=192.168.1.20
  24. port=3308

  25. [server4]
  26. hostname=192.168.1.20
  27. port=3309
③相关测试

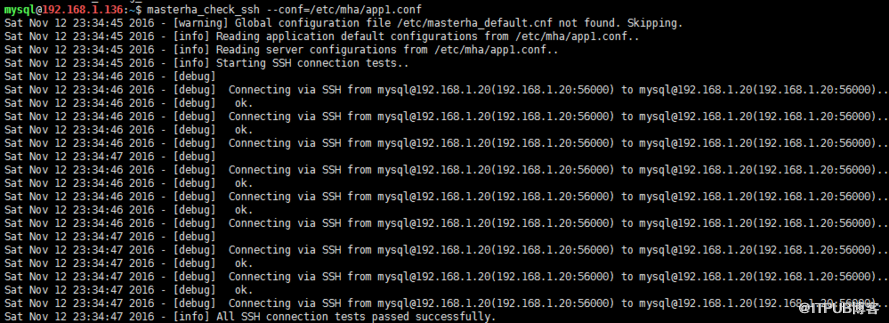

1> ssh信任测试

由上图可知,ssh没问题

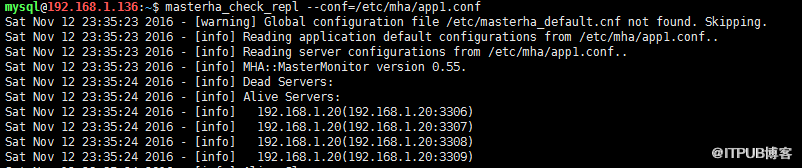

2>repl复制测试

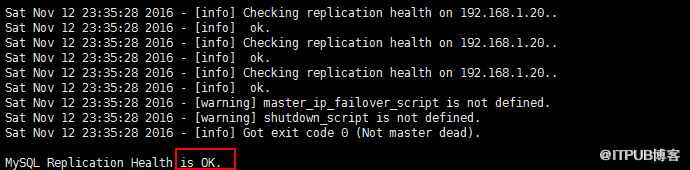

有上图可知复制没有问题。

若以下报错:
Error happend on checking configurations. SSH Configuration Check Failed!
表明 ssh账户(这里是mysql)对某些目录文件没有权限
  1. manager_workdir=/opt/mha_manager_work
  2. manager_log=/opt/mha_manager_work/log/app1.log
  3. remote_workdir=/opt/mha_node
对以上的配置文件更改属主为ssh信任账户(这里是mysql)


另外(源码安装的mysql注意):
    mha远程登录操作mysql的时候默认用不到/usr/local/mysql/bin下面的mysql 以及 mysqlbinlog会报相应的错误信息,
这个时候我们需要做如下操作
#ln -s /usr/local/mysql/bin/mysqlbinlog /usr/bin/mysqlbinlog
#ln -s /usr/local/mysql/bin/mysql /usr/bin/mysql

④开启manager

这里要注意的是,不要后台启动,即不要以 masterha_manager --conf=/etc/mha/app1.conf & 形式启动,不然会报错退出。我们前台启动,然后ctrl+z , bg放入后台。

至此,整个搭建过程完毕。

注意事项:
①slave最好设置 read_only=1 relay_log_purge=0,利用定时任务删除relay_log;
②mha进行failover之后会在app1.log中记录相应的chang master to master_xxx等信息,因此我们可以通过这条信息手动将 所 宕 m a s t e r连接到新主;
③可以使用(masterha_master_switch --master_state=alive --conf=/etc/mha/app1.cnf)进行手动切换主,然后将新主手动添加作为老主的从(步骤2),注意mha manager必须处于关闭状态(masterha_check_status --conf=xxx);
④我们可以在app1.conf配置主库宕机后vip的飘逸脚本( master_ip_failover_script=/usr/bin/masterha_ip_failover),但是第一次必须得自己手动在master添加vip.


附 masterha_ip_failover脚本

点击(此处)折叠或打开

  1. #!/usr/bin/env perl

  2. # Copyright (C) 2011 DeNA Co.,Ltd.
  3. #
  4. # This program is free software; you can redistribute it and/or modify
  5. # it under the terms of the GNU General Public License as published by
  6. # the Free Software Foundation; either version 2 of the License, or
  7. # (at your option) any later version.
  8. #
  9. # This program is distributed in the hope that it will be useful,
  10. # but WITHOUT ANY WARRANTY; without even the implied warranty of
  11. # MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the
  12. # GNU General Public License for more details.
  13. #
  14. # You should have received a copy of the GNU General Public License
  15. # along with this program; if not, write to the Free Software
  16. # Foundation, Inc.,
  17. # 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA

  18. ## Note: This is a sample script and is not complete. Modify the script based on your environment.

  19. use strict;
  20. use warnings FATAL => 'all';

  21. use Getopt::Long;

  22. my (
  23.     $command, $ssh_user, $orig_master_host, $orig_master_ip,
  24.     $orig_master_port, $new_master_host, $new_master_ip, $new_master_port
  25. );

  26. my $vip = '192.168.1.111/24';
  27. my $key = '0';
  28. my $ssh_start_vip = "sudo /sbin/ifconfig eth1:$key $vip";
  29. my $ssh_stop_vip = "sudo /sbin/ifconfig eth1:$key down";
  30. #my $ssh_Bcast_arp = "/usr/bin/arping -c 3 -A 10.1.99.233"; #ARP回复模式,更新邻居。要是不加则服务器会自动等到vip缓存失效,期间VIP会有一定时间的不可用。

  31. GetOptions(
  32.     'command=s' => \$command,
  33.     'ssh_user=s' => \$ssh_user,
  34.     'orig_master_host=s' => \$orig_master_host,
  35.     'orig_master_ip=s' => \$orig_master_ip,
  36.     'orig_master_port=i' => \$orig_master_port,
  37.     'new_master_host=s' => \$new_master_host,
  38.     'new_master_ip=s' => \$new_master_ip,
  39.     'new_master_port=i' => \$new_master_port,
  40. );

  41. exit &main();

  42. sub main {

  43.     print "\n\nIN SCRIPT TEST====$ssh_stop_vip==$ssh_start_vip===\n\n";

  44.     if ( $command eq "stop" || $command eq "stopssh" ) {

  45.         my $exit_code = 1;
  46.         eval {
  47.             print "Disabling the VIP on old master: $orig_master_host \n";
  48.             &stop_vip();
  49.             $exit_code = 0;
  50.         };
  51.         if ($@) {
  52.             warn "Got Error: $@\n";
  53.             exit $exit_code;
  54.         }
  55.         exit $exit_code;
  56.     }
  57.     elsif ( $command eq "start" ) {

  58.         my $exit_code = 10;
  59.         eval {
  60.             print "Enabling the VIP - $vip on the new master - $new_master_host \n";
  61.             &start_vip();
  62.            # &start_arp();
  63.             $exit_code = 0;
  64.         };
  65.         if ($@) {
  66.             warn $@;
  67.             exit $exit_code;
  68.         }
  69.         exit $exit_code;
  70.     }
  71.     elsif ( $command eq "status" ) {
  72.         print "Checking the Status of the script.. OK \n";
  73.         exit 0;
  74.     }

  75.     else {
  76.         &usage();
  77.         exit 1;
  78.     }
  79. }

  80. sub start_vip() {
  81.     `ssh -p56000 $ssh_user\@$new_master_host \" $ssh_start_vip \"`;
  82. }
  83. #sub start_arp() {
  84. # `ssh $ssh_user\@$new_master_host \" $ssh_Bcast_arp \"`;
  85. #}
  86. sub stop_vip() {
  87.     `ssh -p56000 $ssh_user\@$orig_master_host \" $ssh_stop_vip \"`;
  88. }

  89. sub usage {
  90.   print
  91. "Usage: master_ip_failover --command=start|stop|stopssh|status --orig_master_host=host --orig_master_ip=ip --orig_master_port=port --new_master_host=host --new_master_ip=ip --new_master_port=port\n";
  92. }



来自 “ ITPUB博客 ” ,链接:http://blog.itpub.net/31385648/viewspace-2128352/,如需转载,请注明出处,否则将追究法律责任。

转载于:http://blog.itpub.net/31385648/viewspace-2128352/
