killdisk如何使用
KillDisk is a software used to erase and wipe disk securely and completely on operating systems like Windows, MacOSX, Linux. KillDisk can be used from inside the operating system or by booting the KillDisk without an operating system. It is also called as Hard Drive Eraser
by its developer.
KillDisk是用于在Windows,MacOSX,Linux等操作系统上安全,彻底地擦除和擦除磁盘的软件。 可以从操作系统内部使用KillDisk,也可以在没有操作系统的情况下启动KillDisk。 它的开发人员也将其称为“ Hard Drive Eraser
。
KillDisk功能 (KillDisk Features)
KillDisk provides a lot of different features for different versions. Paid versions have business or enterprise level features like support, batch mode, etc. In this tutorial, we will just look to the KillDisk Freeware which is free.
KillDisk为不同的版本提供了许多不同的功能。 付费版本具有业务或企业级别的功能,如支持,批处理模式等。在本教程中,我们将仅看一下免费的KillDisk免费软件。
- Erase multiple devices at once 一次擦除多个设备
- Support for Windows, Linux and MacOSX operating systems支持Windows,Linux和MacOSX操作系统
- Support for Hard drives over 4 TB in size支持大小超过4 TB的硬盘
- Optionally erase only free space(可选)仅擦除可用空间
- Support for different disk technologies like SSD支持不同的磁盘技术,例如SSD
下载Windows的KillDisk (Download KillDisk For Windows)
We will download the killdisk from the following link. KillDisk is provided in different prices and features where we will use the KillDisk for Home
as Freeware version.
我们将从以下链接下载killdisk。 KillDisk以不同的价格和功能提供,我们将使用KillDisk for Home
版作为免费版本。
https://www.killdisk.com/eraser.html
https://www.killdisk.com/eraser.html
![Download KillDisk For Windows](https://i-blog.csdnimg.cn/blog_migrate/7244bf54c7da2ca88b691c5e479d0a83.png)
安装KillDisk (Install KillDisk)

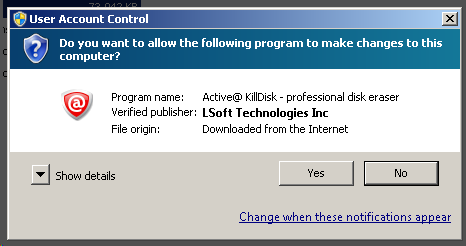

We will click to the downloaded exe which will request Admin right with the following screen. We will click to the Yes
.
我们将点击到下载的exe,它将在以下屏幕上请求Admin权限。 我们将单击“ Yes
。
![](https://i-blog.csdnimg.cn/blog_migrate/882570f08ba1e1ea788c4300b562c2a4.png)

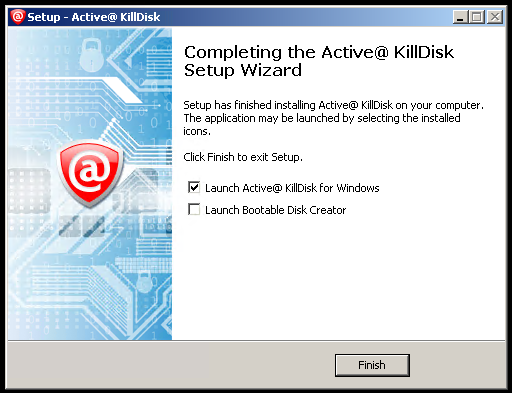

After that, we will follow standard Windows Next
->Next
procedure.
之后,我们将遵循标准的Windows Next
> Next
步骤。
![Start Installation](https://i-blog.csdnimg.cn/blog_migrate/03d1595b0bcf87d2d85a92a94091e344.png)
![Accept License](https://i-blog.csdnimg.cn/blog_migrate/6aa326cb0e2b8848a8920db71ebc9938.png)
![Select Installation Path](https://i-blog.csdnimg.cn/blog_migrate/f4b611db5e4270a3d39f996a1c1cdd74.png)
![Installation In Progress](https://i-blog.csdnimg.cn/blog_migrate/a663d4308d560688d6aa622205b46b98.png)
![Finish](https://i-blog.csdnimg.cn/blog_migrate/790030f4af65397439e1eefa39c9469c.png)

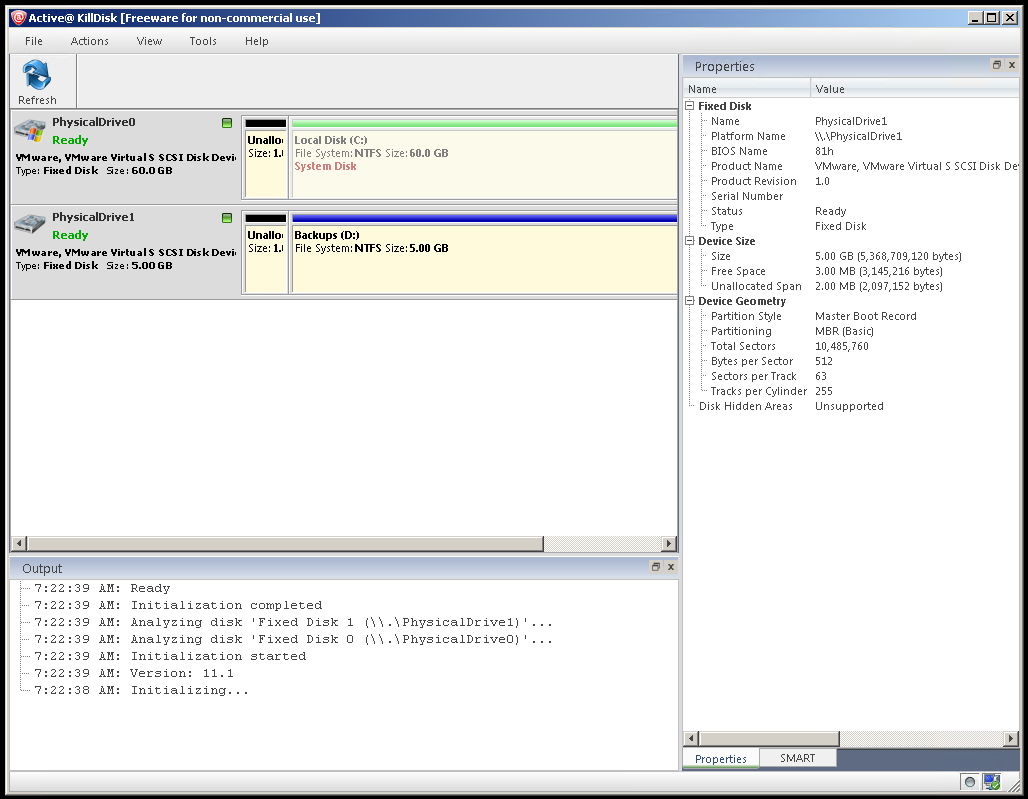

KillDisk主屏幕(KillDisk Main Screen)
The KillDisk application provides GUI which can be used to erase and wipe the disk. We can see that currently attached disks are listed in the main pain. In the left sidebar properties about the selected disk is listed. There is also an output pane on the bottom which will provide information about the operations like erase and wipe.
KillDisk应用程序提供了可用于擦除和擦除磁盘的GUI。 我们可以看到,当前挂接的磁盘列出了主要问题。 在左侧边栏中,列出了有关所选磁盘的属性。 底部还有一个输出窗格,它将提供有关擦除和擦除之类的操作的信息。
![KillDisk Main Screen](https://i-blog.csdnimg.cn/blog_migrate/e94e2fe90ad1029902229435e675b13a.png)
磁盘属性(Disk Properties)
Selected disk properties are listed in the left sidebar like below. The following information is provided about the selected disk.
选定的磁盘属性在左侧边栏中列出,如下所示。 提供有关所选磁盘的以下信息。
- `Name` is the disk technical name “名称”是磁盘的技术名称
- `Platform Name` is the disk technical path“平台名称”是磁盘技术路径
- `BIOS Name` is the disk partition formatBIOS名称是磁盘分区格式
- `Product Name` is the disk manufacturer and vendor name“产品名称”是磁盘制造商和供应商名称
- `Serial Number``序列号`
- `Product Version` 产品版本
- `Status` show current working status状态显示当前工作状态
- `Type` is the HDD type类型是硬盘类型
- `Device Size` provides size information about disk or partition设备大小提供有关磁盘或分区的大小信息
- `Size``大小`
- `Free Space` 自由空间
- `Unallocated Span``未分配的跨度`
- `Device Geometry` is about disk logical properties 设备几何是关于磁盘逻辑属性的
- `Partition Style` is partition type which is MBR in this example“分区样式”是分区类型,在此示例中为MBR
- `Total Sectors` `总部门`
- `Bytes per Sector` 每个扇区的字节数
![Disk Properties](https://i-blog.csdnimg.cn/blog_migrate/772d36bb09cf6cf5c641fea01771c80b.png)
擦拭磁盘(Wipe Disk)
We can wipe a specific disk or partition first selecting partition like below. In this example, we will select the PhysicalDrive1
or D
. Then we will click to the Wipe Disk
from the menu bar.
我们可以先擦除特定磁盘或分区,然后再选择分区,如下所示。 在此示例中,我们将选择PhysicalDrive1
或D
然后,我们将从菜单栏中单击“ Wipe Disk
”。
![Start Wipe](https://i-blog.csdnimg.cn/blog_migrate/5d8897133722bf81f863466cae3f9fe0.png)
We will see the following screen which provides the wipe configuration. We can start the wipe operation just by clicking the Start
button. Following wipe configuration can be set;
我们将看到以下屏幕,其中提供了擦除配置。 我们只需单击“ Start
按钮即可开始擦除操作。 可以设置以下擦除配置;
- `Erase method` will be select which type of data will be overwritten to the current data. In this case, one time pass zeros. 将选择“擦除方法”,将哪种类型的数据覆盖为当前数据。 在这种情况下,一次传递零。
- `Verify Erasure of` will specify the verify size after the wipe completed. “验证擦除数”将指定擦除完成后的验证大小。
- `Wipe unused clusters` will wipe the unused disk area “擦除未使用的群集”将擦除未使用的磁盘区域
- `Wipe metadata and system files area` will wipe specially allocated file system and metadata area“擦除元数据和系统文件区域”将擦除专门分配的文件系统和元数据区域
- `Wipe slack space in file clusters`擦除文件集群中的松弛空间
![Start Wipe Disk](https://i-blog.csdnimg.cn/blog_migrate/74d0697fc2738fee409c3fbd4a88edd6.png)
When the wipe starts we will see the following screen where the wiped disk progress will be shown. We can see the completed percentage, time to left etc.
开始擦除后,我们将看到以下屏幕,其中将显示擦除磁盘的进度。 我们可以看到完成的百分比,剩余时间等。
![Wiping in Progress](https://i-blog.csdnimg.cn/blog_migrate/a75292b43ce093d572f5c0775aec585b.png)
After the wipe operation is complete we will see the following result screen which provides some information about the wipe operation result. The following information is provided with this result.
擦除操作完成后,我们将看到以下结果屏幕,其中提供了有关擦除操作结果的一些信息。 结果提供了以下信息。
- `Wiping` status 清除状态
- `Errors`错误
- `Erase Method`擦除方法
- `Elapsed`过去了
![Wipe Operation Result](https://i-blog.csdnimg.cn/blog_migrate/d60771b67a4b30a557ce1ba248548c27.png)
擦除磁盘(Erase Disk)

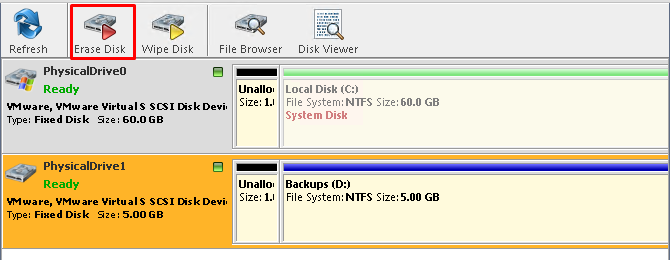

We can erase the by selecting disk and clicking Erase Disk
button like below.
我们可以通过选择磁盘并单击“ Erase Disk
按钮来Erase Disk
如下所示。
![](https://i-blog.csdnimg.cn/blog_migrate/908cb0519b5dbda232f8f181237c15c1.png)
We will see the following erase disk configuration screen. We can set similar configuration like Wipe Disk.
我们将看到以下擦除磁盘配置屏幕。 我们可以设置类似“擦除磁盘”的配置。
![Erase Disk Configuration](https://i-blog.csdnimg.cn/blog_migrate/b50ed568214107fff322c262613db7be.png)
Befıre erasing all disk data we need to confirm this action. We need to the printed KEyphrase to the Type keyphrase
box like below. then we will click to the OK
.
在擦除所有磁盘数据之前,我们需要确认此操作。 我们需要将KEyphrase打印到Type keyphrase
框中,如下所示。 然后单击OK
。
![Confirm Erase](https://i-blog.csdnimg.cn/blog_migrate/870d554b189cef1111dbe8a4b1ce3331.png)
During the disk or partition erase we will see the progress like below which will provide information like completed percentage, time left etc.
在磁盘或分区擦除过程中,我们将看到如下所示的进度,其中将提供诸如完成百分比,剩余时间等信息。
![Erase Disk Progress](https://i-blog.csdnimg.cn/blog_migrate/e8aebe36f49bbbb189c3ccfcdbbeb7e1.png)
After the erase is completed we will see the following result screen which provide some information about the erase.
擦除完成后,我们将看到以下结果屏幕,其中提供了有关擦除的一些信息。
![Disk Erase Result](https://i-blog.csdnimg.cn/blog_migrate/258095d2fef5273cbf6e4367d010fc9c.png)
查看原始磁盘数据(View Raw Disk Data)
We can also use KillDisk in order to see disk data in raw mode. Raw mode means no structure or presentation just the hexadecimal value. We will click to the Disk Viewer
after selecting the disk like below.
我们还可以使用KillDisk来以原始模式查看磁盘数据。 原始模式表示没有结构或表示形式只是十六进制值。 选择如下所示的Disk Viewer
后,我们将单击“ Disk Viewer
。
![View Raw Disk Data](https://i-blog.csdnimg.cn/blog_migrate/b824850d3b90eb0c7958b7eb087a9745.png)
Following screen or tab will be opened which shows the disk data in raw with offset address and ASCII presentation.
将打开以下屏幕或选项卡,其中以偏移地址和ASCII表示形式原始显示磁盘数据。
![Raw Disk Data](https://i-blog.csdnimg.cn/blog_migrate/9d6d21323cb28a94e3572cbe44bf2d72.png)

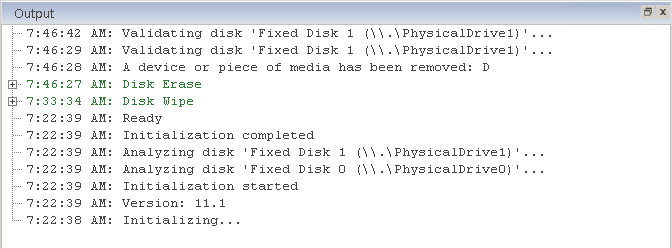

擦除,擦除操作日志(Wipe, Erase Operation Logs)
All operations about the KillDisk are logged and printer in the Output
pane like below. We can see the operations like Disk Erase
, Disk Wipe
, Analyzing
etc.
如下所示,有关KillDisk的所有操作均已记录并在“ Output
窗格中进行打印机打印。 我们可以看到Disk Erase
, Disk Wipe
, Analyzing
等操作。
![Wipe, Erase Operation Logs](https://i-blog.csdnimg.cn/blog_migrate/4133158b5f388c6f72c552adc6b83fc4.png)
翻译自: https://www.poftut.com/killdisk-erase-and-wipe-disk-securely-and-completely-on-windows/
